Citroen JUMPER RHD 2011.5 2.G Owner's Manual

YOUR HANDBOOK
ON THE INTERNET!


CITROËN lets you view your vehicle's
documentation on line, to see earlier versions
and the latest information, simply and free of
charge.
Connect to http://service.citroen.com
:
1|
Select your language and register,
click on the link in the "Private customer access" zone to consult
the vehicle documentation; a window opens providing access to all of
the handbooks,
select your vehicle, choose the body type then the date of issue of
the handbook,
fi nally, click on the heading of your choice.
2|
3 |
4 |

Your vehicle is fitted with only some of the
equipment described in this document,
depending on the trim level, version and the
specifications for the country in which it is sold.
The fitting of electrical equipment or accessories
which are not recommended by CITROËN may
result in a failure of your vehicle's electronic
system. Please note this specific warning and
contact a CITROËN dealer to be shown the
recommended equipment and accessories.
CITROËN has a presence on every continent,
a complete product range,
bringing together technology and a permanent spirit of innovation,
for a modern and creative approach to mobility.
We thank you and congratulate you on your choice.


Happy motoring!

We draw your attention to the following...

At the wheel of your new vehicle,
getting to know each system,
each control, each setting,
makes your trips, your journeys
more comfortable and more enjoyable.


For any work on your vehicle, use a qualified
workshop that has the technical information,
competence and equipment required, which
a CITROËN dealer is able to provide.

2

Contents
3. EASE OF USE andCOMFORT 41-73
Lighting controlstalk 42wipers 45Cruise control 46Demisting and defrosting49Manual heating/air conditioning 51Digital air conditioning 53Additional heating systems 55Rear Heating/Air Conditioning 55Programmableadditional heating 57Front seats 60Front bench seat 62Rear seats 63Crew cab 65Front fi ttings 66Rear fi ttings 70Mirrors 72Electric windows 73
Presentation4Exterior 5Access6Interior 8Sitting comfortably 10Seeing clearly 12Ventilation 14Monitoring 15Passenger safety 16Driving safely 17Eco-driving 18
1. FAMILIARISATION4-194. TECHNOLOGY onBOARD 74-110
Trip computer 74Mode 75Parking sensors 78Reversing camera 79Pneumatic suspension 81Tachograph 83Audio equipment 84Bluetooth hands-free system 93
2. READY to GO 20-40
Remote control 20Key 22Confi dential card 23Alarm 24Front - rear doors 25Load space 27Instrument panels 28Warning lamps 29Fuel gauge 36Temperature indicator 36Service indicator 37Lighting rheostat 37Gearbox andsteering wheel 38Starting and stopping 39Hill start assist 40
This symbol informs you of equipment which is specific to the combi model.
Sliding side windows. Rear heating/air conditioning.Rear seats/bench seats.

3
CONTENT
S

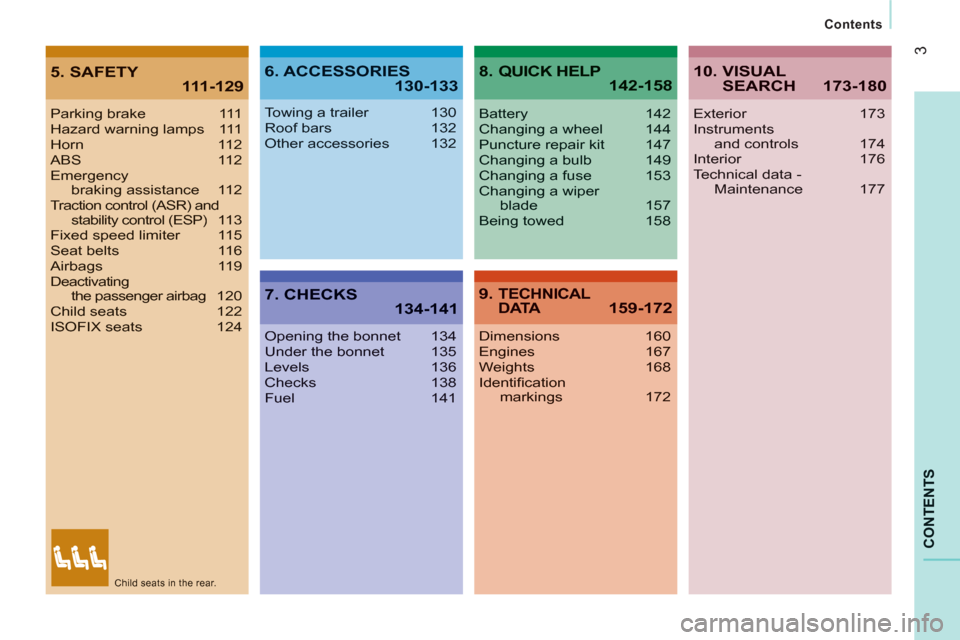

Contents
5. SAFETY111-1296. ACCESSORIES130-133
7. CHECKS 134-141
8. QUICK HELP 142-158
9. TECHNICALD ATA159-172A
Parking brake 111Hazard warning lamps 111Horn 112ABS 112Emergencybraking assistance 112Traction control (ASR) and stability control (ESP)113Fixed speed limiter 115Seat belts 116Airbags 119Deactivating the passenger airbag120Child seats 122ISOFIX seats 124
Towing a trailer 130Roof bars 132Other accessories 132
Opening the bonnet134Under the bonnet 135Levels 136Checks 138Fuel 141
Battery 142Changing a wheel 144Puncture repair kit 147Changing a bulb 149Changing a fuse 153Changing a wiper blade 157Being towed 158
Dimensions 160Engines 167Weights 168Identifi cationmarkings 172
10. VISUALSEARCH 173-180
Exterior 173Instrumentsand controls 174Interior 176Technical data - Maintenance 177
Child seats in the rear.

4
PRESENTATION

Within the chapters symbols draw your attention to specific
information: This handbook is designed to familiarise you with the new vehicle
from the moment you get behind the wheel and to describe the
operating features.
Reading the handbook is made easy by a content divided into
10 colour-coded chapters. Its sections cover, by theme, all of the
functions of the vehicle in its most complete specification.
Chapter 9 gives all of the technical data relating to your vehicle.
At the end of the document, diagrams of the outside and inside of
the vehicle will assist you in locating equipment or functions and
page numbers refer you to the relevant section of the handbook. directs you to the chapter and section which contains detailed
information concerning a function,
indicates important information relating to use of the equipment,
alerts you to the safety of individuals and equipment on board.

4
34
2
1
FAMILIARISATION
5
Familiarisation

Reversing camera
This system is activated automatically
when reverse gear is engaged, with a
visual return on a screen that takes the
place of the interior rear view mirror.

79


78

43



EXTERIOR


"Guide-me-home" welcome lighting
After switching off the ignition, when you
leave the vehicle, the front lamps remain
on for a short period.
Opening the rear doors to 180°
Once the vehicle has been unlocked, the
rear doors can be opened to 180° to make
unloading/loading operations easier.

Rear parking sensors
This system warns you if an obstacle is
detected behind the vehicle when reverse
gear is engaged.
26

222
6
Familiarisation

Sliding side door


Opening
Pull the handle towards you then towards
the rear.
Take care not to obstruct the guide space
on the floor so as to allow the door to slide
correctly.
Take care to open the door fully so as to
engage the latch at the bottom of the door.
Do not drive with the sliding side door open.

25


Remote control key

2 buttons
20

Manual centralised controls

27


ACCESS


3 buttons Unfolding/Folding the key.
Unlocking.
Locking.
Unfolding/Folding the key.
Unlocking the cab.
Unlocking the load space.
Locking the vehicle.
Locking the vehicle.
Unlocking the vehicle.
Locking/Unlocking the load space.

2271
FAMILIARISATION
7
Familiarisation

Opening
Pull the handle towards you.

Closing
To close, start with the left-hand door then
close the right-hand door.
Rear doors
Opening to 180°
Press the button, located on the door trim
panel, to widen the angle of opening of the
door.
Fuel tank
Opening the fuel filler flap.
Hooking the fuel filler cap.
Capacity of the fuel tank: approximately
90 litres.

26



ACCESS


26

141

8
Familiarisation
INTERIOR


Instruments and controls


1.
Fusebox.

2.
Programmable heating.

3.
Cruise control switch.
4.
MODE, configuration and
personalisation/lighting dimmer/
headlamp beam height adjustment.

5.
Lighting and direction indicator control
stalk.

6.
Instrument panel with screen.
7.
Wiper/screenwash/trip computer control
stalk.

8.
Ignition switch.

9.
Driver’s airbag/horn.
