Citroen JUMPER RHD 2011.5 2.G Owner's Manual

169
9
TECHNI
CAL DAT
A

Weights

*
15 inch wheels.

**
16 inch wheels.
Load transfer
If the towing vehicle has not reached the GVW, it is possible to transfer this weight to the trailer.
In all cases, do not exceed the trailer weight and GTW indicated.
Comply with the towing capacities of your vehicle.




TOWED LOADS


Body type
Engine
With braked trailer

Va n
30
HDi 100
2 000

HDi 120
2 500

HDi 160
2 500

HDi 180
-

33
HDi 100
2 000

HDi 120
2 500

HDi 160
2 500

HDi 180
-

35
HDi 100
2 000

HDi 120
2 500 *
3 000 **


HDi 160
2 500 *
3 000 **


HDi 180
-

435 / 440
HDi 120
2 500

HDi 160
2 500

HDi 180
-

17
0

Weights


TOWED LOADS


Body type
Engine
With braked trailer
Platform/Chassis
30
HDi 100
2 000

HDi 120
2 500

HDi 160
2 500

HDi 180
-

33
HDi 100
2 000

HDi 120
2 500

HDi 160
2 500

HDi 180
-

35
HDi 100
2 000

HDi 120
2 500 *
3 000 **


HDi 160
2 500 *
3 000 **


HDi 180
-
435/440
HDi 120
2 500

HDi 160
2 500

HDi 180
-

* 15 inch wheels.

** 16 inch wheels.

17
1
9
TECHNI
CAL DAT
A

Weights


TOWED LOADS


Body type
Engine
With braked trailer

Combi
30
HDi 100
2 000

HDi 120
2 500

HDi 160
2 500

HDi 180
-

33
HDi 100
2 000

HDi 120
2 500

HDi 160
2 500

HDi 180
-

172

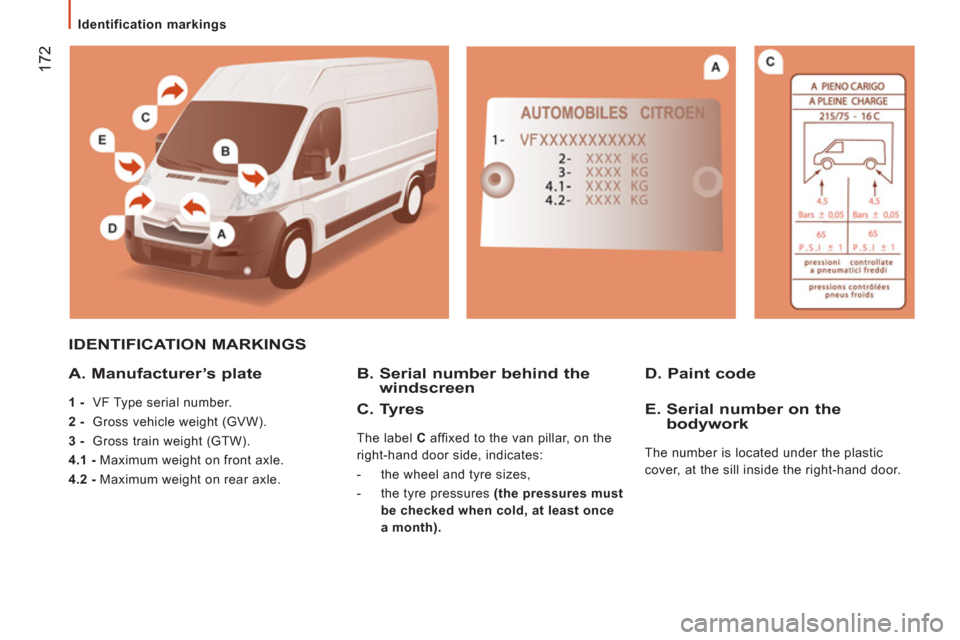

Identification markings

IDENTIFICATION MARKINGS

A. Manufacturer’s plate


1 -
VF Type serial number.

2 -
Gross vehicle weight (GVW).

3 -
Gross train weight (GTW).

4.1 -
Maximum weight on front axle.

4.2 -
Maximum weight on rear axle.
B. Serial number behind the
windscreen D. Paint code
C. T
yres
The label C
affixed to the van pillar, on the
right-hand door side, indicates:


- the wheel and tyre sizes,

- the tyre pressures (the pressures must
be checked when cold, at least once
a month).




E. Serial number on the
bodywork
The number is located under the plastic
cover, at the sill inside the right-hand door.

17
3


Exterior

10
VISUAL SEARCH
EXTERIOR
Rear lamps, direction indicators,3rd brake lamp,foglamps 34, 42, 149, 152
Left-hand side:fuel fi ller cap, fuel tank 141 Fuel cut-off 141
Load space 70-71 Rear doors 26
Number plate lamp 152
Parking sensors 78
Spare wheel, jack, changing a wheel, tools, puncture repair kit 144-148 Infl ating, pressures 172
Towing, lifting 158 Towbar, towball 130-131

Dimensions 160-166

Accessories 132-133
Roof bars 132

Brakes, pads 136, 138ABS, Electronic brake force distribution 11 2
EBA 112 ASR, ESP 113-114
Tyres, pressures 172
Pneumatic suspension 81

Key, remote control, battery 20-22 Starting 39-40
Central locking 27
Confi dential card 23
Alarm 24

Wiper blade 157
Door mirror 72
Side repeater 151

Front lamps, foglamps,direction indicators 149-151 Headlamp beam height adjustment 44
Headlamp wash 45 Changing bulbs 149-151
Opening/closing doors 25-27
Key 22 Opening the bonnet, stay 134
Mode - autoclose 76

174
Instruments and controls


INSTRUMENTS AND CONTROLS
Instrument panels, screens, speedometer 28Warning lamps, indicator lamps 29-35Indicators, gauge 36-37

Lighting controls 42
Automatic illumination of headlamps 43 Guide-me-home lighting 43 Sidelamps/park 44

Fuses 153-156

Mode, vehicle confi guration 74-77
Programmable additional heating 57-59 Additional heating,rear air conditioning 55-56
Pneumatic suspension 81 Headlamp beam height adjustment 44
Lighting dimmer 37 Setting the time 76

Front/rear wipers 45
Screenwash/headlamp wash 45
Trip computer - MODE 74-77

Starter, ignition switch 39
Hill start 40
Cruise control 46-48
Fixed speed limiter 115
Steering wheel, reach adjustment 38 Horn 112 Instruments and controls 8

Electric windows, mirrors 72-73
Locking the load space 27

17
5

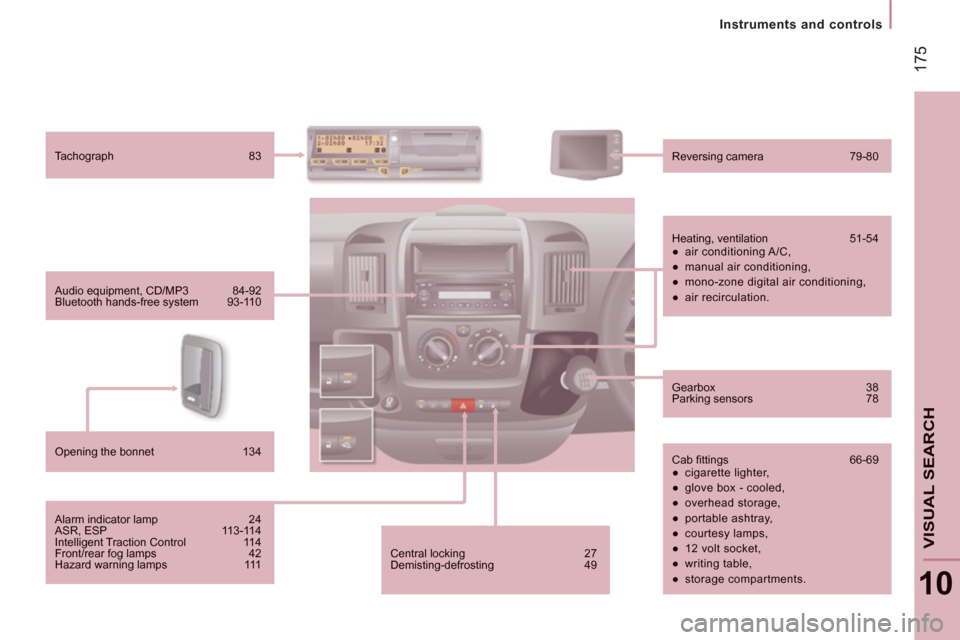

Instruments and controls
10
VISUAL SEARC
H
Central locking 27 Demisting-defrosting 49
Audio equipment, CD/MP3 84-92 Bluetooth hands-free system 93-110
Tachograph 83
Reversing camera 79-80

Heating, ventilation 51-54


●
air conditioning A/C,

●
manual air conditioning,

●
mono-zone digital air conditioning,

●
air recirculation.

Cab fi ttings 66-69


●
cigarette lighter,

●
glove box - cooled,

●
overhead storage,

●
portable ashtray,

●
courtesy lamps,

●
12 volt socket,

●
writing table,

●
storage compartments.

Gearbox 38
Parking sensors 78

Alarm indicator lamp 24
ASR, ESP 113-114 Intelligent Traction Control 114 Front/rear fog lamps 42 Hazard warning lamps 111
Opening the bonnet 134

17
6
Interior




Seat belts 116-117
Airbags 11 9-121
Deactivating the passenger airbag 120

Parking brake, handbrake 111
Seats, adjustments 60-61
Seat with variable damping 61
2-seat bench 62
Tools, jack 144ISOFIX mountings 124-126

Child seats 122-129
Courtesy lamps 71, 151
12 volt socket 70

Rear view mirror 72 Cab courtesy lamp 69, 151
Changing a courtesy lamp bulb 151

Load space 70-71


●
stowing rings,

●
load retainer,

●
roof box,

●
trims,

●
inspection lamp. Accessories 132-133

INTERIOR
Sliding side windows 71
Battery (+), charging, starting 142-143Earth point (-) 135

Reversing camera 79-80

Fuses in the right hand door pillar 155
Crew cab 65
Seats/rear bench seats 63-64
Rear heating/air conditioning 55-56

17
7

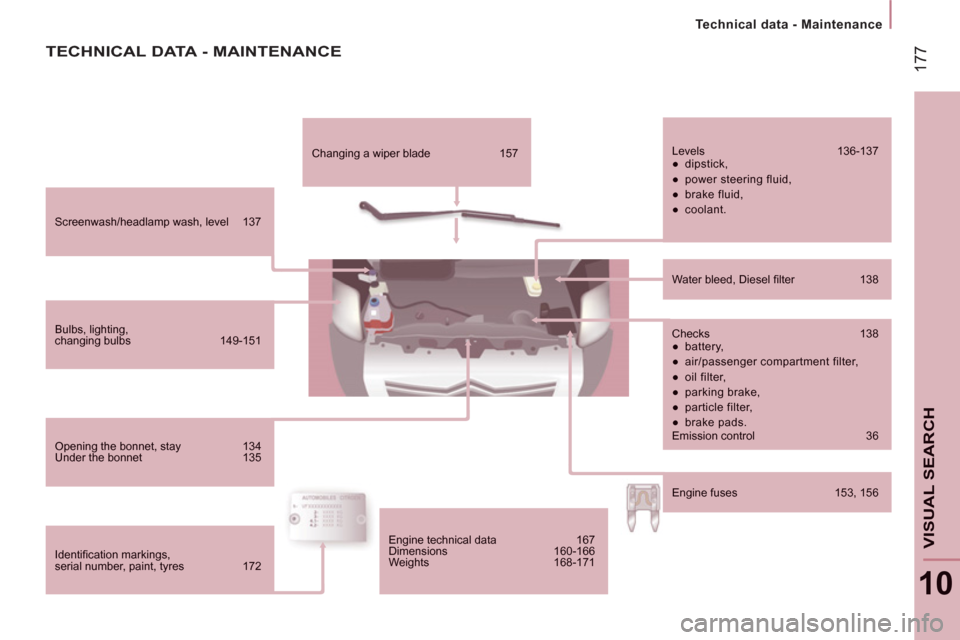

Technical data - Maintenance

10
VISUAL SEARC
H
Screenwash/headlamp wash, level 137
Bulbs, lighting,changing bulbs 149-151
Opening the bonnet, stay 134 Under the bonnet 135
Identifi cation markings,serial number, paint, tyres 172
Changing a wiper blade 157
Levels 136-137


●
dipstick,

●
power steering fluid,

●
brake fluid,

●
coolant.

Water bleed, Diesel fi lter 138
Checks 138


●
battery,

●
air/passenger compartment filter,

●
oil filter,

●
parking brake,

●
particle filter,

●
brake pads.
Emission control 36

Engine fuses 153, 156
TECHNICAL DATA - MAINTENANCE
Engine technical data 167 Dimensions 160-166 Weights 168-171
