Citroen JUMPER RHD 2016 2.G Owner's Manual

06.15

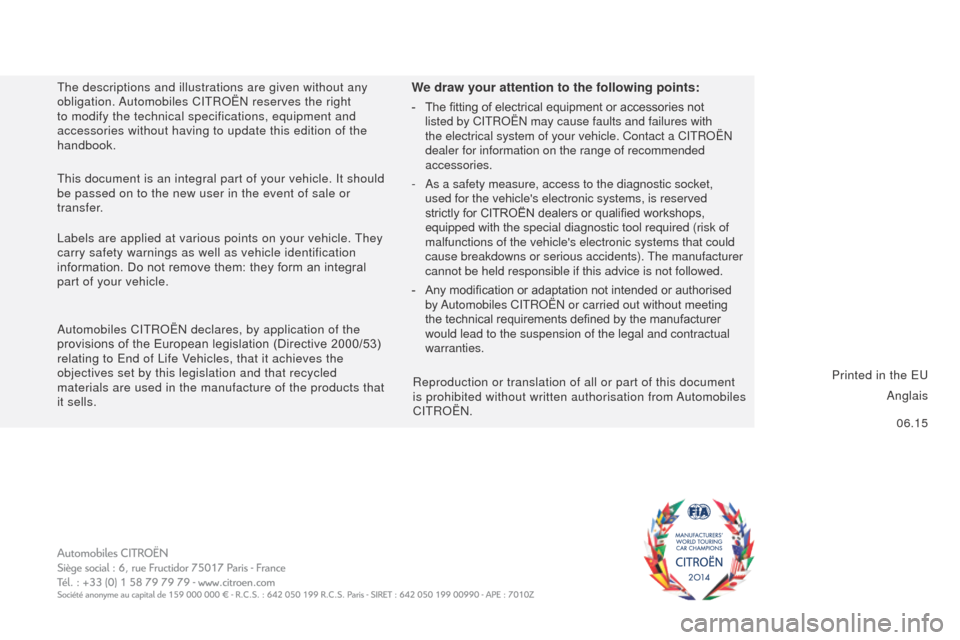

We draw your attention to the following points:
- The fitting of electrical equipment or accessories not
listed by CITROËN may cause faults and failures with
the electrical system of your vehicle. Contact a CITROËN
dealer for information on the range of recommended
accessories.
-

As a safety measure, access to the diagnostic socket,
used for the vehicle's electronic systems, is reserved
strictly for CITROËN dealers or qualified workshops,
equipped with the special diagnostic tool required (risk of
malfunctions of the vehicle's electronic systems that could
cause breakdowns or serious accidents).

The manufacturer
cannot be held responsible if this advice is not followed.
-

Any modification or adaptation not intended or authorised
by

Automobiles CITROËN or carried out without meeting
the technical requirements defined by the manufacturer
would lead to the suspension of the legal and contractual
warranties.
Labels are applied at various points on your vehicle. They
carry safety warnings as well as vehicle identification
information. Do not remove them: they form an integral
part of your vehicle.
Automobiles CITROËN

declares, by application of the
provisions of the European legislation (Directive

2000/53)
relating to End of Life Vehicles, that it achieves the
objectives set by this legislation and that recycled
materials are used in the manufacture of the products that
it sells. Reproduction or translation of all or part of this document
is prohibited without written authorisation from Automobiles
CITROËN. Printed in the EU
Anglais
The descriptions and illustrations are given without any
obligation. Automobiles CITROËN reserves the right
to modify the technical specifications, equipment and
accessories without having to update this edition of the
handbook.
This document is an integral part of your vehicle. It should
be passed on to the new user in the event of sale or
transfer.

2015 – DOCUMENTATION DE BORD4Dconcept
Diadeis
Interak
15jPr.0030Anglais

R EL AY
CITROËN
SUPPLEMENT

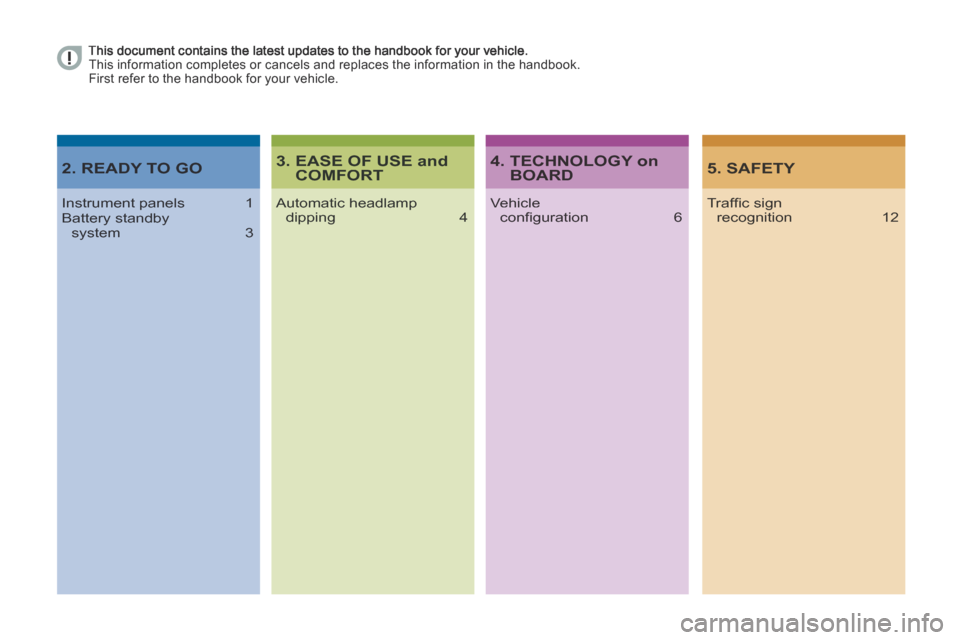

This document contains the latest updates to the handbook for your vehicle. This information completes or cancels and replaces the information in the handbook. First refer to the handbook for your vehicle.
3. EASE OF USE and COMFORT5. SAFETY
Automatic headlamp dipping 4Traffi c sign recognition 12
4. TECHNOLOGY on BOARD
Vehicle confi guration 6
2. READY TO GO
Instrument panels 1Battery standby system 3

1
2
READY
TO GO

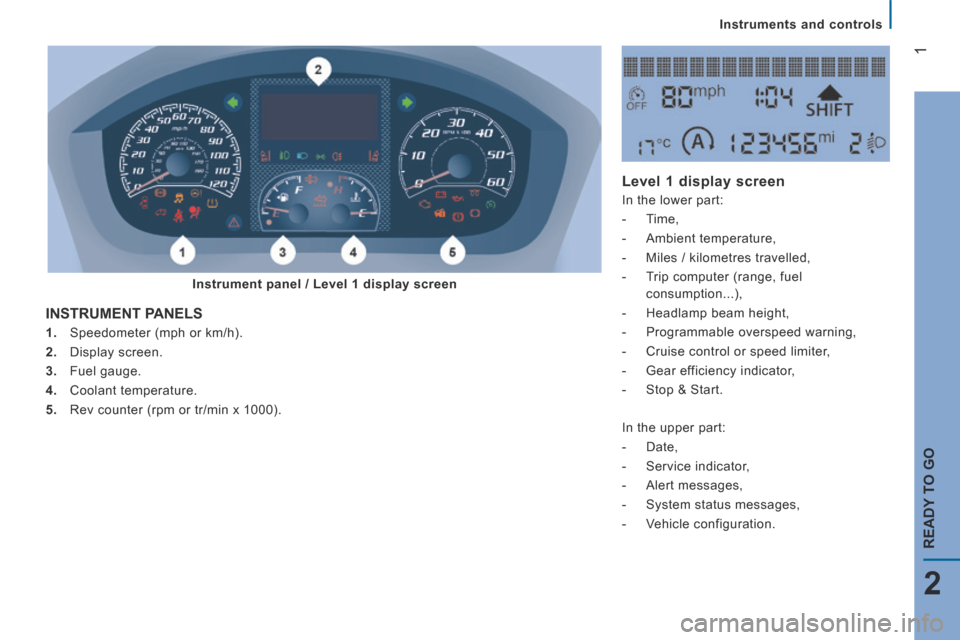

Instruments and controls
1. Speedometer (mph or km/h).
2. Display screen.
3. Fuel gauge.
4. Coolant temperature.
5. Rev counter (rpm or tr/min x 1000).
INSTRUMENT PANELS
Level 1 display screen
In the lower part:
- Time,
- Ambient temperature,
- Miles / kilometres travelled,
- Trip computer (range, fuel
consumption...),
- Headlamp beam height,
- Programmable overspeed warning,
- Cruise control or speed limiter,
- Gear efficiency indicator,
- Stop & Start.
In the upper part:
- Date,
- Service indicator,
- Alert messages,
- System status messages,
- Vehicle configuration.
Instrument panel / Level 1 display screen

2
Instruments and controls

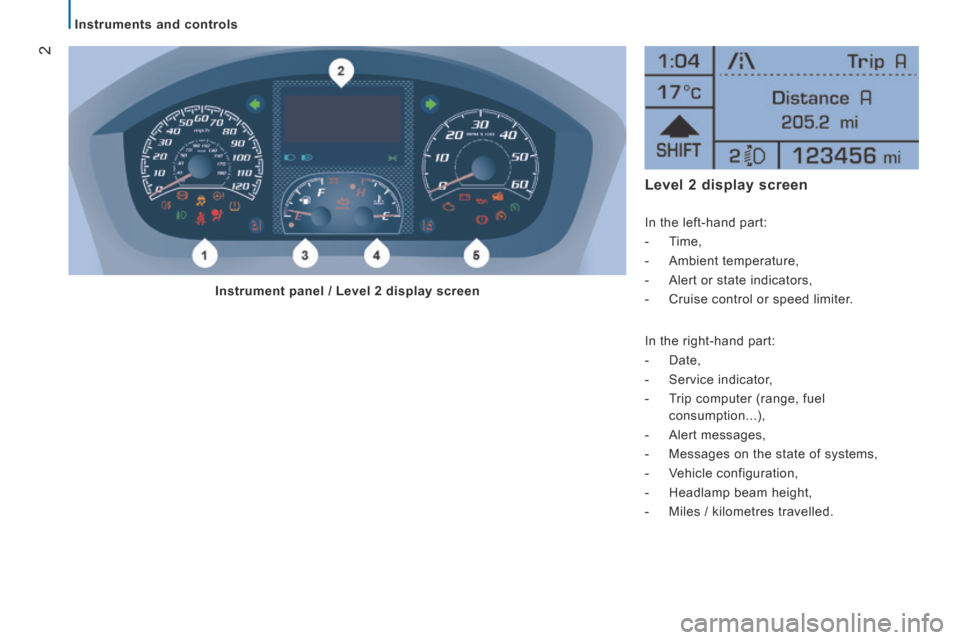

Level 2 display screen
In the left-hand part:
- Time,
- Ambient temperature,
- Alert or state indicators,
- Cruise control or speed limiter.
In the right-hand part:
- Date,
- Service indicator,
- Trip computer (range, fuel
consumption...),
- Alert messages,
- Messages on the state of systems,
- Vehicle configuration,
- Headlamp beam height,
- Miles / kilometres travelled.
Instrument panel / Level 2 display screen
