69
Have the additional heating checked at
least once a year at the beginning of
winter. Maintenance and repairs should only
be carried out by a CITROËN dealer or a
qualified workshop.
Use only genuine replacement parts.
Switching off the heating
In the case of deferred operation, the
heating stops at the end of the programmed
period.
Good practice
To avoid any risk of poisoning or
asphyxiation, the additional heating must
not be used, even for short periods, in
an enclosed space such as a garage or
workshop which is not fitted with an exhaust
gas extraction system.
The additional heating switches off when the
battery voltage is low, so as to allow engine
starting.
The additional heating is supplied by the
vehicle's fuel tank. Ensure that the low fuel
warning lamp is not on.
Always switch off the additional heating
when filling with fuel to avoid any risk of fire
or explosion. The temperature near the heater must not
exceed 120
°C. A temperature higher than
this (for example in the case of painting in
an oven) could damage the components of
the electronic circuits.
The additional heating is fitted with
a temperature limiter which cuts off
the combustion in the event of engine
overheating due to a lack of coolant. Check
the level and if necessary top-up following
the advice given in the "Checks - Levels"
section. Then press the programme
selection button before switching the heating
on again.

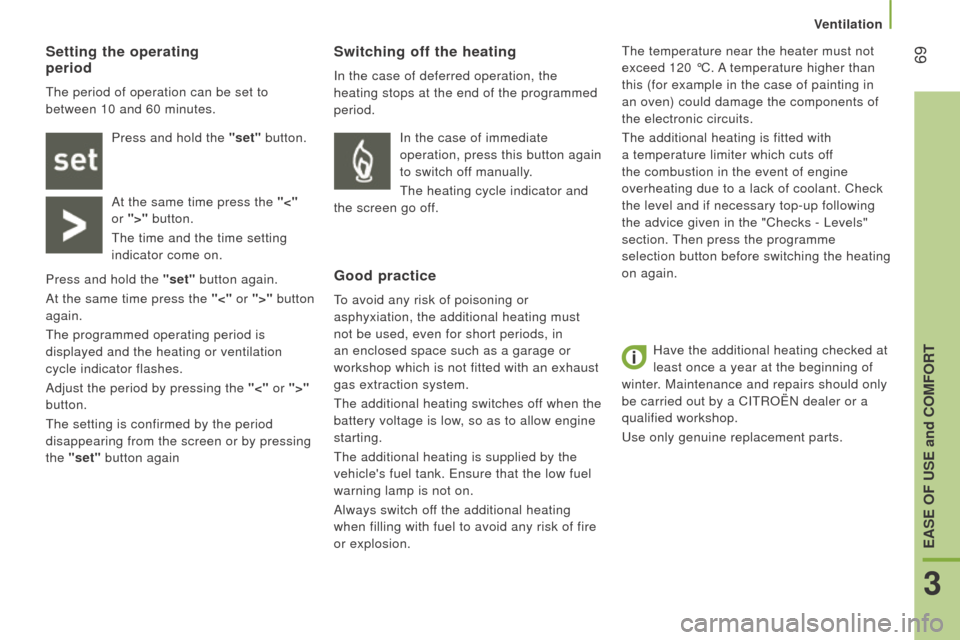

Setting the operating
period
The period of operation can be set to
between 10 and 60 minutes.
Press and hold the "set" button.
At the same time press the "<"
or ">" button.
The time and the time setting
indicator come on.
Press and hold the "set" button again.
At the same time press the "<" or ">" button
again.
The programmed operating period is
displayed and the heating or ventilation
cycle indicator flashes.
Adjust the period by pressing the "<" or ">"
button.
The setting is confirmed by the period
disappearing from the screen or by pressing
the "set" button again In the case of immediate
operation, press this button again
to switch off manually.
The heating cycle indicator and
the screen go off.
3
EASE OF uSE and cOMFOrt
Ventilation

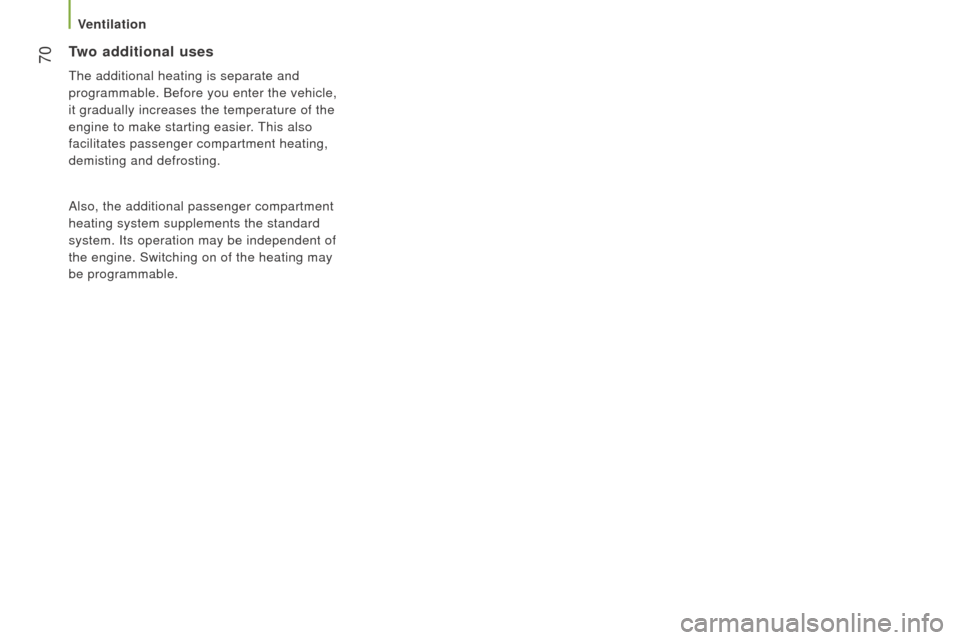

70two additional uses
The additional heating is separate and
programmable. Before you enter the vehicle,
it gradually increases the temperature of the
engine to make starting easier. This also
facilitates passenger compartment heating,
demisting and defrosting.
Also, the additional passenger compartment
heating system supplements the standard
system. Its operation may be independent of
the engine. Switching on of the heating may
be programmable.
Ventilation

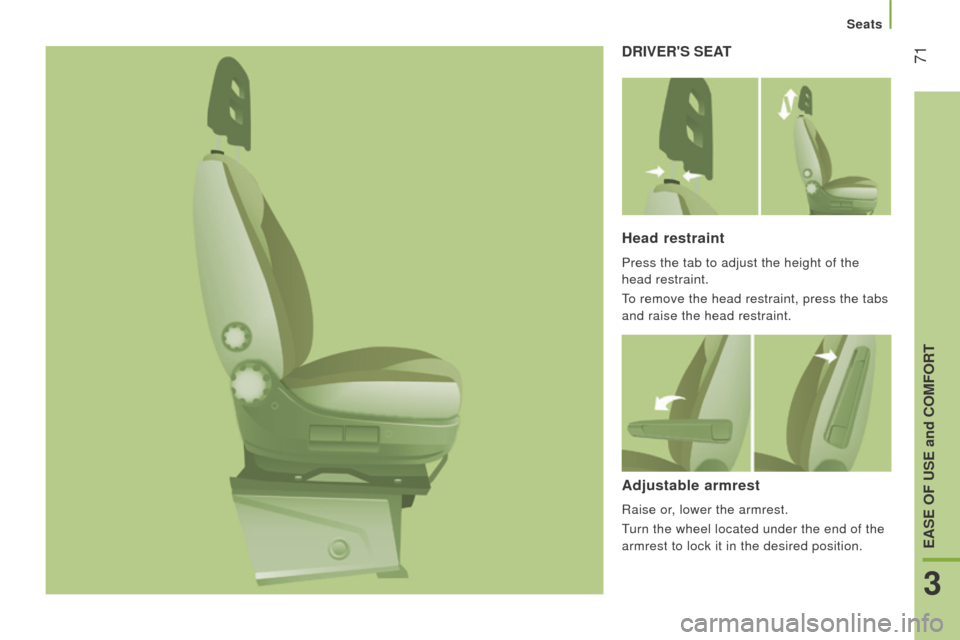

71drIVEr'S SEAt
Head restraint
Press the tab to adjust the height of the
head restraint.
To remove the head restraint, press the tabs
and raise the head restraint.
Adjustable armrest
Raise or, lower the armrest.
Turn the wheel located under the end of the
armrest to lock it in the desired position.
3
EASE OF uSE and cOMFOrt
Seats

72

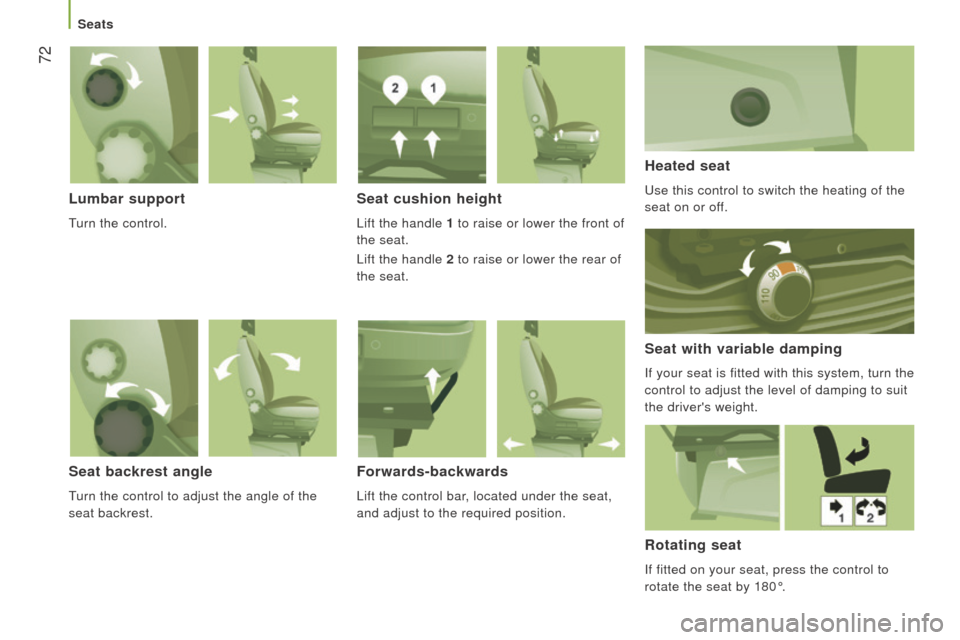

Lumbar support
Turn the control.
Seat cushion height
Lift the handle 1 to raise or lower the front of
the seat.
Lift the handle 2 to raise or lower the rear of
the seat.
Heated seat
Use this control to switch the heating of the
seat on or off.
Seat with variable damping
If your seat is fitted with this system, turn the
control to adjust the level of damping to suit
the driver's weight.
Seat backrest angle
Turn the control to adjust the angle of the
seat backrest.
Forwards-backwards
Lift the control bar, located under the seat,
and adjust to the required position.
rotating seat
If fitted on your seat, press the control to
rotate the seat by 180°.
Seats

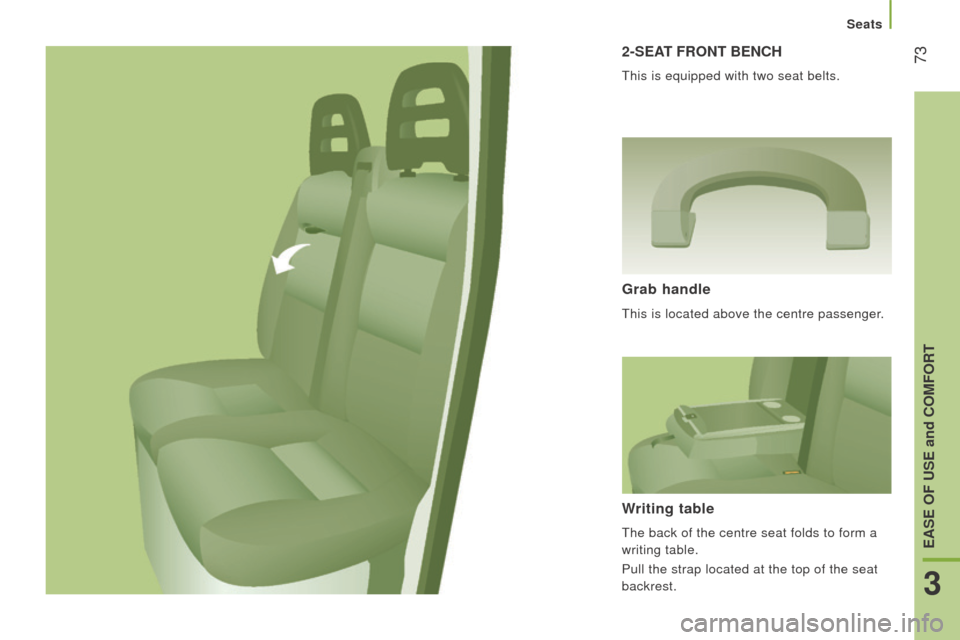

732-SEAt F r O nt BE nc H
This is equipped with two seat belts.
Grab handle
This is located above the centre passenger.
Writing table
The back of the centre seat folds to form a
writing table.
Pull the strap located at the top of the seat
backrest.
3
EASE OF uSE and cOMFOrt
Seats

74

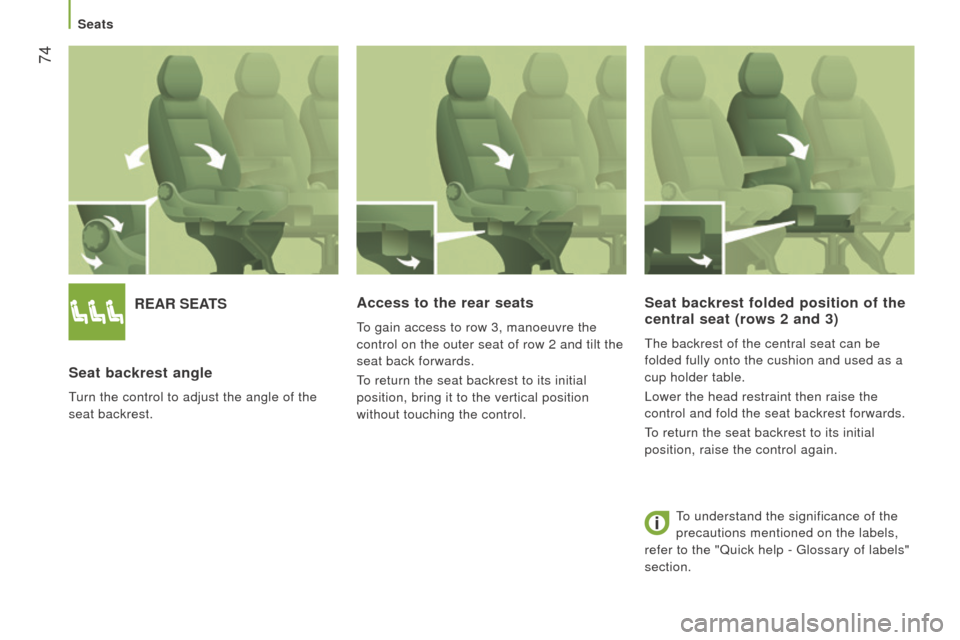

rEAr SEAtS
Seat backrest angle
Turn the control to adjust the angle of the
seat backrest.
Access to the rear seats
To gain access to row 3, manoeuvre the
control on the outer seat of row 2 and tilt the
seat back forwards.
To return the seat backrest to its initial
position, bring it to the vertical position
without touching the control.
Seat backrest folded position of the
central seat (rows 2 and 3)
The backrest of the central seat can be
folded fully onto the cushion and used as a
cup holder table.
Lower the head restraint then raise the
control and fold the seat backrest forwards.
To return the seat backrest to its initial
position, raise the control again.
To understand the significance of the
precautions mentioned on the labels,
refer to the "Quick help - Glossary of labels"
section.
Seats

75

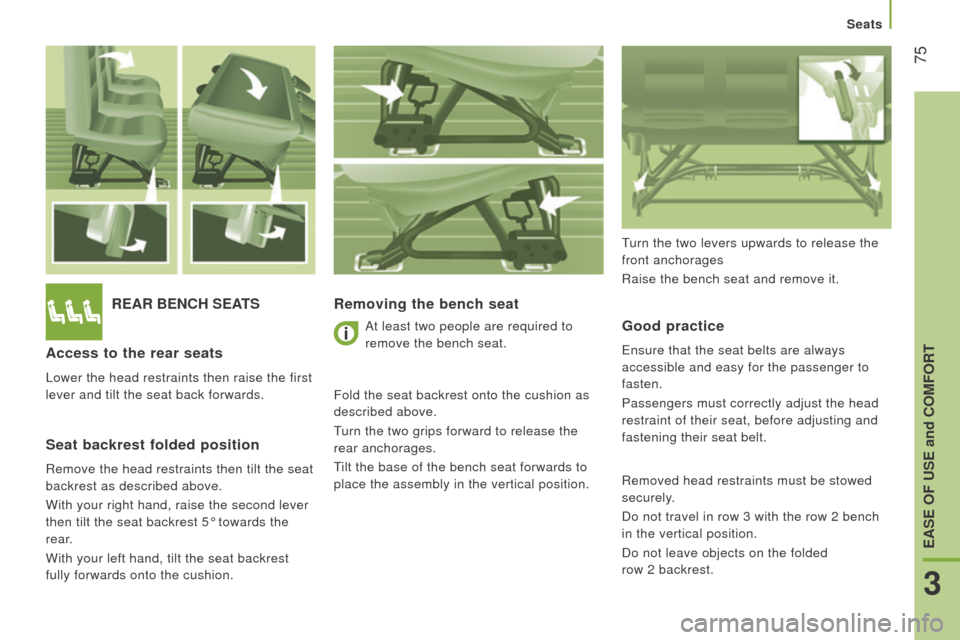

rEAr BEncH SEAtS
r emoving the bench seat
Good practice
Ensure that the seat belts are always
accessible and easy for the passenger to
fasten.
Passengers must correctly adjust the head
restraint of their seat, before adjusting and
fastening their seat belt.Access to the rear seats
Lower the head restraints then raise the first
lever and tilt the seat back forwards.
Seat backrest folded position
Remove the head restraints then tilt the seat
backrest as described above.
With your right hand, raise the second lever
then tilt the seat backrest 5° towards the
rear.
With your left hand, tilt the seat backrest
fully forwards onto the cushion. Turn the two levers upwards to release the
front anchorages
Raise the bench seat and remove it.
At least two people are required to
remove the bench seat.
Fold the seat backrest onto the cushion as
described above.
Turn the two grips forward to release the
rear anchorages.
Tilt the base of the bench seat forwards to
place the assembly in the vertical position. Removed head restraints must be stowed
securely.
Do not travel in row 3 with the row 2 bench
in the vertical position.
Do not leave objects on the folded
row
2 backrest.
3
EASE OF uSE and cOMFOrt
Seats

76

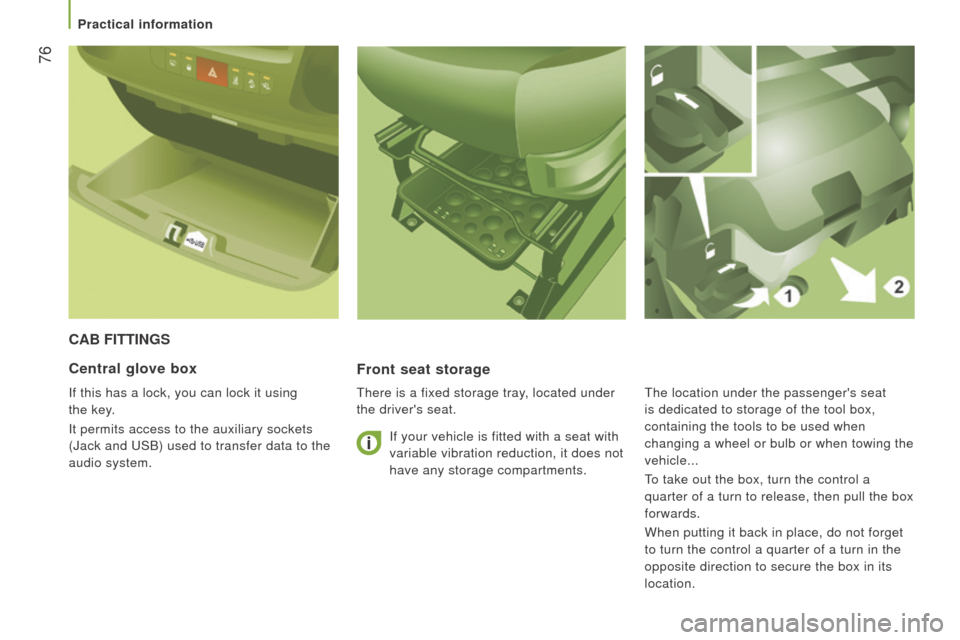

cAB FIttInGS
Front seat storage
There is a fixed storage tray, located under
the driver's seat.
central glove box
If this has a lock, you can lock it using
the key.
It permits access to the auxiliary sockets
(Jack and USB) used to transfer data to the
audio system. If your vehicle is fitted with a seat with
variable vibration reduction, it does not
have any storage compartments.The location under the passenger's seat
is dedicated to storage of the tool box,
containing the tools to be used when
changing a wheel or bulb or when towing the
vehicle...
To take out the box, turn the control a
quarter of a turn to release, then pull the box
forwards.
When putting it back in place, do not forget
to turn the control a quarter of a turn in the
opposite direction to secure the box in its
location.
Practical information

77

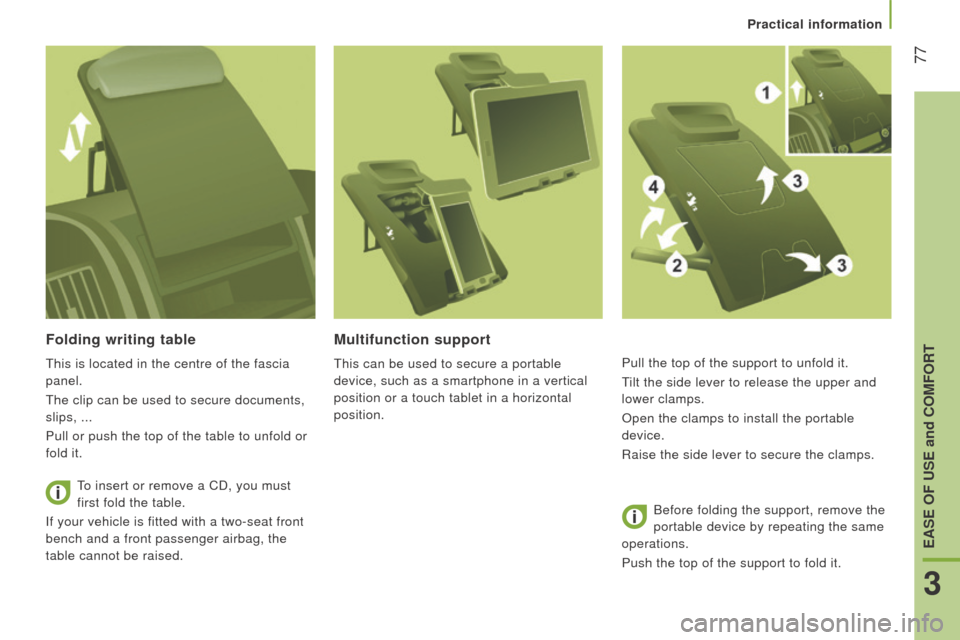

Folding writing table
This is located in the centre of the fascia
panel.
The clip can be used to secure documents,
slips, ...
Pull or push the top of the table to unfold or
fold it.To insert or remove a CD, you must
first fold the table.
If your vehicle is fitted with a two-seat front
bench and a front passenger airbag, the
table cannot be raised.
Multifunction support
This can be used to secure a portable
device, such as a smartphone in a vertical
position or a touch tablet in a horizontal
position. Pull the top of the support to unfold it.
Tilt the side lever to release the upper and
lower clamps.
Open the clamps to install the portable
device.
Raise the side lever to secure the clamps.
Before folding the support, remove the
portable device by repeating the same
operations.
Push the top of the support to fold it.
3
EASE OF uSE and cOMFOrt
Practical information

78

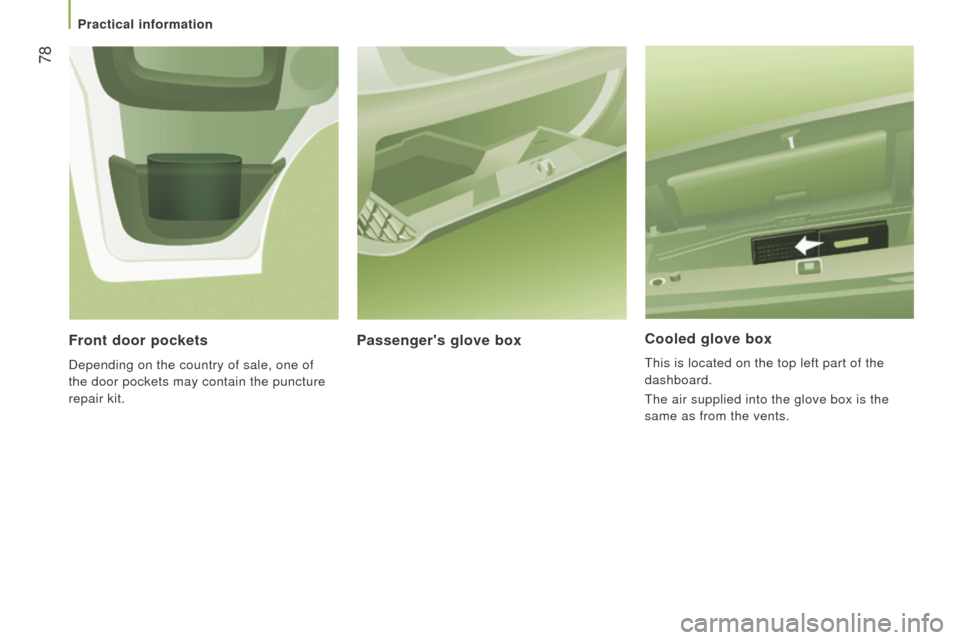

cooled glove box
This is located on the top left part of the
dashboard.
The air supplied into the glove box is the
same as from the vents.
Passenger's glove box
Front door pockets
Depending on the country of sale, one of
the door pockets may contain the puncture
repair kit.
