Ventilation
ERGONOMICS AND COMFORT
3
Have the heater checked at least
once a year at the beginning of winter.
Maintenance and repairs should only be
carried out by a CITROËN dealer. Use
recommended replacement parts only.

70
Rear suspension
Metal suspension
This equipment adopts long movement
limiters which make it possible to guarantee
stable behaviour both when loaded and
when empty. No action on your part is
required except to ensure that maintenance
is carried out and that the authorised loads
are complied with. irrespective of the weight of the load, within
the limit of the authorised values. On board,
the increasing or lightening of the load on
the vehicle’s platform is detected by two
height sensors. When all of the doors are
closed, the sensors trigger the automatic
compensation and determine the optimum
height of the sill for the vehicle’s driving
conditions.
Deactivation of the automatic correction
The control which permits deactivation of the
automatic control is located on the right-
hand side, at the rear of the vehicle.
REAR SUSPENSION
You must deactivate the automatic
correction manually in the following
situations:
- when working underneath the vehicle,
- when changing a wheel,
- when the vehicle is being transported by lorry, train, ferry, boat, ...
Two types of suspension are offered.
Rear suspension with pneumatic
compensation
If fitted on your vehicle, this type of
suspension regulates the variations in the
height of the rear platform of your vehicle
1. Automatic correction

2. Manual correction
1 - Automatic correction of the height of the rear sill
The pneumatic suspension automatically
regulates the variations in the height of the
rear platform of your vehicle. A red warning light on your
instrument panel fl ashes if the
height is not at its optimum level and
requires correction, drive slowly until
this warning light is switched off.
The automatic compensation is temporarily
inactive:
- if a door/the tailgate is open,
- when braking or when stopped at a red light (brake pedal pressed). With the vehicle stationary:
- press and hold,
- release the control.
Deactivation is confirmed by
the diode which is lit. It remains lit for
approximately 30 seconds.
Return to automatic correction
With the vehicle stationary:
- press and hold,
- release the control.
Return to automatic correction is confirmed
by the diode which is switched off.
According to the configurations, a bleep may
be heard during these operations.
Two functions

81
Seat belts
SAFETY
4
The force limiter reduces the pressure of the
seat belt against the body of the occupants.
The pretensioning seat belts are active when
the ignition is switched on.
The inertia reels are fitted with a device
which automatically locks the strap in the
event of a collision or emergency braking or
if the vehicle rolls over.
You can unfasten the seat belt by pressing
the red button on the buckle. Guide the seat
belt after unfastening.
The air bag warning light comes on if the
pretensioners are triggered. Consult a
CITROËN dealer.
In order to be effective, a seat belt must:
- restrain one person only,
- must not be twisted, check by pulling in front of you with an even movement,
- be tightened as close to the body as possible.
The upper part of the seat belt should be
positioned in the hollow of the shoulder.
The lap part should be placed as low as
possible on the pelvis.
Do not invert the seat belt buckles as they
will not fulfil their role completely. If the
seats are fitted with armrests, the lap part of
the seat belt should always pass under the
armrest. Recommendations for children:
- use a suitable child seat if the
passenger is less than 12 years old or
shorter than one metre fifty,
- never allow a child to travel on your lap, even with the seat belt fastened. FRONT SEAT BELTS
For further information regarding child
seats, refer to the "Children on board"
section of chapter 4.
In accordance with current safety
regulations, your CITROËN dealer
guarantees all work or any checks, from
testing to maintenance, on your seat belt
equipment.
Have the seat belts checked regularly
(even after a minor impact) by a CITROËN
dealer: they must not show any signs of
wear, cutting or fraying and they must not be
transformed or modified.
Clean the seat belt straps with soapy
water or a textile cleaning product,
sold by CITROËN dealers. With front air bags
The front seats are fitted with pretensioners
and force limiters.
Without front air bag
If your vehicle is fitted with a front bench
without front air bag, the centre passenger ’s
seat belt does not have a pretensioner.
With bench seat
If your vehicle is fitted with a front bench
seat, take care to fasten the correct seat belt
using the correct buckle. Do not invert the
driver ’s seat belt or buckle with the buckle or
seat belt of the centre seat.
Check that the seat belt is fastened correctly
by pulling the strap firmly.

93
Equipment
ACCESSORIES
5
OTHER ACCESSORIES
These accessories and parts, having been
tested and approved for reliability and
safety, are all adapted to your vehicle. A
wide range of recommended products and
original parts is offered.
Range of professional equipment
Parts and Service technical information
publishes an accessories catalogue offering
various equipment and fittings, such as:
Roof bars for short, medium and long
wheelbase (load retainers for all models).
Sill plate, loading roller, sill. Sill plate,
loading roller, sill.
Towbar, towbar harness: trailer towbar which
must be fitted by the CITROËN network. Roof bars for the various heights, roof bars,
ladder.
Separation partitions and grilles, smooth,
non-slip wooden protective floor.
Protective grilles, multimedia.
Another range is also available, structured
around comfort, leisure and maintenance:
Anti-theft alarm, window engraving, first aid
kit, high visibility safety jacket, rear parking
assistance, warning triangle,
Front seat covers compatible with air bags,
bench, rubber mats, carpet mats, snow
chains.
To prevent the mat from becoming caught
under the pedals:
- ensure that the mat and its fixings are
positioned correctly,
- never fit one mat on top of another. Audio equipment, hands-free kit, speakers,
CD changer, navigation, ...
Regardless of the audio and telematic
equipment offered on the market, the
technical constraints linked with the fitting
of equipment of these families of products
mean that the special features of the
equipment and its compatibility with the
capacities of the your vehicle’s standard
equipment must be taken into account.
Please contact a CITROËN dealer for
information before fitting such equipment.

94
Equipment The fitting of electrical equipment
or accessories which are not
recommended by CITROËN may result
in the failure of your vehicle’s electronic
system. Please note this specific warning.
You are advised to contact a representative
of the Marque to be shown the range of
recommended equipment and accessories.
Depending on the country in which the
vehicle is sold or operated, it is compulsory
to have a high visibility safety jacket,
warning triangle and replacement bulbs
available in the vehicle.
ROOF BARS
To install the transverse roof bars, use the
fixings provided for this purpose.
Maximum load: 170 kilogrammes.
Installation of radiocommunication
transmitters
Before installing accessory
radiocommunication transmitters with an
external aerial on your vehicle, you are
advised to contact a representative of the
CITROËN marque.
The CITROËN Network will inform you of the
specifications (frequency band, maximum
output power, aerial position, specific
installation conditions) of the transmitters
which can be fitted, in accordance with the
Motor Vehicle Electromagnetic Compatibility
Directive (2004/104/CE).
Front mud flaps, rear mud flaps, ....
Screenwash, interior and exterior cleaning
and maintenance products, replacement
bulbs, ...

94
Equipment The fitting of electrical equipment
or accessories which are not
recommended by CITROËN may result
in the failure of your vehicle’s electronic
system. Please note this specific warning.
You are advised to contact a representative
of the Marque to be shown the range of
recommended equipment and accessories.
Depending on the country in which the
vehicle is sold or operated, it is compulsory
to have a high visibility safety jacket,
warning triangle and replacement bulbs
available in the vehicle.
ROOF BARS
To install the transverse roof bars, use the
fixings provided for this purpose.
Maximum load: 170 kilogrammes.
Installation of radiocommunication
transmitters
Before installing accessory
radiocommunication transmitters with an
external aerial on your vehicle, you are
advised to contact a representative of the
CITROËN marque.
The CITROËN Network will inform you of the
specifications (frequency band, maximum
output power, aerial position, specific
installation conditions) of the transmitters
which can be fitted, in accordance with the
Motor Vehicle Electromagnetic Compatibility
Directive (2004/104/CE).
Front mud flaps, rear mud flaps, ....
Screenwash, interior and exterior cleaning
and maintenance products, replacement
bulbs, ...

98
Levels
LEVELS
To maintain the reliability of engines and emission control
systems, the use of additives in engine oil is prohibited. Changing the brake fluid
The brake fluid must be changed at
the intervals stated, according to the
manufacturer ’s servicing schedule.
Use fluids recommended by the
manufacturer, which fulfil DOT4 standards.
The level must be between the MIN and
MAX marks on the reservoir.
If fluid has to be added frequently, this
indicates a failure which must be checked by
a CITROËN dealer as soon as possible.
Warning lights
These regular maintenance operations
will keep your vehicle in good running
order. Consult the instructions at CITROËN
dealerships or in the servicing booklet
enclosed in the handbook pack.
If you have to remove/refit the engine
style cover, handle it with care to avoid
damaging the fixing clips.
Oil level
Check the level regularly and top up
between changes.
Check the level with the vehicle level,
engine cold, using the dipstick. Dipstick
There are two marks on the
dipstick:
A = maximum
If you fill past this mark,
contact a CITROËN dealer.
B = minimum
Never allow the level to fall
below this mark. Oil change
It is imperative that this is carried out at the
intervals specified and the viscosity grade of
the oil selected must fulfil the requirements
in accordance with the manufacturer ’s
servicing schedule. Consult the instructions
at CITROËN dealerships.
Remove the dipstick before filling.
For the 2 litre HDi engine, use the funnel
supplied when filling via the sump opening.
Check the level after filling (never exceed
the max mark).
Screw the cap back onto the sump before
closing the bonnet.
Viscosity selection
In all cases, the oil selected must meet the
manufacturer ’s requirements.
Checking by means of the warning
lights on the instrument panel
is described in chapter 2, refer to the
"Instruments and controls" section.

100
Checks
CHECKS
Battery
At the start of winter, have your battery
checked by a CITROËN dealer.
Brake pads
Brake pad wear depends on the style of
driving, in particular for vehicles which are
used in town, over short distances. It may
be necessary to check the thickness of the
pads, even between services.
Unless there is a leak on the circuit, a drop
in the brake fluid level indicates that the
brake pads are worn.
Brake disc/drum wear status
For any information relating to checking
the brake disc/drum wear status, contact a
CITROËN dealer.
Handbrake
Where the handbrake travel is too great
or there is a reduction in the performance
of the system, the handbrake should be
adjusted, even between services.
Have the system checked by a CITROËN
dealer. Oil filter
Change the filter regularly, in accordance
with the servicing schedule.
Carbon filter and passenger
compartment filter
The carbon fi lter permits continuous and
effective fi ltering of dust.
If the passenger compartment fi lter becomes
clogged, this may reduce the performance
of the air conditioning system and generate
unpleasant odours.
We recommend the use of a combined
passenger compartment fi lter. By means of
its second special active fi lter, it contributes
to the purifi cation of the air breathed by the
occupants and the cleanness of the passenger
compartment (reduction of allergic symptoms,
unpleasant odours and greasy deposits).
Refer to the servicing booklet to fi nd out the
replacement interval for these components.
Depending on the environment (dusty
atmosphere...) and the use of the vehicle
(urban driving...), change them twice as often
if necessary.
Particle emission filter (Diesel)
It is imperative that particle
emission filter maintenance is
carried out by a CITROËN dealer.
On acceleration after the vehicle
has been running for a prolonged period
at very low speed or at idle, you may, in
exceptional circumstances, notice the
emission of water vapour at the exhaust.
This water vapour does not have any
adverse effect on vehicle handling or the
environment.
Refer to the "Under the bonnet" section
of chapter 6.

101
Checks
CHECKS
6
Manual gearbox
Have the level checked in accordance with
the manufacturer ’s servicing schedule. To check the main levels and certain
components, in accordance with the
manufacturer ’s servicing schedule, refer to
the pages of the Maintenance and Warranty
Guide which correspond to your vehicle’s
engine.
Only use products recommended by
CITROËN or products of equivalent
quality and specification.
In order to optimise the operation of units as
important as the braking system, CITROËN
selects and offers specific products.
In order to avoid damaging the electrical
units, high pressure washing to clean the
engine compartment is strictly prohibited.
Bleeding the water contained in the
diesel filter
If this warning light comes on,
bleed the filter. Otherwise bleed
regularly each time the engine is
drained.
To evacuate the water, unscrew the bleed
screw located on the filter.
Operate until all of the water in the
transparent pipe has been drained out then
tighten the bleed screw.
HDi engines use advanced technology.
All work requires a special qualification
which is guaranteed by a CITROËN dealer.
1.6 litre HDi
2 litre HDi

134
Diesel - Petrol engines

Diesel

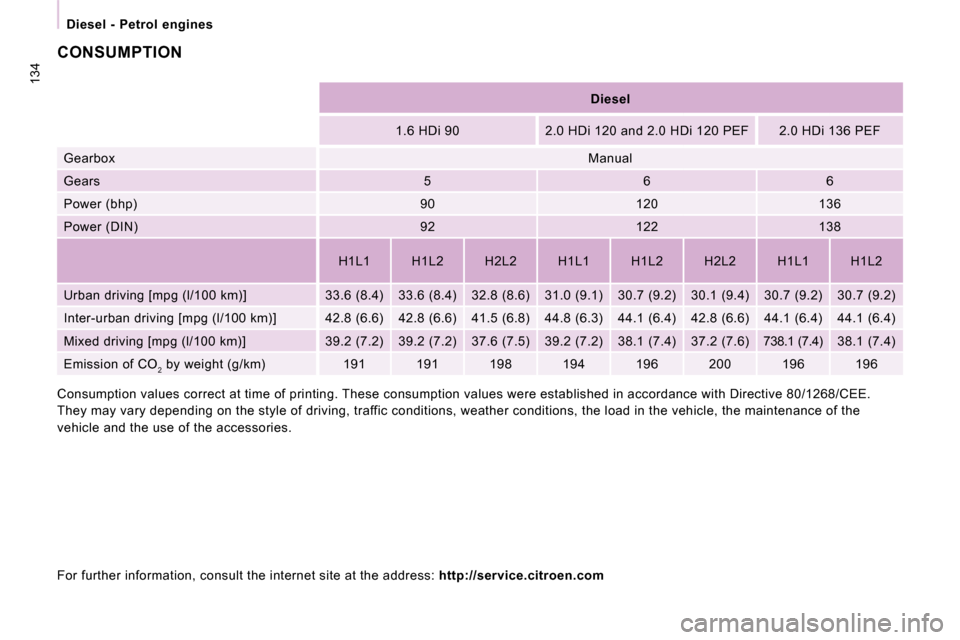

1.6 HDi 90 2.0 HDi 120 and 2.0 HDi 120 PEF 2.0 HDi 136 PEF
Gearbox Manual
Gears 5 6 6
Power (bhp) 90 120 136
Power (DIN) 92 122 138
H1L1 H1L2 H2L2 H1L1 H1L2 H2L2 H 1L1 H1L2
Urban driving [mpg (l/100 km)] 33.6 (8.4) 33.6 (8.4) 32.8 (8.6) 31.0 (9.1) 30.7 (9.2) 30.1 (9.4) 30.7 (9.2) 30.7 (9.2)
Inter-urban driving [mpg (l/100 km)] 42.8 (6.6) 42.8 (6.6) 41.5 (6.8) 44.8 (6.3) 44.1 (6.4) 42.8 (6.6) 44.1 (6.4) 44.1 (6.4)
Mixed driving [mpg (l/100 km)] 39.2 (7.2) 39.2 (7.2) 37.6 (7.5) 39.2 (7.2) 38.1 (7.4) 37.2 (7.6) 738.1 (7.4) 38.1 (7.4)
Emission of CO 2 by weight (g/km) 191 191 198 194 196
200 196 196
Consumption values correct at time of printing. Th ese consumption values were established in accordan ce with Directive 80/1268/CEE.
They may vary depending on the style of driving, tr affic conditions, weather conditions, the load in the vehicle, the maintenance of the
vehicle and the use of the accessories.
For further information, consult the internet sit e at the address: http://service.citroen.com
CONSUMPTION
