Citroen JUMPY 2012 2.G Owner's Manual

15
1


Instruments and controls

VISUAL SEARCH
10


Screens, display Section 9
Setting the time in the screen Section 9

Rear view mirror 82
Toll cards, car park tickets 74
Courtesy lamps 74, 128

Warning lamp in the overhead storage unit 27
Heated seats 68

Right-hand side
dashboard fuses 131-132
Passenger's airbag deactivation 96
Controls


- central locking 20, 24

- load space locking 20, 24

- alarm 22-23

- parking sensors 85

- ASR, ESP 87


Technology on board Section 9


- Emergency or assistance call

- NaviDrive

- MyWay

- Audio system


Gearbox 39, 40-42
Hazard warning lamps 84

Heating, ventilation


- manual ventilation 56-57

- air conditioning A/C 56

- air recirculation 57

Air conditioning with separate adjustments 58-60
Demisting/defrosting 62-63
Additional heating 64-65

Cab fi ttings 71-73


- glove box,

- overhead storage,

- ashtray,

- sun visor,

- 12 volt socket,

- ticket holder,

- storage compartment.

152


Interior


Rear view mirror 82
Toll cards, car park tickets 74
Front courtesy lamp 74
Changing courtesy
lamp bulbs 128
Rear suspension 78-80 Front, lateral airbags 93-96
Passenger's airbag deactivation 96
Parking brake,
handbrake 84
Opening the bonnet 106
Battery, charging, starting 117
Passenger compartment fuses 131, 133 Front seats, adjustments,
head rests 67-68
2-seat front bench 69-70
Seat belts 90-91
Child seats 97-101

Rear courtesy lamp 74
Changing courtesy lamp bulbs 128
Accessories 104-105
Towing, towbar,
converter's fuses 135
Platform cab fuses 135 Load space 76-77, 104


- stowing rings,

- load retainer,

- roof box,

- trim,

- 12 volt socket,

- ladder separation or partition,

- stowing rail support,

- internal rack.
Temporary puncture repair kit 119-120
Spare wheel, jack,
changing a wheel, tools 121-125

Technical data - Maintenance

VISUAL SEARCH
10

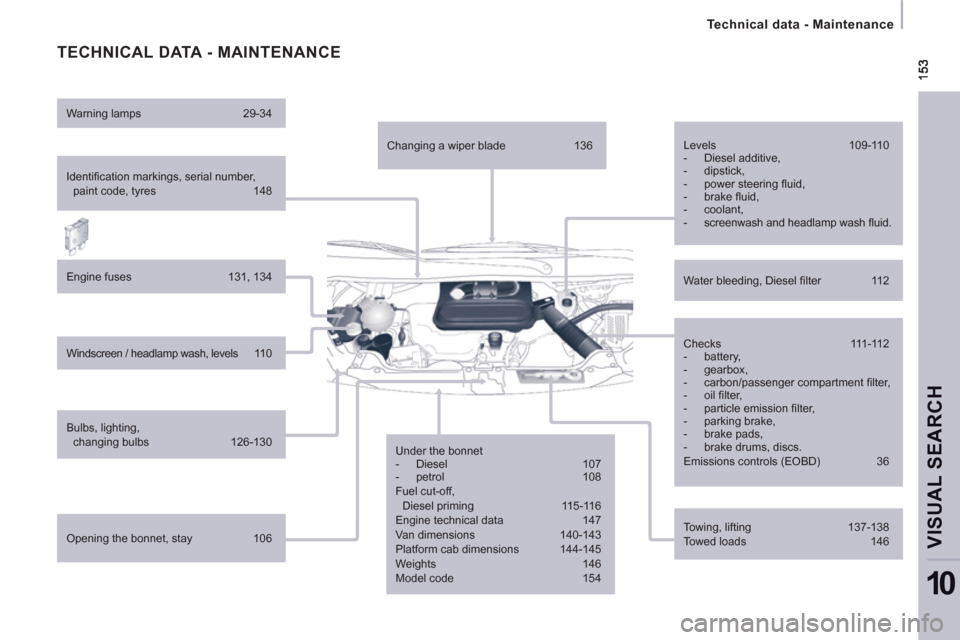

TECHNICAL DATA - MAINTENANCE

Identifi cation markings, serial number,
paint code, tyres 148
Engine fuses 131, 134
Windscreen / headlamp wash, levels 110
Bulbs, lighting,
changing bulbs 126-130
Opening the bonnet, stay 106 Warning lamps 29-34
Changing a wiper blade 136
Under the bonnet


- Diesel 107

- petrol 108
Fuel cut-off,
Diesel priming 115-116
Engine technical data 147
Van dimensions 140-143
Platform cab dimensions 144-145
Weights 146
Model code 154 Checks 111-112


- battery,

- gearbox,

- carbon/passenger compartment fi lter,

- oil fi lter,

- particle emission fi lter,

- parking brake,

- brake pads,

- brake drums, discs.
Emissions controls (EOBD) 36 Water bleeding, Diesel fi lter 112 Levels 109-110


- Diesel additive,

- dipstick,

- power steering fl uid,

- brake fl uid,

- coolant,

- screenwash and headlamp wash fl uid.
Towing, lifting 137-138
Towed loads 146

154
Model code
Consult your registration certificate.
This table presents the Petrol and Diesel Model Codes.
MODEL CODE

Vehicle
X

Body types
X*____/_
1000 kg van, short L1, low H1
XS____/_
1200 kg van, short L1, low H1
XT____/_
1200 kg van, long L2, low H1
XU____/_
1200 kg van, long L2, high H2
XV____/_
1200 kg platform
XW____/_

Engines
X_***_/_

Diesel





1.6 HDi 90
X_9HU_/_
2.0 HDi 120
X_RHK_/_
2.0 HDi 120 with PEF
X_RHG_/_
2.0 HDi 136 with PEF
X_RHR_/_
2.0 HDi 163 with PEF
-

Petrol





2.0 PETROL 140
X_RFH_/_

Versions
X____*/_
The version code is a combination determined by the type of manual gearbox and the associated emissions controls level.

Manual gearbox





5-speed
X____*/_
6-speed
X____*/_

Variants
X_____/*
The variant code is determined in relation to the parameters authorised when the vehicle was manufactured.

155


Precautions

VISUAL SEARCH
10

PRECAUTIONS...

11-11

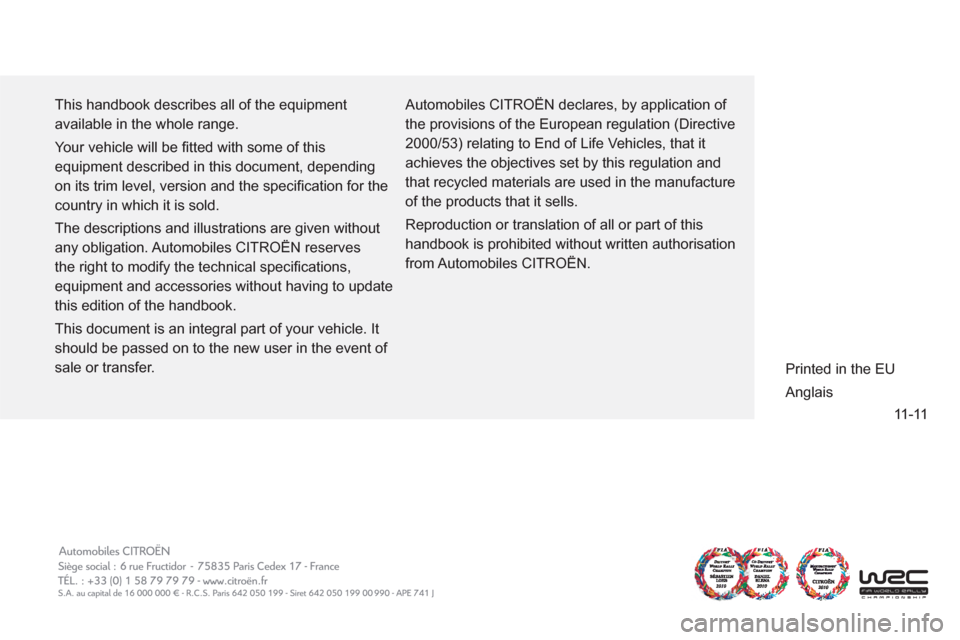

This handbook describes all of the equipment
available in the whole range.
Your vehicle will be fi tted with some of this
equipment described in this document, depending
on its trim level, version and the specifi cation for the
country in which it is sold.
The descriptions and illustrations are given without
any obligation. Automobiles CITROËN reserves
the right to modify the technical specifi cations,
equipment and accessories without having to update
this edition of the handbook.
This document is an integral part of your vehicle. It
should be passed on to the new user in the event of
sale or transfer. Automobiles CITROËN declares, by application of
the provisions of the European regulation (Directive
2000/53) relating to End of Life Vehicles, that it
achieves the objectives set by this regulation and
that recycled materials are used in the manufacture
of the products that it sells.
Reproduction or translation of all or part of this
handbook is prohibited without written authorisation
from Automobiles CITROËN.
Printed in the EU
Anglais

CRÉATIVE TECHNOLOGIE
2012 – DOCUMENTATION DE BORD4Dconcept
Diadeis
Seenk
Edipro
12JPY.0640
