Citroen JUMPY 2012 2.G Owner's Manual

9.91
04
1
2
3
The MP3 format, an abbreviation of MPEG 1.2 & 2.5 Audio Layer 3,
is an audio compression standard which permits the recording of several tens of music fi les on a single disc.
In order to be able to play a recorded
CDR or CDRW, when recording, the ISO 9660 level 1.2 or Joliet fi le format isrecommended.
If the disc is recorded in another format, it ma
y not be playedcorrectly.
It is recommended that the same recordin
g format is alwaysused for an individual disc, with as low a speed as possible (4x maximum) for optimum sound quality.
In the particular case o
f a multi-session CD, the Joliet format is recommended.
The audio s
ystem will only play fi les with the extension ".mp3" with
a sampling rate of 22.05 KHz or 44.1 KHz. No other type of fi le(.wma, .mp4, .m3u...) can be played.
It is advisable to restrict fi le names to 20 characters without usin
gspecial characters (e.g. " ? ; ù) to avoid any playing or displaying problems.

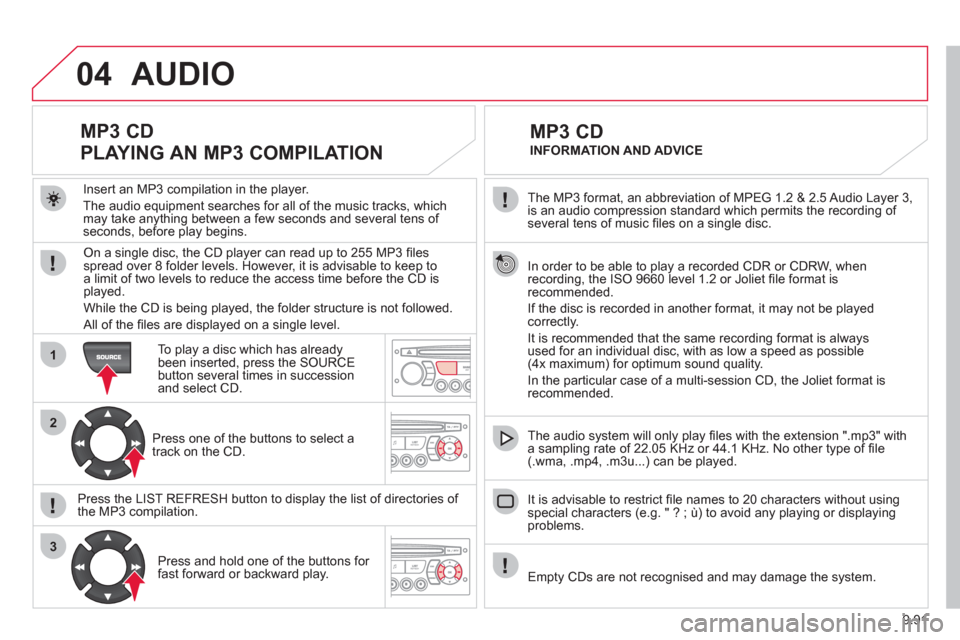

MP3 CD
INFORMATION AND ADVICE

AUDIO

Empty CDs are not recognised and may damage the system.
Insert an MP3 compilation in the pla
yer.
The audio equipment searches
for all of the music tracks, which
may take anything between a few seconds and several tens of seconds, before play begins.









MP3 CD
PLAYING AN MP3 COMPILATION

On a single disc, the CD player can read up to 255 MP3 fi lesspread over 8 folder levels. However, it is advisable to keep to
a limit of two levels to reduce the access time before the CD isplayed.
While the CD is bein
g played, the folder structure is not followed.
All of the fi les are displayed on a single level.

To play a disc which has already
been inserted, press the SOURCE button several times in successionand select CD.
Pr
ess one of the buttons to select atrack on the CD.

Press the LI
ST REFRESH button to display the list of directories of
the MP3 compilation.

Pr
ess and hold one of the buttons for fast forward or backward play.

9.92
05
1
1
2
3
MUSIC MEDIA PLAYERS


The system puts together playlists (temporary memory) createdover a period which depends on the capacity of the USB device.
The other sources are available durin
g this time.
The pla
ylists are updated each time the ignition is switched off or each time a USB memory stick is connected.
When connectin
g for the fi rst time, the classifi cation suggested
is by folder. When you reconnect, the classifi cation selected
previously is retained.
Connect the memory stick to the port, directly or usinga lead. If the audio equipment is switched on, the USB
source is detected as soon as it is connected. Play
begins automatically after a delay which depends on
the capacity of the USB memory stick.
The fi le formats supported are .mp3
(mpeg1layer 3 only), .wma (standard 9 only, 128 kbits/seccompression), .wav and .ogg.
Certain pla
ylist formats are supported (m3u, ...)
On reconnection of the previous memory stick used,
play is resumed automatically with the last track
pla
yed.

This unit consists of a USB port and an auxiliaryJack socket * . The audio fi les are transmitted
from a portable device - digital player or a USBmemory stick - to your Audio system and heard
via the vehicle's speakers.

USB memor
y stick (1.1, 1.2 and 2.0) or Apple®
player of generation 5 or later:


- U
SB memory sticks should be formattedFAT or FAT 32 (NTFS not supported),

- the Apple ®player lead is essential,

- navi
gation through the fi le database is also
possible by means of the steering mountedcontrols.
The list of compatible equipment and the compression rates supported are available from CITROËN dealers. pqpp

















USING THE USB BOX

CONNECTING A USB MEMORY STICK

Other Apple®
players of earlier generations and®
players using the MTP protocol * :


- pla
y via Jack-Jack lead only (not supplied),

- navi
gation through the fi le database is from
the portable device.

* Accordin
g to vehicle.

9.93
3
4
05
2
1
REFRESH
REFRESH

USING THE USB PORT


Press LIST briefl y to display thepreviously selected classifi cation.
Navi
gate through the list using the left/right and up/down buttons.

Confi rm the selection by pressing OK. The lists available are Artist, Genre and Pla
ylist (as defi ned in the
Apple ®player).

Selection and Navigation are described in steps 1 to 4 above.

Do not connect a hard disk or
USB connection device other
than audio equipment to the USB port. This could damage your
installation.

CONNECTING AN APPLE®PLAYER VIA THE USB PORT®

Press one of these buttons to gain
access to the previous / next track on
the classifi cation list currently beingplayed.
Pr
ess and hold one of the buttons for fast forward or backward play.

Pr
ess one of these buttons to gain access to the previous / next
Genre, Folder, Artist or Playlist on
the classifi cation list currently beingplayed.
Press and hold LI
ST to display the different classifi cations.
Select b
y Folder / Artist / Genre / Playlist,press OK to select the classifi cation required, then press OK again to confi rm.


- b
y Folder: all folders containing audio fi les recognised on the peripheraldevice.

- by Artist: all o
f the artist names
defi ned in the ID3 Tags, classifi ed in alphabetical order.

- b
y Genre: all of the genres defi ned in
the ID3 Tags.

- b
y Playlist: in accordance with the
playlists recorded on the USB device.

MUSIC MEDIA PLAYERS

9.94
05
1
21
2
The display and control is via the portable device. First ad
just the volume of your portable device.
Then ad
just the volume of your audio system.













USING THE AUXILIARY SOCKET (AUX)

ADJUSTING THE VOLUME OF
THE AUXILIARY SOURCE

RCA SOCKET

Connect the portable device
(MP3 player…) to the audio sockets (whiteand red, RCA type) using a suitable cable (not supplied).

Press the
SOURCE button several
times in succession and select AUX.
The RCA auxiliar
y socket permits the connection of a portable device(MP3 player...).
MUSIC MEDIA PLAYERS

9.95
06
1
2
3
4
5
6
7
8
9
MENU

For safety reasons and because they require prolonged attentionon the part of the driver, the operations for pairing of the Bluetooth mobile telephone with the Bluetooth hands-free system of your
audio equipment must be carried out with the vehicle stationary
and the ignition on.
Pr
ess the MENU button.

A window is displayed with a message that a search is in progress.
Activate the telephone's Bluetooth
function
and ensure that it is "visible to all" (telephone confi guration).
In the menu, select:
- Bluetooth telephone
function -
Audio
- Bluetooth confi
guration
- P
erform a Bluetooth search
The services o
ffered depend on the network, the SIM card and thecompatibility of the Bluetooth equipment used.
Consult your telephone's manual and your operator to fi nd out which
services are available to you.









BLUETOOTH TELEPHONE SCREEN C

The TELEPH
ONE menu permits access to the following functions
in particular: Directory * , Call list, Pairing management.
The
fi rst 4 telephones recognised are displayed in this window.

A virtual ke
ypad is displayed in thescreen: enter a code with at least 4 digits.

Confi rm by pressing OK.

A messa
ge that the pairing has been successful appears in thescreen.
Select the telephone to be connected from the list. Only one
telephone can be connected at a time.

A messa
ge is displayed in the screen of the
telephone chosen. To accept the pairing, enter the same code on the telephone, then confi rm with OK.

The automatic connection authorised is onl
y active after the
telephone has been confi gured.
The directory and the call list can be accessed a
fter thesynchronisation period.
(Available according to model and version)

*
If your telephone is fully compatible.
I
f pairing fails, the number of attempts is not limited. Go to www.citroen.co.uk for more information
(compatibility,more help, ...).
PAIRING A TELEPHONE / FIR
ST CONNECTION

9.96
06
2
1
2
1

An incoming call is announced by a ring and a superimposed
display in the vehicle's screen.

Select the YES tab on the display
using the buttons and confi rm bypressing OK.

Press the steerin
g mounted control to accept the call.


MAKING A CALL

From the Bluetooth telephone
function Audio menu, select Manage
the telephone call then Call, Call list or Directory.

Press the steerin
g mounted control for more than
two seconds for access to your directory, then navigate with the thumb wheel.

Or

To dial a number, use your telephone's keypad,with the vehicle stationary.

Durin
g a call, press the steering mounted control
for more than 2 seconds.

Confi rm with OK to end the call.

BLUETOOTH FUNCTIONS


ENDING A CALL

9.97
1
2
3
06

Initiate the pairing between the telephone and
the vehicle. This pairing can be initiated from
the vehicle's telephone function menu or via the
telephone's ke
ypad. See steps 1 to 9 on the previouspages. During the pairing phase, the vehicle must bestationary with the key in the ignition.
Select the telephone to be connected from the telephone function
menu.
The audio system connects to a newly paired telephone automatically.






BLUETOOTH AUDIO STREAMING *


Wireless transmission of the telephone's music fi les via the audioequipment. The telephone must be able to manage the appropriate
Bluetooth profi les (Profi les A2DP / AV RCP).
*
Depending on the compatibility of the telephone.
**

In certain cases, playing of the Audio fi les must be initiated from the
keypad.
*** If the tele
phone supports the function.
Activate the streamin
g source by
pressing the SOURCE button ** .The tracks to be played can becontrolled as usual via the buttons on
the audio system control panel andthe steering mounted controls *** .
The contextual information can bedisplayed on the screen.
BLUETOOTH FUNCTIONS

9.98
07
1
2
3
4
5
6
7
8
MENUPress the MENU button.
Usin
g the arrows, select DISPLAY CONFIGURATION.
Pr
ess to confi rm the selection.

Using the arrows, select YEAR. Pr
ess to confi rm the selection.
Pr
ess to confi rm the selection.
Ad
just the setting.
Start again from step 1 then set MONTH, DAY, HOUR, MINUTES.












SETTING THE DATE AND TIME
SCREEN A

9.99
07
1
2
3
4
5
6
7
8
MENU
CONFIGURATION
Press the MENU button.
Usin
g the arrows, select
PERSONALISAT ION CONFIGURATION.
Pr
ess to confi rm the selection.

Using the arrows, select DI
SPLAY CONFIGURATION. Pr
ess to confi rm the selection.
Pr
ess to confi rm the selection. Usin
g the arrows, select ADJUST DATE AND TIME.
Adjust the settings one by one confi rming by pressing the OK
button. Next select the OK tab on thescreen then confi rm.























SETTING THE DATE AND TIME
SCREEN C

9.100
1
08
Each press of the button, located at the end of the wiper stalk, displays the different trip computer information in succession, depending on the screen.
- t
he "vehicle" tab with:


●
the range, the current
fuel consumption and the distance remaining to
the destination,
- the "1" tab
(trip 1) with:


●
the avera
ge speed, the average consumption and the distance
travelled calculated over trip "1" ,
- the "2" tab
(trip 2) with the same information for a second trip.


A FEW DEFINITIONS

Zero reset
When the required trip is displa
yed, press the control for more than
two seconds.
Range: displays the distance which can travelled with the remaining fuel detected in the tank, basd on the average consumption over the lastfew miles (kilometres).
This displa
yed value may vary signifi cantly following a change in the
vehicle speed or the relief of the route.
When the ran
ge falls below 20 miles (30 km), dashes are displayed.
After fi lling with at least 10 litres of fuel, the range is recalculated and is
displayed when it exceeds 60 miles (100 km).
If, whilst driving, dashes are displayed continuously in place of the digits,contact a CITROÀN dealer. ,g,
Current fuel consumption:only calculated and displayed above 20 mph (30 km/h).
Average fuel consumption: this is the average fuel consumption since
the last trip computer zero reset.
Average speed: this is the average speed calculated since the last trip computer zero reset (ignition on).
Distance travelled:
calculated since the last trip computer zero reset.
Distance remaining to the destination:calculated with reference to
the fi nal destination, entered by the user. If guidance is activated, the
navigation system calculates it as a current value.
TRIP COMPUTER
