Steering mounted controls
6. Speed limiter on/pause indication.
7. S peed limiter mode selection indication.
8.
S

peed value setting.
Speed limiter ("LIMIT")
System which prevents the vehicle from exceeding the speed programmed by the driver.
The speed limiter cannot, in any
circumstances, replace the need to
observe speed limits, nor can it replace the
need for vigilance on the part of the driver.
Once the programmed speed limit is reached,
additional pressure on the accelerator pedal
has no effect.
1.
S

elect speed limiter mode.
2.
L

ower the programmed speed.
3.
R

aise the programmed speed.
4.
S

peed limiter on / pause.
5.
I

f fitted to your vehicle, display the list of
memorised speeds or memorise the speed
suggested by the speed limit recognition
system.
Display in the instrument panel
The programmed speed remains in the
memory when the ignition is switched off.
For more information on this button
and the Dynamic cruise control ,
refer to the corresponding section.
For more information on
Memorising speeds , refer to the
corresponding section.
Head-up display
For more information on Speed limit
recognition and memorising them in
particular, refer to the corresponding
section.
6
Driving

230
Jumpy _en_Chap06_conduite_ed01-2016
Switching on / Pause
F Turn thumbwheel 1 to the "LIMIT" position:
the speed limiter mode is selected but is
not switched on (Pause).
F

S
witch the speed limiter back on by
pressing button 4 , if the speed displayed
is suitable (by default, the last speed
programmed).
F

Y
ou can temporarily stop the speed limiter
by pressing button 4 again: the display
confirms that it has been stopped (Pause). You do not have to switch the speed limiter on
in order to set the speed.
Once the function is selected, you can modify
the speed setting by:
-

u
sing buttons 2 and 3
, raising or lowering
the speed displayed:
F
b
y successive short presses, to modify
by + or - 1 mph (km/h),
F
b
y a maintained press, to modify in steps
of + or - 5 mph (km/h).
-
p
ressing button 5, if your vehicle has speed
memorisation:
F

t
he six speeds memorised are displayed
in the touch screen,
F

p
ress the button corresponding to the
speed limit chosen.
The value is then displayed in the instrument
panel.
The selection screen closes after a few
moments.
Adjusting the speed limiter
setting
S witching on the speed limiter requires a
programmed speed of at least 20 mph (30 k m/h).
The speed limiter is paused by operation of the
control. The programmed speed can be
exceeded temporarily by pressing
the accelerator firmly beyond the
point of resistance.
To return to the programmed speed,
simply release the accelerator
pedal until the vehicle returns to the
programmed speed limit.
Driving

231
MEM
Jumpy _en_Chap06_conduite_ed01-2016
On sharp acceleration, as when
descending a steep hill, the speed
limiter will not be able to prevent
the vehicle from exceeding the
programmed speed.
The limiter is temporarily deactivated
and the displayed programmed speed
flashes.
An audible signal accompanies the
flashing of the programmed speed
when exceeding the speed is not due to
an action by the driver.
Flashing of the dashes indicates a fault with the
speed limiter.
Have it checked by a CITROËN dealer or a
qualified workshop.
Operating fault
Temporarily exceeding the
programmed speed
Switching off
F Press f irmly on the accelerator pedal,
going beyond the point of resistance ,
to
exceed the programmed speed limit.
The speed limiter is deactivated temporarily
and the displayed programmed speed flashes.
An audible signal accompanies the flashing
of the programmed speed when exceeding
the speed is not due to an action by the driver
(steep hill...).
As soon as the vehicle's speed returns to the
programmed value, the limiter operates again:
the display of the programmed speed becomes
steady again.
F

T
urn thumbwheel 1 to the "0" position.
T

he display of speed limiter information
disappears.
-

b

y pressing button 5 , if your vehicle has
speed limit recognition:
F

t

he speed to be memorised is displayed
in the instrument panel,
F

press button 5 again to save the speed.
The value is then displayed in the instrument
panel.
For more information on Speed
limit recognition , refer to the
corresponding section. The use of mats not approved by
CITROËN may inter fere with the
operation of the speed limiter.
To avoid any risk of jamming of the
pedals:
-

e
nsure that the mat is secured
c o r r e c t l y,
-

d
o not fit one mat on top of another.
6
Driving

232
MEM
MEM
Jumpy _en_Chap06_conduite_ed01-2016
Cruise control ("CRUISE")
System which automatically maintains
the speed of the vehicle at the value
programmed by the driver, without any
action on the accelerator pedal.
Steering mounted controls
1. Select cruise control mode.
2. Programme a speed setting/Lower the
speed setting.
3.
P

rogramme a speed setting/Raise the
speed setting.
4.
P

ause-resume cruise control.
5.
I

f fitted to your vehicle, display the list of
memorised speeds or memorise the speed
offered by the speed limit recognition
system.
The cruise control system cannot, in
any circumstances, replace the need to
observe speed limits, nor can it replace the
need for vigilance on the part of the driver.
You are advised to keep your feet near the
pedals at all times.
For more information on Speed
limit recognition , refer to the
corresponding section.
Switching off the ignition cancels any
programmed speed value.
For more information on
Memorising speeds , refer to the
corresponding section.
Driving

233
Jumpy _en_Chap06_conduite_ed01-2016
If your vehicle has a manual gearbox, third or
fourth gear, or higher, must be engaged.
If your vehicle has an automatic or electronic
gearbox, second gear or higher must be
engaged.
6.
C

ruise control pause/resume indication.
7.
C

ruise control mode selection indication.
8.
S

peed value setting.
Display in the instrument panel
Head-up display Switching on
F Turn thumbwheel 1 to the "CRUISE"

position: the cruise control mode is
selected but is not switched on (Pause).
F

P
ress on button 2 or 3 : your vehicle's
current speed becomes the cruise speed.
The cruise control is activated (ON). It is possible to exceed the programmed
speed temporarily by pressing the
accelerator pedal.
To return to the programmed speed,
simply release the accelerator pedal
until the programmed cruise speed is
reached again.
The cruise control is switched on
manually: it
requires a minimum vehicle speed of 25 mph
(40 km/h).
6
Driving

234
Jumpy _en_Chap06_conduite_ed01-2016
Pause
The cruise control is paused manually or
by pressing the brake or clutch pedal or
on triggering of the ESC system for safety
reasons.
-

b

y pressing on button 5 , if your vehicle is
equipped with speed memorisation:
F

t

he speed to be memorised is displayed
in the instrument panel,
F

p

ress on button 5 again to save the
speed.
The value is then displayed in the instrument
panel. Once switched on, you can pause the cruise
control at any time by pressing button 4: the
screen confirms the pause.
If the cruise control is switched on, you can
then modify the initial speed in one of the
following ways:
-

u

sing buttons 2 or 3 :
F

b

y successive short presses, to modify
the speed by + or - 1 mph (km/h),
F

b

y a long press, to modify the speed in
steps of + or - 5 mph (km/h),
Modification of the initial
speed setting
- by pressing on button 5 , if your vehicle is
equipped with speed memorisation:
F

t
he six memorised speeds are displayed
in the touch screen,
F

s
elect a value: it is displayed in the
instrument panel.
The selection screen closes after a few
moments.
The modification is then accepted. For more information on Speed limit
recognition, refer to the corresponding
section.
Driving

235
Jumpy _en_Chap06_conduite_ed01-2016
Exceeding the programmed
speed
If the programmed speed is exceeded, the
displayed speed flashes.
Once the vehicle returns to the programmed
speed, the display becomes steady again.
Switching off
F Turn thumbwheel 1 to the "0" position. T
he display of information related to the
cruise control disappears. Flashing of the dashes indicates a fault with the
cruise control.
Have it checked by a CITROËN dealer or a
qualified workshop.
Operating faultWhen the cruise control is switched on,
be careful if you maintain the pressure
on one of the programmed speed
changing buttons: this may result in a
very rapid change in the speed of your
vehicle.
Do not use the cruise control on
slippery roads or in heavy traffic.
On a steep descent, the cruise control
will not be able to prevent the vehicle
from exceeding the programmed speed.
On steep climbs or when towing,
the programmed speed may not be
achieved or maintained.
The use of mats not approved by
CITROËN may inter fere with the
operation of the cruise control.
To avoid any risk of jamming of the
pedals:
-

e
nsure that the mat is secured
c o r r e c t l y,
-

n
ever fit one mat on top of another.
6
Driving

236
Jumpy _en_Chap06_conduite_ed01-2016
Dynamic cruise control ("CRUISE")
This systems allows the vehicle's speed to
be maintained at a value set by the driver.
In addition it allows (when circumstances
permit) an inter-vehicle distance that you
have selected to be maintained between
your vehicle and the vehicle in front.
In the Driving menu, activate/deactivate
" Dynamic cruise control".
The state of the system is memorised on
switching off the ignition.
Activation / Deactivation
The cruise control selection
thumbwheel must be at the
"CRUISE" position, otherwise the
selection is not taken into account.
Activation or deactivation of
the system is via the vehicle
configuration menu.
With the touch screen
1. Select cruise control mode.
2. P rogramme a speed setting/Reduce the
speed setting.
3.
P

rogramme a speed setting/Increase the
speed setting.
4.
P

ause / Resume cruise control.
5.
I

f fitted to your vehicle, display the list of
memorised speeds or memorise the speed
suggested by the speed limit recognition
system.
6.
S

elect the inter-vehicle distance (" Close",
" Normal ", "Distant ").
Steering mounted controls
By default, the inter-vehicle distance is
set at "Normal ".
Other wise, the last setting made will be
used when switching on the system.
Driving

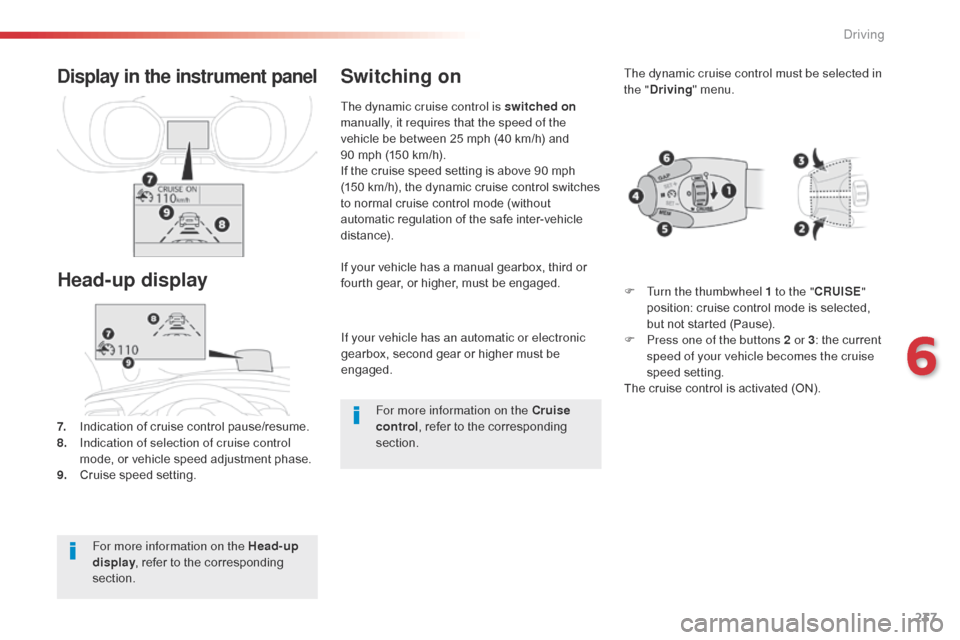

237
Jumpy _en_Chap06_conduite_ed01-2016
If your vehicle has an automatic or electronic
gearbox, second gear or higher must be
engaged.
If your vehicle has a manual gearbox, third or
fourth gear, or higher, must be engaged.
7.
I

ndication of cruise control pause/resume.
8.
I

ndication of selection of cruise control
mode, or vehicle speed adjustment phase.
9.
C

ruise speed setting.
Display in the instrument panel
Head-up display
The dynamic cruise control is switched on
manually, it requires that the speed of the
vehicle be between 25 mph (40 km/h) and
90
mph (150 km/h).
If the cruise speed setting is above 90 mph
(150 km/h), the dynamic cruise control switches
to normal cruise control mode (without
automatic regulation of the safe inter-vehicle
distance).
Switching on
For more information on the Head-up
display , refer to the corresponding
section. For more information on the Cruise
control
, refer to the corresponding
section. The dynamic cruise control must be selected in
the "
Driving " menu.
F
T
urn the thumbwheel 1 to the "
CRUISE"
position: cruise control mode is selected,
but not started (Pause).
F
P
ress one of the buttons 2 or 3
: the current
speed of your vehicle becomes the cruise
speed setting.
The cruise control is activated (ON).
6
Driving

238
MEM
Jumpy _en_Chap06_conduite_ed01-2016
If the cruise control is on, you can then modify
the initial speed:
-
u
sing button 2 or 3 :
F

b
y successive short presses, to modify
by steps of + or -
1 mph (km/h),
F

b
y a maintained press, to modify in steps
of + or - 5 mph (km/h).
Modification of the cruise
control speed only
- by pressing button 5 , if your vehicle has
speed memorisation:
F

t
he six memorised settings are displayed
in the touch screen,
F

c
hoose a speed setting: it is displayed in
the instrument panel.
The selection screen closes after a few
moments.
The modification is then taken into account. For more information on Speed
limit recognition
and in particular
its memorisation, refer to the
corresponding section.
As a precaution, it is recommended that
you select a cruise speed setting close
to the current speed of your vehicle.
-

b
y pressing button 5
, if your vehicle has
speed limit recognition:
F
t
he speed to memorise is displayed in
the instrument panel,
F press button
5 again to save the speed.
The setting is then displayed in the instrument
panel.
Inter-vehicle distance
Using a radar with a range of about 100 metres,
located at the front of the vehicle, this system
detects a vehicle running in front of your
vehicle.
It automatically adapts the speed of your
vehicle to that of the vehicle in front.
If the vehicle in front is running more slowly,
the system progressively reduces the speed of
your vehicle using just engine braking (as if the
driver had pressed the " -" button).
If your vehicle is too close to, or approaching
too quickly the vehicle in front, the dynamic
cruise control is automatically deactivated.
The driver is then alerted by an audible signal,
accompanied by a message.
If the vehicle in front accelerates or changes
lane, the dynamic cruise control progressively
accelerates your vehicle to return to the
programmed speed.
If the driver operates a direction indicator to
overtake a slower vehicle, the dynamic cruise
control allows your vehicle to temporarily
approach the vehicle in front to assist the
overtaking manoeuvre, though never exceeding
the programmed speed.
Driving
