engine Citroen JUMPY 2016 2.G Owner's Guide

71
Jumpy _en_Chap02_ouvertures_ed01-2016

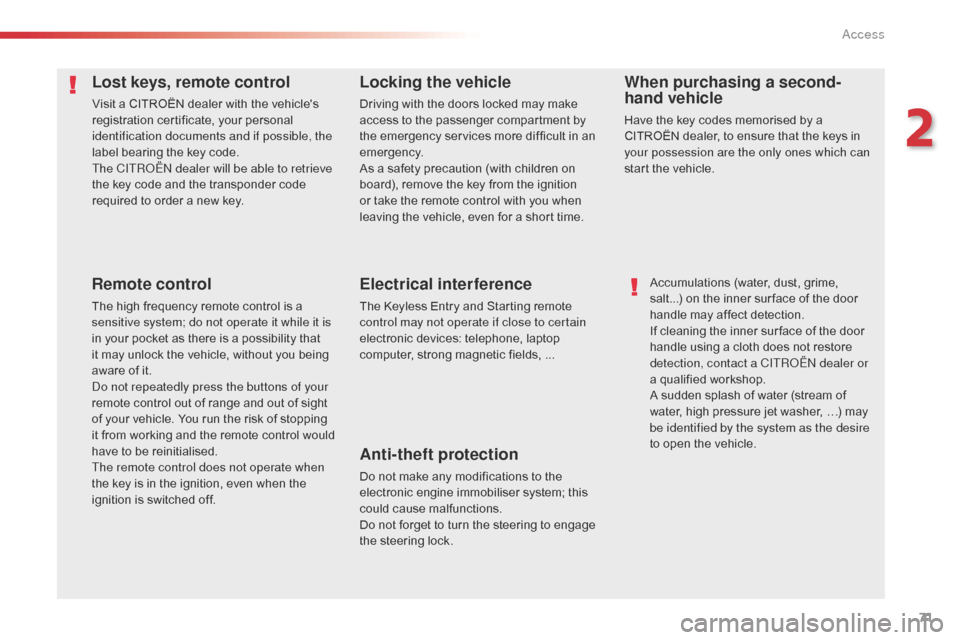

Lost keys, remote control
Visit a CITROËN dealer with the vehicle's
registration certificate, your personal
identification documents and if possible, the
label bearing the key code.
The CITROËN dealer will be able to retrieve
the key code and the transponder code
required to order a new key.
Locking the vehicle
Driving with the doors locked may make
access to the passenger compartment by
the emergency services more difficult in an
emergency.
As a safety precaution (with children on
board), remove the key from the ignition
or take the remote control with you when
leaving the vehicle, even for a short time.
When purchasing a second-
hand vehicle
Have the key codes memorised by a
CITROËN dealer, to ensure that the keys in
your possession are the only ones which can
start the vehicle.
Electrical interference
The Keyless Entry and Starting remote
control may not operate if close to certain
electronic devices: telephone, laptop
computer, strong magnetic fields, ...Accumulations (water, dust, grime,
salt...) on the inner sur face of the door
handle may affect detection.
If cleaning the inner sur face of the door
handle using a cloth does not restore
detection, contact a CITROËN dealer or
a qualified workshop.
A sudden splash of water (stream of
water, high pressure jet washer, …) may
be identified by the system as the desire
to open the vehicle.
Remote control
The high frequency remote control is a
sensitive system; do not operate it while it is
in your pocket as there is a possibility that
it may unlock the vehicle, without you being
aware of it.
Do not repeatedly press the buttons of your
remote control out of range and out of sight
of your vehicle. You run the risk of stopping
it from working and the remote control would
have to be reinitialised.
The remote control does not operate when
the key is in the ignition, even when the
ignition is switched off.
Anti-theft protection
Do not make any modifications to the
electronic engine immobiliser system; this
could cause malfunctions.
Do not forget to turn the steering to engage
the steering lock.
2
Access

75
Jumpy _en_Chap02_ouvertures_ed01-2016
Closing
F Push or pull the door to close it, then lock it.
For more information on the Key,
Remote control or Keyless Entr y
and Starting and in particular locking
the vehicle, refer to the corresponding
section. When a door is not fully closed:
-

v
ehicle stationary and engine
running, this warning lamp
comes on, accompanied by an
alert message for a few seconds,
-

v
ehicle moving (speed above
6 mph (10 km/h)), this warning
lamp comes on, accompanied
by an audible signal and an alert
message for a few seconds.
Manual sliding side door(s)
From outside
F After unlocking the vehicle (using the key, remote control or Keyless Entry and
Starting, depending on equipment) pull the
door handle. Take care not to block the guide space
on the floor to allow the door to slide
c o r r e c t l y.
As a safety measure and for functional
reasons, do not drive with the sliding
side door open. For more information on the Key,
Remote control or Keyless Entr y and
Starting and in particular unlocking
the vehicle, refer to the corresponding
section.
To hold the sliding side door in the open
position, open the door fully to engage
the latch (located at the bottom of the
door).
2
Access

77
Jumpy _en_Chap02_ouvertures_ed01-2016
If a sliding side door is not fully
closed:
-
v
ehicle stationary and engine
running, this warning lamp
comes on, accompanied by an
alert message for a few seconds,
-

v
ehicle moving (speed above
6 mph (10 km/h)), this warning
lamp comes on, accompanied
by an audible signal and an alert
message for a few seconds.
For more information on the Key,

Remote control or Keyless Entr y
and Starting and in particular locking
the vehicle, refer to the corresponding
section.
Closing
From outside
F Pull the handle toward you, then to the front, and if necessary lock the vehicle.
From inside
F Push the handle for ward to close the door, and if necessary lock the vehicle.
2
Access

83
Jumpy _en_Chap02_ouvertures_ed01-2016
F To start the electrically powered opening of a door, press the button for the
corresponding door.
F

P
ressing the button again reverses the
movement of the door.
Using the button(s) on the door
pillar
The button is not operational and
pressing it results in an audible signal,
if the speed of the vehicle is above
20
mph (30 km/h). If a sliding door is not fully closed:
-

v
ehicle stationary and engine
running, this warning lamp comes
on, accompanied by an alert
message for a few seconds,
-
v
ehicle moving (speed above
6 mph (10 km/h)), this warning
lamp comes on, accompanied
by an audible signal and an alert
message for a few seconds.
2
Access

84
Jumpy _en_Chap02_ouvertures_ed01-2016
General
recommendations
The doors must only be operated when
the vehicle is stationary.
For your safety and for that of your
passengers, as well as for correct
operation of the doors, you are strongly
advised not to drive with a door open.
Always check that it is safe to operate
the door and in particular, be sure not to
leave children or animals near the door
controls without supervision.
The audible warning, illumination of
the "door open" warning lamp and the
message in the multifunction screen
are there to remind you. Contact
a CITROËN dealer or a qualified
workshop to deactivate these warnings.
Lock your vehicle when using an
automatic car wash.Before any opening or closing and
during any movement of the doors,
ensure that no person, animal or object
is protruding through the window
frame or might prevent the intended
manoeuvre, either inside or outside the
vehicle.
If this advice is not followed, injuries or
damage may occur if a person or an
object is trapped or caught.
Electric closing and opening of the
doors is not possible above 2 mph
(3
km/h):
-

I
f you set off with the door(s) open,
you must slow down to below
20
mph (30 km/h) in order to close
the door(s).
-

A
ny attempt to open a door
electrically using the interior handle
while driving, results in only being
possible to open the door manually.
-

T
his situation is accompanied by
the audible warning, illumination of
the "door open" warning lamp and
the message in the multifunction
screen. To release the door and
be able to operate it again, it is
necessary to stop the vehicle.
Manual or electric sliding side door(s)
The electric controls are inhibited in the
event of an impact. Manual opening and
closing remain possible.
While starting the engine, the
movement of a door is interrupted and
restored once the engine is running.
Depending on the engine, in Stop
mode of Stop & Start, if the door
is closed and you initiate opening
of the door, the door opens
partially and stops. When the
engine changes automatically to
Start mode, the door continues its
movement.
Access

91
Jumpy _en_Chap02_ouvertures_ed01-2016
If the left-hand door is not fully closed
(the right-hand door is not detected):
-
v
ehicle stationary and engine
running, this warning lamp
comes on, accompanied by an
alert message for a few seconds,
-

v
ehicle moving (speed above
6 mph (10 km/h)), this warning
lamp comes on, accompanied
by an audible signal and an alert
message for a few seconds.
For more information on the Key,
Remote control or Keyless Entr y and
Starting and in particular unlocking
the vehicle, refer to the corresponding
section.
Side-hinged rear
doors
The side-hinged rear doors are asymmetrical.
The left-hand door is fitted with a lock.
F

A
fter unlocking the vehicle (using the
key, remote control or Keyless Entry and
Starting, depending on equipment) pull the
door handle. F

A
fter first opening the left-hand door, pull
the lever A towards you to open the right-
hand door.
From outside
Closing
F Close first the right-hand door, then the left-hand door.
If the left-hand door is closed
first, a buffer stop located on
the edge of the right-hand door
prevents it closing.
2
Access

94
Jumpy _en_Chap02_ouvertures_ed01-2016
For more information on the Key,
Remote control or Keyless Entr y and
Starting and in particular unlocking
the vehicle, refer to the corresponding
section. For more information on the Key,

Remote control or Keyless Entr y and
Starting and in particular on locking
the vehicle, refer to the corresponding
section.
Tailgate
F After unlocking the vehicle with the key, the remote control or the Keyless Entry
and Starting, pull the handle, then raise the
tailgate.
Opening
F Lower the tailgate using the interior grab handle then push it home to fully close it.
Closing Back-up control
It allows the mechanical unlocking of the
tailgate in the event of a battery or central
locking system malfunction.
Unlocking
F If fitted to your vehicle and if necessary,
fold back the rear seats to gain access to
the lock from inside.
Locking after closing
If the fault persists after closing again, the
tailgate will remain locked.
If the tailgate is not fully closed:
-

v

ehicle stationary and engine running, this
warning lamp comes on, accompanied by
an alert message for a few seconds,
-

v

ehicle moving (speed above 6 mph
(10

km/h)), this warning lamp comes on,
accompanied by an audible signal and an
alert message for a few seconds. F
I
nsert a small screwdriver into hole A of the
lock to unlock the tailgate.
F
M
ove the latch to the left.
Access

102
Jumpy _en_Chap03_ergonomie-et-confort_ed01-2016
Electric front seat
Forwards-backwardsBackrest angleHeight
To avoid discharging the battery, carry out
these adjustments with the engine running.
For more information on the Seat belts
,
refer to the corresponding section.
F

P

ush the control for wards or rear wards to
slide the seat. F

T

ilt the control for wards or rear wards to
adjust the angle of the seat backrest. F

T

ilt the control upwards or downwards to
obtain the desired height.
Before moving the seat backwards, ensure that there is nothing that might prevent the full
travel of the seat, so as to avoid the risk of jamming the seat caused by the presence of
objects on the floor behind the seat or rear passengers. If the seat jams, stop the movement
immediately.
Ease of use and comfort

103
Jumpy _en_Chap03_ergonomie-et-confort_ed01-2016
With the engine running, the front seats can be
heated separately.
Heated seats control
If fitted to your vehicle.
F T o raise the head restraint, pull it upwards.
F

T
o remove the head restraint, press the
lug
A and pull the head restraint upwards.
F

T
o put the head restraint back in place,
engage the head restraint rods in the
apertures keeping them in line with the
seat backrest.
F

T
o lower the head restraint, press the lug A
and the head restraint at the same time. The head restraint rods have notches
which prevent the head restraint
lowering; this is a safety device in case
of impact.
The adjustment is correct when the
upper edge of the head restraint is
level with the top of the head.
Never drive with the head restraints
removed; they must be in place and
adjusted correctly.
Head restraint height
adjustment
Additional adjustments
Armrest
The armrest has notched positions.
F
R aise the armrest fully up.
F

L
ower it fully down.
F

R
aise the armrest to the desired position. F

U
se the adjustment wheel to switch on and
select the level of heating required:
0: Of f.
1: Low.
2: Medium.
3: High.
3
Ease of use and comfort

105
Jumpy _en_Chap03_ergonomie-et-confort_ed01-2016
Heated bench seat
0: Off.
1 : Low.
2 : Medium.
3 : High.
F

U
se the adjustment twheel to switch on and
select the level of heating required:
With the engine running, the bench seat
cushions can be heated.
Under-seat storage
If your vehicle is so equipped, a storage space
is provided under the seat.
F

P
ull the strap to tip the seat.
3
Ease of use and comfort
