The air conditioning system only operates with the engine running.
Manual air conditioning
Temperature
F Turn the knob from "LO"
(cold) to " HI" (hot) to
adjust the temperature to
your requirements.
Air flow
F Turn the knob to obtain a comfortable air flow.
If you put the air flow control in the
minimum position
(system off), the
temperature is no longer controlled.
However, a slight flow of air can still be
felt, resulting from the movement of the
vehicle.
Air distribution
Windscreen and side windows.
Footwells. Central and side vents.
The air distribution can be adapted by adding
the corresponding buttons.
Air intake / Air recirculation
The intake of exterior air avoids misting of the
windscreen and side windows.
The recirculation of interior air insulates the
passenger compartment from exterior odours
and fumes.
Return to exterior air intake as soon as
possible to prevent deterioration of the
air quality and the formation of mist. This allows hot or cold air to be
delivered quickly when required.F

P
ress this button to recirculate
the interior air; its indicator lamp
comes on.
F

P
ress this button again to allow
exterior air into the passenger
compartment; its indicator lamp
goes off.
Ease of use and comfort

127
Jumpy _en_Chap03_ergonomie-et-confort_ed01-2016
Air conditioning
Switching on
With the engine running, the air conditioning is
designed to operate effectively in all seasons,
with the windows closed.
It enables you to:
-
l
ower the temperature, in summer,
-

i
ncrease the effectiveness of the demisting
in winter, above 3°C.
To obtain cool air more quickly, you
can use interior air recirculation for
a few moments. Then return to the
intake of exterior air. F
P
ress this button; its indicator
lamp comes on. F

P
ress this button again; its
indicator lamp goes off.
Switching off
The air conditioning does not operate
when the air flow adjustment is set
to
off. Switching off may result in some
discomfort (humidity, misting).
3
Ease of use and comfort

128
Jumpy _en_Chap03_ergonomie-et-confort_ed01-2016
A setting around 21 enables you to
obtain an optimum level of comfort.
Depending on your requirements, a
setting between 18 and 24 is usual.
In addition, it is recommended that you
avoid a left /right setting difference of
more than 3.
Dual-zone automatic air conditioning
Offers the best compromise between
a comfortable temperature and quiet
operation.
Provides soft and quiet operation by
limiting air flow. Provides strong and effective air flow.
F
P
ress the "AUTO"
button
repeatedly.
Automatic comfort mode TemperatureF Push the button down to
reduce the value or up to
increase it.
When the engine is cold, the air flow will
only reach its optimum level gradually
to prevent too great a distribution of
cold air.
In cold weather, it favours the
distribution of warm air to the
windscreen, the side windows and the
footwells only.
The active mode appears in the display screen,
as described below:
If desired, you can choose settings different
to those offered by the system, by adjusting a
setting manually. The other functions are still
managed automatically.
The "AUTO " symbol disappears if you modify
a setting.
Manual mode
The driver and front passenger can each set
the temperature to suit their requirements.
The value indicated in the screen corresponds
to a level of comfort and not to a temperature in
degrees Celsius or Fahrenheit.
Ease of use and comfort

130
Jumpy _en_Chap03_ergonomie-et-confort_ed01-2016
F Press this button to increase air f low.
Air distribution
F Press this button repeatedly to direct the air flow in turn to:
-

t

he windscreen, the side windows and the
footwells,
-

t

he footwells,
-

t

he central vents, the side vents and the
footwells,
-

t

he windscreen, the side windows, the
centre vents and the footwells,
-

t

he centre and side vents,
-

t

he windscreen and side windows
(demisting or defrosting).
Air flow
F Press this button to decrease air f low.
The air flow symbol (a fan) appears. It is filled
in or emptied progressively according to the
setting.
Air conditioning
It enables you to:
- l ower the temperature, in summer,
-

i
ncrease the effectiveness of the demisting
in winter, above 3°C.
Switching on
With the engine running, the air conditioning is
designed to operate effectively in all seasons,
with the windows closed.
The air conditioning does not operate
when the air flow adjustment is set
to
off.To obtain cool air more quickly, you
can use interior air recirculation for
a few moments. Then return to the
intake of exterior air. F

P
ress this button; its indicator
lamp comes on.
F

P
ress this button again; its
indicator lamp goes off.
Switching off
Switching off may result in some
discomfort (humidity, misting).
Ease of use and comfort

133
Jumpy _en_Chap03_ergonomie-et-confort_ed01-2016

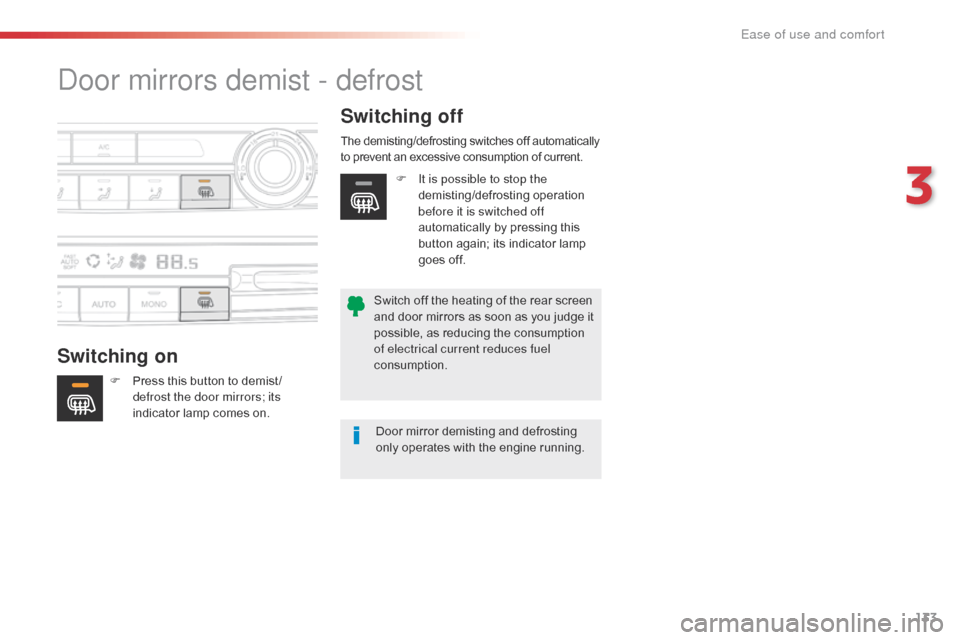

Door mirrors demist - defrost
Switching onSwitching off
F Press this button to demist /
defrost the door mirrors; its
indicator lamp comes on.
The demisting/defrosting switches off automatically
to prevent an excessive consumption of current.
Door mirror demisting and defrosting
only operates with the engine running.
Switch off the heating of the rear screen
and door mirrors as soon as you judge it
possible, as reducing the consumption
of electrical current reduces fuel
consumption. F
I
t is possible to stop the
demisting/defrosting operation
before it is switched off
automatically by pressing this
button again; its indicator lamp
goes off.
3
Ease of use and comfort

134
Jumpy _en_Chap03_ergonomie-et-confort_ed01-2016
Rear screen demist - defrost
Switching onSwitching off
F Press this button to demist /
defrost the rear screen and the
door mirrors (if your vehicle is
so equipped); its indicator lamp
comes on.
The demisting/defrosting switches off automatically
to prevent an excessive consumption of current.
Rear screen demisting and defrosting
only operates with the engine running.
Switch off the heating of the rear screen
and door mirrors as soon as you judge it
possible, as reducing the consumption
of electrical current reduces fuel
consumption. F
I
t is possible to stop the
demisting/defrosting operation
before it is switched off
automatically by pressing this
button again; its indicator lamp
goes off.
Ease of use and comfort

135
Jumpy _en_Chap03_ergonomie-et-confort_ed01-2016
In order for these systems to be fully effective, follow the operation and maintenance
guidelines below:
F
T
o obtain an even air distribution, take care not to obstruct the exterior air intake grilles
located at the base of the windscreen, the nozzles, the vents and the air outlets, as well
as the air extractor located at the rear.
F

D
o not cover the sunshine sensor, located at the top of the windscreen; this is used for
regulation of the air conditioning system.
F

O
perate the air conditioning system for at least 5 to 10 minutes, once or twice a month
to keep it in per fect working order.
F

E
nsure that the passenger compartment filter is in good condition and have the filter
elements replaced regularly.
W

e recommend the use of a combined passenger compartment filter. Thanks to its
special active additive, it contributes to the purification of the air breathed by the
occupants and the cleanliness of the passenger compartment (reduction of allergic
symptoms, bad odours and greasy deposits).
F

T
o ensure correct operation of the air conditioning system, you are also advised to have
it checked regularly as recommended in the maintenance and warranty guide.
F

I
f the system does not produce cold air, switch it off and contact a CITROËN dealer or a
qualified workshop.
Recommendations for heating, ventilation and air conditioning
If after an extended stop in sunshine,
the interior temperature is very high, first
ventilate the passenger compartment for
a few moments.
Put the air flow control at a setting high
enough to quickly change the air in the
passenger compartment.
The air conditioning system does not
contain chlorine and does not present
any danger to the ozone layer.
The condensation created by the air
conditioning results in a discharge
of water under the vehicle which is
per fectly normal.
When towing the maximum load on a steep gradient in high temperatures, switching off the
air conditioning increases the available engine power and so improves the towing ability.
Stop & Start
The heating and air conditioning
systems only work when the engine is
running.
To maintain a comfortable temperature
in the passenger compartment, you can
temporarily deactivate the Stop & Start
system.
For more information on Stop & Star t ,
refer to the corresponding section.

Air vents
To close a vent, move the control
towards the outside of the vehicle. Slight
resistance may be felt.
3
Ease of use and comfort

138
Jumpy _en_Chap03_ergonomie-et-confort_ed01-2016
Heating
This is an additional and separate system
which heats the engine hot water circuit to
heat the passenger compartment and improve
defrosting.This indicator lamp is on when if the
system is programmed to come on
for heating.
This indicator lamp flashes while the
heating is operating.
Programmable Heating / Ventilation
Ventilation
This system allows ventilation of the passenger
compartment to improve the temperature
experienced on entering the vehicle in summer.
Programming
Audio system
F Press on the MENU button to go
to the main menu.
F

Sel

ect " Pre-heat. / Pre-ventil. ".
F

Sel

ect " Heating " to heat the engine and
passenger compartment or " Ventilation"
to ventilate the passenger compartment. F
Sel ect:
-

t
he 1
st clock to programme/store your
start time,
-

t

he 2
nd clock to programme/store a
second start time.
Using these two clocks and according
to season you can, for example, select
one or the other start time.
A message in the screen confirms your
choice.
F

Sel

ect " Activation " and if necessary for
programming, select " Parameters".
Ease of use and comfort

140
Jumpy _en_Chap03_ergonomie-et-confort_ed01-2016
Always switch off the programmable
heating while refuelling to avoid any risk
of fire or explosion.
To avoid the risk of intoxication and
asphyxiation, the programmable
heating must not be used, even for
short periods, in an enclosed area such
as a garage or workshop not equipped
with exhaust gas extraction.
Do not park the vehicle on an
inflammable sur face (dry grass, dead
leaves, paper…), there is a risk of fire.
Glazed sur faces such as the rear
screen or windscreen can become very
hot in places.
Take care not to place objects in
contact with these sur faces, nor touch
them with your hands or any other part
of your body.
The heating is activated provided that:
-

t

he battery is sufficiently charged,
-

t

he fuel level is adequate,
-

t

he engine has been started since
the previous heating cycle.
The programmable heating system is
supplied by the vehicle's fuel tank.
Before use, ensure that there is enough
fuel in the tank.
If the tank is on reserve, it is
recommended that the system is not
used.
The ventilation is activated provided
that the battery is sufficiently charged.
Ease of use and comfort

146
Jumpy _en_Chap04_eclairage-et-visibilite_ed01-2016
Model without AUTO lighting
Model with AUTO lighting
Main lighting selection ringLighting off (ignition off) / Front daytime
running lamps (engine running).
Automatic illumination of headlamps.
Sidelamps only.
Dipped or main beam headlamps.Dipping the headlamps
In the lighting off and sidelamps modes, the
driver can switch on the main beam headlamps
temporarily ("headlamp flash") by maintaining a
pull on the stalk.
Operation of the selected lighting is
confirmed by the illumination of the
corresponding indicator lamp.
Pull the stalk to switch between dipped and
main beam headlamps.
Lighting control stalk
In some weather conditions (e.g. low
temperature or humidity), the presence
of misting on the internal sur face of the
glass of the headlamps and rear lamps
is normal; it disappears after the lamps
have been on for a few minutes.
Turn the ring to align the desired symbol with
the marking.
Lighting and visibility
