Page 110 of 595
108
Jumpy _en_Chap03_ergonomie-et-confort_ed01-2016
Lowering the seat cushion
F Remove the non-slip net.
F T o reposition the seat cushion, press firmly
at the top of the seat with one hand to
lower the seat cushion until it engages in
the seating position.
Non-slip net
Fitting the net
F Place the first fixing in the upper cut-out 1 ,
located on the folded cushion. Then turn it
a quarter turn clockwise to secure it.
F
P
lace the second fixing in the lower
cut-out
2, located on the seat support.
Then turn it a quarter turn clockwise to
secure it. F
E
ngage the first hook on the ring 3
, located
in the open glove box.
F
E
ngage the second hook on the ring 4
,
located on the floor.
Removing the net
F Remove the hooks from the rings 4 and 3 .
F R emove the lower 2 then upper fixing 1 , by
turning them a quarter turn anti-clockwise
to release them.
Ease of use and comfort
Page 140 of 595
138
Jumpy _en_Chap03_ergonomie-et-confort_ed01-2016
Heating
This is an additional and separate system
which heats the engine hot water circuit to
heat the passenger compartment and improve
defrosting.This indicator lamp is on when if the
system is programmed to come on
for heating.
This indicator lamp flashes while the
heating is operating.
Programmable Heating / Ventilation
Ventilation
This system allows ventilation of the passenger
compartment to improve the temperature
experienced on entering the vehicle in summer.
Programming
Audio system
F Press on the MENU button to go
to the main menu.
F
Sel
ect " Pre-heat. / Pre-ventil. ".
F
Sel
ect " Heating " to heat the engine and
passenger compartment or " Ventilation"
to ventilate the passenger compartment. F
Sel ect:
-
t
he 1
st clock to programme/store your
start time,
-
t
he 2
nd clock to programme/store a
second start time.
Using these two clocks and according
to season you can, for example, select
one or the other start time.
A message in the screen confirms your
choice.
F
Sel
ect " Activation " and if necessary for
programming, select " Parameters".
Ease of use and comfort
Page 287 of 595
285
Jumpy _en_Chap07_info-pratiques_ed01-2016
Recommendations on storage
Never store bottles of AdBlue® in your
vehicle.
AdBlue
® freezes at about -11°C and
deteriorates above 25°C. It is recommended
that bottles be stored in a cool area and
protected from direct sunlight.
Under these conditions, the fluid can be kept
for at least a year.
If the additive has frozen, it can be used once it
has completely thawed out.
Procedure
Before starting the top-up procedure, ensure
that the vehicle is parked on a flat and level
sur face.
F
S
witch off the ignition and remove the
key, or if your vehicle has one, press the
START/STOP button to switch off the
engine.
F
F
or access to the AdBlue
® tank, open the
left-hand front door.
F
F
rom below, pull the black cover. F
T
urn the blue cap a 6
th of a turn
anti-clockwise.
F
L
ift off the cap.
Do not dispose of AdBlue
® bottles in
the household waste. Place them in a
container provided for this purpose or
take them to your dealer.
In wintry conditions, ensure that
the temperature of the vehicle is
above
-11°C. Other wise the AdBlue
®
may be frozen and so cannot be poured
into its tank. Park your vehicle in a
warmer area for a few hours to allow the
top-up to be carried out.
7
Practical information
Page 288 of 595
286
Jumpy _en_Chap07_info-pratiques_ed01-2016
F After emptying the bottle, wipe away any spillage around the tank filler using a damp
cloth. If any additive is split or splashed, wash
immediately with cold water or wipe with
a damp cloth.
If the additive has crystallised, clean it
off using a sponge and hot water.
F
R
efit the blue cap to the tank and turn it
a 6
th of a turn clockwise, to its stop.Important:
when topping-up after
running out of additive , signalled
by the message "Top up emissions
additive: Starting prevented", you
must wait for about 5 minutes before
switching the ignition on again, without
opening the driver's door, unlocking
the vehicle, introducing the remote
control key into the ignition switch,
or placing the electronic key of the
"Keyless Entr y and Star ting" system
inside the vehicle .
Switch on the ignition, then wait for
10
seconds before starting the engine.
F
O
btain a bottle of AdBlue
®. After first
checking the use-by date, read carefully
the instructions on use on the label before
pouring the contents of the bottle into your
vehicle's AdBlue
® tank.
Freezing of the AdBlue
®
AdBlue® freezes at temperatures below
around -11°C.
The SCR system includes a heater
for the AdBlue
® tank, allowing you to
continue driving in very cold conditions. F
R efit the black cover, starting at the top.
F
C
lose the door.
Practical information
Page 299 of 595
297
Jumpy _en_Chap08_En-cas-de-panne_ed01-2016
F Access to the spare wheel is from the rear.
F O pen the side-hinged rear doors or the
tailgate, according to the configuration of
your vehicle. F
A
ccess the carrier bolt, located on the rear
door sill.
F
T
urn the bolt anti-clockwise using the
wheelbrace (about 14 turns) until the
carrier is low enough to allow the carrier
hook to be disengaged.
Access to the spare wheel
F If your vehicle is fitted with a towbar, raise the rear of the vehicle using the jack (must
be at jacking point B ) to allow sufficient
space to remove the spare wheel.
Removing
To avoid any unwanted opening of the
electric side door(s), deactivate the
" Hands-Free Access " function in the
vehicle configuration menu.
For more information on the Hands-
free sliding side door , refer to the
corresponding section.
8
In the event of a breakdown
Page 305 of 595
303
Jumpy _en_Chap08_En-cas-de-panne_ed01-2016
Changing a bulb
Halogen bulb: turn the bulb anti-clockwise.
Ty p e A
Bayonet bulb: press on the bulb then turn it
anticlockwise.
Ty p e BTy p e C
Ty p e D
All glass bulb: pull gently as it is fitted by
pressure.
Halogen bulb: release the retaining spring from
its housing.
Halogen bulbs must be changed after
the headlamp has been off for several
minutes (risk of serious burns). Do not
touch the bulb directly with your fingers,
use lint-free cloths.
When each operation has been completed,
check the operation of the lighting.
Types of bulb
Various types of bulb are fitted to your vehicle.
To remove them: Xenon bulb: xenon bulbs must be changed by
a CITROËN dealer or a qualified workshop as
there is a risk of electrocution.Ty p e E
8
In the event of a breakdown
Page 309 of 595
307
Jumpy _en_Chap08_En-cas-de-panne_ed01-2016
Be aware that the area behind the right-
hand headlamp (facing for wards) may
be hot, with the risk of burns (over flow
p i p e).Faster flashing of a direction indicator
warning lamp (left or right) indicates a
failed bulb on that side.
Direction indicators
(halogen headlamps)
Ty p e B
, PY21W-21W (amber)
Main beam headlamps
(halogen headlamps)
Ty p e C, H1-55W
F
P
ress the upper clip on the cover then tip it
rear wards to remove it.
F
P
ress the lower clip on the electrical
connector and remove the assembly of
connector and bulb.
F
P
ull the bulb out and change it.
To refit, carry out these operations in reverse
o r d e r. F
P
ress the upper clip on the cover then tip it
rear wards to remove it.
F
T
urn the bulb holder a quarter turn anti-
clockwise.
F
R
emove the bulb holder.
F
C
hange the failed bulb.
To refit, carry out these operations in reverse
o r d e r.
8
In the event of a breakdown
Page 310 of 595
308
Jumpy _en_Chap08_En-cas-de-panne_ed01-2016
Dipped beam headlamps
(xenon headlamps)
Ty p e E, D8S 25W
F
P
ress the upper clip on the cover then tip it
rear wards to remove it.
F
T
urn the bulb holder a quarter turn
anti-clockwise.
F
C
hange the failed bulb.
To refit, carry out these operations in reverse
o r d e r.
Replacement of D8S xenon bulbs must
be done by a CITROËN dealer or a
qualified workshop as there is a risk of
electrocution.
It is recommended that both D8S bulbs
be replaced at the same time, in the
event of the failure of one of them.
Main beam headlamps
(xenon headlamps)
Ty p e C
, H1-55W
When refitting the connector and bulb
in the lamp, push the assembly into its
housing until it clicks into place. Faster flashing of a direction indicator
warning lamp (left or right) indicates a
failed bulb on that side.
Direction indicators
(xenon headlamps)
Ty p e B
, PY21W-21W (amber)
F
P
ress the upper clip on the cover then tip it
rear wards to remove it.
F
P
ress the lower clip on the electrical
connector and remove the assembly of
connector and bulb.
F
P
ull the bulb out and change it.
To refit, carry out these operations in reverse
o r d e r.
In the event of a breakdown
Page 311 of 595
309
Jumpy _en_Chap08_En-cas-de-panne_ed01-2016

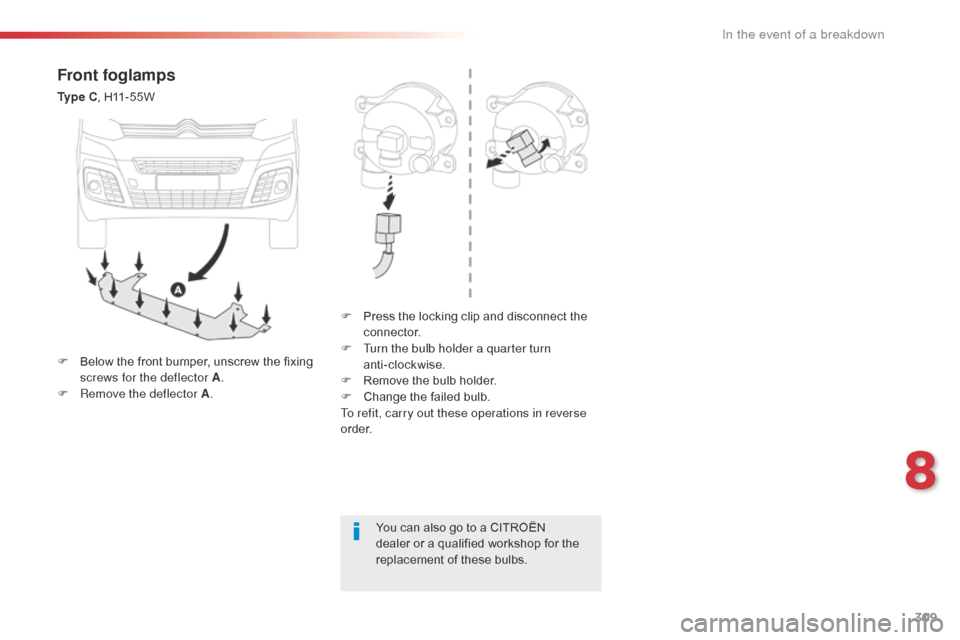

Front foglamps
Ty p e C, H11-55W
F
P
ress the locking clip and disconnect the
connector.
F
T
urn the bulb holder a quarter turn
anti-clockwise.
F
R
emove the bulb holder.
F
C
hange the failed bulb.
To refit, carry out these operations in reverse
o r d e r.
You can also go to a CITROËN
dealer or a qualified workshop for the
replacement of these bulbs.
F
B
elow the front bumper, unscrew the fixing
screws for the deflector A .
F
R
emove the deflector A .
8
In the event of a breakdown
Page 312 of 595
310
Jumpy _en_Chap08_En-cas-de-panne_ed01-2016
Rear lamps
(side-hinged rear doors)
For more information on Changing a bulb and
in particular, the types of bulbs, refer to the
corresponding section.
F
W
hile holding the lamp in place, press the
clip on the inside then carefully remove the
lamp.
F
D
isconnect the electrical connector.
For vehicles with interior trim, contact
a CITROËN dealer or a qualified
workshop to have the work done.
1.
B
rake lamps / sidelamps.
Ty
p e B, P21/5W-21/5W
2.
D
irection indicators.
Ty
p e B, PY21W-21W (amber)
3.
R
eversing lamps.
Ty
p e B, P21W-21W
4.
F
oglamps / sidelamps.
Ty
p e B, P21/4W-21/4W F
I
dentify the failed bulb then open the rear
doors.
F
S
pread the three lugs slightly, then extract
the bulb holder.
F
R
emove the failed bulb by pressing
lightly on it, then turning it a quarter turn
clockwise.
F
C
hange the bulb.
To reassemble, carry out these operations in
reverse order.
F
F
rom inside, remove the ventilation grille, if
your vehicle has one.
F
F
rom outside, unscrew the two lamp fixing
screws.
In the event of a breakdown
