Interior
8
INSTRUMENTS AND CONTROLS

1. Lights and direction indicators stalk.

2. Instrument panel with display.

3. Wipers, wash-wipe, trip computer
controls.

4. Gear lever.

5. Ignition.

6. Audio equipment controls.

7. Driver's airbag, horn.

8. Steering wheel height and depth
adjustment.

9. Headlamp beam adjustment.

10. Cruise control, speed limiter switch.

11. 12 volt accessories socket
(120 W max) of the lighter type.

12. Ashtray.

13. Glove box, auxiliary socket,
passenger airbag disarming switch.

33
3
3
3
Interior
14
Overhead storage unit 74
CAB LAYOUT
Glove box
72 72
Storage compartment Rear seats
64
Seating area layout 76
REAR LAYOUT

72
Practical information
CAB LAYOUT
Depending on the vehicle's equipment, the
various fittings below enhance your cab.
Glove box
This is fitted with a lock, you can lock it
using the key.
It contains three sockets for the connection
of portable electronic equipment (video
equipment, ...) if the vehicle is fitted with a
colour display.
It also contains can holders and
compartments for storing maps, a packet of
cigarettes, an A4 format document, a pen,
etc.
Storage compartment PRACTICAL INFORMATION
Sun visor
To prevent dazzle from ahead, fold the sun
visor down.
A pocket is provided in the driver's sun visor
for storing toll cards, tickets, ...

130
Changing a fuse
RIGHT-HAND SIDE FASCIA PANEL FUSES
- Tilt the storage compartment then pull it firmly to access the fuses.
Fuses A (amps) Allocation

1 15 Rear wiper

2 - Free

3 5 Airbag control unit

4 10 Steering wheel angle sensor, Diagnostic socket, ESP sensor,
Manual ventilation, Clutch switch, Headlamp beam he ight,
Particle emission filter pump

5 30 Electric mirrors, Passenger electric window mot or

6 30 Front electric windows supply

7 5 Courtesy lights and glove box light

8 20 Multifunction display, Anti-theft alarm siren, Audio equipment,
Compact disc changer, Audio/telephone, Trailer fuse box
(accessory)

9 10 Row 2 accessories socket

10 30 Rear ride height corrector, Steering wheel swit ching,
Instrument panel

11 15 Diagnostic socket, Ignition switch

12 15 Hands-free kit, Airbag control unit, Parking as sistance control
unit

13 5 Engine fuse box, Trailer fuse box

14 15 Rain sensor, Rear ventilation, Automatic air co nditioning,
Instrument panel

15 30 Locking/unlocking/deadlocking of the accesses

16 - Free

17 40 Heated rear screen, Heated mirrors

9.26
1
22
11
33
22
CD CHANGER
On a single slot changer (MP3 compatible), press LOAD, select the number of the CD, then insert the CD, or press and hold LOAD and insert the CDs one by one.
Press the SOURCE button several times in succession and select CD CHANGER.
Press one of the buttons on the alphanumeric keypad to select the corresponding CD.
Press one of the buttons to select a track on the CD.
It is not possible to copy the fi les onto the hard disc from the CD changer.
CD CHANGER
PLAYING A CD
Press the MENU button then select the CONFIGURATIO N function, then SOUNDS, then ACTIVATE AUXILIARY SOURCE to acti vate the audio equipment auxiliary input.
Connect the portable equipment (MP3 player…) to the JACK socket or to the audio sockets (white and red, RCA type) located in the glove box using a suitable cable.
Press the SOURCE button several times in succession and select AUX.
The displaying and management of the commands take s place via the portable equipment.
It is not possible to copy the fi les onto the hard disk from the auxiliary input.
USING THE AUXILIARY INPUT (AUX)
JACK/RCA AUDIO CABLE NOT SUPPLIED

11
22
33
44
55
66
77
9.27

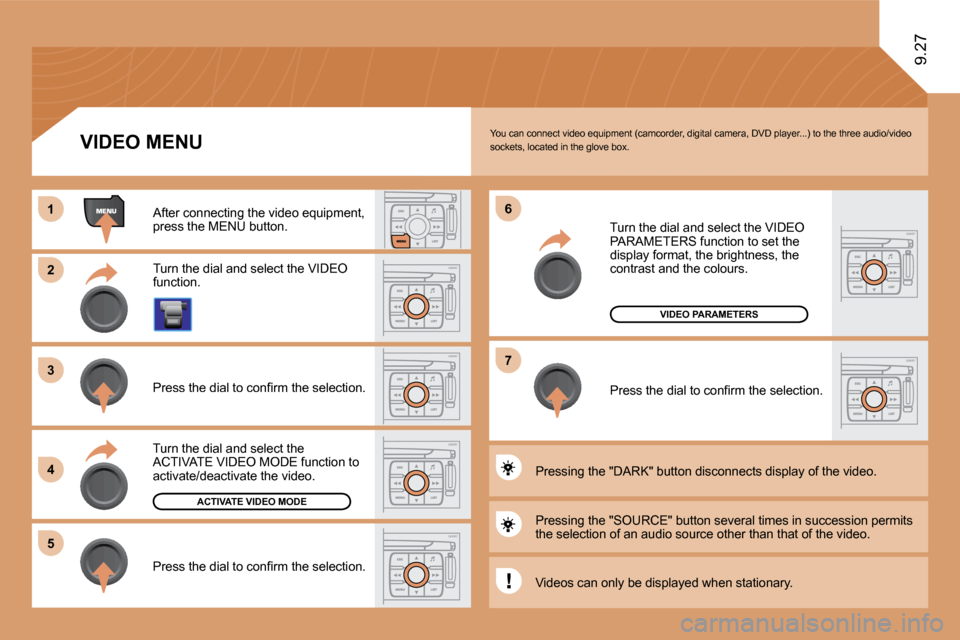

ACTIVATE VIDEO MODE
VIDEO PARAMETERS
You can connect video equipment (camcorder, digital camera, DVD player...) to the three audio/video sockets, located in the glove box.
Turn the dial and select the VIDEO function.
After connecting the video equipment, press the MENU button.
Turn the dial and select the ACTIVATE VIDEO MODE function to activate/deactivate the video.
Press the dial to confi rm the selection.
Press the dial to confi rm the selection.
Pressing the "SOURCE" button several times in succ ession permits the selection of an audio source other than that of the video.
Pressing the "DARK" button disconnects display of the video.
Turn the dial and select the VIDEO PARAMETERS function to set the display format, the brightness, the contrast and the colours.
Press the dial to confi rm the selection.
VIDEO MENU
Videos can only be displayed when stationary.

1
2
3
4
1
4
06
2
3
5
9.57
Connect the portable equipment (MP3/WMA player…) ter…) to the audio sockets (white and red, RCA type) in the glove box usinx using aJACK/RCA audio cable.
Press the MUSIC button then press it again or select the "Music" Menu function and press the dial to confi rm.
Select the AUX music source and press the dial to confi rm. Play begins automatically.
Select the "External device" function and press the dial to activate it.
EXTERNAL DEVICE
Insert one or more CDs in the changer. Press the MUSIC button.
Press one of the buttons on the numeric keypad to select the corresponding CD.
Select the CD CHANGER music source and press the dial to confi rm.
The display and management of the controls is via the pa the portable equipment.
CD CHANGER
Select the SELECT MUSIC function and press the dial to confi rm.
USING THE EXTERNAL DEVICE (AUX)
AUDIO/RCA CABLE NOT SUPPLIED
CD CHANGER
PLAYING A CD (NOT MP3/WMA COMPATIBLE)
SELECT MUSIC
Press the MUSIC button again or select the MUSIC MENU function and press the dial to confi rm.
MUSIC MENU
MUSIC MEDIA PLAYERS
