fog light Citroen JUMPY MULTISPACE 2011 2.G Owner's Manual

17
FAMILIARISATIO
N
1
ECO-DRIVING
Eco-driving is a range of everyday practices that allow the motorist to optimise their fuel
consumption and CO
2 emissions.
Optimise the use of your
gearbox

With a manual gearbox, move off gently,
change up without waiting and drive by
changing up quite soon. If your vehicle has
the system, the gear shift indicator invites
you to change up; it is displayed in the
instrument panel, follow its instructions.

With an automatic or electronic gearbox,
stay in Drive "D"
or Auto "A"
, according to
the type of gearbox, without pressing the
accelerator pedal heavily or suddenly.

Control the use of your
electrical equipment


Before moving off, if the passenger
compartment is too warm, ventilate it by
opening the windows and air vents before
using the air conditioning.
Above 30 mph (50 km/h), close the windows
and leave the air vents open.
Switch off the headlamps and front
foglamps when the level of light does not
require their use.

Avoid running the engine before moving
off, particularly in winter; your vehicle will
warm up much faster while driving.
Drive smoothly


Maintain a safe distance between vehicles,
use engine braking rather than the
brake pedal, and press the accelerator
progressively. These practices contribute
towards a reduction in fuel consumption and
CO
2 emissions and also helps reduce the
background traffic noise.

If your vehicle has cruise control, make
use of the system at speeds above 25 mph
(40 km/h) when the traffic is flowing well.


As a passenger, if you avoid connecting
your multimedia devices (film, music,
video game...), you will contribute towards
limiting the consumption of electrical
energy, and so of fuel.
Disconnect your portable devices before
leaving the vehicle.
Remember to make use of equipment
that can help keep the temperature in the
passenger compartment down (sun roof
and window blinds...).
Switch off the air conditioning, unless it
has automatic digital regulation, as soon
as the desired temperature is attained.
Switch off the demisting and defrosting
controls, if not automatic.
Switch off the heated seat as soon as
possible.

32


Instruments and controls


Warning lamp
is
indicates
Solution-action



Brake pads on. brake pad wear. Have the pads replaced by a CITROËN dealer or
a qualified workshop.



Dipped beam
headlamps/
Daytime
running lamps
on. manual selection or automatic
lighting. Turn the lighting stalk to the second position.

lighting of the dipped beam headlamps
from the time the ignition is switched
on - daytime running lamps. Depending on the country in which the vehicle is sold.
Chapter 3, "Steering mounted controls" section.

Main beam
headlamps pulling the stalk towards you. Pull the stalk to return to dipped beam headlamps.



Direction
indicators flashing with
audible signal. change of direction via the
lighting stalk, to the left of the
steering wheel. To the Right: control to be pushed upwards.
To the Left: control to be pushed downwards.


Front foglamps on. manual selection. The foglamps only operate if the sidelamps or dipped
beam headlamps are on.


Rear foglamps on. manual selection. The foglamps only operate if the sidelamps or dipped
beam headlamps are on. In conditions of normal
visibility, take care to switch them off to avoid any
penalty. "This light is a dazzling red."


Particle
emission filter on. a malfunction of the particle
emissions filter (Diesel additive
level, risk of clogging, ...). Have the filter checked by a CITROËN dealer or a
qualified workshop. Chapter 6, "Checks" section.

43
Steering mounted controls

EASE OF USE and COMFOR
T
3

Front fog lights (green)
and rear fog lights (amber,
2nd rotation of the ring
forwards).

To switch off the front and rear fog
lights, turn the ring rearwards twice in
succession.

In clear weather or in rain, both day
and night, rear fog lights dazzle and
are prohibited.
Do not forget to switch them off when they
are no longer needed.
Automatic switching on of the lights switches
off the rear fog lamps, but the front fog
lamps remain on. Daytime lights

Depending on the country in which the
vehicle is sold, the vehicle may be equipped
with daytime lights. The dipped headlamps
come on when the vehicle is started.
The instruments and controls
(instrument panel, display,
air conditioning control panel, ...) are only
lit on switching to the automatic switching
on of the lights mode or when the lights are
switched on manually.
Front and rear fog lights
Rotate ring B
forwards to switch on and
rearwards to switch off. The status is
confirmed by the light on the instrument
panel.
These operate with the side lights and the
dipped beam headlamps.
Front fog lights (green,
1st rotation of the ring forwards). This warning light comes on on
the instrument panel.

44
Steering mounted controls
Automatic illumination of headlamps
Activation
Turn the ring to the AUTO
position. The activation
of this function is accompanied by a message in
the screen.

If the sunshine sensor does not
function correctly
, the lighting comes on
accompanied by the service warning lamp,
an audible signal and a message in the
screen.
Contact a CITROËN dealer or a qualified
workshop.

HEADLAMP BEAM

Depending on the load in your vehicle,
the beam setting must be adjusted.

0
- 1 or 2 people in the front seats.

1
- 5 people.

2
- 6 to 9 people.

3
- Driver + maximum authorised loads. Do not cover the sunshine sensor
located on the windscreen, behind
the mirror. It is used for the automatic
illumination of headlamps and for the
automatic rain sensitive wipers. The sidelamps and dipped
beam headlamps switch
on automatically if the light
is poor, or during operation
of the windscreen wipers. They switch off as
soon as the light becomes bright enough or
the windscreen wipers stop.
This function is not compatible with the
daytime running lamps.
Deactivation
Turn the ring forwards or rearwards.
The deactivation of this function is
accompanied by a message on the display.
The function is deactivated temporarily when
you use the manual lights stalk.

Initial setting is position 0. In foggy weather or in snow, the sunshine
sensor may detect suffi cient light. As a
consequence, the lighting will not come on
automatically. If necessary, you must switch on
the dipped beam headlamps manually.

132
Changing a bulb

3.
Direction indicators
Type B
, PY21W - 21W (amber)


- Turn the bulb holder a quarter turn
anticlockwise.

- Remove the bulb by pressing it lightly
while turning it anticlockwise.

- Change the bulb.
- Ensure that the cover is refitted
correctly all the way round to ensure
sealing.

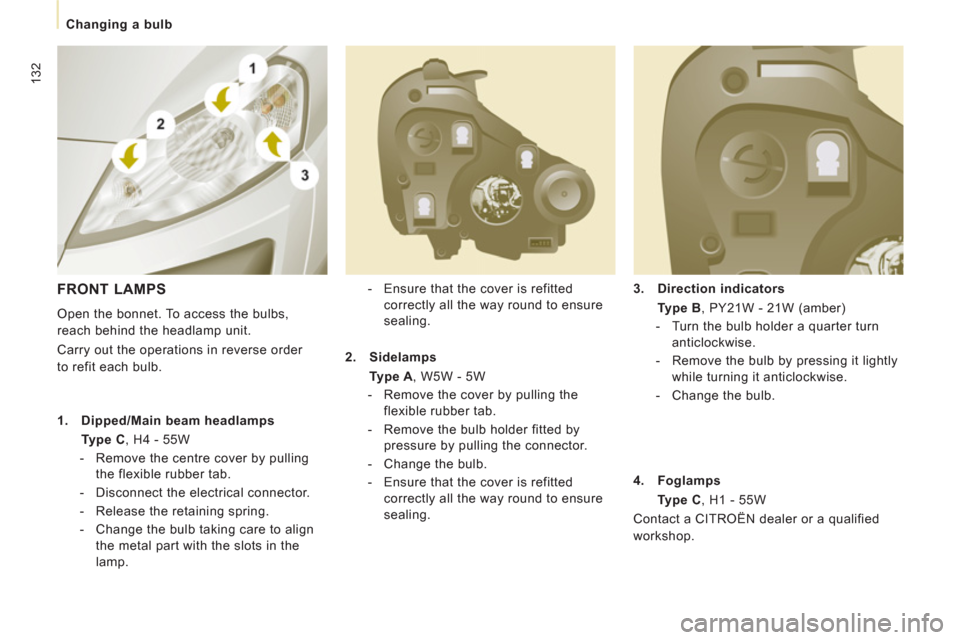

FRONT LAMPS

Open the bonnet. To access the bulbs,
reach behind the headlamp unit.
Carry out the operations in reverse order
to refit each bulb.


1.
Dipped/Main beam headlamps
Type C
, H4 - 55W


- Remove the centre cover by pulling
the flexible rubber tab.

- Disconnect the electrical connector.

- Release the retaining spring.

- Change the bulb taking care to align
the metal part with the slots in the
lamp.
2.
Sidelamps
Type A
, W5W - 5W


- Remove the cover by pulling the
flexible rubber tab.

- Remove the bulb holder fitted by
pressure by pulling the connector.

- Change the bulb.

- Ensure that the cover is refitted
correctly all the way round to ensure
sealing.
4.
Foglamps
Type C
, H1 - 55W
Contact a CITROËN dealer or a qualified
workshop.

134
Changing a bulb
REAR LIGHTS

For further information concerning the bulbs,
refer to the "Types of bulb".

- Identify the faulty bulb then open
the rear doors to 180°. Refer to the
"Accesses" section of chapter 2.

- Remove the two fixing nuts.
Pull the lens block from the outside.

- Holding the light, disconnect the
electrical connector.
- Move aside the 8 tabs then extract
the bulb holder.

- Remove the faulty bulb by pressing it
lightly while turning it anticlockwise.

- Change the bulb.


1.
Brake lights/side lights

Type B
, P21/5W - 21/5W

2.
Direction indicators

Type B
, PY21W - 21W (amber)

3.
Reversing lights

Type B
, P21W - 21W

4.
Fog lamps

Type B
, P21W - 21W When refitting, take care to correctly
reposition:


- the 8 tabs,

- the two white lugs in the two rubber
holes to maintain the sealing of the light,

- the supply wire to avoid trapping it.

152
Instruments and controls

Headlamp beam height adjustment 44
Starter, ignition switch 41
Wiper controls 45-46
Automatic wiping 45
Windscreen/headlamp wash 45
Trip computer Section 9

Cruise control 47-49
Fixed speed limiter 49
Speed limiter 50-52

Steering mounted controls:


- NaviDrive Section 9

- MyWay Section 9

- Audio system Section 9

Lighting controls 42-43
Automatic illumination of headlamps 44
Foglamps 43
Daytime running lamps 43


Opening the bonnet 112
Parking brake 90

Electric windows,
electric mirrors 87-89
Instrument panels, screens,
speedometers 26-27
Warning lamps, indicator lamps 28-33
Indicators, gauge 34-36
Setting the time in the instrument panel 2 7
Dashboard lighting dimmer 36
Gear shift indicator 37

Mat 81


Steering wheel adjustment 41
Horn 92
