Interior
8


INSTRUMENTS AND CONTROLS


1.
Lights and direction indicator control
stalk.

2.
Instrument panel with screen.

3.
Wipers, screenwash, trip computer
control stalk.

4.
Gear lever.

5.
Ignition.

6.
Audio system controls.

7.
Driver's airbag, horn.

8.
Steering wheel height and reach
adjustment.

9.
Headlamp beam adjustment.

10.
Cruise control, speed limiter
switches.

11 .
12 volt accessory socket (120 W max)
of the cigarette lighter type.

12.
Ashtray.

13.
Glove box, auxiliary socket,
passenger's airbag deactivation
switch.

33
3
3
3
Interior
14

Overhead storage unit
79

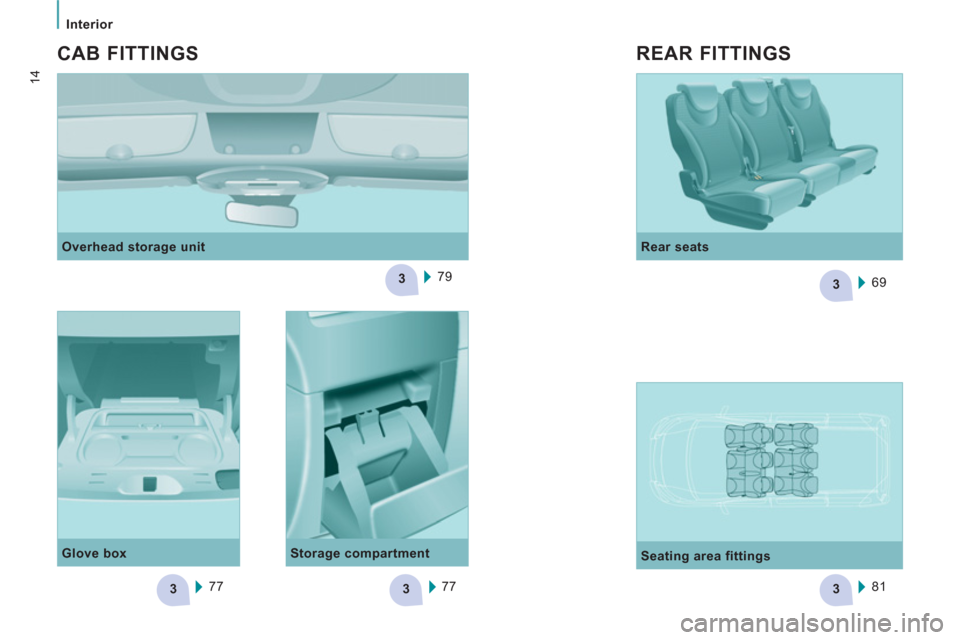

CAB FITTINGS


Glove box
77 77

Storage compartment
Rear seats
69

Seating area fittings
81


REAR FITTINGS

77


Practical information

EASE OF USE and COMFOR
T
3

CAB FITTINGS

Depending on the vehicle's equipment, the
various fittings below enhance your cab.
Glove box
This is fitted with a lock, you can lock it
using the key.
It contains three sockets for the connection
of portable electronic equipment (video
equipment, ...) if the vehicle is fitted with
a colour screen.
It also contains cup holders and
compartments for storing maps, a packet
of cigarettes, an A4 format document,
a pen, etc.


Storage compartment
PRACTICAL INFORMATION


Sun visor

To prevent dazzle from ahead, fold the sun
visor down.
A pocket is provided in the driver's sun visor
for storing toll cards, tickets, ...

137
Changing a fuse
QUICK HEL
P
7
RIGHT-HAND SIDE DASHBOARD
FUSES


- Tilt the storage compartment then
pull it firmly to access the fuses.

Fuses


A (amps)

Allocation


1


15
Rear wiper


2


-
Free


3


5
Airbag control unit


4


10
Steering wheel angle sensor, Diagnostic socket, ESP sensor,
Manual ventilation, Clutch switch, Headlamp beam height,
Particle emission filter pump


5


30
Electric mirrors, Passenger electric
window motor


6


30
Front electric windows supply


7


5
Courtesy lamps and glove box lamp


8


20
Multifunction screen, Anti-theft alarm siren, Audio equipment,
Compact disc changer, Audio/telephone, Trailer fusebox
(accessory)


9


10
Row 2 accessory socket


10


30
Rear ride height corrector, Steering wheel switching,
Instrument panel

11


15
Diagnostic socket, Ignition switch


12


15
Hands-free kit, Airbag control unit, Parking sensors control
unit


13


5
Engine fusebox, Trailer fusebox


14


15
Rain sensor, Rear ventilation, Automatic air conditioning,
Instrument panel


15


30
Locking/unlocking/deadlocking


16


-
Free


17


40
Heated rear screen, Heated mirrors

9.30
06
1
2
AUDIO/VIDEO
Connect the portable device (MP3 player…) to the audio
sockets (white and red, RCA
type) located in the glovebox using a suitable audio cable (JACK or RCA). Press the MENU button then select the "
Confi guration" function,
then "Sounds", then "Activate auxiliary source" to activate the
NaviDrive audio/telephone auxiliary input.
It is not possible to cop
y the fi les onto the hard disk via the auxiliary input.Pr
ess the SOURCE button several
times in succession and select AUX.









USING THE AUXILIARY INPUT (AUX)
AUDIO (JACK/RCA) CABLE NOT SUPPLIED
Displa
y and control is on the portable device.

9.31
06
1
2
4
3
7
5
6
AUDIO/VIDEO












VIDEO MENU


Turn the dial and select the "Video"
function.
After connecting the video equipment,press the MENU button.

Pr
ess the dial to confi rm the selection.
T
urn the dial and select the "Activatevideo mode" function to activate/deactivate the video.
Pr
ess the dial to confi rm the selection.
T
urn the dial and select the "Video parameters" function to set the displayformat, the brightness, the contrast and the colours.

Videos can only be displayed when stationary.

Pressin
g the DARK button disconnects display of the video.
You can connect video equipment
(camcorder, digital camera, DVD player...)to the three audio/video sockets, located in the glove box.

Pressin
g the SOURCE button several times in succession permits
the selection of an audio source other than that of the video.
Pr
ess the dial to confi rm the selection.
Activate video mode
Video parameters

15
3


Instruments and controls

VISUAL SEARC
H
10


Screens, display Section 9
Setting the time in the screen Section 9
Rear view mirror 88
Toll cards, car park tickets 81
Child surveillance mirror 88
Courtesy lamps 80, 133
Warning lamp in overhead storage unit 2 6
Heated seats 66
Rear ventilation 61, 62-63

Dashboard fuses, right-hand side 137
Passenger's airbag deactivation 100
Controls


- central locking 23

- alarm 21-22

- electric child lock 24

- parking sensors 91

- ASR, ESP 93


Technology on board Section 9


- Emergency or assistance call

- NaviDrive

- MyWay

- Audio system


Gearbox 37
Hazard warning lamps 90

Heating, ventilation


- manual ventilation 53-54

- air conditioning A/C 53

- air recirculation 54
Air conditioning with separate
adjustments 55-57
Demisting/defrosting 59-60
Additional heating 62-63

Cab fittings 77-79


- glove box,

- overhead storage,

- ashtray,

- sun visor,

- 12 volt socket,


- ticket holder,

- storage compartment.
