lock Citroen JUMPY MULTISPACE 2011 2.G Owner's Manual

2
Contents
Remote control 19Key 20Alarm 21Doors 22Instrument panel 26Adjusting the time 27Warning lamps 28Fuel gauge 34Coolant 34Service indicator 35Lighting rheostat 36Gearboxes 37Gear shift indicator 37Automatic gearbox 38Steering wheel adjustment 41Starting and stopping 41
Lightingcontrols 42wipers 45Cruise control 47Fixed speed limiter 49Speed limiter 50Manual heating/air conditioning 53automatic 55De-icing and demisting 59Rear ventilation 61Additional heating 62Seats 652-seat front bench 67Rear seats 69Seat and benchconfiguration 76Cab fittings 77Courtesy lights 80Toll cards/car park tickets 81
Seating area fittings 81Rear suspension 84Mirrors 87Electric windows 89
Presentation 4Exterior 5Sitting comfortably 10Seeing clearly 12Driving safely 13Cab fittings 14Rear fittings 14Child safety 15Ventilation 16Eco-driving 17
Parking brake 90Hazard warning lamps 90Parking sensors 91Horn 92Anti-lock braking system (ABS) 92Emergency braking assistance 92Traction control (ASR) andstability control (ESP) 93Seat belts 94Airbags 97Lateral airbags 99Front airbags 100Deactivating the passenger'sairbag 100Child seats 101ISOFIX seats 103Recommended seats 106
2. READY to GO
19-41
4. SAFETY
90-108
1. FAMILIARISATION
4-183. EASE OF USE and COMFORT 42-89

8
2a
2b
2a
2b
8
5


Exterior

FAMILIARISATIO
N
1

19
144



Key
: chapter identification
: page identification 23-24
Key - Remote control
Complete locking of the vehicle,
cab and rear doors.
Complete unlocking of the vehicle,
cab and rear doors.

Sliding side door
Pull the handle towards you then
towards the rear and open the door
guiding the rearward sliding until the
point of resistance has been passed.
If fitted on your vehicle, do not open the
left-hand side door while filling with fuel
as this could damage the fuel filler flap.
Usable dimensions
Door open warning lamp
If this comes on, a door has not been
closed correctly.

9
Interior

FAMILIARISATIO
N
1


CENTRE CONSOLE AND OVERHEAD STORAGE UNIT



1.
Location of controls:


- electric child lock,

- central locking/unlocking.

2.
Heating and/or air conditioning
controls.

3.
Location of the ticket/card storage or
controls:


- deactivation of ESP,

- deactivation of the interior
protection alarm, alarm LED,

- deactivation of the parking
sensors.

4.
Storage compartment.

5.
Audio equipment or storage
compartment.

6.
Central adjustable vents.

7.
Hazard warning lamps switch.

8.
Screen or storage compartment.

9.
Courtesy lamp.

10.
Passenger's airbag deactivated
warning lamp.

11 .
Location of the ticket/card storage,
rear ventilation deactivation switch,
heated seat controls.




ADJUSTING THE
TIME



- a centre console with screen: refer to
"Adjusting the date and time" in section 9,

- a centre console without screen: refer to
"Instruments and controls" in section 2.

Depending on the configuration of your
vehicle, you have either:

3
33
23
4
15

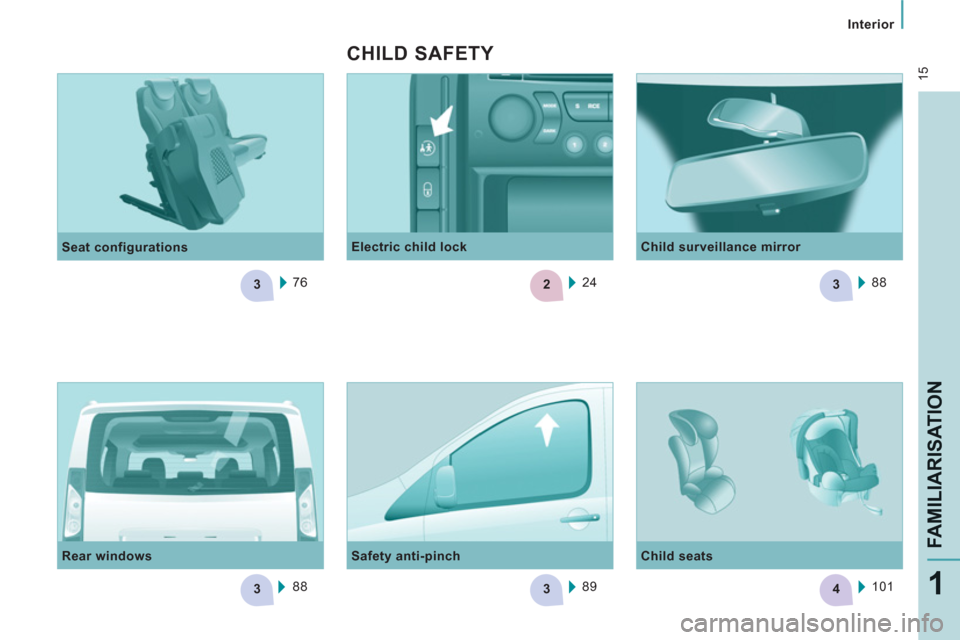

Interior

FAMILIARISATIO
N
1

76
Seat configurations
88


Rear windows

Safety anti-pinch
89
Electric child lock
24
CHILD SAFETY


Child surveillance mirror
88

Child seats
101

19


Access

READY to GO
2


Central locking
REMOTE CONTROL


ACCESS


Central unlocking

Press this button to unlock your
vehicle, cab and rear doors.
The direction indicators flash
twice and the exterior mirrors
unfold (unless folding was selected using
the interior control, refer to the "Mirrors and
windows" section of chapter 3). Press this button to lock your
vehicle, cab and rear doors.
The direction indicators flash
once and the exterior mirrors fold.
If one of the doors is open or is not closed
correctly, the central locking will not work.


Deadlocking

If your vehicle is fitted with deadlocking,
a second press
on the closed padlock on
the remote control within five seconds after
locking changes the locking to deadlocking.
This is confirmed by fixed lighting of the
direction indicators for approximately
two seconds.
Deadlocking renders the exterior and interior
door opening handles inoperative: do not
leave anyone inside the vehicle when it is
deadlocked.
If deadlocking is activated from inside the
vehicle, it will change to normal locking
when the vehicle is started.


Folding/unfolding the key

Press this button to release the
key from its housing.
To fold the key, press the
chromed button then fold the key
into the housing. If you do not press the
button, the mechanism may be damaged.


Good practice

Take care not to allow the remote control
to come into contact with grease, dust,
rain or a damp environment.
A heavy object attached to the key
(keyring, ...) weighing on the shaft of the key
in the switch, may cause a malfunction.

Access
KEY

This locks and unlocks the doors on the
vehicle, opens and closes the fuel filler cap,
as well as starting and stopping the engine.
REMOTE CONTROL ELECTRONIC IMMOBILISER

All of the keys contain an electronic
immobiliser device.
This device locks the engine supply system.
It is activated automatically when the key is
removed from the ignition.
After the ignition is switched on, a dialogue
is established between the key and the
electronic immobiliser system.
The metal part of the key must be unfolded
correctly for correct dialogue to take place.


Programming the remote control

Following changing of the remote control battery
or disconnection of the vehicle battery, the
remote control may have to be reprogrammed.
Wait at least one minute before using the
remote control.
Insert the key in the ignition switch with the
buttons (padlocks) of the remote control
facing you. Switch on the ignition.
Press the locking padlock for at least five
seconds within the next ten seconds.
Switch off the ignition.
Wait at least one minute before using the
remote control.
The remote control is now working again.
There is a risk of damage if the
replacement battery does not conform.
Use only identical batteries or batteries
of an equivalent type to those recommended
by CITROËN dealers.
Do not discard the remote control batteries,
they contain metals which are harmful
to the environment.
Deposit them at a CITROËN dealership,
or at any other approved collection point.


Changing the battery

Battery ref.: CR1620/3 volts.
The information "battery flat" is given by
an audible signal, accompanied by a
message on the display.
To replace the battery, unclip the casing
using a coin at the ring.
If the remote control does not work after
the battery has been changed,
re-programme the remote control.
If you lose your keys
Visit a CITROËN dealer with the
vehicle's V5 registration document and
your identification document.
A CITROËN dealer will be able to retrieve
the key code and the transponder code so
that a replacement key can be ordered.

21


Access

READY to GO
2
ALARM

If fitted on your vehicle, this provides two
types of protection:


- exterior protection: it sounds if a front/
rear door or the bonnet is opened.

- interior protection: it sounds if the volume
inside the passenger compartment
changes (breaking of a window or a
movement inside the vehicle).


Disarming



- Unlock the vehicle with the remote
control or switch on the ignition, the red
LED goes off.



Good practice

Do not make any modifications to the
electronic immobiliser system.
Operating the remote control, even when it
is in your pocket, may result in involuntary
unlocking of the doors.
The simultaneous use of other high
frequency equipment (mobile telephones,
domestic alarms…), may interfere with the
operation of the remote control temporarily.
The remote control does not operate while
the key is in the ignition, even if the ignition
is off.
As a safety precaution (with children on
board), remove the key from the ignition
when leaving the vehicle, even for a short
time.

When purchasing a second-hand vehicle:



- have the keys memorised by a
CITROËN dealer to ensure that the keys
in your possession are the only ones
which can start the vehicle.



Locking the vehicle with complete
alarm

Setting the alarm



- Switch off the ignition and get out of the
vehicle.

- Set the alarm within five minutes of
getting out of the vehicle, by locking or
deadlocking using the remote control.
The red LED, located on the centre
console, flashes once per second.



Locking the vehicle with exterior
protection only
If, while you are away from the vehicle,
you wish to leave a window partially
open or a pet inside the vehicle,
you should choose exterior protection
only.


- Switch off the ignition.

- In the next ten seconds, press
this button, located on the
centre console, until the red
LED is on continuously.

- Get out of the vehicle.

- Within the next five minutes, set the
alarm by locking or deadlocking using
the remote control (the red LED flashes
once a second).

22
Access


Triggering

The siren sounds, the direction indicators
flash for approximately 30 seconds and the
red LED flashes rapidly.


- To switch it off, insert the key and
switch on the ignition.
When the alarm has been triggered ten
times in succession (when triggered for the
eleventh time) it is deactivated. Repeat the
rules for setting the alarm.


Malfunction

When the ignition is switched on, if the
red LED remains on for ten seconds, this
indicates a fault with the siren connection.
Have the system checked by a CITROËN
dealer or a qualified workshop.


From the inside
Locking the vehicle without alarm



- Insert the key in the lock on the driver's
door and lock it.
Do not set the alarm when washing your
vehicle.


Failure of the remote control

When the alarm is set but the remote
control does not operate:


- Unlock the doors with the key and open
the door. The alarm is triggered.

- Switch on the ignition in the next ten
seconds. The alarm is disarmed.



Automatic setting of the alarm

Depending on the country in which the
vehicle is sold, the alarm is set automatically
approximately 2 minutes after the last door
is closed.
To prevent triggering of the alarm when a
door is opened, it is imperative to press the
remote control unlocking button again.
Do not make any modifications to
the alarm system as this could cause
faults.


From the outside

Use the remote control to lock/unlock
the vehicle.
Insert the metal part of the key in the lock
on the driver's side if the remote control
does not work.
The first press permits central
locking of the vehicle.
A second press permits central
unlocking of the vehicle.
The control does not work if the vehicle has
been locked using the remote control or the
key, from the outside.

23


Access

READY to GO
2

The doors can still be opened from the
inside.

Protection against attack

The indicator light on the control:


- flashes if the accesses are
locked when stationary with the
engine off,

- comes on if the accesses are
locked and from the time the
ignition is switched on.
The system automatically locks
all of the doors when you reach
approximately 6 mph (10 km/h).


Activation/deactivation of the function
With the ignition on, a long
press on this button activates or
deactivates the function.



Opening warning light

If this warning light comes on,
check that the cab doors and
the rear or side doors are closed
correctly.

SLIDING SIDE DOOR

If fitted on your vehicle, do not open
the left-hand
side door while filling with
fuel as you risk damaging the fuel filler flap.
You can lock this door using the child lock.
Take care not to block the guide space on
the floor to allow the door to slide correctly.

24
Access


From the outside

Pull the handle towards you then towards
the rear. With the ignition on, press
this button, the diode is lit
accompanied by a message on
the display.
This system is independent of the central
locking control.


From the inside

To unlock and open, push the handle
towards the rear. Ensure that the door
opens fully to lock the device at the base
of the door.


Locking/electric child lock

This prevents opening of the side doors
from the inside.

Good practice

Do not drive with the sliding side door open.
Always remove the key from the ignition
when leaving the vehicle, even for a short
time.
Each time you switch on the ignition, check
whether the child lock is active (diode lit).
In the event of a serious impact, the electric
child lock is deactivated automatically.







Operation in the event of a battery
failure

Front and side passenger doors
In the event of a malfunction of the battery
or of the central locking, use the lock to lock
the doors mechanically.


- To open the door and get out of the
vehicle, pull the interior control.

- To lock the door, insert the key in the
lock, located on the edge of the door,
then turn it one eighth of a turn
.


Driver's door


- Insert the key in the lock, then turn it to
the right to lock or to the left to unlock.
