Child safety

IUF:
Seat suitable for the installation of an
ISOFIX child seat of the universal category.
"Forward facing" ISOFIX child seat fitted
with an upper strap secured to the upper
ring of the vehicle seats equipped with
ISOFIX mountings.
LOCATIONS FOR ISOFIX CHILD SEATS

This table indicates the options for the installation of ISOFIX child seats on the vehicle seats fitted with ISOFIX mountings.
In the case of the universal and semi-universal ISOFIX child seats, the child seat's ISOFIX size category, determined by a letter from A
to G
,
is indicated on the child seat next to the ISOFIX logo.

IL-SU:
Seat suitable for the installation of a
semi-universal ISOFIX child seat. "Forward
facing" ISOFIX child seat fitted with a stay.
"Rear facing" ISOFIX child seat or infant car
seat, fitted with an upper strap or a stay.
X:
No restraining system for children.

Weight of the child
/indicative age


Less than
10 kg
(group 0)
Up to
6 months
approx

Less than 10 kg
(group 0)
Less than 13 kg
(group 0+)
Up to 1 year approx

From 9 to 18 kg
(group 1)
From 1 to 3 years approx

Type of ISOFIX child seat

Infant car
seat


"rear facing"


"rear facing"



"forward facing"


ISOFIX size category
F
G
C
D
E
C
D
A
B

B1

Row 2
outer
rear
seats
with individual seats in Row 1

IL-SU


IL-SU


IL-SU


IUF, IL-SU


Row 2
outer
rear
seats
with 2-seat bench in Row 1

IL-SU

X
IL-SU
X
IL-SU


IUF, IL-SU


Rear seats in Row 3

IL-SU

X
IL-SU
X
IL-SU


IUF, IL-SU


Infant car seat:
this is fixed to the lower
rings of a seat equipped with ISOFIX
mountings and occupies two rear seats.

111


Child safety


SAFETY
4

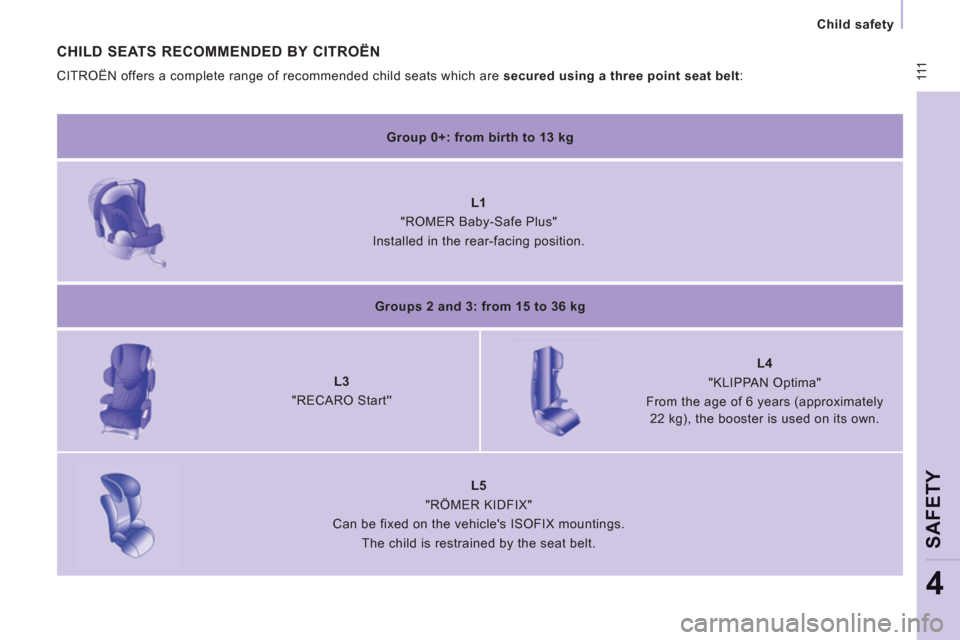

CHILD SEATS RECOMMENDED BY CITROËN

CITROËN offers a complete range of recommended child seats which are secured using a three point seat belt
:


Group 0+: from birth to 13 kg








L1
"ROMER Baby-Safe Plus"
Installed in the rear-facing position.


Groups 2 and 3: from 15 to 36 kg







L3
"RECARO Start''






L4
"KLIPPAN Optima"
From the age of 6 years (approximately
22 kg), the booster is used on its own.







L5
"RÖMER KIDFIX"
Can be fixed on the vehicle's ISOFIX mountings.
The child is restrained by the seat belt.

11 2
Child safety
Row 2
Outer seats

U


U


U


U


Centre seat

U


U


U


U

Row 3
Outer seats

U


U


U


U


Centre seat

U


U


U


U

a: Group 0: from birth to 13 kg. Infant car seats and "car cots" cannot be installed on the front passenger seat.
b: consult the legislation in force in your country before installing your child on this seat.
U: seat suitable for the installation of a child seat secured using a seat belt and universally approved, "rear facing" and/or "forward facing".

INSTALLING CHILD SEATS ATTACHED USING THE SEAT BELT

This table indicates the options for installing child seats secured using a seat belt and universally approved in accordance with the weight of
the child and the seat in the vehicle.


Seat


Weight of the child and indicative age



Under 13 kg
(groups 0 (a) and
0+)
Up to approx 1 year

From 9 to 18 kg
(group 1)
1 to 3 years approx

From 15 to 25 kg
(group 2)
3 to 6 years approx

From 22 to 36 kg

(group 3)
6 to 10 years
approx

Row 1 (b)
Individual seat

U


U


U


U


Bench,
outer seat

U


U


U


U


Bench,
centre seat

L1


-


L3, L4, L5


L3, L4, L5

11 3


Child safety


SAFETY
4

Deactivate the passenger's airbag when a
"rear facing" child seat is installed on the
front seat.
Otherwise, the child would risk being
seriously injured or killed if the airbag were
to inflate. Installing a booster seat

The chest part of the seat belt must be
positioned on the child's shoulder without
touching the neck.
Ensure that the lap part of the seat belt
passes correctly over the child's thighs.
CITROËN recommends the use of a booster
seat which has a back, fitted with a seat belt
guide at shoulder level.

ADVICE ON CHILD SEATS

The incorrect installation of a child seat in a
vehicle compromises the child's protection in
the event of an accident.
Remember to fasten the seat belts or the
child seat harnesses keeping the slack
in
relation to the child's body to a minimum
,
even for short journeys.
For optimum installation of the "forward
facing" child seat, ensure that the back of
the child seat is in contact with the back of
the vehicle's seat and that the head restraint
does not cause any discomfort.
If the head restraint has to be removed,
ensure that it is stored or attached securely
to prevent it from being thrown around the
vehicle in the event of sharp braking.
Children under the age of 10 must not travel
in the "forward facing" position on the front
passenger seat, unless the rear seats are
already occupied by other children, cannot
be used or are absent.
As a safety precaution, do not leave:


- one or more children alone and
unsupervised in a vehicle,

- a child or an animal in a vehicle which is
exposed to the sun, with the windows closed,

- the keys within reach of children inside
the vehicle.
To prevent accidental opening of the doors,
use the "Child Lock".
Take care not to open the rear windows by
more than one third.
To protect young children from the rays of
the sun, fit side blinds to the rear windows.

144
Changing a fuse
PASSENGER COMPARTMENT
FUSES


- Unclip the battery compartment cover.

- Remove the red battery terminal (+).

When you have finished, close the
cover carefully.

Fuses


A (amps)

Allocation


1


30
Heated seats


2


20
Row 3 12 V socket


3


40/50
Trailer fusebox (accessory)


4


-
Free


36


15
Hinged door locks


37


10
Hinged door locks


38


20
Hinged door rear wiper


39


10
Rear ventilation


40


5
Folding mirrors

15
9


Instruments and controls

VISUAL SEARCH
10


Screens, display Section 9
Setting the time
in the screen Section 9
Rear view mirror 91
Toll cards, car park tickets 84
Child surveillance mirror 91
Courtesy lamps 83, 139
Warning lamp in overhead storage unit 28
Heated seats 69
Rear ventilation 64, 65-66

Dashboard fuses, right-hand side 143
Passenger's airbag deactivation 105
Controls


- central locking 24-25

- alarm 23-24

- electric child lock 26

- parking sensors 94

- ASR, ESP 96


Technology on board Section 9


- Emergency or assistance call

- NaviDrive

- MyWay

- Audio system


Gearbox 40-43
Hazard warning lamps 93

Heating, ventilation


- manual ventilation 56-57

- air conditioning A/C 56

- air recirculation 57
Air conditioning with separate
adjustments 58-60
Demisting/defrosting 62-63
Additional heating 65-66

Cab fittings 80-82


- glove box,

- overhead storage,

- ashtray,

- sun visor,

- 12 volt socket,

- ticket holder,

- storage compartment.

160


Interior



Seating area fittings 84-86


- stowing rings,

- load space cover,

- coat hook and net fixing,

- bench net,

- grab handle,

- cup holder,

- 12 volt socket,

- storage compartment.

Temporary puncture repair kit 130
Spare wheel, jack,
changing a wheel, tools 132-136
Rear suspension 87-89
Front, side,
curtain airbags 102-105
Passenger's airbag deactivation 105

Parking brake, handbrake 93
Opening the bonnet 117

Battery, charging, starting 128
Passenger compartment fuses 144
Front seats, adjustments,
head restraint 68-69
2-seat front bench 70-71
Seat belts 99-100

Rear ventilation 64

Child seats 106-113
ISOFIXmountings 108-110
Rear side windows 91

INTERIOR


Rear seats,
rear benches 72-78
Configuration of seats and benches 79

Rear courtesy lamp 83
Changing courtesy
lamp bulbs 139

Accessories 116

Rear view mirror 91
Toll cards, car park tickets 84
Front courtesy lamp 83
Changing courtesy lamp bulbs 139

162
Model code
Consult your registration certificate.
This table presents the Petrol and Diesel Model Codes.
MODEL CODE

Vehicle
X

Body types
X*____/_
6 seats max, short L1
XA____/_
6 seats max, long L2
XB____/_
9 seats max, short L1
XC____/_
9 seats max, long L2
XD____/_
8-9 seats, long L2
XE____/_

Engines
X_***_/_

Diesel
1.6 HDi 90
X_9HU_/_
2.0 HDi 120
X_RHK_/_
2.0 HDi 120 with PEF
X_RHG_/_
2.0 HDi 136 with PEF
X_RHR_/_
2.0 HDi 163 with PEF
-

Petrol
2.0 PETROL 140
X_RFH_/_

Versions
X____*/_
The version code is a combination determined by the type of manual gearbox and the associated emissions controls level.

Manual gearbox
5-speed
X____*/_
6-speed
X____*/_

Variants
X_____/*
The variant code is determined in relation to the parameters authorised when the vehicle was manufactured.
