Gearboxes and steering wheel
READY TO SET OFF
2
STEERING WHEEL HEIGHT AND DEPTH ADJUSTMENT
When the vehicle is stationary, unlock the
steering wheel by lowering the lever.
Adjust the height and depth of the steering
wheel, then lock by pushing the lever fully
upwards.
To change gear easily, always press the
clutch pedal fully.
To prevent the mat from becoming caught
under the pedal:
- ensure that the mat is positioned
correctly,
- never fit one mat on top of another.
When driving, avoid leaving your hand on
the gear knob as the force exerted, even if
slight, may wear the internal components of
the gearbox over time.
GEARBOXES AND STEERINGWHEEL
5 - speed gearbox 6 - speed gearbox
Reverse gear
In the 6-speed configuration, raise the collar
under the gear knob to engage reverse gear.
Never engage reverse gear before the
vehicle is completely stationary.
The lever should be moved slowly to reduce
the noise on engaging reverse gear.

Starting and stopping
STARTING AND STOPPING
Key
Take care to prevent the key from coming
into contact with grease, dust, rain or a
damp environment.
A heavy object attached to the key
(key ring, ...) weighing the key down in the
ignition switch may cause a malfunction.

Starting position.
The starter is operated, the engine turns
over, release the key.

STOP position: steering lock.
The ignition is off. Turn the steering wheel
until the steering locks. Remove the key. Good practice when starting
If this comes on, a door or the
bonnet is not closed correctly,
check!
Diesel pre-heating warning light
If the temperature is high enough,
the warning light comes on for
less than one second, you can
start without waiting.
In cold weather, wait for this warning light to
switch off then operate the starter (Starting
position) until the engine starts. Good practice when stopping
Minimise engine and gearbox wear
When switching off the ignition, let the
engine run for a few seconds to allow the
turbocharger (Diesel engine) to return to idle.
Do not press the accelerator when switching
off the ignition.
There is no need to engage a gear after
parking the vehicle.

Running and accessories position.
To unlock the steering, turn the steering
wheel gently while turning the key, without
forcing. In this position, certain accessories
can be used.
Door or bonnet open warning light

152
Towing a trailer
For more information about weights,
refer to the administrative documents
(V5 registration document, ...) or to the
"Weights" section of chapter 9.
TOWING A TRAILER, CARAVAN, BOAT, ETC...

Distribution of loads
Distribute the load in the trailer so that the
heaviest objects are as close as possible
to the axle and the nose weight is close to
the maximum authorised without, however,
exceeding it.
Cooling
Towing a trailer on a slope increases the
coolant temperature.
As the fan is electrically controlled, its
cooling capacity is not dependent on the
engine speed.
On the contrary, use a high gear to lower the
engine speed and reduce your speed.
A towed vehicle must free wheel: gearbox in
neutral.

161
Checks
CHECKS
7
Manual gearbox
Have the level checked in accordance with
the manufacturer's servicing schedule. To check the main levels and certain
components, in accordance with the
manufacturer's servicing schedule, refer to
the pages of the servicing booklet which
correspond to your vehicle's engine.
Only use products recommended by
CITROËN or products of equivalent
quality and characteristics.
In order to optimise the operation of units as
important as the braking circuit, CITROËN
selects and offers specific products.
In order to avoid damaging the electrical
units, high pressure washing to clean the
engine compartment is strictly prohibited.

1.6 litre HDi
2 litre HDi
Bleeding the water contained in the diesel filter
If this warning light comes on,
bleed the filter. Otherwise bleed
regularly each time
the engine is drained.
To evacuate the water, unscrew the bleed
screw located on the filter.
Operate until all of the water in the
transparent pipe has been drained out then
tighten the bleed screw.
HDi engines use advanced technology.
All work requires a special qualification
which is guaranteed by a CITROËN dealer.

Without lifting(4 wheels on the road)
You should always use a towbar.
From the front
- Unclip the cover by pressing the bottom part.
- Screw in the removable towing eye until it locks.
BEING TOWED
Lifting (2 wheels on the road only)
It is preferable to raise the vehicle using
professional lifting equipment.
From the rear
- Unclip the cover using a coin or the flat part of the towing eye,
- Screw in the removable towing eye until it locks. When towing with the engine switched
off, there is no braking or steering
assistance. Vehicles fitted with a manual gearbox (diesel version)
In the case of vehicles fitted with a manual
gearbox, the gear lever must be in the
neutral position. Failure to observe this
special condition may result in damage
to certain braking components and the
absence of braking assistance the next time
the engine is started.
180180

190
Diesel - Petrol engines
Diesel Petrol
1.6 HDi 90 2.0 HDi 120 2.0 HDi 136 2.0 PET ROL 140
Gearbox Manual
Gears 5 6 6 5
Power (bhp) 90 120 136 138
Power (DIN) 92 122 138 143
Cubic capacity (cm 3
) 1 560 1 997 1 997 1 997
Bore x stroke (mm) 75 x 88 85 x 88 85 x 88 85 x 88
EU standard maximum power (kW) 66 88 100 103
Max power engine speed (rpm) 4 000 4 000 4 000 6 000
EU standard max torque (Nm) 180 300 320 180
Max torque engine speed (rpm) 1 750 2 000 2 000 2 500
Fuel Diesel Diesel Diesel Unleaded
Particle emission filter No No Yes /
Catalytic converter Yes Yes Yes - ENGINES AND GEARBOXES

191
Diesel - Petrol engines
TECHNICAL DATA
9
Consumption values correct at time of printing. These consumption values were established in accordan ce with EC Directive 80/1268
(as amended). They may vary depending on the style of driving, traffic conditions, weather conditions, the load in the vehicle, the
maintenance of the vehicle and the use of the acces sories. Diesel
Petrol
1.6 HDi 90 2.0 HDi 120 2.0 HDi 136 2.0 P ETROL 140
Gearbox Manual
Gears 5 6 6 5
Power (bhp) 90 120 136 140
Power (DIN) 92 122 138 143 6
seats max,
short L1 6
seats max, long L2 9
seats max 6
seats max,
short L1 6
seats max, long L2 9
seats max 6
seats max,
short L1 6
seats max, long L2 9
seats max 6
seats max,
short L1 6
seats max, long L2 9
seats max
Urban driving [mpg (l/100 km)] 33.6
(8.4) 32.8
(8.6) 32.8
(8.6) 31.0
(9.1) 30.7
(9.2) 30.4
(9.3) 30.7
(9.2) 30.4
(9.3) 30.1
(9.4) 21.5
(13.2) 21.5
(13.2) 21.3
(13.3)
Inter-urban driving [mpg (l/100 km)] 42.8
(6.6) 41.5
(6.8) 41.5
(6.8) 44.8
(6.3) 44.1
(6.4) 43.5
(6.5) 44.1
(6.4) 43.5
(6.5) 42.8
(6.6) 35.7
(8) 35.7
(8) 34.4
(8.2)
Mixed driving [mpg (l/100 km)] 39.2
(7.2) 37.6
(7.5) 37.6
(7.5) 39.2
(7.2) 38.1
(7.4) 37.6
(7.5) 38.1
(7.4) 37.6
(7.5) 37.2
(7.6) 28.5
(9.9) 28.5
(9.9) 27.9
(10.1)
Emission of CO 2 by weight (g/km) 191 198 198 194 196 1
98 196 198 199 235 235 241
CONSUMPTION

198
Type variante version
Consult your registration certificate.
This table presents the Petrol and Diesel Model Co des.

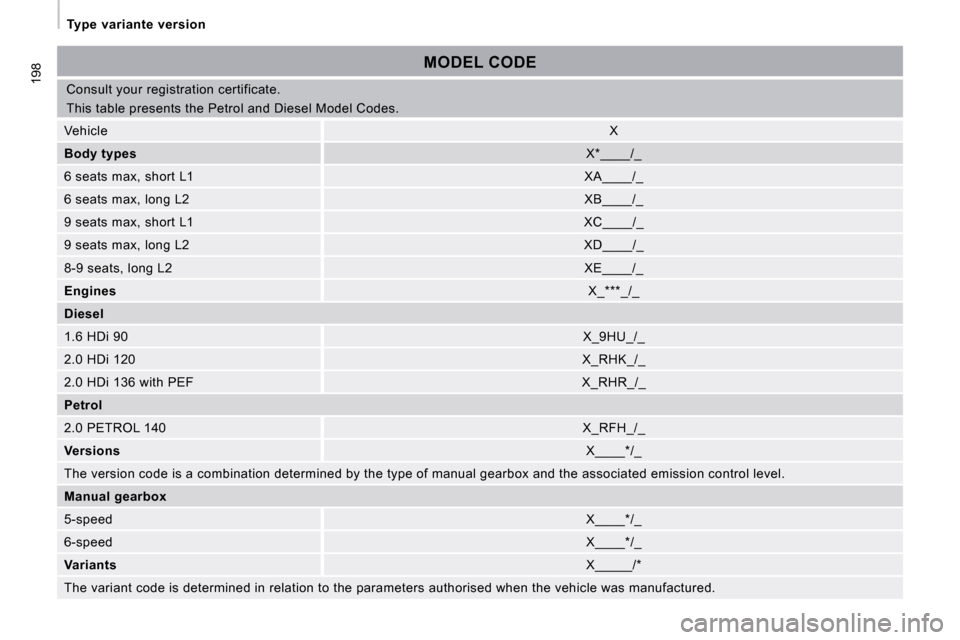

MODEL CODE
Vehicle X

Body types X*____/_
6 seats max, short L1 XA____/_
6 seats max, long L2 XB____/_
9 seats max, short L1 XC____/_
9 seats max, long L2 XD____/_
8-9 seats, long L2 XE____/_

Engines X_***_/_

Diesel
1.6 HDi 90 X_9HU_/_
2.0 HDi 120 X_RHK_/_
2.0 HDi 136 with PEF X_RHR_/_

Petrol
2.0 PETROL 140 X_RFH_/_

Versions X____*/_
The version code is a combination determined by th e type of manual gearbox and the associated emissio n control level.

Manual gearbox
5-speed X____*/_
6-speed X____*/_

Variants X_____/*
The variant code is determined in relation to the parameters authorised when the vehicle was manufact ured.
