Child safety
SAFETY
4
"ISOFIX" MOUNTINGS
The mountings comprise three rings for each
seat:
- two front rings, located between the vehicle seat back and cushion, indicated
by a label,
- a rear ring, for securing the upper strap referred to as the TOP TETHER,
indicated by another label.
Your vehicle has been approved in
accordance with the new ISOFIX regulation.
If fitted on your vehicle, the regulation
ISOFIX mountings are located by labels. This ISOFIX mounting system guarantees
you fast, reliable and safe fitting of the child
seat in your vehicle.
The ISOFIX child seats are fitted with two
locks which are secured easily on the two
front rings.
Some also have an upper strap which is
attached to the rear ring.
To attach this strap, raise the vehicle seat's
head restraint then pass the hook between
its rods. Then fix the hook on the rear ring
and tighten the upper strap.
The incorrect installation of a child seat in a
vehicle compromises the child's protection in
the event of an accident.
For information regarding the ISOFIX child
seats which can be installed in your vehicle,
consult the summary table for the location of
the ISOFIX child seats.
The child seats function and the
passenger airbag disarming function
are common to the entire CITROËN range.
If the passenger airbag is not disarmed, the
installation of a "rearwards-facing" child seat
in the front is strictly prohibited.
Refer to chapter 4, "Airbags" section.

98
Child safety
ISOFIX

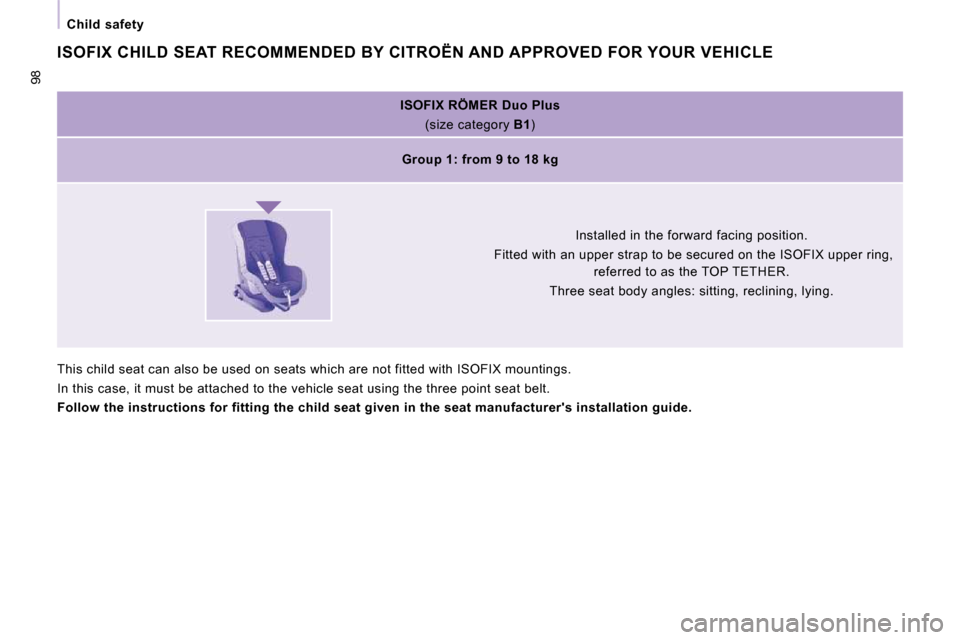

RÖMER Duo Plus
(size category B1 )

Group 1: from 9 to 18 kg

Installed in the forward facing position.
Fitted with an upper strap to be secured on the IS OFIX upper ring,
referred to as the TOP TETHER.
Three seat body angles: sitting, reclining, lying.
This child seat can also be used on seats which ar e not fitted with ISOFIX mountings.
In this case, it must be attached to the vehicle s eat using the three point seat belt.

Follow the instructions for fitting the child seat given in the seat manufacturer's installation guide .
ISOFIX CHILD SEAT RECOMMENDED BY CITROËN AND APPROV ED FOR YOUR VEHICLE

99
Child safety
SAFETY
4

IUF: Seat suitable for the installation of an
ISOFIX child seat of the universal category.
"Forward facing" ISOFIX child seat fitted
with an upper strap secured to the upper
ring of the vehicle seats equipped with
ISOFIX mountings.
SUMMARY TABLE FOR THE INSTALLATION OF ISOFIX CHILD SEATS
This table indicates the options for the installation of ISOFIX child seats on the vehicle seats fitt ed with ISOFIX mountings.
In the case of the universal and semi-universal IS OFIX child seats, the child seat's ISOFIX size cate gory, determined by a letter from A to G ,
is indicated on the child seat next to the ISOFIX l ogo.

IL-SU: Seat suitable for the installation of a
semi-universal ISOFIX child seat. "Forward
facing" ISOFIX child seat fitted with a stay.
"Rear facing" ISOFIX child seat or infant car
seat, fitted with an upper strap or a stay.
X: No restraining system for children.

Weight of the child /indicative age

Less than
10 kg
(group 0)
Up to 6 months approx
Less than 10 kg
(group 0)
Less than 13 kg (group 0+)
Up to 1 year approx
From 9 to 18 kg
(group 1)
From 1 to 3 years approx

Type of ISOFIX child seat
Infant car
seat
"rear facing" "rear facing" "forward facing"

ISOFIX size category F G C D E C D A B B1

Row 2 rear side seats with individual seats in Row 1 IL-SU IL-SU IL-SU IUF, IL-SU

Row 2 rear side seats with 2-seat bench in Row 1 IL-SU X IL-SU X IL-SU IUF, IL-SU

Rear seats in Row 3 IL-SU X IL-SU X IL-SU IUF, IL-SU

Infant car seat: this is fixed to the lower
rings of a seat equipped with ISOFIX
mountings and occupies two rear seats.

100
Child safety
CHILD SEATS RECOMMENDED BY CITROËN
CITROËN offers a complete range of recommended child seats which are secured using a three point seat belt :

Group 0: from birth to 10 kg
Group 0+: from birth to 13 kg
Groups 1, 2 and 3: from 9 to 36 kg


L1
"ROMER Baby-Safe Plus"
Installed in the rear-facing position


L2
"KIDDY Life"
Use of the restraining cushion is compulsory for the transportation of young children (from 9 to 18 kg).

Groups 2 and 3: from 15 to 36 kg

L3
"RECARO Start''

L4
"KLIPPAN Optima"
From the age of 6 years (approximately 22 kg),
the booster is used on its own.

L5
"RÖMER KIDFIX"
Can be fixed on the vehicle's ISOFIX mountings. The child is restrained by the seat belt.

101
Child safety
SAFETY
4
Row 2 Side seats
U U U U
Centre seat U U U U
Row 3 Side seats
U U U U
Centre seat U U U U
a: Group 0: from birth to 10 kg. Infant car seats and "car cots" cannot be installed on the front pas senger seat.
b: consult the legislation in force in your countr y before installing your child on this seat.
U: seat suitable for the installation of a child s eat secured using a seat belt and universally appro ved, "rear facing" and/or "forward facing".
INSTALLING CHILD SEATS ATTACHED USING THE SEAT BEL T
This table indicates the options for installing child seats secured using a seat belt and universally approved in accordance with the weight of
the child and the seat in the vehicle.

Seat
Weight of the child and indicative age

Under 13 kg
(groups 0 (a) and 0+)
Up to approx 1 year
From 9 to 18 kg
(group 1)
1 to 3 years approx
From 15 to 25 kg
(group 2)
3 to 6 years approx
From 22 to 36 kg
(group 3) 6 to 10 years approx
Row 1 (b) Individual seat
U U U U
Bench, side seat U U U U
Bench, centre seat
L1 L2 L2, L3, L4 L2, L3, L4

102
Child safety Deactivate the passenger airbag when a
"rear facing" child seat is installed on the
front seat.
Otherwise, the child would risk being
seriously injured or killed if the airbag were
to inflate.
Installing a booster seat
The chest part of the seat belt must be
positioned on the child's shoulder without
touching the neck.
Ensure that the lap part of the seat belt
passes correctly over the child's thighs.
CITROËN recommends the use of a booster
seat which has a back, fitted with a seat belt
guide at shoulder level.
ADVICE ON CHILD SEATS
The incorrect installation of a child seat in a
vehicle compromises the child's protection in
the event of an accident.
Remember to fasten the seat belts or the
child seat harnesses keeping the slack in
relation to the child's body to a minimum ,
even for short journeys.
For optimum installation of the "forward
facing" child seat, ensure that the back of
the child seat is in contact with the back of
the vehicle's seat and that the head restraint
does not cause any discomfort.
If the head restraint has to be removed,
ensure that it is stored or attached securely
to prevent it from being thrown around the
vehicle in the event of sharp braking.
Children under the age of 10 must not travel
in the "forward facing" position on the front
passenger seat, unless the rear seats are
already occupied by other children, cannot
be used or are absent. As a safety precaution, do not leave:
- one or more children alone and
unsupervised in a vehicle,
- a child or an animal in a vehicle which is exposed to the sun, with the windows
closed,
- the keys within reach of children inside the vehicle.
To prevent accidental opening of the doors,
use the "Child Lock".
Take care not to open the rear windows by
more than one third.
To protect young children from the rays of
the sun, fit side blinds to the rear windows.

Opening the bonnet
OPENING THE BONNET

From inside:
- lift the cover located at the foot of the front left seat.
- pull the control upwards. To close
Lower the bonnet and release it at the end of
its travel. Check that the bonnet is properly
locked.

From outside: partially open the bonnet, lift
the catch and raise the bonnet.
Bonnet strut
Secure the strut in one of the two notches,
according to the height required, to hold the
bonnet open.
Before closing the bonnet, replace the strut
in its housing. "Bonnet open" warning
This warning is linked to the
alarm option
only.
With the engine running or the
vehicle moving, a warning light
and a diagram on the display,
accompanied by an audible
signal, warn you that the bonnet
is not properly closed.

122
Changing a wheel
- Lower the vehicle completely by folding the jack, then remove the jack.
- Tighten the bolts again using the wheelbrace, tighten them fully without
forcing them.
- Place the wheel to be repaired in the carrier. - Secure the carrier on the hook then
raise the carrier using the bolt and the
wheel brace. Check that the wheel and
the carrier are flush against the floor of
the vehicle.
- Remember to close the flap, located on the sill.
- Store the trim in the vehicle.
Never go underneath the vehicle when
it is supported only by the jack.
Never use a screwdriver in place of the
wheelbrace. - Position the wheel on the hub and start tightening the wheel bolts by hand.
- Carry out an initial tightening of the bolts using the wheelbrace.

126
Changing a bulb
DIRECTION INDICATOR SIDE REPEATER

Type A , WY 5 W (amber)
- Push the repeater towards the rear and disengage it.
- Support the connector and turn the bulb holder a quarter turn to the left.
- Turn the bulb a quarter turn to the left, remove it and change it.
- When refitting, engage the repeater towards the rear and bring it towards the
front.
Front/Rear
Amber coloured bulbs (direction indicators
and side repeaters) must be replaced with
bulbs of identical specification and colour.
Type A , 12 V 5 W - 5 W
- Unclip the lens by sliding a screwdriver in the slots on each side of the courtesy
light.
- Pull the bulb and change it.
- Clip the lens in its housing and ensure that it is secured correctly.
High pressure washing
When using this type of washing on
stubborn dirt, do not persist on the
headlamps, the lights and their surrounds to
avoid damaging their coating and their seal.
