129
Changing a fuse
QUICK HELP
7
CHANGING A FUSE
The three fuse boxes are placed:
-
in the fascia panel on the right-hand side
(behind the storage compartment, retractable),

- in the passenger compartment (battery compartment),
- under the bonnet.
Removing and fitting a fuse
Before changing a fuse, the cause of the
fault must be found and rectified.
- Use the pliers.
Always replace a faulty fuse with a fuse
of the same rating.
CITROËN will not accept responsibility for
the cost incurred in repairing your vehicle
or for rectifying malfunctions resulting from
the installation of auxiliary accessories
not supplied and not recommended by
CITROËN and not installed in accordance
with its instructions, in particular when
the combined consumption of all of the
additional equipment connected exceeds
10 milliamperes.
The descriptions communicated are only
the fuses which can be changed by the
user using the pliers and replacement fuses
located behind the fascia panel storage
compartment on the right-hand side. For any
other operations, visit a CITROËN dealer.
Intended for professionals: for complete
fuse and relay information, consult the
"Methods" diagram via the Network.

130
Changing a fuse
RIGHT-HAND SIDE FASCIA PANEL FUSES
- Tilt the storage compartment then pull it firmly to access the fuses.
Fuses A (amps) Allocation

1 15 Rear wiper

2 - Free

3 5 Air bag control unit

4 10 Steering wheel angle sensor, Diagnostic socket, ESP sensor,
Manual ventilation, Clutch switch, Headlamp beam he ight,
Particle emission filter pump

5 30 Electric mirrors, Passenger electric window mot or

6 30 Front electric windows supply

7 5 Courtesy lights and glove box light

8 20 Multifunction display, Anti-theft alarm siren, Audio equipment,
Compact disc changer, Audio/telephone, Trailer fuse box
(accessory)

9 10 Row 2 accessories socket

10 30 Rear ride height corrector, Steering wheel swit ching,
Instrument panel

11 15 Diagnostic socket, Ignition switch

12 15 Hands-free kit, Air bag control unit, Parking a ssistance
control unit

13 5 Engine fuse box, Trailer fuse box

14 15 Rain sensor, Rear ventilation, Automatic air co nditioning,
Instrument panel

15 30 Locking/unlocking/deadlocking of the accesses

16 - Free

17 40 Heated rear screen, Heated mirrors

Changing a fuse
QUICK HELP
7
PASSENGER COMPARTMENT FUSES
- Unclip the battery compartment cover.
- Remove the red battery terminal (+).

When you have finished, close the cover
carefully.
Fuses A (amps) Allocation

1 30 Heated seats

2 20 Row 3 12 V socket

3 40/50 Trailer fuse box (accessory)

4 - Free

36 15 Hinged door locks

37 10 Hinged door locks

38 20 Hinged door rear wiper

39 10 Rear ventilation

40 5 Folding mirrors

132
Changing a fuse

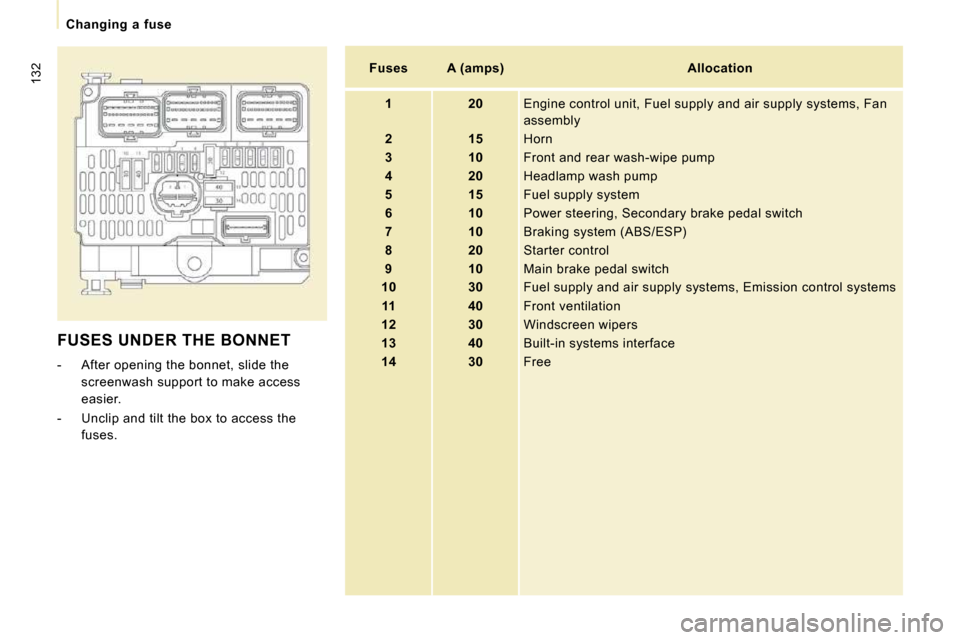

FUSES UNDER THE BONNET
- After opening the bonnet, slide the screenwash support to make access
easier.
- Unclip and tilt the box to access the fuses.
Fuses A (amps) Allocation

1 20 Engine control unit, Fuel supply and air supply systems, Fan
assembly

2 15 Horn

3 10 Front and rear wash-wipe pump

4 20 Headlamp wash pump

5 15 Fuel supply system

6 10 Power steering, Secondary brake pedal switch

7 10 Braking system (ABS/ESP)

8 20 Starter control

9 10 Main brake pedal switch

10 30 Fuel supply and air supply systems, Emission co ntrol systems

11 40 Front ventilation

12 30 Windscreen wipers

13 40 Built-in systems interface

14 30 Free
