Seats

EASE OF USE and COMFOR
T
3

SEAT AND BENCH
CONFIGURATIONS

Examples of various layoutscombining comfort and practicality

The various operations must be carried
out while stationary.

7 seats
8 seats
9 seats

5 seats
6 seats
Do not fit seats in the 3rd row without
first fitting the corresponding seatbelts.

80


Practical information

CAB FITTINGS

Depending on the vehicle's equipment, the
various fittings below enhance your cab.
Glove box
This is fitted with a lock, you can lock it
using the key.
It contains three sockets for the connection
of portable electronic equipment (video
equipment, ...) if the vehicle is fitted with
a colour screen.
It also contains cup holders and
compartments for storing maps, a packet
of cigarettes, an A4 format document,
a pen, etc.


Storage compartment
PRACTICAL INFORMATION


Sun visor

To prevent dazzle from ahead, fold the sun
visor down.
A pocket is provided in the driver's sun visor
for storing toll cards, tickets, ...

Practical information

EASE OF USE and COMFOR
T
3
Ashtray
Storage tray and bottle holder (1.5 L)
Any liquid carried in an open receptacle
(cup or other) may be spilt, with the risk
of damage to switches and controls at the
driving position and centre console.
"Take care".

Ticket storage

According to the configuration of the vehicle.

12 volt socket

The maximum power of the socket, which is
of the cigarette lighter type, is 120 W.

82


Practical information

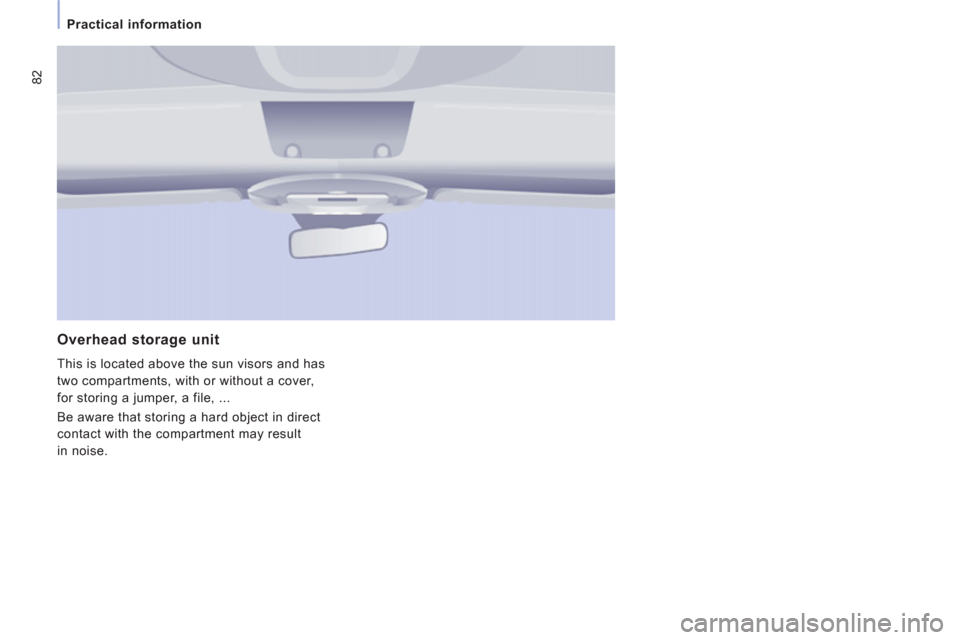

Overhead storage unit

This is located above the sun visors and has
two compartments, with or without a cover,
for storing a jumper, a file, ...
Be aware that storing a hard object in direct
contact with the compartment may result
in noise.

83


Practical information

EASE OF USE and COMFOR
T
3

Permanently on, ignition on. Front: comes on when one of the
front or rear doors is opened.
Row 2 and row 3: comes on when
one of the rear doors or the boot
is opened, if fitted on your vehicle.
Permanently off.
Individual reading lamp

Rear courtesy lamp
If fitted on the vehicle, these are
switched on and off by means of a
manual switch, with the ignition on.


SEATING AREA COURTESY LAMPS


Automatic switching on/off
The front courtesy lamp comes on when the
key is removed from the ignition.
All of the courtesy lamps come on when
the vehicle is unlocked, when one of the
corresponding doors is opened and for
location of the vehicle using the remote
control.
They switch off gradually after the ignition is
switched on and when the vehicle is locked.
Front courtesy lamp

84


Practical information


Mat fitting/removal

When removing the front mat, push the
seats as far back as possible and remove
the fixings.
When refitting, position the mat correctly on
the pins and clip the fixings. Check that the
mat is secured correctly.

Areas for toll cards/car park tickets

The athermic windscreen has two non-
reflective zones located either side of the
base of the interior mirror.
They are intended for affixing toll cards
and/or car park tickets.
SEATING AREA FITTINGS

Depending on the vehicle's equipment, the
various fittings below enhance your seating
area.
12 volt socket
This operates with the ignition off, so limit its
use to avoid discharging the battery.
Maximum power: 120 W.
To prevent the mat from becoming caught
under the pedals:


- only use mats suited to the fixings
already present in the vehicle. It is
imperative that these fixings are used.

- never fit one mat on top of another.

Grab handle Cup holder

Any liquid carried in an open receptacle
(cup or other) may be spilt, presenting
a risk. "Take care".

Practical information

EASE OF USE and COMFOR
T
3
Nets on the back of the outer seats Fittings/storage compartments
Load retaining net fixing

Raise the flap to gain access to the load
retaining net fixings. Storage tray and bottle holder (0.5 L)

Coat hooks

Practical information
Load space cover

To install:


- position one end of the load space cover
roller in its notch,

- compress the opposite end of the roller
and put it in place,

- release it so that it engages,

- unroll the load space cover to the pillars,

- fix the two hooks on the pillars.


Stowing rings

Use the stowing rings on the rear floor to fix
the net, your loads or luggage.
For safety reasons, on sharp braking, it is
recommended that heavy objects are placed
as far forward as possible. To remove:


- pull the load space cover towards you to
disengage it from its fixings,

- reinsert the load space cover in its roller,

- compress it and remove it from its
support.


You are advised to immobilise the load
by securing it firmly using the stowing
rings on the floor.

87

Rear suspension
EASE OF USE and COMFOR
T
3


Metal suspension

This equipment adopts long movement limiters
which make it possible to guarantee stable
behaviour both when loaded and when empty.
No action on your part is required except to
ensure that maintenance is carried out and that
the authorised loads are complied with. the increasing or lightening of the load on
the vehicle's platform is detected by two
height sensors. When all of the doors are
closed, the sensors trigger the automatic
height correction and determine the optimum
height of the sill for the vehicle's driving
conditions.



Deactivation of automatic height correction
The control which permits deactivation of
automatic regulation is located on the right-
hand side, at the rear of the vehicle.
Two types of suspension are available. You must deactivate automatic height
correction manually in the following
situations:


- when working underneath the vehicle,

- when changing a wheel,

- when the vehicle is being transported by
lorry, train, ferry, boat, ...



Rear suspension with pneumatic
height correction
If fitted on your vehicle, this type of
suspension regulates the variations in the
height of the rear platform of your vehicle
irrespective of the weight of the load, within
the limit of the authorised values. On board,
Two functions


1.
Automatic height
correction

2.
Manual height
correction


1 - Automatic correction of the
height of the rear sill
The pneumatic suspension automatically
regulates the variations in the height of
the rear platform of your vehicle.
The automatic height correction is
temporarily inactive:


- if a door / the tailgate is open,

- when braking or when stopped at a red
traffic signal (brake pedal pressed). With the vehicle stationary:


- press and hold,

- release the control.

Return to automatic correction
With the vehicle stationary:


- press and hold,

- release the control.
According to the configurations, a beep may
be heard during these operations.
A red warning light on your
instrument panel fl ashes if the
height is not at its optimum level
and requires correction, drive slowly
until this warning lamp goes off. Return to automatic height correction is
confirmed by the LED which goes off. Deactivation is confirmed by the LED which
is on. It remains on for approximately
30 seconds.

88

Rear suspension
2 - Manual correction of the height of the rear sill

If your vehicle is fitted with this adjustment,
the control is located on the right-hand side
at the rear of the vehicle.
This manual adjustment permits "lowering"
or "raising" of the height of the sill of the rear
platform to facilitate operations in a parking
area.
This adjustment of the height of the sill is
restricted by a lower limit and an upper limit.
First use
To initialise the function, press the control
for approximately 2 seconds.
Malfunctions
If the load sill is not adjusted when the
control is pressed, "3 beeps" indicate a
malfunction for the following reasons:


- foot on the brake pedal with the key in
the ignition,

- excessive use of the manual correction,

- low battery charge,

- other.
If the audible signal persists, contact a
CITROËN dealer or a qualified workshop. Carry out these operations with the vehicle
still stationary and:


- with the front and side doors closed,

- with the parking brake applied,

- do not leave your foot on the brake
pedal.

Lower: downwards adjustment
of the platform sill
Press the control downwards
continuously.
Release the button to stop the movement,
"3 beeps" indicate that you have reached
the maximum limit, the movement stops
automatically.

Raise: upwards adjustment of
the platform sill
Press the control upwards
continuously.
Release the button to stop the movement,
"3 beeps" indicate that you have reached
the maximum limit, the movement stops
automatically.

Return to the optimum sill height
Press the control up or down twice in
succession, the opposite of the position of
the load sill.
