Engines
CONSUMPTION
T h e s e c o n s u m p t i o n v a l u e s w e r e e s t a b l i s h e d i n a c c o r d a n c e w i t h d i r e c t i v e 8 0 / 1 2 6 8 / E C . T h e y m a y v a r y d e p e n d i n g o n t h e s t y l e o f d r i v i n g , t r a f fi c
c o n d i t i o n s , w e a t h e r c o n d i t i o n s , t h e l o a d i n t h e v e h i c l e , t h e m a i n t e n a n c e o f t h e v e h i c l e a n d t h e u s e o f t h e e q u i p m e n t .
Light van
According to directive 80/1268/EC
Engines Gearboxes Model codes Urban driving
m p g ( l i t r e s / 1 0 0 k m ) Inter-urban driving
m p g ( l i t r e s / 1 0 0 k m ) Mixed driving
m p g ( l i t r e s / 1 0 0 k m ) Emission of CO
2
by mass ( g / k m )
1.4 HDi Manual AA8HSC 49.6 (5.7) 74.3 (3.8) 62.8 (4.5)
119
Electronic A A 8 H S C / P 51.4 (5.5) 76.3 (3.7) 64.2 (4.4) 116
1.4 l Manual AAKFVC 32.1 (8.8) 47.9 (5.9) 40. 9 (6.9) 164
Quality of the fuel used for petrol engines
T h e p e t r o l e n g i n e s a r e p e r f e c t l y c o m p a t i b l e w i t h E 5 t y p e p e t r o l b i o f u e l s ( c o n t a i n i n g 5 % e t h a n o l ) , c o n f o r m i n g t o E u r o p e a n s t a n d a r d E N 2 2 8 .
E 8 5 t y p e f u e l s ( c o n t a i n i n g u p t o 8 5 % e t h a n o l ) a r e r e s e r v e d e x c l u s i v e l y f o r v e h i c l e s m a r k e t e d f o r t h e u s e o f t h i s t y p e o f f u e l ( B i o F l e x v e h i c l e s ) . T h e
q u a l i t y o f t h e e t h a n o l m u s t c o m p l y w i t h E u r o p e a n s t a n d a r d E N 1 5 3 7 6 .
F o r B r a z i l o n l y , s p e c i a l v e h i c l e s a r e m a r k e t e d t o r u n o n f u e l s c o n t a i n i n g u p t o 1 0 0 % e t h a n o l ( t y p e E 1 0 0 ) .
Page 72 of 153
61
2
Engines
TECHNICAL DATA
Combi
According to directive 80/1268/EC
Engines Gearboxes Model codes Urban driving
m p g ( l i t r e s / 1 0 0 k m ) Inter-urban driving
m p g ( l i t r e s / 1 0 0 k m ) Mixed driving
m p g ( l i t r e s / 1 0 0 k m ) Emission of CO
2
by mass ( g / k m )
1.4 HDi Manual
AJ8HSC
AJ8HSL
47.9 (5.9)
49.6 (5.7)
72.0 (3.9)
74.3 (3.8) 61.4 (4.6)
62.8 (4.5) 123
119
Electronic A J 8 H S C / P 49.6 (5.7) 74.3 (3.8) 62.8 (4.5) 119
1.4 l Manual AJKFVC 32.1 (8.8) 47.9 (5.9) 40. 4 (7.0) 165
C o n s u m p t i o n fi g u r e s c o r r e c t a t t i m e o f p r i n t i n g .
Quality of the fuel used for Diesel engines
T h e D i e s e l e n g i n e s a r e p e r f e c t l y c o m p a t i b l e w i t h b i o f u e l s w h i c h c o n f o r m t o c u r r e n t a n d f u t u r e E u r o p e a n s t a n d a r d s ( d i e s e l f u e l w h i c h c o m p l i e s w i t h
s t a n d a r d E N 5 9 0 m i x e d w i t h a b i o f u e l w h i c h c o m p l i e s w i t h s t a n d a r d E N 1 4 2 1 4 ) w h i c h c a n b e d i s t r i b u t e d a t t h e p u m p s ( p o s s i b l e i n c o r p o r a t i o n o f 0 t o
7 % F a t t y A c i d M e t h y l E s t e r ) .
T h e u s e o f a n y o t h e r t y p e o f ( b i o ) f u e l ( v e g e t a b l e o r a n i m a l o i l s , d o m e s t i c f u e l . . . ) i s s t r i c t l y p r o h i b i t e d ( r i s k o f d a m a g e t o t h e e n g i n e a n d f u e l c i r c u i t ) .
Page 73 of 153
62
Weights
WEIGHTS
C o n s u l t y o u r r e g i s t r a t i o n c e r t i fi c a t e .
I n e a c h c o u n t r y , i t i s i m p e r a t i v e t h a t t h e t o w e d l o a d s p e r m i t t e d b y l o c a l l e g i s l a t i o n a r e c o m p l i e d w i t h . F o r i n f o r m a t i o n r e g a r d i n g y o u r v e h i c l e ’ s
t o w i n g p o s s i b i l i t i e s a n d i t s g r o s s t r a i n w e i g h t , c o n s u l t a C I T R O Ë N d e a l e r .
This table indicates the maximum weight when loaded (GVW) acco rding to the dimensions and names of the vehicle.
Load transfer
I f t h e t o w i n g v e h i c l e h a s n o t r e a c h e d t h e G V W , i t i s p o s s i b l e t o t r a n s f e r t h i s w e i g h t t o t h e t r a i l e r .
In all cases, do not exceed the trailer weight and GTW in dicated.
C o m p l y w i t h t h e t o w i n g c a p a c i t i e s o f y o u r v e h i c l e .
Light van
Model codes AA8HSC
A A 8 H S C / P AAKFVC
Engines 1.4 HDi 1.4 l
Gearboxes Manual
Electronic gearbox system Manual
Gross vehicle weight 1 700 1 700 1 680
Kerb weight (without driver) 1 090 1 090 1 070
Payload (with driver) 610 610 610
Page 74 of 153
63
2
Weights
TECHNICAL DATA
Combi (with hinged rear doors)
Model codes AJ8HSC
AJ8HSL A J 8 H S C / P
AJKFVC
Engines 1.4 HDi 1.4 l
Gearboxes Manual
Electronic gearbox system Manual
Gross vehicle weight 1 700 1 700 1 680
Kerb weight (without driver) 1 185 1 185 1 165
Payload (with driver) 515 515 515
Combi (with tailgate)
Model codes AJ8HSC
AJ8HSL A J 8 H S C / P
AJKFVC
Engines 1.4 HDi 1.4 l
Gearboxes Manual
Electronic gearbox system Manual
Gross vehicle weight 1 710 1 710 1 690
Kerb weight (without driver) 1 200 1 200 1 180
Payload (with driver) 510 510 510
Page 75 of 153
64
Trip computer
TRIP COMPUTER
The TRIP button, located at the end of
the wipers stalk, displays the following
information in succession: - Range,
- Route A,
- Average consumption A,
- Current consumption A,
- Average speed A,
- Trip duration A. If TRIP B is activated on
MENU :
- Route B,
- Average consumption B,
- Average speed B,
- Trip duration B.
Press the MENU ESC button for more
than two seconds to return to the welcome
screen.
Level 1 display:
- Speed (Speed bleep).
- Hour (Setting of the time).
- Buzz (Volume of the announcements).
- Unit (Unit of measurement).
- Bag p (Passenger air bag).
Refer to the corresponding line of the
configuration - personalisation table on the
following pages.
Zero reset
Press the TRIP button for more than two
seconds to reset the displayed data to zero.
Page 76 of 153
65
3
IN-CAR TECHNOLOGY
Menu
MENU Eight languages are offered: Italian, English,
German, French, Spanish, Portuguese,
Dutch and Turkish.
As a safety precaution, the menus can only
be accessed when the ignition is off
(engine off).
Refer to the corresponding line of the
configuration - personalisation table on the
following pages.
This button enables you to:
- scroll up through a menu,
- increase a value.
This button enables you to:
- scroll down through a menu,
- decrease a value.
Menu... Press...
Sub-
menu...
Press... Select...
Confirm
and exit
Enables you to...
1 Speed Bleep ON Increase
Activate/deactivate the audible
signal indicating exceeding of the
programmed speed and select the
speed value.
Decrease
OFF
2 Activate
Trip B ON Activate
Display a second route "Trip B".
OFF Deactivate
C o n fi g u r a t i o n - P e r s o n a l i s a t i o n
Level 2 and 3 displays:
The control pad located to the left of the
steering wheel provides access to display
menus which permit the personalisation of
some of your equipment.
This button enables
you to:
- access the menus and sub-menus,
- confirm your selections within a menu,
- exit from the menus.
A long press enables you to return to the
welcome screen.
Page 77 of 153
66
Menu
Menu...
Press... Sub-menu... Press... Select...
Confirm
and exit
Enables you to...
3 Set the time Hours
Increase
Set the clock.
Decrease
Format 24 hour
Select the clock display mode.
12 hour
4 Set the date Year/Month/Day Increase
Set the date.
Decrease
5 See radio ON
Display the name of the station.
Display the CD track number.
OFF
6 Autoclose While moving ON
Activate/deactivate the
automatic locking of the doors
above 12 mph (20 km/h) .
OFF
7 Measurement
unit Distances
Km
Select the distance display unit.
Mi(les)
Temperature °C
Select the temperature display
unit.
°F
Consumption km/l
Select the consumption display
unit.
l/100 km
8 Language List of languages
available Select the display language.
9 Volume of
announcements Increase Increase/decrease the volume of the
signals and warnings (the volume changes
immediately when the button is pressed).
Decrease
Page 78 of 153
67
3
IN-CAR TECHNOLOGY
Menu
Menu... Press... Sub-menu... Press... Select...
Confirm
and exit
Enables you to...
10 Volume of
the buttons Increase
Increase/decrease the volume
of the buttons.
Decrease
11 Service (Km/Miles
before oil
change) Display the kilometres/miles
remaining before the next oil
change.
Display the oil level.
12 Bag
(passenger
air bag) ON
Yes
Activate the passenger air bag.
No
OFF Yes
Disarm the passenger air bag.
No
13 Exit from
menu Exit from the menu. Press the
arrow at the bottom to go to
the first menu.
Page 79 of 153
68
P a r k i n g a s s i s t a n c e
AUDIBLE REAR PARKING ASSISTANCE
The audible system consists of four
proximity sensors, installed in the rear
bumper.
It detects any obstacle which enters the
field: person, vehicle, tree, fence, behind the
vehicle during the manoeuvre.
However, it will not be able to detect
obstacles located immediately below the
bumper.
An object, such as a stake, a roadworks
cone or any other similar object may be
detected at the beginning of the manoeuvre
but may no longer be detected when the
vehicle moves close to it.
This system does not take the place of the
vigilance and responsibility of the driver. Stop the assistance
Change to neutral.
O p e r a t i n g f a u l t
If this warning light or the service
warning light comes on on the
instrument panel, accompanied
by a message on the display,
contact a CITROËN dealer.
Good practice
In bad weather or in winter, ensure that the
sensors are not covered with mud, ice or
snow.
E n g a g e r e v e r s e g e a r
The proximity information is indicated by an
audible signal which becomes more rapid as
the vehicle approaches the obstacle.
When the distance between the rear of
the vehicle and the obstacle is less than
approximately thirty centimetres, the audible
signal becomes continuous.
This function will be deactivated
automatically if a trailer is being towed.
You are advised to obtain a towbar
recommended by CITROËN and have it
installed by a professional.
If anomalies are detected on engaging reverse
gear, the warning light comes on, possibly
accompanied by a message on the display.
Page 80 of 153
69
3
IN-CAR TECHNOLOGY

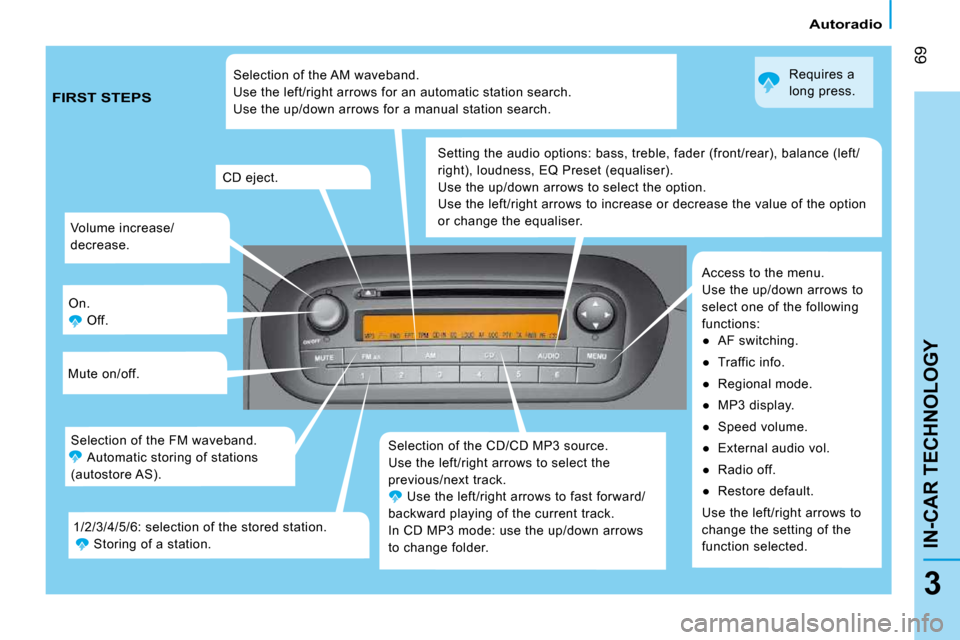

Autoradio
Volume increase/
decrease.
On. Off.
Mute on/off.
Selection of the CD/CD MP3 source.
Use the left/right arrows to select the
previous/next track. Use the left/right arrows to fast forward/
backward playing of the current track.
In CD MP3 mode: use the up/down arrows
to change folder. Setting the audio options: bass, treble, fader (fr
ont/rear), balance (left/
right), loudness, EQ Preset (equaliser).
Use the up/down arrows to select the option.
Use the left/right arrows to increase or decrease the value of the option
or change the equaliser.
Access to the menu.
Use the up/down arrows to
select one of the following
functions:
