Familiarisation INSTRUMENTS AND CONTROLS

1. Steering wheel adjustment control.

2. Lights and direction indicators controls.

3. Instrument panel.

4. Driver’s air bag.
Horn.

5. Cruise control/speed limiter switches.

6. Gear lever.

7. Handbrake.

8. Bonnet release.

9. Exterior mirror controls.

10. Fuse box.

11. Manual headlamp height adjustment.

12. Side adjustable and closing vent.

13. Front side window demisting vent.

14. Windscreen demisting vent.

15. Steering lock and ignition.

16. Wipers/wash-wipe/trip computer controls.

17. Central adjustable and closing vents.

18. Passenger air bag.

19. MENU button.

20. Glove box.

21. Lighter.

22. Ashtray.

23. Heating/air conditioning controls.

24. Audio equipment.

25. Electric window controls.

26. 12 V accessories socket.

13
FAMILIARISATION
Familiarisation

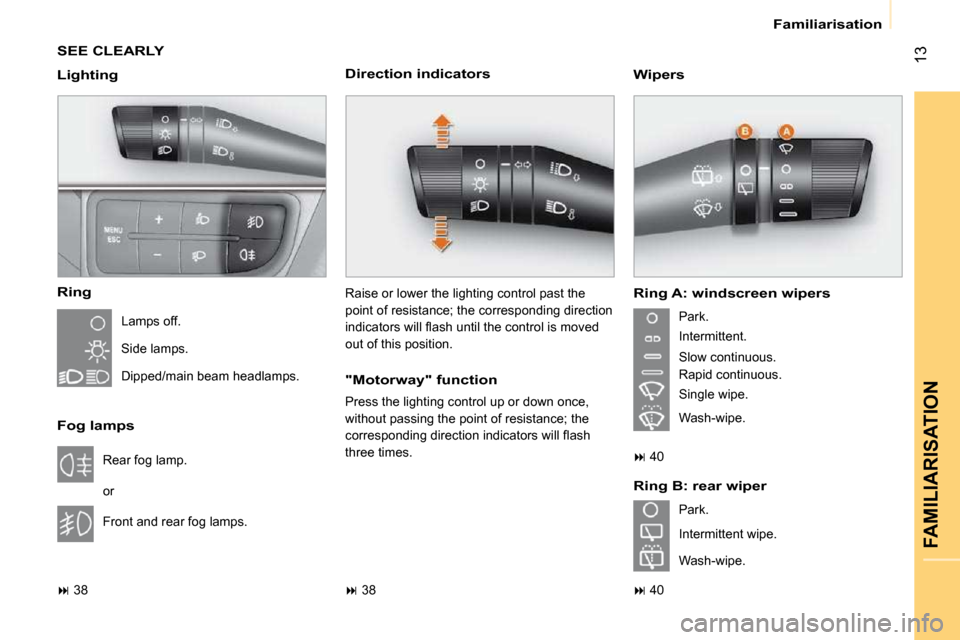

SEE CLEARLY
Ring
Lamps off.
Side lamps.
Dipped/main beam headlamps.
Fog lamps
Rear fog lamp.
or
Front and rear fog lamps.

 38
Direction indicators
"Motorway" function
Press the lighting control up or down once,
without passing the point of resistance; the
corresponding direction indicators will fl ash
three times.

 38
Wipers
Ring A: windscreen wipers

 40
Ring B: rear wiper

 40 Single wipe.
Intermittent wipe.
Wash-wipe.
Wash-wipe.
Park.
Lighting
Park.
Intermittent.
Slow continuous.
Rapid continuous.
Raise or lower the lighting control past the
point of resistance; the corresponding direction
indicators will fl ash until the control is moved
out of this position.

19
1
READY TO SET OFF
Instruments and controls
INSTRUMENT PANELS

1. Distance recorder in kilometres/miles.

2. Display.

3. Fuel gauge.

4. Coolant temperature.

5. Rev counter.
Instrument panel with level 1 display Instrument panel with level 2 display
Instrument panel display level 1
- Time,
- Kilometres/Miles travelled,
- Trip computer/range, consumption,
average speed,
- Headlamp height,
- Programmable overspeed warning,
- Arming or disarming of the passenger air bag.
Instrument panel display level 2
- Time,
- Date,
- Radio,
- Kilometres/Miles travelled,
- Exterior temperature,
- Modes and gears engaged on the piloted manual gearbox,
- Trip computer/range, consumption, average speed
- Headlamp height,
- Programmable overspeed warning,
- Selection of the display language,
- Arming or disarming of the passenger air bag,
- Activation or deactivation of the automatic locking of the doors while driving.

20
Instruments and controls
Instrument panel with level 3 display
Instrument panel display level 3
- Cruise control/Speed limiter,
- Time,
- Date,
- Radio,
- Kilometres/Miles travelled,
- Exterior temperature,
- Modes and gears engaged on the piloted manual gearbox, - Trip computer/range, consumption,
average speed,
- Headlamp height,
- Programmable overspeed warning,
- Selection of the display language,
- Arming or disarming of the passenger air bag,
- Activation or deactivation of the automatic locking of the doors while
driving.

24
Instruments and controls

Warning lamp
is indicates Solution - action
Water in diesel filter on, accompanied by
a message on the
display. that there is water in the
diesel fuel filter.
Have the filter bled by a CITROËN dealer. Refer
to the "Checks" section of chapter 7.
Low fuel level on with the gauge
needle in zone E. that the fuel reserve is
being used. Fill up with fuel without delay. The evaluation
of the fuel reserve is a parameter which is
sensitive to the style of driving, the profile of t
he
road, the time elapsed and the distance travelled
since the warning lamp first came on.
Diesel pre-heating on. that the weather
conditions impose
pre-heating. Wait for the warning lamp to switch off before
operating the starter.
Side lamps on. manual selection. Turn the ring on the lights stalk to the first
position.
Dipped headlamps on. manual selection.
Turn the ring on the lights stalk to the second
position.
Main beam headlamps pulling of the stalk towards
you. Pull the lights stalk to return to dipped
headlamps.

25
1
READY TO SET OFF
Instruments and controls

Warning lamp
is indicates Solution - action
Direction indicators flashing with buzzer. a change of direction
using the lights stalk, to
the left of the steering
wheel. To the Right: press the stalk upwards.
To the Left: press the stalk downwards.
Front fog lamps on. that the button on the
fascia panel has been
pressed. Manual selection.
The fog lamps only operate if the side lamps or
dipped headlamps are on.
Rear fog lamps on. that the button on the
fascia panel has been
pressed. Manual selection. The fog lamps only operate if
the dipped headlamps are on. When visibility is
normal, please switch the fog lamps off to avoid
breaking the law. This light is a dazzling red.
Faulty bulb on, accompanied by
a message on the
display. that one or more bulbs
have blown. Have the bulb changed.
Refer to the "Changing a bulb" section of
chapter 7 or consult a CITROËN dealer.
Cruise control on. that the cruise control has
been selected. Manual selection. Refer to the "Steering wheel
controls" section of chapter 1.
Speed limiter on. that the speed limiter has
been selected. Manual selection. Refer to the "Steering wheel
controls" section of chapter 1.

26
Instruments and controls

Warning lamp
is indicates Solution - action
Rear parking
assistance on. failure of the system. The audible assistance is no longer active.
Have the system checked by a CITROËN
dealer without delay.
Electronic gearbox
system on, accompanied
by the flashing of
"AUTO".
failure of the gearbox.
Have the system checked by a CITROËN
dealer without delay.

Display displays indicates Solution - action
Exterior temperature the temperature which
flashes accompanied
by a message on the
display. weather conditions
which could result in the
presence of ice on the
road.
Be especially vigilant and do not brake
sharply. Refer to the "Driving safety" section of
chapter 5.
Date
11:00:00 a setting:
of the Date.
of the Time. a configuration via the
MENU menu.
Refer to the "Menu" section of chapter 3.
Headlamp beam height a headlamp height
setting. a position from 0 to 3
depending on the load
carried. Adjust using the control on the fascia panel.
Refer to the "Steering wheel controls" section
of chapter 1.

26
Instruments and controls

Warning lamp
is indicates Solution - action
Rear parking
assistance on. failure of the system. The audible assistance is no longer active.
Have the system checked by a CITROËN
dealer without delay.
Electronic gearbox
system on, accompanied
by the flashing of
"AUTO".
failure of the gearbox.
Have the system checked by a CITROËN
dealer without delay.

Display displays indicates Solution - action
Exterior temperature the temperature which
flashes accompanied
by a message on the
display. weather conditions
which could result in the
presence of ice on the
road.
Be especially vigilant and do not brake
sharply. Refer to the "Driving safety" section of
chapter 5.
Date
11:00:00 a setting:
of the Date.
of the Time. a configuration via the
MENU menu.
Refer to the "Menu" section of chapter 3.
Headlamp beam height a headlamp height
setting. a position from 0 to 3
depending on the load
carried. Adjust using the control on the fascia panel.
Refer to the "Steering wheel controls" section
of chapter 1.

38
Steering wheel controls
LIGHTING STALK
Selection is by rotation of the white mark
on the ring, when the ignition key is in the

RUNNING position.
All lamps off
Sidelamps on
This is indicated on the instrument
panel by lighting of the warning lamp.
Dipped headlamps/main beam headlamps on
Dipped headlamps/main beam headlamps change
Pull the lighting stalk fully towards you.
Headlamp fl ash
Direction indicators
"Motorway" function
System which indicates a change of lane on
high-speed roads.
Press the lighting stalk up or down once,
without passing the point of resistance; the
corresponding direction indicators will flash
three times. Pull the lighting stalk towards you
gently, regardless of the position
of the ring.

Left: push downwards. The green
direction arrow warning lamp
flashes on the instrument panel.

Right: push upwards. The green
direction arrow warning lamp flashes on the
instrument panel.
Turn the ring into position.

39
1
READY TO SET OFF
Steering wheel controls
Headlamp beam
You are advised to adjust the height of the
headlamp beams in accordance with the
load in your vehicle.
This function can only be accessed in
the main beam headlamps and dipped
headlamps position. Press these controls, located
on the fascia panel, several
times in succession to adjust the
headlamps.
Fog lamps
The controls are located on the fascia panel
control pad.
Front and rear fog lamps
The fog lamps should only be used in
fog or when snow is falling.
In clear weather or in rain, both day and
night, lit rear fog lamps dazzle and are
prohibited.
Do not forget to switch them off when they
are no longer necessary.
Guide-me-home lighting
The temporary maintaining of the dipped
headlamps, after switching off the vehicle’s
ignition, makes the driver ’s exit easier when
the light is poor and lights the space in front
of the vehicle.

Activation
With the ignition key in the STOP position
or removed, pull the lighting stalk towards
the steering wheel within 2 minutes after
switching off the engine.
Each time the control is operated,
the duration for which the lamps will
remain on is extended by 30 seconds,
up to a maximum of 210 seconds. Once this
period of time has elapsed, the lamps switch
off automatically.

Deactivation
Pull the lighting stalk towards the steering
wheel for more than 2 seconds.
The front fog lamps operate with
the side lights and the dipped
headlamps.
The rear fog lamps operate with
the dipped headlamps.
Press one of these controls to switch on the
lights. The warning lamp comes on,
accompanied by a message
on the display, the first time
the control is operated and
remains on until the function is deactivated
automatically. An indicator light on the display
indicates the adjustment position
selected (0, 1, 2, 3).
