Oil Citroen NEMO 2009 1.G Owner's Manual

15
FAMILIARISATION
Familiarisation
MONITOR THOROUGHLY

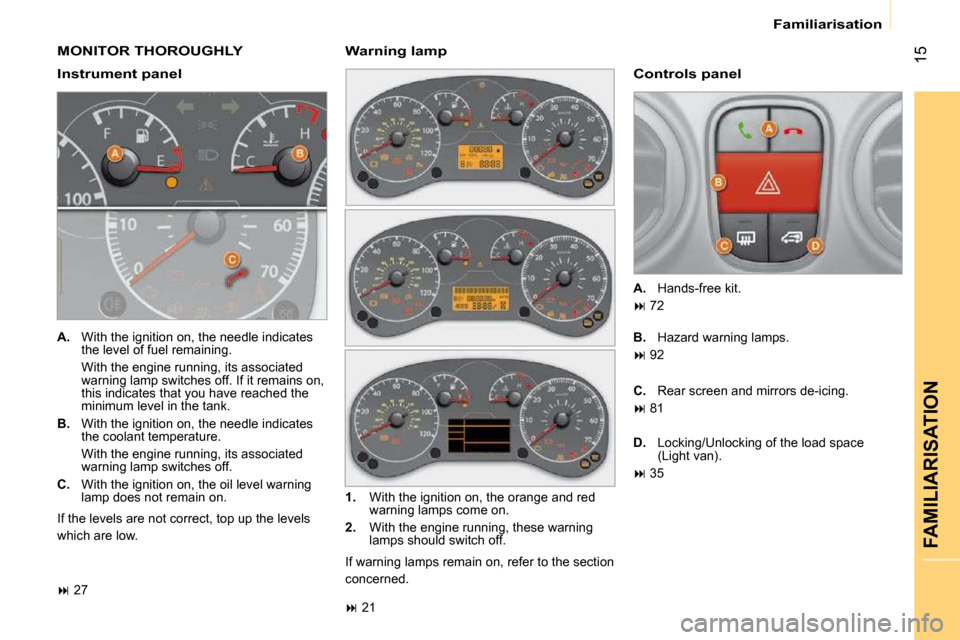

Instrument panel Controls panel

A. With the ignition on, the needle indicates
the level of fuel remaining.
With the engine running, its associated warning lamp switches off. If it remains on,
this indicates that you have reached the
minimum level in the tank.

B. With the ignition on, the needle indicates
the coolant temperature.
With the engine running, its associated warning lamp switches off.

C. With the ignition on, the oil level warning
lamp does not remain on.
If the levels are not correct, top up the levels
which are low.
A. Hands-free kit.

 72

1. With the ignition on, the orange and red
warning lamps come on.

2. With the engine running, these warning
lamps should switch off.
If warning lamps remain on, refer to the section
concerned.
Warning lamp

 21

 27
B. Hazard warning lamps.

 92

C. Rear screen and mirrors de-icing.

 81

D. Locking/Unlocking of the load space
(Light van).

 35

21
1
READY TO SET OFF
Instruments and controls

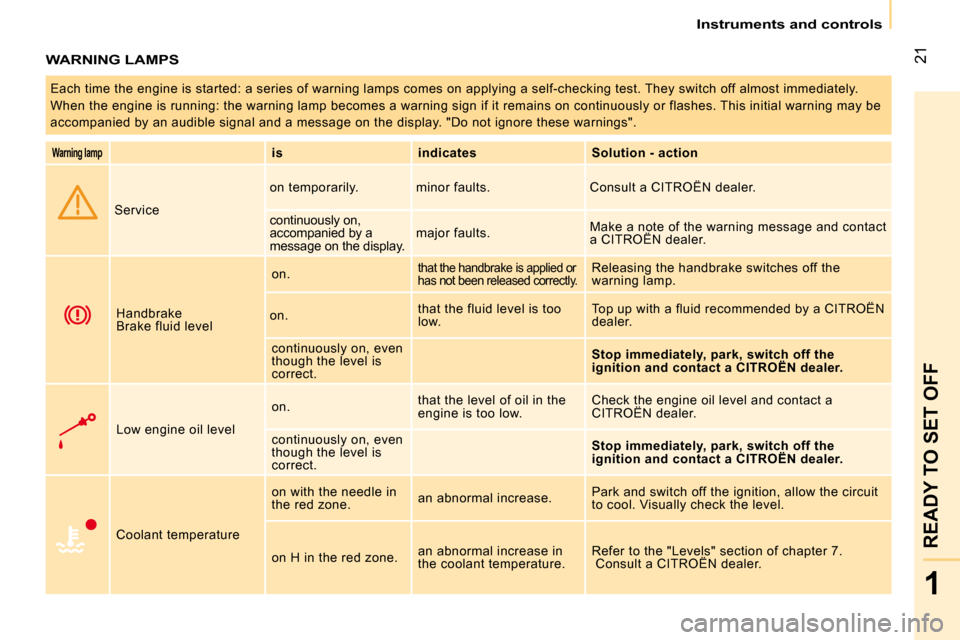

WARNING LAMPS
Each time the engine is started: a series of warning lamps comes on applying a self-checking test. Th ey switch off almost immediately.
When the engine is running: the warning lamp become s a warning sign if it remains on continuously or flashes. This initial warning may be
accompanied by an audible signal and a message on t he display. "Do not ignore these warnings".

Warning lamp
is indicates Solution - action

Service on temporarily. minor faults. Consult a CITROËN
dealer.
continuously on,
accompanied by a
message on the display. major faults.
Make a note of the warning message and contact
a CITROËN dealer.
Handbrake
Brake fluid level on.
that the handbrake is applied or
has not been released correctly. Releasing the handbrake switches off the
warning lamp.
on. that the fluid level is too
low. Top up with a fluid recommended by a CITROËN
dealer.
continuously on, even
though the level is
correct.
Stop immediately, park, switch off the
ignition and contact a CITROËN dealer.
Low engine oil level on.
that the level of oil in the
engine is too low. Check the engine oil level and contact a
CITROËN dealer.
continuously on, even
though the level is
correct.

Stop immediately, park, switch off the
ignition and contact a CITROËN dealer.
Coolant temperature on with the needle in
the red zone.
an abnormal increase. Park and switch off the ignition, allow the circui
t
to cool. Visually check the level.
on H in the red zone. an abnormal increase in
the coolant temperature. Refer to the "Levels" section of chapter 7.
Consult a CITROËN dealer.

22
Instruments and controls

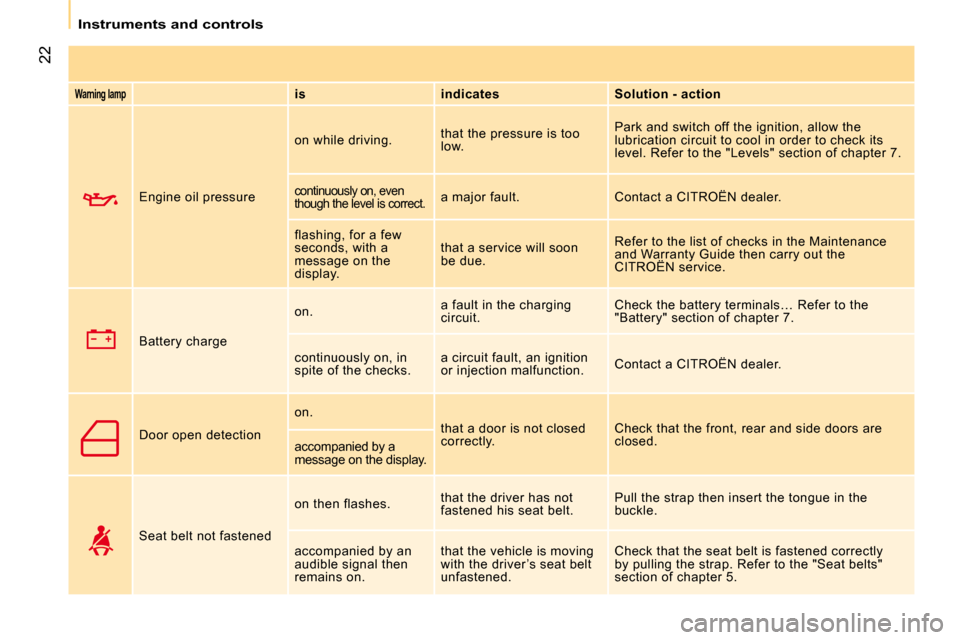

Warning lamp
is indicates Solution - action
Engine oil pressure on while driving.
that the pressure is too
low. Park and switch off the ignition, allow the
lubrication circuit to cool in order to check its
level. Refer to the "Levels" section of chapter 7.
continuously on, even
though the level is correct. a major fault. Contact a CITROËN dealer.
flashing, for a few
seconds, with a
message on the
display. that a service will soon
be due.
Refer to the list of checks in the Maintenance
and Warranty Guide then carry out the
CITROËN service.
Battery charge on.
a fault in the charging
circuit. Check the battery terminals… Refer to the
"Battery" section of chapter 7.
continuously on, in
spite of the checks. a circuit fault, an ignition
or injection malfunction.
Contact a CITROËN dealer.
Door open detection on.
that a door is not closed
correctly. Check that the front, rear and side doors are
closed.
accompanied by a
message on the display.
Seat belt not fastened on then flashes.
that the driver has not
fastened his seat belt. Pull the strap then insert the tongue in the
buckle.
accompanied by an
audible signal then
remains on. that the vehicle is moving
with the driver ’s seat belt
unfastened. Check that the seat belt is fastened correctly
by pulling the strap. Refer to the "Seat belts"
section of chapter 5.

28
Instruments and controls
SERVICE INDICATOR
The display on the instrument panel
informs you when the next service is due,
in accordance with the "Manufacturer ’s"
servicing schedule indicated in the servicing
booklet. This information is determined in
relation to the distance travelled since the
previous service. You are warned by flashing of the
engine oil pressure warning light
and the displaying of a message
on the instrument panel each time
the vehicle is started.

In this case, your vehicle must be
serviced as soon as possible.
LIGHTING RHEOSTAT
The rheostat is active when the lights are on.
Refer to the list of checks in the
servicing booklet which was given to
you on delivery of the vehicle.
After a few seconds, the display returns to
its usual functions. Use the + and - controls to
change the brightness of the
instrument panel lighting.

67
3
IN-CAR TECHNOLOGY

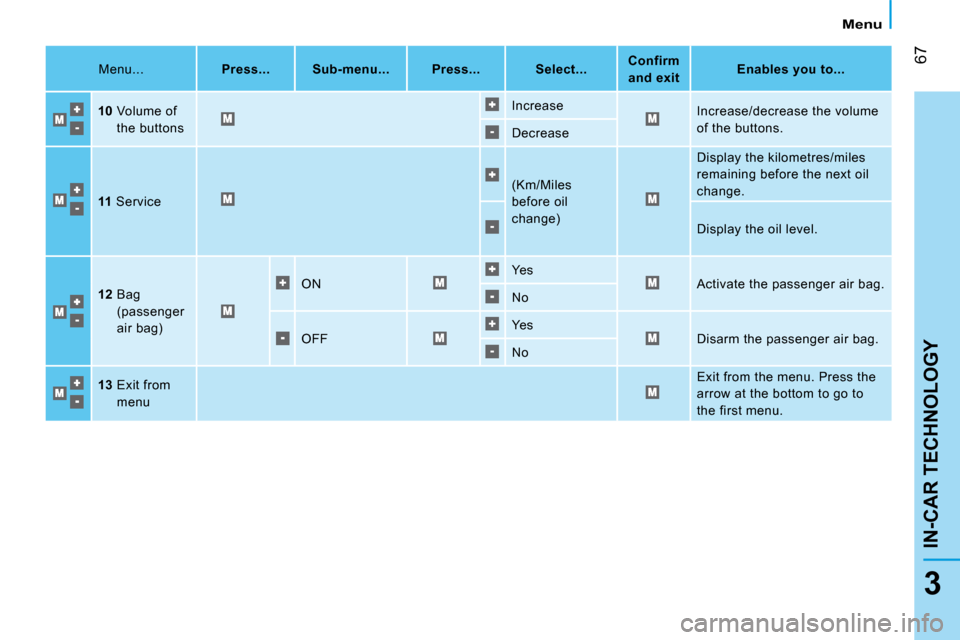

Menu
Menu... Press... Sub-menu... Press... Select...
Confirm
and exit
Enables you to...

10 Volume of
the buttons Increase
Increase/decrease the volume
of the buttons.
Decrease

11 Service (Km/Miles
before oil
change) Display the kilometres/miles
remaining before the next oil
change.
Display the oil level.

12 Bag
(passenger
air bag) ON
Yes
Activate the passenger air bag.
No
OFF Yes
Disarm the passenger air bag.
No

13 Exit from
menu Exit from the menu. Press the
arrow at the bottom to go to
the first menu.

93
5
SAFETY
Driving safety

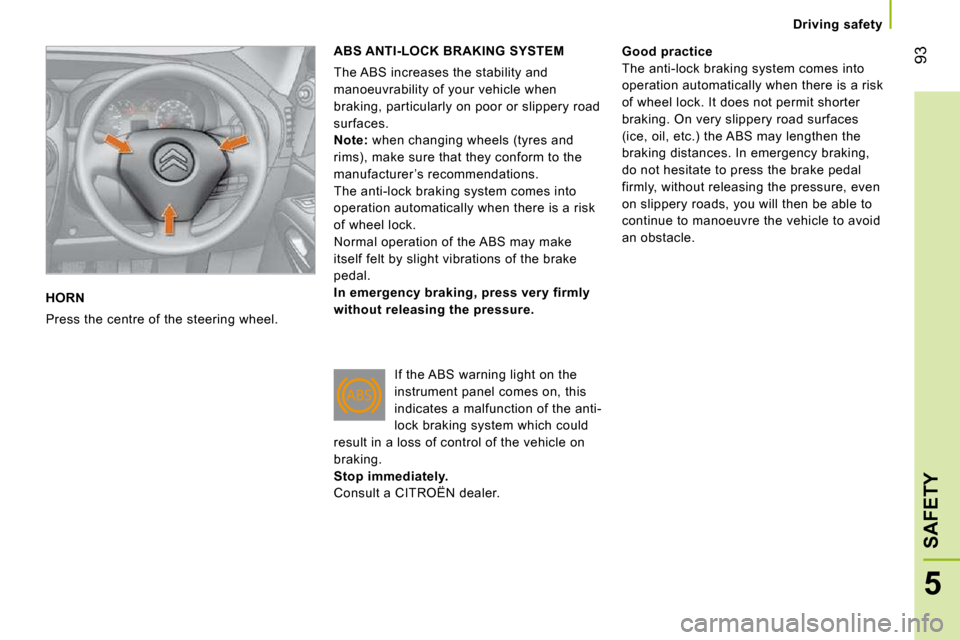

HORN
Press the centre of the steering wheel.
ABS ANTI-LOCK BRAKING SYSTEM
The ABS increases the stability and
manoeuvrability of your vehicle when
braking, particularly on poor or slippery road
surfaces.

Note: when changing wheels (tyres and
rims), make sure that they conform to the
manufacturer ’s recommendations.
The anti-lock braking system comes into
operation automatically when there is a risk
of wheel lock.
Normal operation of the ABS may make
itself felt by slight vibrations of the brake
pedal.

In emergency braking, press very firmly
without releasing the pressure.
Good practice
The anti-lock braking system comes into
operation automatically when there is a risk
of wheel lock. It does not permit shorter
braking. On very slippery road surfaces
(ice, oil, etc.) the ABS may lengthen the
braking distances. In emergency braking,
do not hesitate to press the brake pedal
firmly, without releasing the pressure, even
on slippery roads, you will then be able to
continue to manoeuvre the vehicle to avoid
an obstacle.
If the ABS warning light on the
instrument panel comes on, this
indicates a malfunction of the anti-
lock braking system which could
result in a loss of control of the vehicle on
braking.

Stop immediately.
Consult a CITROËN dealer.

126
Changing a fuse
FUSES IN THE ENGINE

Identifi cation mark
Amperage
Functions
F01 60 A Control unit
F03 20 A Starter supply
F04 40 A ABS hydraulic block pump supply
F06 30 A Single speed fan assembly control
F07 40 A High speed fan assembly control
F08 30 A Air conditioning unit pump
F10 10 A Horn F11 10 A Engine management secondary charge supply
F14 15 A Main beam headlamps
F16 7.5 A Engine management control unit - p iloted manual gearbox control unit
F17 15 A Supply for ignition coil, injectors , engine management central unit
F18 7.5 A Engine management control unit (1. 4 HDi)
F19 7.5 A Air conditioning compressor
F20 30 A Supply for heated rear screen, elec tric exterior mirrors de-icing heaters
F21 15 A 1.4 petrol engine management, T09 ( HDi) relay coil
F22 20 A Engine management control unit (1.4 HDi), petrol pump
F23 20 A ABS hydraulic block solenoid valves supply
F24 7.5 A ABS
F30 15 A Fog lamps
F81 60 A Pre-heat unit
F82 30 A Piloted manual gearbox pump - pilot ed manual gearbox supply
F84 10 A Piloted manual gearbox control unit and solenoid valves
F85 30 A Lighter - 12 V accessories socket
F87 7.5 A Reversing lights - water in diesel sensor

132
Under the bonnet
Diesel engine
UNDER THE BONNET

4. Brake and clutch fluid reservoir.

5. Air filter.
6. Dipstick.

7. Engine oil filler cap.

8. Power steering fluid reservoir.

1. Windscreen wash reservoir.

2. Fuse box.

3. Engine coolant reservoir.

133
7
TROUBLESHOOTING
Under the bonnet
Petrol engine
UNDER THE BONNET

4. Brake and clutch fluid reservoir.

5. Air filter.

6. Dipstick.
7. Engine oil filler cap.

8. Power steering fluid reservoir.

1. Windscreen wash reservoir.

2. Fuse box.

3. Engine coolant reservoir.

134
Levels These regular maintenance operations
will keep your vehicle in good
running order. Consult the instructions at
a dealership or in the servicing booklet
enclosed in the handbook pack.
LEVELS

Oil level
Check the level regularly and top up
between changes. The maximum
consumption is 0.5 l per 600 miles
(1 000 km). Check the level with the vehicle
level, engine cold, using the dipstick.

Dipstick
There are two marks on the
dipstick:

A = maximum
If you fill past this mark,
consult a dealer.

B = minimum
Never allow the level to fall
below this mark.
To maintain the reliability of engines and
emission control systems, the use of
additives in engine oil is prohibited.
Oil change
It is imperative that this is carried out at the
intervals specified and the viscosity grade of
the oil selected must fulfil the requirements
in accordance with the manufacturer ’s
servicing schedule. Consult the instructions
at a dealership.
Remove the dipstick before filling.
Check the level after filling (never exceed
the maximum mark).
Screw the cap back onto the sump before
closing the bonnet.
Changing the brake fluid
The brake fluid must be changed at
the intervals stated, according to the
manufacturer ’s servicing schedule.
Use fluids recommended by the
manufacturer, which fulfil DOT4 standards.
The level must be between the MIN and

MAX marks on the reservoir.
If fluid has to be added frequently, this
indicates a failure which must be checked by
a CITROËN dealer as soon as possible.

Warning lights
Checking by means of the warning
lights on the instrument panel is
described in chapter 1, refer to the
"Instruments and controls" section.
