11
FAMILIARISATION
Familiarisation
SIT COMFORTABLY

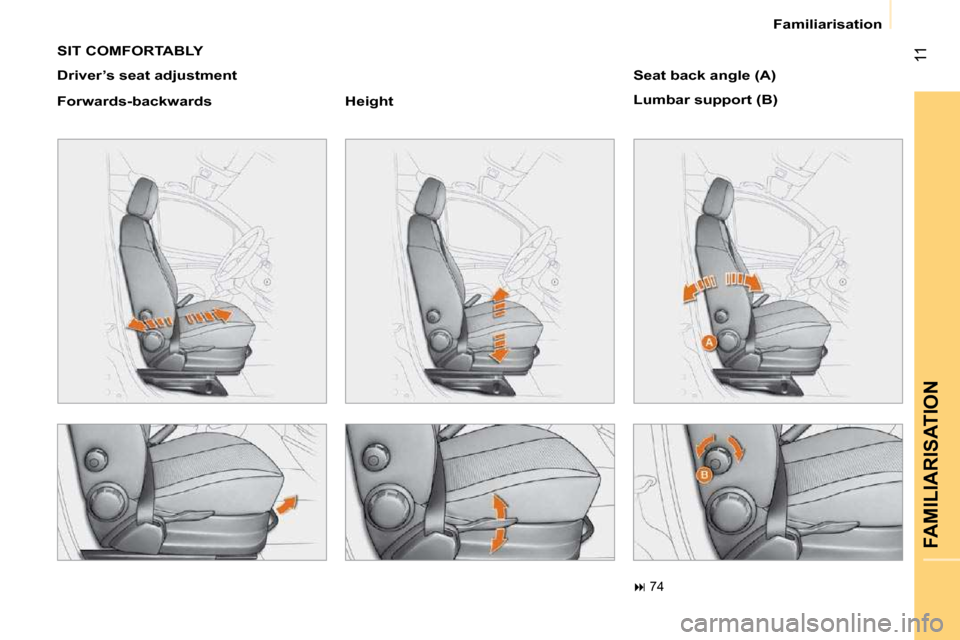

Driver’s seat adjustment
Forwards-backwards Height Seat back angle (A)
Lumbar support (B)

 74

12
Familiarisation Front seat belts

A. Fastening.

 94
SIT COMFORTABLY
Steering wheel adjustment

1. Unlocking of the control.

2. Adjustment of the height and depth.

3. Locking of the control.
As a safety precaution, it is imperative
that these operations are carried out
while stationary.

 49
Electric exterior mirror adjustment

A. Selection of the driver’s mirror.

B. Selection of the passenger’s mirror.

C. Adjustment of the position of the mirror.

 47
Interior mirror adjustment

1. Selection of the "day/night" position of the
mirror.

2. Directing of the mirror.

 47

74
Seats
FRONT SEATS

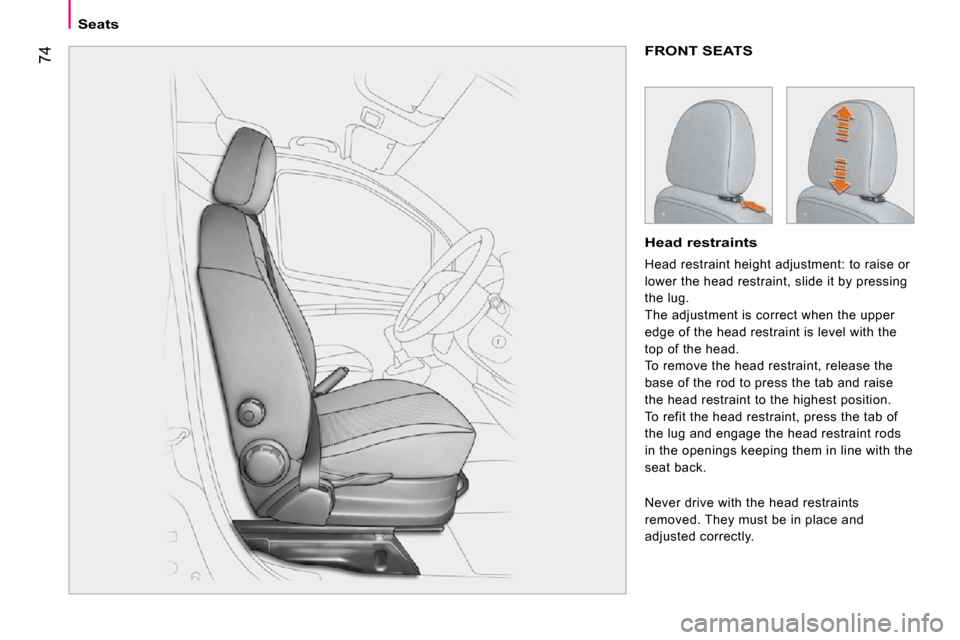

Head restraints
Head restraint height adjustment: to raise or
lower the head restraint, slide it by pressing
the lug.
The adjustment is correct when the upper
edge of the head restraint is level with the
top of the head.
To remove the head restraint, release the
base of the rod to press the tab and raise
the head restraint to the highest position.
To refit the head restraint, press the tab of
the lug and engage the head restraint rods
in the openings keeping them in line with the
seat back.
Never drive with the head restraints
removed. They must be in place and
adjusted correctly.

75
4
ERGONOMICS and COMFORT

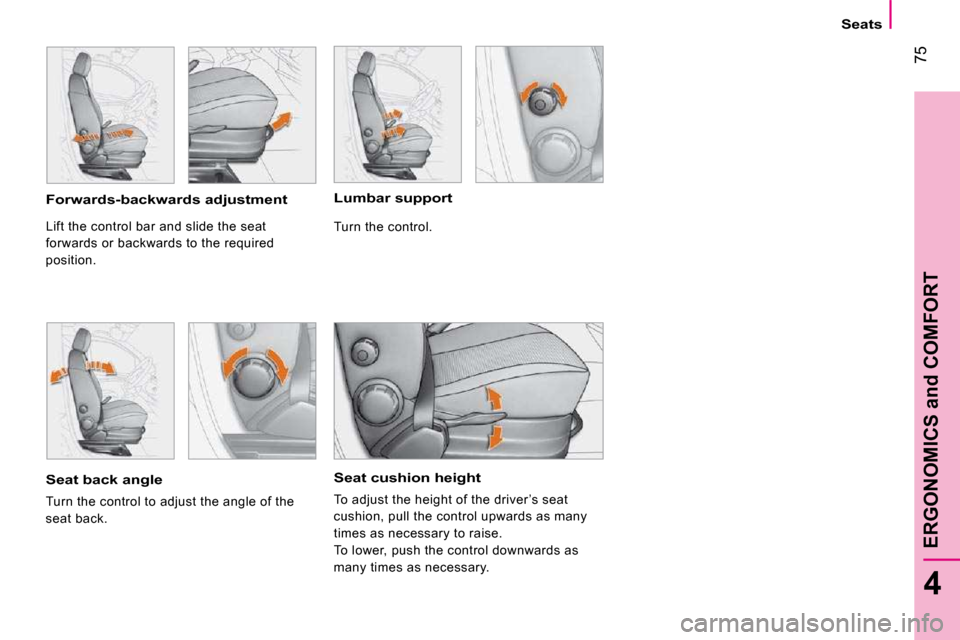

Seats
Seat cushion height
To adjust the height of the driver ’s seat
cushion, pull the control upwards as many
times as necessary to raise.
To lower, push the control downwards as
many times as necessary.
Forwards-backwards adjustment
Lift the control bar and slide the seat
forwards or backwards to the required
position.
Lumbar support
Seat back angle
Turn the control to adjust the angle of the
seat back. Turn the control.
