Familiarisation
MONITORING
Instrument panel Control panel
A. With the ignition on, the needle indicates
the level of fuel remaining.
With the engine running, its associated warning lamp goes off. If it remains on, this
indicates that you have reached the low
level in the tank.
B. With the ignition on, the needle indicates
the coolant temperature.
With the engine running, its associated warning lamp goes off.
C. With the ignition on, the oil level warning
lamp does not remain on.
If the levels are not correct, top up the levels
which are low.
A. Intelligent traction control
100
1. With the ignition on, the orange and red
warning lamps come on.
2. With the engine running, these warning
lamps should go off.
If warning lamps remain on, refer to the section
concerned.
Warning lamps
27 or
Anti-slip regulation.
98
B. Stop & Start.
53
C. Hazard warning lamps.
96
D. Heated rear screen and door mirrors.
85
E. L o c k i n g / U n l o c k i n g o f t h e l o a d s p a c e
( L i g h t v a n ) .
37
20
Page 12 of 166
15
FAMILIARISATION
Familiarisation

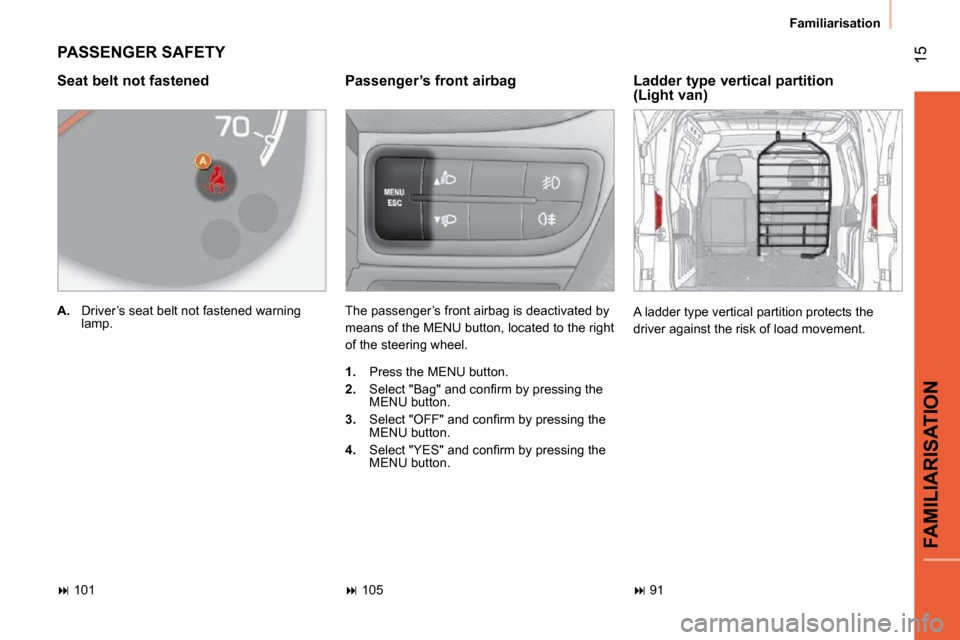

PASSENGER SAFETY
Passenger’s front airbag
The passenger’s front airbag is deactivated by
means of the MENU button, located to the right
of the steering wheel.
Seat belt not fastened
A. Driver’s seat belt not fastened warning
lamp.
101
105 Ladder type vertical partition
(Light van)
A ladder type vertical partition protects the
driver against the risk of load movement.
91
1. Press the MENU button.
2. S e l e c t " B a g " a n d c o n fi r m b y p r e s s i n g t h e
MENU button.
3. S e l e c t " O F F " a n d c o n fi r m b y p r e s s i n g t h e
MENU button.
4. S e l e c t " Y E S " a n d c o n fi r m b y p r e s s i n g t h e
MENU button.
Page 13 of 166
16
Familiarisation
DRIVING SAFELY
Electronic gearbox Display in the instrument panel Moving off
48
T h i s fi v e - s p e e d g e a r b o x o f f e r s a c h o i c e
between the comfort of automated operation or
the pleasure of manual gear changing.
R. Reverse.
N. Neutral.
A. Automated mode.
M +/-. Sequential mode.
E. Economy programme. The gear and the driving mode selected
appears in the instrument panel screen.
R: reverse gear.
N: neutral.
AUTO: automatic mode.
1 2 3 4 5: gears engaged.
E: Economy programme. Select position
N and press the brake pedal
fi r m l y w h i l e s t a r t i n g t h e e n g i n e .
Start the engine.
E n g a g e fi r s t g e a r ( m o v e f r o m t h e m i d d l e
position towards + ) o r r e v e r s e ( p o s i t i o n R )
using the gear lever.
Release the parking brake.
Release the brake pedal, then accelerate
away.
Page 14 of 166
17
FAMILIARISATION
Familiarisation
Going into engine STOP mode
Stop & Start
- with a manual gearbox; depress the
clutch pedal,
- with an electronic gearbox;
Page 15 of 166
18
Familiarisation
DRIVING SAFELY
1. STOP position - Off.
2. MAR position - Ignition on.
3. AVV position - Starting.
Ignition switch
STARTING
A v o i d a t t a c h i n g h e a v y o b j e c t s t o t h e
key, which could weigh on it while in
t h e i g n i t i o n s w i t c h ; t h i s c o u l d c a u s e
malfunctions.
32
Cruise control
1. C r u i s e c o n t r o l m o d e O n / O f f .
2. Programming of a speed/Decrease the
programmed value.
3. Programming of a speed/Increase the
programmed value.
4. C r u i s e c o n t r o l r e s u m e .
In order to be programmed or activated, the
vehicle speed must be higher than 18 mph
( 3 0 k m / h ) , w i t h a t l e a s t s e c o n d g e a r e n g a g e d
on the gearbox. Display in the instrument panel
The cruise control mode appears in the
instrument panel when it is selected.
Cruise control
42
Page 16 of 166
19
1
READY TO GO
Instruments and controls
INSTRUMENT PANELS
1. Distance recorder in miles/kilometres.
2. Screen.
3. Fuel gauge.
4. Coolant temperature.
5. Rev counter.
Instrument panel with level 1 screen Instrument pan
el with level 2 screen
Instrument panel level 1 screen
- Time.
- Miles/Kilometres travelled.
- Trip computer/range, fuel consumption, average speed.
- Headlamp beam height.
- Programmable overspeed warning.
- Gear shift indicator.
- Stop & Start.
- Activating or deactivating the passenger's airbag.
Instrument panel level 2 screen
- Time.
- Date.
- Radio. - Miles/Kilometres travelled.
- Ambient temperature.
- Modes and gear engaged on the
electronic gear control gearbox,
- Trip computer/range, fuel consumption, average speed
- Headlamp beam height,
- Programmable overspeed warning,
- Selection of the display language,
- Gear shift indicator.
- Stop & Start.
- Activating or deactivating the passenger's airbag,
- Activation or deactivation of automatic door locking on moving off.
Page 17 of 166
20
Instruments and controls
WARNING LAMPS
Each time the engine is started: a series of warning lamps comes on applying a self-checking test. Th ey go off almost immediately. When
the engine is running: the warning lamp becomes a w arning sign if it remains on continuously or flashes. This initial warning may be
accompanied by an audible signal and a message in t he screen. "Do not ignore these warnings."
Warning lamp
is indicates Solution - action
Service on temporarily. minor faults. Consult a CITROËN
dealer.
continuously on,
accompanied by a
message in the screen. major faults.
Make a note of the warning message and
contact a CITROËN dealer.
Parking brake
Brake fluid level on.
that the parking brake is applied or
has not been released correctly. Releasing the parking brake switches off the
warning lamp.
on. that the fluid level is too
low. Top up using a fluid recommended by a
CITROËN dealer.
continuously on, even
though the level is correct.
Stop immediately, park, switch off the
ignition and contact a CITROËN dealer.
Low engine oil level on.
that the level of oil in the
engine is too low. Check the engine oil level and contact a
CITROËN dealer.
continuously on, even
though the level is correct.
Stop as soon as it is safe to do so, park, switch
off the ignition and contact a CITROËN dealer.
Coolant temperature on with the needle in
the red zone.
an abnormal increase. Park and switch off the ignition, allow the system
to cool. Visually check the level.
on H in the red zone. an abnormal increase in
the coolant temperature. Refer to the "Levels" section of chapter 7.
Consult a CITROËN dealer.
Page 18 of 166
21
1
READY TO GO
Instruments and controls
Warning lamp
is indicates Solution - action
Engine oil on while driving, with
a message in the
screen.
that the engine oil
pressure is too low.
Park and switch off the ignition and contact a
CITROËN dealer.
flashing, with a
message in the
screen. degraded engine oil.
Have the oil changed as soon as possible to
avoid damage to the engine.
Battery charge on.
a fault in the charging
circuit. Check the battery terminals… Refer to the
"Battery" section of chapter 7.
continuously on, in
spite of the checks. a circuit fault, an ignition
or injection fault.
Contact a CITROËN dealer.
Door open detection on.
that a door is not closed
correctly. Check that the front, rear and side doors are
closed.
accompanied by a
message in the screen.
Seat belt not fastened on then flashes.
that the driver has not
fastened his seat belt. Pull the strap then insert the tongue in the
buckle.
accompanied by an
audible signal then
remains on. that the vehicle is moving
with the driver's seat belt
unfastened. Check that the seat belt is fastened correctly
by pulling the strap. Refer to the "Seat belts"
section of chapter 5.
flashing,
accompanied by an
audible signal the front passenger has
not fastened their seat
belt.
Pull on the strap and insert the tongue in the
buckle.
Page 19 of 166
22
Instruments and controls
Warning lamp
is indicates Solution - action
Front airbag
Side airbag flashing or
continuously on.
the failure of an airbag. Have the system checked by a CITROËN dealer without
delay. Refer to the "Airbags" section of chapter 5.
Deactivation of the
passenger's front airbag on. that this airbag has been
deactivated intentionally in the
presence of a rear facing child seat. Configure via the trip computer MENU menu.
Refer to the "Menu" section of chapter 3.
ABS continuously on. failure of the system.
The vehicle retains conventional braking without as
sistance.
However, you are advised to stop and contact a CITR OËN dealer.
continuously on, coupled with
the parking brake warning lamp. a fault with the electronic
brake force distributor.
Stop as soon as it is safe to do so, park,
switch off and contact a CITROËN dealer.
Trajectory control
system flashes for a few
seconds.
the ESP system has been
invoked. Intervention by the system to correct the
trajectory of the vehicle.
on, coupled with the warning
lamp in the "ASR OFF" button
and accompanied by a
message in the screen.
a fault with the ESP
system. Contact a CITROËN dealer.
on, accompanied by a
message in the screen. a fault with the ASR/MSR
system.
Contact a CITROËN dealer.
on. a fault with the Intelligent
Traction Control. Contact a CITROËN dealer.
Hill start assist on. a fault with the hill start
assist system. Contact a CITROËN dealer.
Front brake pads on. brake pad wear. Have the pa ds replaced by a CITROËN dealer.
Page 20 of 166
23
1
READY TO GO
Instruments and controls
Warning lamp
is indicates Solution - action
Electronic anti-theft on. the ignition key introduced
is not recognised.
Starting impossible. Use another key and have the faulty key
checked by a CITROËN dealer. Chapter 1,
"Access".
Emissions control
system flashing or on
continuously.
a fault with the system. Have it checked as soon as possible by a
CITROËN dealer.
Low fuel level on with the gauge
needle in zone E. that the fuel reserve is
being used. Refuel without delay. The evaluation of the fuel
reserve is sensitive to the style of driving, the
profile of the road, the time elapsed and the
distance travelled since the warning lamp first
came on.
Particle emissions filter on, accompanied by
an audible signal and
a message in the
screen. the start of saturation of
the particle emissions
filter.
Carry out a regeneration of the filter as soon as
possible. Chapter 7, "Checks".
Presence of water in
the Diesel filter on, accompanied by
a message in the
screen. water in the Diesel fuel
filter.
Have the filter bled by a CITROËN dealer.
Chapter 7, "Checks".
Diesel pre-heating on. that the weather
conditions impose pre-
heating. Wait for the warning lamp to switch off before
operating the starter.
If the engine does not start, switch the ignition
off and on again, wait for the warning lamp to go
off, and start the engine.
