Citroen NEMO 2010.5 1.G Owner's Manual
Manufacturer: CITROEN, Model Year: 2010.5, Model line: NEMO, Model: Citroen NEMO 2010.5 1.GPages: 166, PDF Size: 4.22 MB
Page 1 of 166
4
Familiarisation
EXTERIOR
Roof rack and roof bars
Fixing points are provided on each side of the
roof for securing the roof rack or the transverse
roof bars.
116
Opening the side-hinged rear doors to 180°
Once the vehicle has been unlocked, the
hinged rear doors can be opened to 180° to
make unloading/loading operations easier.
35
Rear parking sensors
This system warns you, by means of an
audible signal, if an obstacle is detected
behind the vehicle when reverse gear is
engaged.
70
Stop & Start
This system puts the engine temporarily into standby
d u r i n g s t o p s i n t h e t r a f fi c ( r e d l i g h t s , t r a f fi c j a m s , e t c . . . ) . T h e
engine restarts automatically as soon as you want to move
off. The Stop & Start system reduces fuel consumption and
exhaust emissions, and offers the comfort of total silence
when stationary.
53
Page 2 of 166
5
FAMILIARISATION
Familiarisation
OPENING
Remote control key
A. Unfolding/Folding the key.
B. U n l o c k i n g t h e f r o n t d o o r s o n l y ( L i g h t v a n )
o r a l l o f t h e d o o r s ( C o m b i )
( t w o fl a s h e s o f t h e d i r e c t i o n i n d i c a t o r s ) .
C. C e n t r a l l o c k i n g t h e v e h i c l e
( o n e p r e s s ; o n e fl a s h o f t h e d i r e c t i o n i n d i c a t o r s ) .
or
Deadlocking the vehicle
( t w o c o n s e c u t i v e p r e s s e s ; o n e fl a s h o f t h e d i r e c t i o n i n d i c a t o r s ) .
D. U n l o c k i n g o f t h e l o a d s p a c e ( L i g h t v a n ) o r
of the hinged rear doors or tailgate only
( C o m b i ) .
If a door is open or has not been closed
properly, the failed locking is indicated by three
fl a s h e s o f t h e d i r e c t i o n i n d i c a t o r s .
29 Fuel tank
1. O p e n i n g t h e f u e l fi l l e r fl a p .
2. O p e n i n g a n d h o o k i n g t h e f u e l fi l l e r c a p .
C a p a c i t y o f t h e t a n k : a p p r o x i m a t e l y 4 5 l i t r e s .
139
Opening the rear doors to 180°
Press the catch while opening the door.
35
Opening/Closing the windows with the
remote control
Press button B for more than 3 seconds to
start opening the windows. Hold the button
down until the desired position is reached, then
release the button, the windows stop.
P r e s s b u t t o n C f o r m o r e t h a n 3 s e c o n d s t o
start closing the windows. Hold the button
down until the desired position is reached, then
release the button, the windows stop.
These operations can also be carried out by
inserting and turning the key in the front door
lock barrel.
30
Page 3 of 166
6
Familiarisation

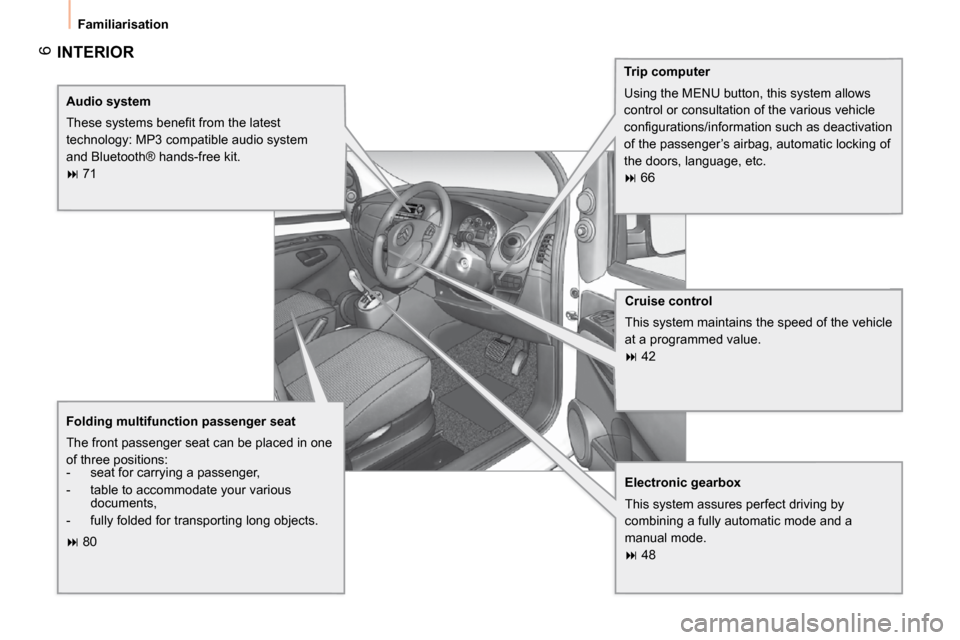

INTERIOR
Trip computer
Using the MENU button, this system allows
control or consultation of the various vehicle
c o n fi g u r a t i o n s / i n f o r m a t i o n s u c h a s d e a c t i v a t i o n
of the passenger’s airbag, automatic locking of
the doors, language, etc.
66
Folding multifunction passenger seat
The front passenger seat can be placed in one
o f t h r e e p o s i t i o n s :
- seat for carrying a passenger,
- table to accommodate your various documents,
- f u l l y f o l d e d f o r t r a n s p o r t i n g l o n g o b j e c t s .
80
Audio system
T h e s e s y s t e m s b e n e fi t f r o m t h e l a t e s t
t e c h n o l o g y : M P 3 c o m p a t i b l e a u d i o s y s t e m
and Bluetooth® hands-free kit.
71
Cruise control
This system maintains the speed of the vehicle
at a programmed value.
42
Electronic gearbox
This system assures perfect driving by
combining a fully automatic mode and a
manual mode.
48
Page 4 of 166
7
FAMILIARISATION
Familiarisation
INSTRUMENTS AND CONTROLS
1. S t e e r i n g w h e e l a d j u s t m e n t c o n t r o l .
2. L i g h t i n g a n d d i r e c t i o n i n d i c a t o r c o n t r o l
stalk.
3. Instrument panel.
4. Steering mounted audio controls.
Bluetooth hands-free system.
5. Driver’s airbag.
Horn.
6. C r u i s e c o n t r o l s w i t c h e s .
7. Gear lever.
8. Parking brake.
9. Bonnet release.
10. Door mirror controls.
11. Fusebox.
12. M a n u a l h e a d l a m p h e i g h t a d j u s t m e n t .
13. S i d e a d j u s t a b l e a i r v e n t .
14. Front side window demisting vent.
15. Electric window controls.
16. Windscreen demisting vent.
17. Wiper/screenwash/trip computer control
stalk.
18. Steering lock and ignition.
19. C e n t r a l a d j u s t a b l e a i r v e n t s .
20. Passenger’s airbag.
21. MENU button.
22. Glove box.
23. 12 V accessory socket.
24. C i g a r l i g h t e r .
25. Ashtray.
26. Heating/air conditioning controls.
27. Audio system.
Page 5 of 166
8
Familiarisation
LOAD SPACE (LIGHT VAN)
1. Stowing rings.
2. Storage tray.
3. Torch.
4. Partition.
5. Spare wheel.
91 It is advisable to immobilise the load by
fi x i n g i t s e c u r e l y u s i n g t h e s t o w i n g r i n g s
1
o n t h e fl o o r .
Page 6 of 166
9
FAMILIARISATION
Familiarisation
REAR FITTINGS (COMBI)
93
With side-hinged rear doors
1. Stowing rings.
2. L u g g a g e r e t a i n i n g n e t .
3. Tool kit.
4. Rear parcel shelf. With tailgate
1. Stowing rings.
2. L u g g a g e r e t a i n i n g n e t .
3. Rear parcel shelf.
4. Retaining straps/Tool kit.
5. Torch/Boot lamp.
Page 7 of 166
10
Familiarisation
SITTING COMFORTABLY
Driver’s seat adjustment
Forwards-backwards Height Seat back angle (A)
Lumbar support (B)
78
Page 8 of 166
11
FAMILIARISATION
Familiarisation
Front seat belts
A. Fastening.
101
SITTING COMFORTABLY
Steering wheel adjustment
1. R e l e a s e t h e a d j u s t m e n t m e c h a n i s m .
2. A d j u s t f o r t h e h e i g h t a n d r e a c h .
3. L o c k t h e a d j u s t m e n t m e c h a n i s m .
As a safety precaution, these operations
must be carried out while stationary.
46 Electric door mirror adjustment
A. Selection of the driver’s mirror.
B. Selection of the passenger’s mirror.
C. A d j u s t m e n t o f t h e p o s i t i o n o f t h e m i r r o r .
44
Rear view mirror adjustment
1. Selection of the "day/night" position of the
mirror.
2. A d j u s t m e n t o f t h e p o s i t i o n o f t h e m i r r o r .
44
Page 9 of 166
12
Familiarisation
SEEING CLEARLY
Ring L i g h t i n g o f f .
Sidelamps.
Dipped/main beam headlamps.
Foglamps Rear foglamp.
or
Front and rear foglamps.
39 Direction indicators
"Motorway" function
Press the lighting control stalk up or down
o n c e , w i t h o u t p a s s i n g t h e p o i n t o f r e s i s t a n c e ;
t h e c o r r e s p o n d i n g d i r e c t i o n i n d i c a t o r s w i l l fl a s h
three times.
39 Wipers
Ring A: windscreen wipers
41
Ring B: rear wiper
41 Single wipe.
Intermittent wipe.
Screenwash.
Screenwash.
Park.
Lighting
Park.
Intermittent.
Slow continuous.
Rapid continuous.
Raise or lower the lighting control stalk past
t h e p o i n t o f r e s i s t a n c e ; t h e c o r r e s p o n d i n g
d i r e c t i o n i n d i c a t o r s w i l l fl a s h u n t i l t h e c o n t r o l i s
moved out of this position.
Page 10 of 166
13
FAMILIARISATION
Familiarisation
86

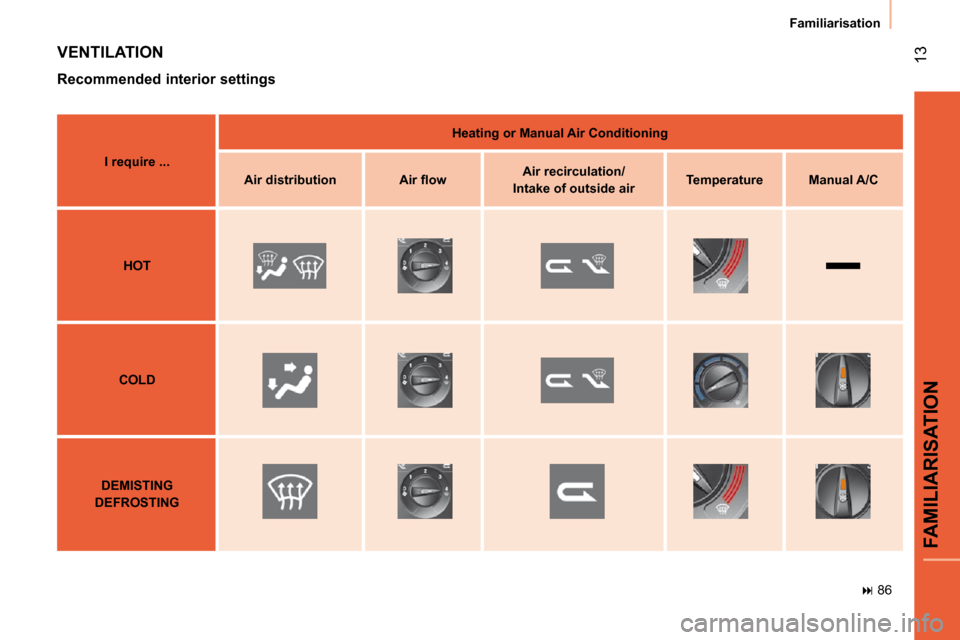

VENTILATION
Recommended interior settings
I require ...
Heating or Manual Air Conditioning
Air distribution A i r fl o w
Air recirculation/
Intake of outside air
Temperature Manual A/C
HOT
COLD
DEMISTING
DEFROSTING
