Gearbox and steering wheel Special cases: START invoked
automatically
The START mode is invoked automatically
when:
- the vehicle's is free wheeling on a slope,
- the windscreen wiper is on fast wipe,
- the engine has been stopped for more than 3 minutes with Stop & Start,
- some special conditions (battery charge, engine temperature, braking assistance,
ambient temperature...) where the engine
is needed to assure control of a system. Good practice
With a manual gearbox in STOP mode, if
a gear is engaged without fully depressing
the clutch pedal, a warning lamp comes on
or a message is displayed in the instrument
panel asking you to fully depress the clutch
pedal to restart the engine.
With the engine stopped in STOP mode,
if the driver unfasten's their seat belt and
opens a front door, the engine can only
be restarted using the ignition key. This is
indicated by an audible signal, accompanied
by flashing of the service warning lamp and
a message in the instrument panel screen.
If following an automatic restart in START
mode, the driver takes no action on the the
vehicle during the next 3 minutes, the system
stops the engine defi nitively. The engine can
then only be restarted using the key.
Going into engine START mode
The "S" warning lamp goes off and
the engine starts:
- with a manual gearbox , depress the
clutch pedal,
- with an electronic gearbox :

Trip computer
TRIP COMPUTER/CONFIGURATION - PERSONALISATION OF THE VEHICLE
If TRIP B is activated on MENU :
- Trip B,
- Average fuel consumption B,
- Average speed B,
- Trip duration B.
Press the MENU ESC button for more than
two seconds to return to the home screen.
Level 1 screen:
- Speed (Speed beep).
- Time (Setting the time).
- Buzz (Volume of the announcements).
- Unit (Unit of measurement).
- Bag p (Passenger's airbag).
Refer to the corresponding line of the
configuration - personalisation table on the
following pages.

Zero reset
Press the TRIP button for more than two
seconds to reset the displayed data to zero.
6666

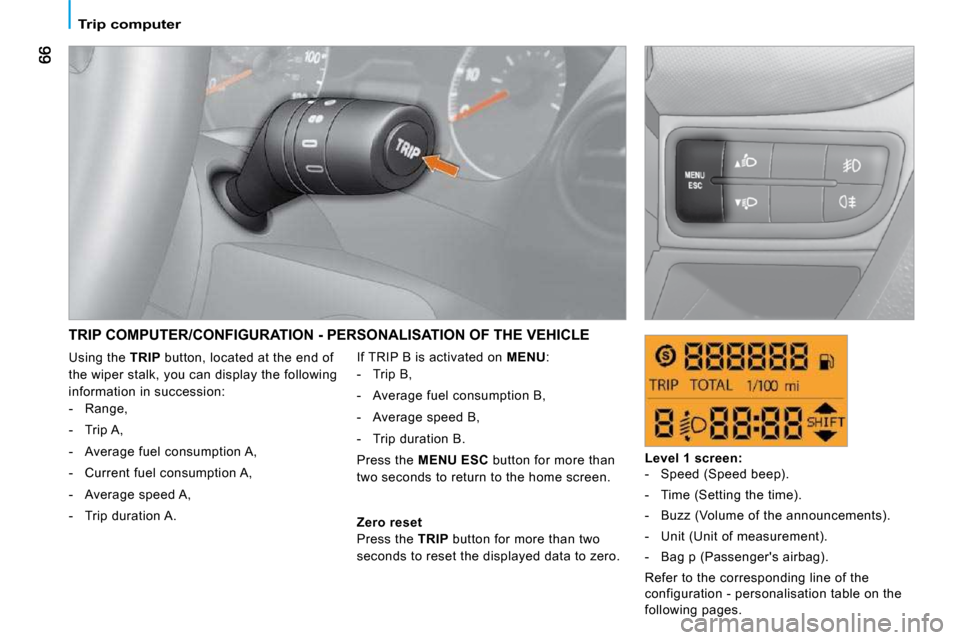

Using the TRIP button, located at the end of
the wiper stalk, you can display the following
information in succession: - Range,
- Trip A,
- Average fuel consumption A,
- Current fuel consumption A,
- Average speed A,
- Trip duration A.

TECHNOLOGY ON BOARD
Menu

Level 2 and 3 screens:

Menu... Press...
Sub-
menu...
Press... Select...
Confirm
and exit
Enables you to...

1 Speed Bleep ON Increase
Activate/deactivate the audible
signal indicating exceeding of the
programmed speed and select the
speed value.
Decrease
OFF

2 Activate
Trip B ON Activate
Display a second route "Trip B".
OFF Deactivate
6767
33
Menu
The control panel located to the left of the
steering wheel provides access to screen
menus allowing personalisation of some of
your systems. Eight languages are available: Italian,
English, German, French, Spanish,
Portuguese, Dutch and Turkish.
As a safety precaution, the menus can only be
accessed when the ignition is off (engine off).
Refer to the corresponding line of the
configuration - personalisation table on the
following pages.

This button enables
you to:
- access the menus and sub-menus,
This button enables you to:
- scroll up through a menu,
- increase a value.

This button enables you to:
- scroll down through a menu,
- decrease a value.
- confirm your selections within a menu,
- exit from the menus.
A long press enables you to return to the
home screen.

Menu
Menu...
Press... Sub-menu... Press... Select...
Confirm
and exit
Enables you to...

3 Set the time Hours
Increase
Set the clock.
Decrease
Format 24 hour
Select the clock display mode.
12 hour

4 Set the date Year/Month/Day Increase
Set the date.
Decrease

5 See radio ON
Display the name of the station.
Display the CD track number.
OFF

6 Autoclose While moving ON
Activate/deactivate the
automatic locking of the doors
above 12 mph (20 km/h)
OFF

7 Measurement
unit Distances
Km
Select the distance display unit.
Mi(les)
Temperature °C
Select the temperature display
unit.
°F
Consumption km/l
Select the fuel consumption
display unit.
l/100 km

8 Language List of
languages
available Select the display language.

9
Volume of
announcements Increase Increase/decrease the volume of the
signals and warnings (the volume changes
immediately when the button is pressed).
Decrease
6868

3
TECHNOLOGY ON BOARD
Menu
Menu...
Press... Sub-menu... Press... Select...
Confirm
and exit

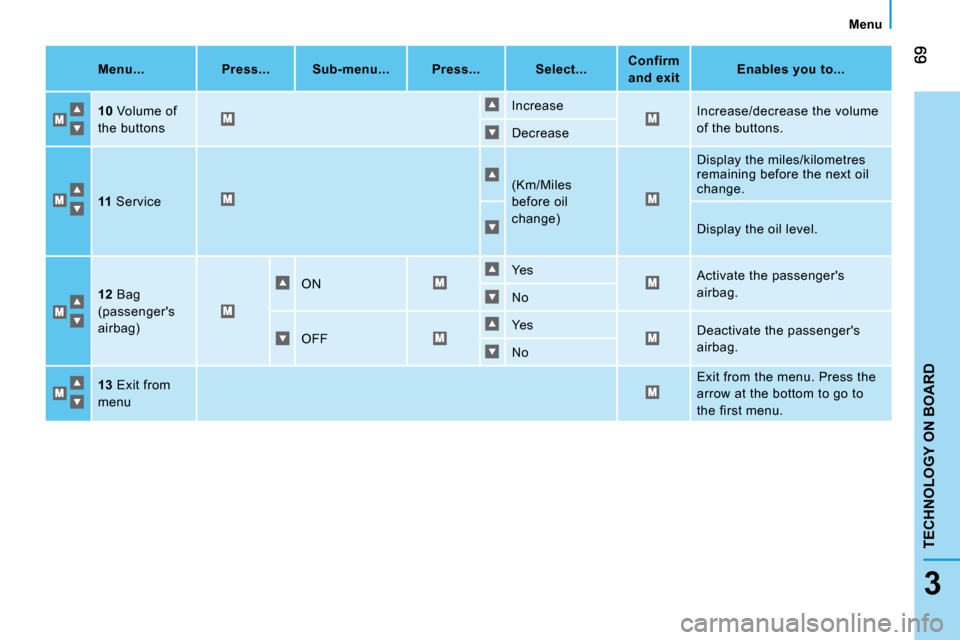

Enables you to...

10 Volume of
the buttons Increase
Increase/decrease the volume
of the buttons.
Decrease

11 Service (Km/Miles
before oil
change) Display the miles/kilometres
remaining before the next oil
change.
Display the oil level.

12 Bag
(passenger's
airbag) ON
Yes
Activate the passenger's
airbag.
No
OFF Yes
Deactivate the passenger's
airbag.
No

13 Exit from
menu Exit from the menu. Press the
arrow at the bottom to go to
the first menu.

73
3
TECHNOLOGY ON BOARD
Audio equipment
"AUDIO FUNCTIONS" MENU
RDS "AF Switching"
The RDS (Radio Data System) enables you
to continue listening to the same station,
regardless of the frequency that it uses in
your current location. The audio equipment
continuously searches for the transmitter
which offers the best reception for the
station.
Press the " " or " " button to activate
(ON) or deactivate (OFF) the RDS.
On the FM waveband, "AF" appears on
the display if the RDS is activated and the
station is broadcasting with the RDS.
"Traffic Info"
All traffic information announcements will be
given priority regardless of which source is
currently playing.
The EON (Enhanced Other Networks)
system links stations which belong to the
same network.
It allows you to receive traffic information
transmitted by a station which belongs to the
same network as the station to which you
are listening. "Regional Mode"
Some stations, organised in a network,
broadcast regional programmes in the
various areas which they serve. The regional
mode allows you to choose to continue
listening to the same programme.
Press the
" " or " " button to activate
(ON) or deactivate (OFF) the REG function.
On the FM waveband, "LOC" appears on the
display if the REG function is activated and
the station finds a local frequency.
"MP3 Display"
Press the " " or " " button to display the
track number or the MP3 CD information
(Artist/Album/Folder/File/Title/Time elapsed). Automatic volume control
"Speed Volume"
Press the
" " or " " button to minimise
(LOW), maximise (HIGH) or deactivate
(OFF) the automatic control of the volume in
relation to the vehicle speed.
The volume of the traffic information is
independent of the volume of the other
sources. You can adjust it using the volume
button during traffic announcements;
this setting will be stored for the next
announcement.
Press the "
" or " " button to activate (ON)
or deactivate (OFF) the TA function.
On the FM waveband, "TA" appears on the
display if the TA function is activated and
"TPM" appears if the station broadcasts
traffic information.
"External Audio Vol"
Press the " " or " " button to decrease
(down to 0 minimum), increase (up to
40 maximum) or deactivate (OFF) the
volume of the external source (e.g.: hands-
free kit).
Programmed switching off "Radio Off"
Press the " " or " " button to programme
the switch-off time of "00 MIN" or "20 MIN".
This countdown is taken into account with
the doors closed and the key in the STOP
position.
"Restore Default"
Press the " " or " " button to retain the
modified values (NO) or restore the default
values (YES).
"Restoring" appears on the display during
the resetting of the configuration values.
"MP3" appears on the display if the function
is activated and the CD contains tracks in
the MP3 format.
Press the
MENU button
on the audio equipment to
gain access to the "Audio
functions" menu.
Press the " " or " " button to
select one of the confi gurable
audio functions below.

22
11
74
Audio equipment CD
PLAYING A CD OR AN MP3 COMPILATION
Insert circular compact discs only.
Some anti-pirating systems, on original
discs or CDs copied using a personal
recorder, may cause faults which are no reflection on the
quality of the original player.
Insert a CD or an MP3 compilation in
the player, play begins automatically.
If the player already contains a disc,
press the CD button.
Press one of the buttons to select a
track on the CD. The MP3 format, an abbreviation of MPEG 1.2 & 2.5
Audio Layer 3, is an audio compression standard whi
ch
permits the recording of several tens of music file s on a
single disc.
MP3
In order to be able to play a recorded CDR or CDRW , when
recording it is preferable to select standards ISO 9660
level 1.2 or Joliet.
If the disc is recorded in another format, it may not be played
correctly.
It is recommended that the same recording standard is
always used for an individual disc, with as low a s peed as
possible (4x maximum) for optimum sound quality.
In the particular case of a multi-session CD, the Joliet
standard is recommended.
The audio equipment will only play files with the extension
".mp3" with a sampling rate of 22.05 KHz or 44.1 KH z.
No other type of file (.wma, .mp4, m3u...) can be p layed.
It is advisable to restrict file names to 20 chara cters without
using special characters (e.g.: " " ? ;) to avoid a ny playing or
displaying problems.

105
5
SAFETY
Airbags
FRONT AIRBAGS
The front airbags are incorporated in the
centre of the steering wheel for the driver
and in the fascia for the front passenger.
Activation
They are deployed simultaneously, unless the
passenger's front airbag has been disarmed,
in the event of a serious front impact.
The front airbag inflates between the front
occupant of the vehicle and the fascia to
cushion his forward movement. Disarming
The passenger's front airbag alone can be
disarmed. The airbag is disarmed from the
trip computer.
The airbag warning light on the
instrument panel is lit throughout
the period of disarming. To ensure the safety of your child, it
is essential to disarm the passenger
airbag when you install a rear-facing child
seat on the front passenger seat. Otherwise,
the child would risk being killed or seriously
injured if the airbag were to inflate.
Refer to the "MENU" section of
chapter 3, then select OFF on the
"Passenger airbag" menu. Operating fault
If the two airbag warning lights are lit
continuously, do not install a rear-
facing child seat. Consult a CITROËN
dealer . If this warning light comes
on on the instrument panel,
accompanied by an audible signal
and a message on the display,
consult a CITROËN dealer without delay
to have the system checked. The airbags
may no longer be triggered in the event of a
serious impact.

120
Battery Batteries contain harmful substances
such as sulphuric acid and lead. They
must be disposed of in accordance with the
law and must not, in any circumstances be
discarded with household waste.
Take used batteries to an authorised waste
disposal site.
It is advisable to disconnect the battery
if the vehicle is not to be used for a
period of more than one month. To do
this on models with Stop & Start:
- press the release button E to disconnect
connector F ,
- disconnect connector F of check sensor G .
Never remove the check sensor G from the
metallic point H , except when replacing the
battery.
The presence of this label, in particular
with the Stop & Start system, indicates
the use of a 12 V lead-acid battery with
special technology and specification, for
which the involvement of a CITROËN dealer
is required when replacing or disconnecting
the battery.
Failure to observe this recommendation may
cause premature wear of the battery.
After refitting the battery, the Stop &
Start system will only be active after
a continuous period of immobilisation of
the vehicle, a period which depends on the
climatic conditions and the state of charge of
the battery (up to about 8 hours). Before charging
The charging operation must be carried out in
a ventilated area away from naked fl ames or
any possible sources of sparks to eliminate the
risks of explosion and fi re.
Do not attempt to charge a frozen battery: it
must fi rst be thawed to eliminate the risks of
explosion. If the battery has frozen, before
charging it have it checked by a specialist who
will check that the internal components have
not been damaged and that the container is
not cracked, which could mean that there is a
risk of a leak of toxic and corrosive acid.
Before disconnecting
Never disconnect a terminal when the
engine is running.
Before disconnecting the battery, you must wait
for 2 minutes after switching off the ignition.
Close the windows and doors before
disconnecting the battery. After reconnecting
After every reconnection of the battery,
switch on the ignition and wait 1 minute
before starting to allow the electronic
systems to be initialised. If difficulties are
experienced after this, contact a CITROËN
dealer.
If the battery has been disconnected
for some time, it may be necessary to
reinitialise the following functions:
- the display parameters (date, time,
language, distance and temperature
units),
- the radio stations,
- the central locking.
Some settings are cleared and must be
reprogrammed. Contact a CITROËN dealer.

139
7
QUICK HELP
Fuel
FILLING WITH FUEL
Capacity of the fuel tank: approximately
45 litres .
Low fuel level
When the minimum fuel tank level
is reached, this warning lamp
comes on. When it first comes on,
you have approximately 6
litres
of fuel remaining. Refuel without delay to
avoid running out of fuel. Refuelling must be done
with the engine off.
- Open the fuel filler flap.
- Hold the filler cap with one hand.
- With the other hand, insert the key, then turn it a third of a turn.
- Remove the fi ller cap and hang it on the hook, located on the inside of the fi ller fl ap.
FUEL CIRCUIT DEACTIVATED
In the event of a serious collision, a device
automatically cuts off the fuel supply to the
engine and the vehicle's electrical supply.
It also triggers the automatic unlocking of
the doors and switching on of the courtesy
lights. A message appears on the instrument
panel display according to version.
Turn the key to the STOP position to prevent
discharging of the battery.
Check that there is no smell or leak of fuel
outside the vehicle.
With Stop & Start, never refuel with the
system in STOP mode; you must switch
off the ignition with the key. When the fuel filler flap is open, a
safety system prevents sliding of the
side door.
A label affixed to the inside of the flap
reminds you of the type of fuel to be used.
Opening the filler cap may cause a noise
resulting from the inrush of air. This vacuum
is quite normal and results from the sealing
of the fuel system.
When filling the fuel tank, do not continue
after the 3rd cut-off of the nozzle; this could
cause malfunctions.
After filling the fuel tank, lock the filler cap
and close the flap.
