FAMILIARISATION
Familiarisation
INSTRUMENTS AND CONTROLS

1. Steering wheel adjustment control.

2. Lighting and direction indicator control
stalk.

3. Instrument panel.

4. Steering mounted audio controls.
Bluetooth hands-free system.

5. Driver’s airbag.
Horn.

6. Cruise control switches.

7. Gear lever.

8. Parking brake.

9. Bonnet release.

10. Door mirror controls.

11. Fusebox.

12. Manual headlamp height adjustment.

13. Side adjustable air vent.

14. Front side window demisting vent.

15. Electric window controls.

16. Windscreen demisting vent.

17. Wiper/screenwash/trip computer control
stalk.

18. Steering lock and ignition.

19. Central adjustable air vents.

20. Passenger’s airbag.

21. MENU button.

22. Glove box.

23. 12 V accessory socket.

24. Cigar lighter.

25. Ashtray.

26. Heating/air conditioning controls.

27. Audio system.

Bluetooth hands-free system
Managing incoming calls
When an incoming call is received, the
message "Phone" appears on the audio
system screen, if it is switched on.
Single call To accept a call, press the
green telephone on the steering
mounted controls. Call waiting
To accept a second call, press the green
telephone on the steering mounted controls
once.
To switch back to the first call, press the
green telephone again.
To decline the second call, press the red
telephone on the steering mounted controls.
To end the call, press the red telephone
again.
To refuse or end a call, press the
red telephone on the steering
mounted controls.
To switch the call between the system and
the mobile telephone (secret mode) and vice
versa, press the green telephone. It is only possible for the system to
manage the call waiting function if the
function is activated on the mobile
telephone. 7676 Activation of the system
Once your mobile telephone has been
paired with the vehicle's hands-free system,
simply:
- turn the ignition key to the MAR position,
- switch on your mobile telephone,
- activate the Bluetooth ®
function on your
mobile telephone.
When the connection is established, an
audible signal is heard and the message
"Phone" appears on the audio system
screen, if it is switched on.
if several paired mobile telephones are
connected at the same time, priority
is allocated in the order in which the
telephones were paired.
Once three telephones are paired, you have
to clear the system memory to add a new
telephone as a replacement for another.
For more information, consult a CITROËN
dealer and your mobile telephone manual.

116
Equipment
ROOF RACK AND ROOF BARS

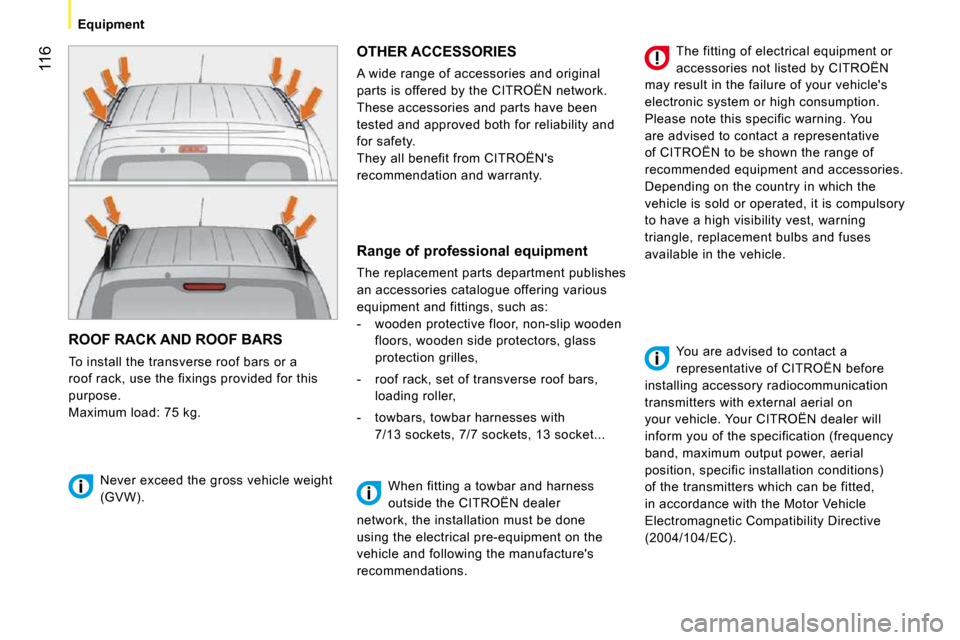

To install the transverse roof bars or a
roof rack, use the fixings provided for this
purpose.
Maximum load: 75 kg.
OTHER ACCESSORIES
A wide range of accessories and original
parts is offered by the CITROËN network.
These accessories and parts have been
tested and approved both for reliability and
for safety.
They all benefit from CITROËN's
recommendation and warranty.
Never exceed the gross vehicle weight
(GVW). Range of professional equipment
The replacement parts department publishes
an accessories catalogue offering various
equipment and fittings, such as:
- wooden protective floor, non-slip wooden
floors, wooden side protectors, glass
protection grilles,
- roof rack, set of transverse roof bars, loading roller,
- towbars, towbar harnesses with 7/13 sockets, 7/7 sockets, 13 socket... The fitting of electrical equipment or
accessories not listed by CITROËN
may result in the failure of your vehicle's
electronic system or high consumption.
Please note this specific warning. You
are advised to contact a representative
of CITROËN to be shown the range of
recommended equipment and accessories.
Depending on the country in which the
vehicle is sold or operated, it is compulsory
to have a high visibility vest, warning
triangle, replacement bulbs and fuses
available in the vehicle.
You are advised to contact a
representative of CITROËN before
installing accessory radiocommunication
transmitters with external aerial on
your vehicle. Your CITROËN dealer will
inform you of the specification (frequency
band, maximum output power, aerial
position, specific installation conditions)
of the transmitters which can be fitted,
in accordance with the Motor Vehicle
Electromagnetic Compatibility Directive
(2004/104/EC).
When fitting a towbar and harness
outside the CITROËN dealer
network, the installation must be done
using the electrical pre-equipment on the
vehicle and following the manufacture's
recommendations.

116
Equipment
ROOF RACK AND ROOF BARS
To install the transverse roof bars or a
roof rack, use the fixings provided for this
purpose.
Maximum load: 75 kg.
OTHER ACCESSORIES
A wide range of accessories and original
parts is offered by the CITROËN network.
These accessories and parts have been
tested and approved both for reliability and
for safety.
They all benefit from CITROËN's
recommendation and warranty.
Never exceed the gross vehicle weight
(GVW). Range of professional equipment
The replacement parts department publishes
an accessories catalogue offering various
equipment and fittings, such as:
- wooden protective floor, non-slip wooden
floors, wooden side protectors, glass
protection grilles,
- roof rack, set of transverse roof bars, loading roller,
- towbars, towbar harnesses with 7/13 sockets, 7/7 sockets, 13 socket... The fitting of electrical equipment or
accessories not listed by CITROËN
may result in the failure of your vehicle's
electronic system or high consumption.
Please note this specific warning. You
are advised to contact a representative
of CITROËN to be shown the range of
recommended equipment and accessories.
Depending on the country in which the
vehicle is sold or operated, it is compulsory
to have a high visibility vest, warning
triangle, replacement bulbs and fuses
available in the vehicle.
You are advised to contact a
representative of CITROËN before
installing accessory radiocommunication
transmitters with external aerial on
your vehicle. Your CITROËN dealer will
inform you of the specification (frequency
band, maximum output power, aerial
position, specific installation conditions)
of the transmitters which can be fitted,
in accordance with the Motor Vehicle
Electromagnetic Compatibility Directive
(2004/104/EC).
When fitting a towbar and harness
outside the CITROËN dealer
network, the installation must be done
using the electrical pre-equipment on the
vehicle and following the manufacture's
recommendations.

132
Changing a fuse
CHANGING A FUSE
The two fuseboxes are placed on the
dashboard on the driver's side and under the
bonnet. Removing and fitting a fuse
Before changing a fuse, the cause of the
fault must be found and rectified. The fuse
numbers are indicated on the fusebox.
Always use the special tweezer to extract
the fuse from its housing and check the
condition of its filament.

Always replace a faulty fuse with a fuse
of the same rating.
If a fuse fails again soon after replacement,
have the electrical system of your vehicle
checked by a CITROËN dealer. Access to fuses in the dashboard
- To gain access to the dashboard fuses,
remove the 2 screws using the ignition
key and tilt the housing.
CITROËN will not accept responsibility
for the cost incurred in repairing your
vehicle or for rectifying the malfunctions
resulting from the installation of accessories
not supplied and not recommended by
CITROËN dealers and not installed in
accordance with its instructions, in particular
when the combined consumption of all of the
additional equipment connected exceeds
10 milliamperes.
A. Good.

B. Failed.

C. Tweezer.
Access to fuses in the engine
compartment
- For access to the fuses in the engine compartment, remove the left hand front
headlamp connector, then unclip the
fusebox cover.

132
Changing a fuse
CHANGING A FUSE
The two fuseboxes are placed on the
dashboard on the driver's side and under the
bonnet. Removing and fitting a fuse
Before changing a fuse, the cause of the
fault must be found and rectified. The fuse
numbers are indicated on the fusebox.
Always use the special tweezer to extract
the fuse from its housing and check the
condition of its filament.

Always replace a faulty fuse with a fuse
of the same rating.
If a fuse fails again soon after replacement,
have the electrical system of your vehicle
checked by a CITROËN dealer. Access to fuses in the dashboard
- To gain access to the dashboard fuses,
remove the 2 screws using the ignition
key and tilt the housing.
CITROËN will not accept responsibility
for the cost incurred in repairing your
vehicle or for rectifying the malfunctions
resulting from the installation of accessories
not supplied and not recommended by
CITROËN dealers and not installed in
accordance with its instructions, in particular
when the combined consumption of all of the
additional equipment connected exceeds
10 milliamperes.
A. Good.

B. Failed.

C. Tweezer.
Access to fuses in the engine
compartment
- For access to the fuses in the engine compartment, remove the left hand front
headlamp connector, then unclip the
fusebox cover.

133
7
QUICK HELP
Changing a fuse

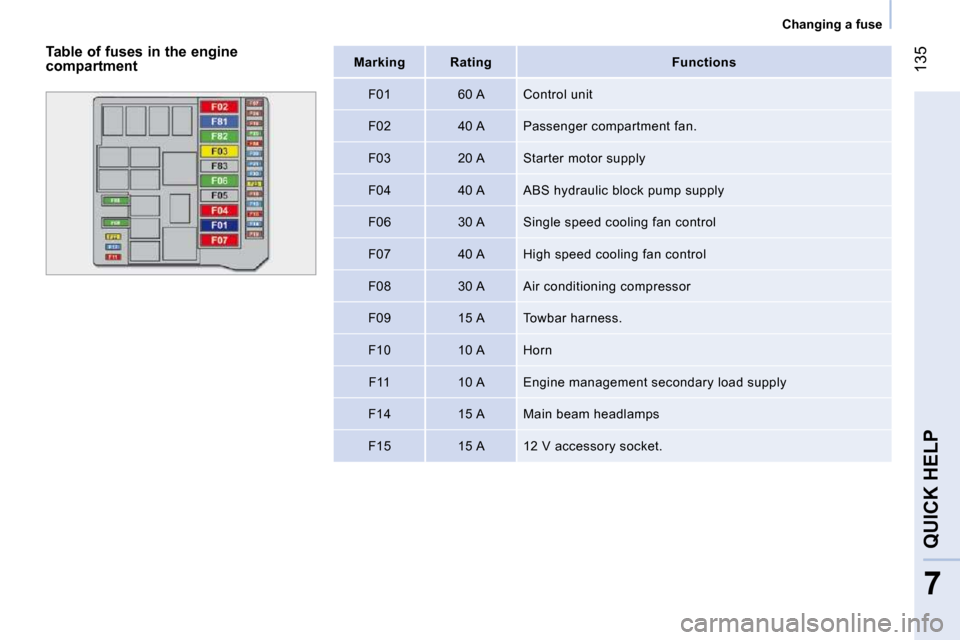

Table of dashboard fuses, driver's side
Mark
ing Rating Functions
F12 7.5 A Right-hand dipped beam headlamp su pply
F13 7.5 A Left-hand dipped beam headlamp supply - headlamp h
eight
adjuster
F31 5 A Engine control unit supply switch
F32 7.5 A Front lamp - front courtesy lamp - rear courtesy light lamp
F36 10 A Audio system - mobile telephone pre-equipment -
air conditioning control panel - EODB diagnostic s
ocket
F37 5 A Brake lamp - instrument panel
F38 20 A Door locking
F43 15 A Screenwash pump
F47 20 A Driver's electric window motor supp ly
F48 20 A Passenger's electric window motor s upply
F49 5 A Parking sensors control unit - rear lighting switc
h - electric
door mirrors - volumetric alarm control unit
F50 7.5 A Airbags control unit
F51 7.5 A Switch on brake pedal - switch on clutch pedal - d
oor mirror
controls - central Bluetooth system
F53 5 A Instrument panel - rear foglamps

Changing a fuse
Marking Rating
Functions
F41 7.5 A Door mirror demisting.
F94 15 A Cigar lighter.
F96 15 A 12 V accessory socket.
F97 10 A Heated seat, driver's side.
F98 10 A heated seat, passenger's side.

132
Changing a fuse
CHANGING A FUSE
The two fuseboxes are placed on the
dashboard on the driver's side and under the
bonnet. Removing and fitting a fuse
Before changing a fuse, the cause of the
fault must be found and rectified. The fuse
numbers are indicated on the fusebox.
Always use the special tweezer to extract
the fuse from its housing and check the
condition of its filament.

Always replace a faulty fuse with a fuse
of the same rating.
If a fuse fails again soon after replacement,
have the electrical system of your vehicle
checked by a CITROËN dealer. Access to fuses in the dashboard
- To gain access to the dashboard fuses,
remove the 2 screws using the ignition
key and tilt the housing.
CITROËN will not accept responsibility
for the cost incurred in repairing your
vehicle or for rectifying the malfunctions
resulting from the installation of accessories
not supplied and not recommended by
CITROËN dealers and not installed in
accordance with its instructions, in particular
when the combined consumption of all of the
additional equipment connected exceeds
10 milliamperes.
A. Good.

B. Failed.

C. Tweezer.
Access to fuses in the engine
compartment
- For access to the fuses in the engine compartment, remove the left hand front
headlamp connector, then unclip the
fusebox cover.

135
7
QUICK HELP
Changing a fuse

Mark
ing Rating Functions
F01 60 A Control unit
F02 40 A Passenger compartment fan.
F03 20 A Starter motor supply
F04 40 A ABS hydraulic block pump supply
F06 30 A Single speed cooling fan control
F07 40 A High speed cooling fan control
F08 30 A Air conditioning compressor
F09 15 A Towbar harness.
F10 10 A Horn F11 10 A Engine management secondary load su pply
F14 15 A Main beam headlamps
F15 15 A 12 V accessory socket.
Table of fuses in the engine
compartment
