A. With the ignition on, the needle indicates
the level of fuel remaining.
With the engine running, its associated warning lamp goes off. If it remains on, this
indicates that you have reached the low
level in the tank.

B. With the ignition on, the needle indicates
the coolant temperature.
With the engine running, its associated warning lamp goes off.

C. With the ignition on, the oil level warning
lamp does not remain on.
If the levels are not correct, top up the levels
which are low.
A. Intelligent traction control

 100

1. With the ignition on, the orange and red
warning lamps come on.

2. With the engine running, these warning
lamps should go off.
If warning lamps remain on, refer to the section
concerned.
Warning lamps

 27 or
Anti-slip regulation.

 98

B. Stop & Start.

 53

C. Hazard warning lamps.

 96

D. Heated rear screen and door mirrors.

 85

E. Locking/Unlocking of the load space
(Light van).

 37

 20

20
Instruments and controls
WARNING LAMPS
Each time the engine is started: a series of warning lamps comes on applying a self-checking test. Th ey go off almost immediately. When
the engine is running: the warning lamp becomes a w arning sign if it remains on continuously or flashes. This initial warning may be
accompanied by an audible signal and a message in t he screen. "Do not ignore these warnings."

Warning lamp
is indicates Solution - action

Service on temporarily. minor faults. Consult a CITROËN
dealer.
continuously on,
accompanied by a
message in the screen. major faults.
Make a note of the warning message and
contact a CITROËN dealer.
Parking brake
Brake fluid level on.

that the parking brake is applied or
has not been released correctly. Releasing the parking brake switches off the
warning lamp.
on. that the fluid level is too
low. Top up using a fluid recommended by a
CITROËN dealer.

continuously on, even
though the level is correct.
Stop immediately, park, switch off the
ignition and contact a CITROËN dealer.
Low engine oil level on.
that the level of oil in the
engine is too low. Check the engine oil level and contact a
CITROËN dealer.

continuously on, even
though the level is correct.
Stop as soon as it is safe to do so, park, switch
off the ignition and contact a CITROËN dealer.
Coolant temperature on with the needle in
the red zone.
an abnormal increase. Park and switch off the ignition, allow the system
to cool. Visually check the level.
on H in the red zone. an abnormal increase in
the coolant temperature. Refer to the "Levels" section of chapter 7.
Consult a CITROËN dealer.

28
Instruments and controls
SERVICE INDICATOR ENGINE OIL WARNING LAMP
LIGHTING DIMMER
The dimmer is active when the sidelamps
are on.
Refer to the list of checks in the
servicing booklet which was given to
you on delivery of the vehicle.
After a few seconds, the screen returns to its
usual functions.
Use these controls to adjust the
brightness of the instrument panel
and the radio panel lighting.
The screen in the instrument panel
informs you when the next service is due,
in accordance with the Manufacturer's
servicing schedule indicated in the servicing
booklet. This information is determined in
relation to the distance travelled since the
previous service.
Low engine oil pressure
Oil deterioration (1.3 HDi 75 hp engine only) The warning lamp comes on
continuously, accompanied by a
message in the instrument panel screen, when
the system detects that the oil pressure is too low .
The warning lamp flashes,
accompanied by a message in the
instrument panel screen, when the system
detects deterioration of the engine oil. The
flashing of this warning lamp should not be
considered as a fault wit the vehicle, but
rather as an indication to the driver that the
normal use of the vehicle now requires that
the oil be changed.
If the oil is not changed, when a
second level of deterioration is
reached, the emissions warning
lamp comes on in the instrument panel and
the engine speed is restricted to 3 000 rpm.
If the oil is still not changed, when a third
level of deterioration is reached, the engine
speed is restricted to 1 500 rpm, so as to
avoid any damage. To avoid damaging the engine, it is
recommended that the oil be changed
on flashing of the engine oil warning lamp.

Stop as soon as it is safe to do so:
park, switch
off the ignition and contact a CITROËN
dealer.

3

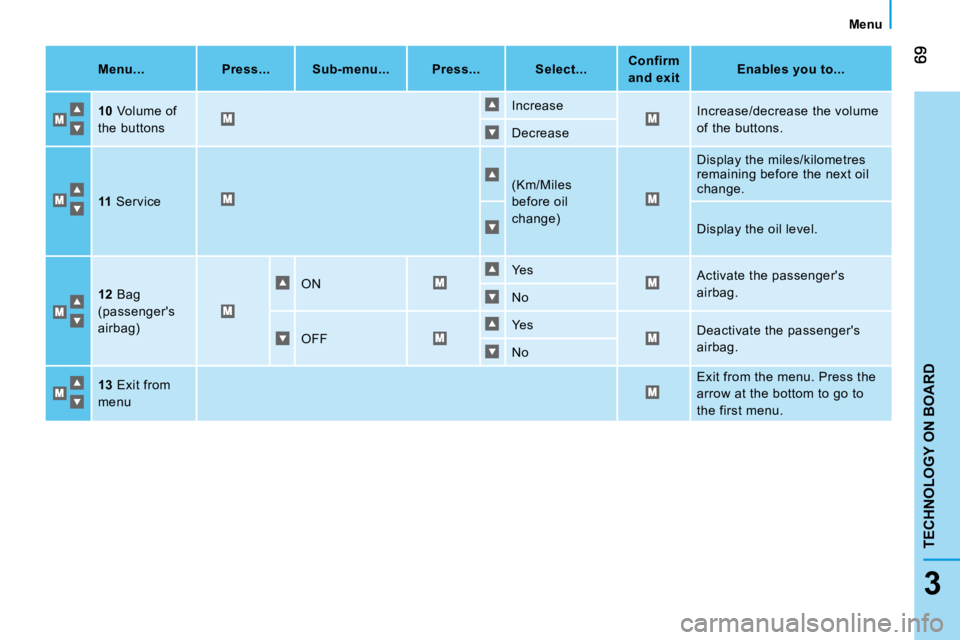

TECHNOLOGY ON BOARD
Menu
Menu...
Press... Sub-menu... Press... Select...
Confirm
and exit
Enables you to...

10 Volume of
the buttons Increase
Increase/decrease the volume
of the buttons.
Decrease

11 Service (Km/Miles
before oil
change) Display the miles/kilometres
remaining before the next oil
change.
Display the oil level.

12 Bag
(passenger's
airbag) ON
Yes
Activate the passenger's
airbag.
No
OFF Yes
Deactivate the passenger's
airbag.
No

13 Exit from
menu Exit from the menu. Press the
arrow at the bottom to go to
the first menu.

145
7
QUICK HELP
Levels
These regular maintenance operations
will keep your vehicle in good working
order. Ask for advice from a CITROËN
dealer or refer to the servicing booklet
provided in the handbook pack.
LEVELS
Oil level
Check the level regularly and top up
between changes. The maximum oil
consumption is 0.5 litre per 600 miles
(1 000 km). Check the level with the vehicle
level, engine cold, using the dipstick.
Dipstick There are two marks on the
dipstick:

A = maximum
If you fill past this mark,
contact a CITROËN dealer.

B = minimum
Never allow the level to fall
below this mark.
To preserve the reliability of engines and
emission control systems, the use of
additives in engine oil is prohibited. Oil change
Brake fluid level
The brake fluid must be changed at
the specified interval, as given in the
manufacturer's servicing schedule.
Use fluids recommended by the
manufacturer, which meets the DOT4
standard.
The level must be between the MIN and

MAX marks on the reservoir.
If fluid has to be added frequently, this
indicates a fault which must be checked by a
CITROËN dealer as soon as possible.
Warning lamps
Checking by means of the warning
lamps in the instrument panel is
described in chapter 1, refer to the
"Instruments and controls" section.
This must be carried out at the specified
interval and the viscosity grade of the oil
selected must fulfil the requirements of the
manufacturer's servicing schedule. Ask for
advice from a CITROËN dealer.
Remove the dipstick before filling.
Check the level after filling (never exceed
the maximum mark).
Refit the filler cap before closing the bonnet.

146
Levels
Engine coolant level
Only use the fluid recommended by the
manufacturer. Otherwise, you risk seriously
damaging your engine. When the engine
is warm, the temperature of the coolant is
controlled by the engine cooling fan. As
this fan can operate with the ignition key
removed and because the cooling system is
pressurised, wait for at least one hour after
the engine has stopped before carrying out
any work.
Topping up
The level must be between the MIN and

MAX marks on the header tank. If more than
1 litre of fluid is required to top up the level,
have the system checked by a CITROËN
dealer. Power steering fluid level
The vehicle must be parked on level ground
with the engine cold. Unscrew the cap with
integral gauge and check the level which
must be between the
MIN and MAX marks.
Screenwash fluid level
For optimum cleaning and to avoid freezing,
topping up or replacement of this fluid
should never be with plain water; we
recommend the use of products available
from CITROËN dealers.
Capacity of the reservoir: approximately
5.5 litres.
Slacken the cap by two turns to release the
pressure to prevent any risk of scalding.
When the pressure has dropped, remove the
cap and top up the level with coolant.
If fluid has to be added frequently, this
indicates a fault which must be checked by a
CITROËN dealer as soon as possible. Used products
Avoid prolonged contact of used oil with
the skin.
Brake fluid is harmful to health and very
corrosive.
Do not dispose of used oil, brake fluid
or coolant into drains or into the ground,
but into the containers provided for this
purpose at CITROËN dealers (France) or
at an authorised waste disposal site.

147
7
QUICK HELP
Checks
CHECKS
Bleeding water from the Diesel filter If this warning lamp comes
on, you must bleed the filter;
otherwise bleed the filter
regularly, every time the engine is
changed.
To remove the water, unscrew the bleed
screw or the water in Diesel sensor, located
at the base of the filter. Operate until all of
the water has flowed out. Then tighten the
bleed screw or the water sensor.
HDi engines use advanced technology. All
work requires specialist knowledge, which
all CITROËN dealers have. Battery
At the start of winter, have your battery
checked by a CITROËN dealer.
Air filter and passenger compartment filter
A blocked passenger compartment filter
may reduce the performance of the
air conditioning system and generate
undesirable odours. The replacement
intervals for these components are indicated
in the servicing booklet.
Depending on the environment (dusty
atmosphere...) and the use of the vehicle
(urban driving...), change them twice as
often if necessary, refer to the "Under the
bonnet" section of chapter 7. Brake pads
Brake pad wear depends on the style of
driving, in particular for vehicles which are
used in town, over short distances. It may
be necessary to check the brake pad wear,
even between services.
Unless there is a leak on the system, a drop
in the brake fluid level indicates that the
brake pads are worn.
Brake disc/drum wear
For all information on checking the brake
disc/drum wear, contact a CITROËN dealer.
Parking brake
Where the parking brake travel is too great
or there is a reduction in the performance
of the system, the parking brake should be
adjusted, even between services.
Have the system checked by a CITROËN
dealer.
Oil filter
Change the filter regularly, in accordance
with the servicing schedule.
The presence of this label, in particular wi
th
the Stop & Start system, indicates the use
of a specific 12 V lead-acid battery with
special technology and specification, for
which the involvement of a CITROËN dealer
is required when replacing or disconnecting
the battery.
Failure to observe this recommendation may
cause premature wear of the battery.

Checks
Manual gearbox
The gearbox does not require any
maintenance (no oil change).
Refer to the Warranty and Maintenance
Record for the details of the level checking
interval for this component.
To check the main levels and certain
components, in accordance with the
manufacturer's servicing schedule, refer to
the pages of the servicing booklet which
correspond to your vehicle's engine.
Only use products recommended by
CITROËN or products of equivalent quality
and specification.
In order to optimise the operation of units as
important as the braking system, CITROËN
selects and offers specific products.
In order to avoid damaging the electrical
units, high pressure washing to clean the
engine compartment is strictly prohibited. Particle filter system (1.3 HDi 75)
An addition to the catalytic converter, this
fi lter makes an active contribution to the
preservation of air quality by the retaining of
the unburnt pollutant particles. Black exhaust
fumes are thus no longer emitted.
This fi lter, fi tted to the exhaust system,
accumulates particles of soot. The engine
control unit manages the automatic
periodic elimination of the soot particles
(regeneration).
the regeneration procedure is invoked
according to the quantity of particles
accumulated and the driving conditions of the
vehicle. During this phase, you may notice
some unusual phenomena - increased idling
speed, cooling fan running, increase in smoke
and higher exhaust gas temperature - which
does not affect the operation of the vehicle or
the environment.
After prolonged idling or driving at very low
speeds, you may occasionally notice water
vapour being emitted from the exhaust when
accelerating. This is of no consequence to the
running of the vehicle or to the environment.
Saturation/Regeneration
If there is risk of blockage of the
filter, this warning lamp comes on
in the instrument panel.
This alert tells you that the
particle filter is starting to fill up (in
conditions of urban driving of exceptionally
long duration: low speeds, traffic jams etc.).
To regenerate the filter, it is advised to drive
as soon as possible, when traffic conditions
and the law permit, at a speed of at least
40 mph (around 60 km/h), with an engine
speed above 2 000 rpm for about fifteen
minutes (until the warning lamp and/or the
message disappears).
if possible, avoid switching off the engine
before the end of regeneration of the
filter; repeated interruptions could cause
premature deterioration of the engine oil. It
is not recommended to end regeneration of
the filter with the vehicle stationary.
Operating fault
If this alert persists, do not ignore the
warning; it indicates that a fault has occurred
in the exhaust/particle filter system.
Have it checked by a CITROËN dealer.
Electronic gearbox
The gearbox does not require any
maintenance (no oil change).
Refer to the servicing booklet for details of
the checking interval for this component.
Because of the higher exhaust
gas temperature resulting from the
normal operation of the particle fi lter, it is
recommended that you do not park the vehicle
over infl ammable materials (grass, dry leaves,
pine needles, ...) so as to avoid any risk of fi re.
