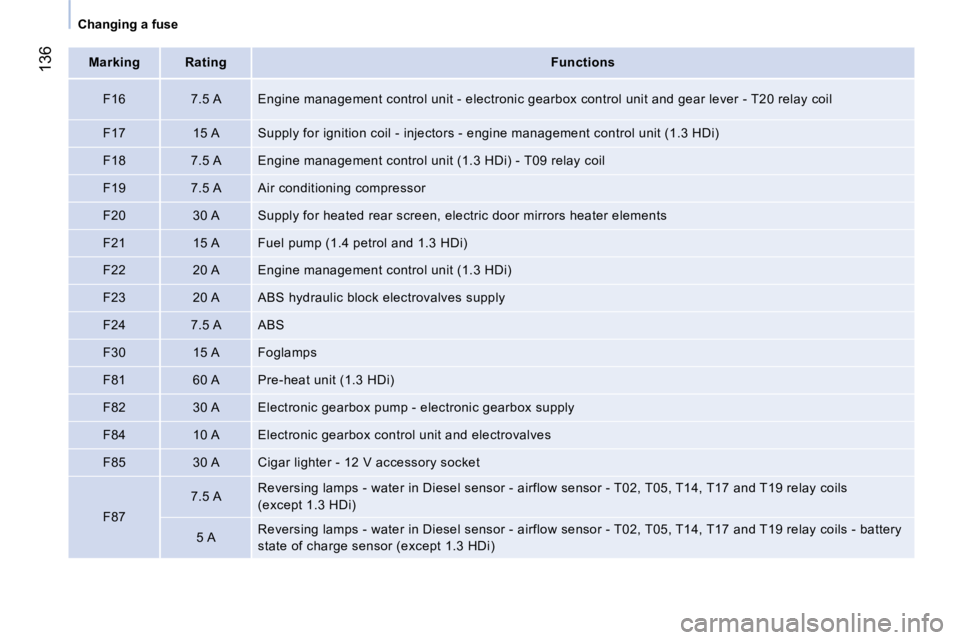

Changing a fuse
Marking Rating
Functions
F16 7.5 A Engine management control unit - e lectronic gearbox control unit and gear lever - T20 relay coil
F17 15 A Supply for ignition coil - injector s - engine management control unit (1.3 HDi)
F18 7.5 A Engine management control unit (1. 3 HDi) - T09 relay coil
F19 7.5 A Air conditioning compressor
F20 30 A Supply for heated rear screen, elec tric door mirrors heater elements
F21 15 A Fuel pump (1.4 petrol and 1.3 HDi)
F22 20 A Engine management control unit (1.3 HDi)
F23 20 A ABS hydraulic block electrovalves s upply
F24 7.5 A ABS
F30 15 A Foglamps
F81 60 A Pre-heat unit (1.3 HDi)
F82 30 A Electronic gearbox pump - electroni c gearbox supply
F84 10 A Electronic gearbox control unit and electrovalves
F85 30 A Cigar lighter - 12 V accessory sock et
F87 7.5 A
Reversing lamps - water in Diesel sensor - airflow
sensor - T02, T05, T14, T17 and T19 relay coils
(except 1.3 HDi)
5 A Reversing lamps - water in Diesel sensor - airflow
sensor - T02, T05, T14, T17 and T19 relay coils - battery
state of charge sensor (except 1.3 HDi)
