QUICK HELP

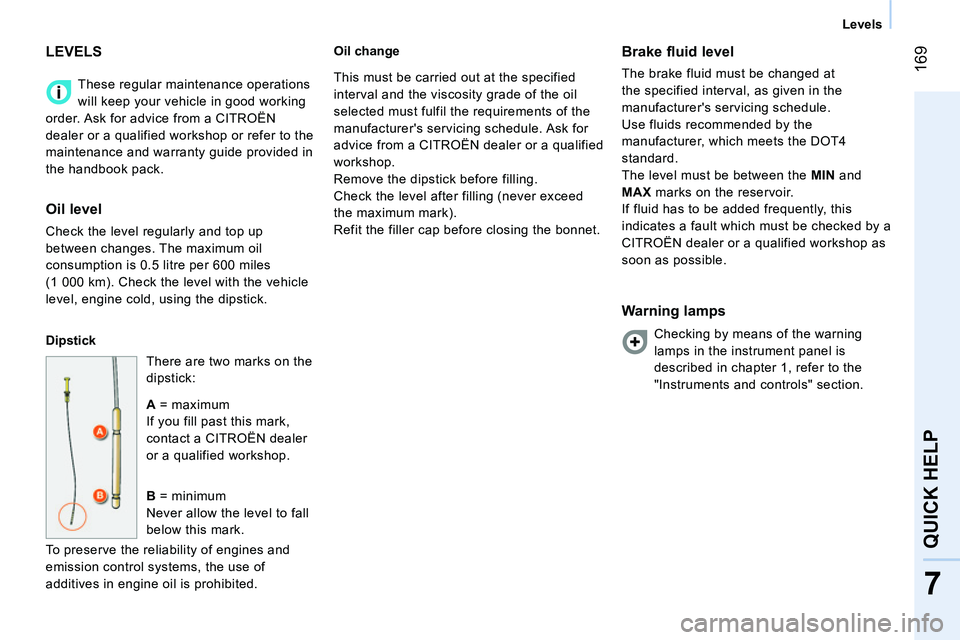

Levels

These regular maintenance operations
will keep your vehicle in good working
order. Ask for advice from a CITROËN
dealer or a qualified workshop or refer to the
maintenance and warranty guide provided in
the handbook pack.
LEVELS


Oil level

Check the level regularly and top up
between changes. The maximum oil
consumption is 0.5 litre per 600 miles
(1 000 km). Check the level with the vehicle
level, engine cold, using the dipstick.

Dipstick
There are two marks on the
dipstick:

A
= maximum
If you fill past this mark,
contact a CITROËN dealer
or a qualified workshop.

B
= minimum
Never allow the level to fall
below this mark.
To preserve the reliability of engines and
emission control systems, the use of
additives in engine oil is prohibited.
Oil change


Brake fluid level

The brake fluid must be changed at
the specified interval, as given in the
manufacturer's servicing schedule.
Use fluids recommended by the
manufacturer, which meets the DOT4
standard.
The level must be between the MIN
and
MAX
marks on the reservoir.
If fluid has to be added frequently, this
indicates a fault which must be checked by a
CITROËN dealer or a qualified workshop as
soon as possible.


Warning lamps

Checking by means of the warning
lamps in the instrument panel is
described in chapter 1, refer to the
"Instruments and controls" section. This must be carried out at the specified
interval and the viscosity grade of the oil
selected must fulfil the requirements of the
manufacturer's servicing schedule. Ask for
advice from a CITROËN dealer or a qualified
workshop.
Remove the dipstick before filling.
Check the level after filling (never exceed
the maximum mark).
Refit the filler cap before closing the bonnet.

170
Levels


Engine coolant level

Only use the fl uid recommended by the
manufacturer. Otherwise, you risk seriously
damaging your engine. When the engine
is warm, the temperature of the coolant is
controlled by the engine cooling fan. As this fan
can operate with the ignition key removed and
because the cooling system is pressurised,
wait for at least one hour after the engine has
stopped before carrying out any work.

Topping up
The level must be between the MIN
and
MAX
marks on the header tank. If more than
1 litre of fluid is required to top up the level,
have the system checked by a CITROËN
dealer or a qualified workshop.



Power steering fluid level

The vehicle must be parked on level ground
with the engine cold. Unscrew the cap with
integral gauge and check the level which
must be between the MIN
and MAX
marks.


Screenwash fluid level

For optimum cleaning and to avoid freezing,
topping up or replacement of this fluid
should never be with plain water; we
recommend the use of products available
from CITROËN dealers.
Capacity of the reservoir: approximately
3 litres. Slacken the cap by two turns to release the
pressure to prevent any risk of scalding.
When the pressure has dropped, remove the
cap and top up the level with coolant.
If fluid has to be added frequently, this
indicates a fault which must be checked by a
CITROËN dealer or a qualified workshop as
soon as possible.

Used products

Avoid prolonged contact of used oil with the
skin.
Brake fluid is harmful to health and very
corrosive.
Do not dispose of used oil, brake fluid or
coolant into drains or into the ground, but
into the containers provided for this purpose
at CITROËN dealers (France) or at an
authorised waste disposal site.

171
7
QUICK HELP



Checks


CHECKS


Bleeding water from the Diesel filter

If this warning lamp comes
on, you must bleed the filter;
otherwise bleed the filter
regularly, every time the engine
oil is changed.
To remove the water, unscrew the bleed
screw or the water in Diesel sensor, located
at the base of the filter. Operate until all of
the water has flowed out. Then tighten the
bleed screw or the water sensor.
HDi engines use advanced technology. All
work requires specialist knowledge, which
all CITROËN dealers have.


Battery

At the start of winter, have your battery
checked by a CITROËN dealer or a qualified
workshop.


Air filter and passenger compartment filter

A blocked passenger compartment filter
may reduce the performance of the
air conditioning system and generate
undesirable odours. The replacement
intervals for these components are indicated
in the maintenance and warranty guide.
Depending on the environment (dusty
atmosphere...) and the use of the vehicle
(urban driving...), change them twice as
often if necessary, refer to the "Under the
bonnet" section of chapter 7.


Brake pads

Brake pad wear depends on the type of
driving, in particular for vehicles which are
used in town, over short distances. It may
be necessary to check the brake pad wear,
even between services.
Unless there is a leak on the system, a drop
in the brake fluid level indicates that the
brake pads are worn.


Brake disc / drum wear

For all information on checking the brake
disc / drum wear, contact a CITROËN dealer
or a qualified workshop.


Parking brake

Where the parking brake travel is too great
or there is a reduction in the performance
of the system, the parking brake should be
adjusted, even between services.
Have the system checked by a CITROËN
dealer or a qualified workshop.


Oil filter

Change the filter regularly, in accordance
with the servicing schedule.





The presence of this label, in particular
with the Stop & Start system, indicates the
use of a specific 12 V lead-acid battery
with special technology and specification.
The involvement of a CITROËN dealer
or a qualified workshop is essential when
replacing or disconnecting the battery.

172
Checks







Manual gearbox

The gearbox does not require any
maintenance (no oil change).
Refer to the maintenance and warranty
guide for the details of the level checking
interval for this component.
To check the main levels and certain
components, in accordance with the
manufacturer's servicing schedule,
refer to the pages of the maintenance and
warranty guide which correspond to your
vehicle's engine.
Only use products recommended by
CITROËN or products of equivalent quality
and specification.
In order to optimise the operation of units as
important as the braking system, CITROËN
selects and offers specific products.
In order to avoid damaging the electrical
units, high pressure washing to clean the
engine compartment is strictly prohibited.
After washing the vehicle dampness, or in
winter, ice may form on the brake discs and
pads: braking efficiency may be reduced.
Make some light brake applications to dry
and de-ice the brakes.






Particle filter system (1.3 HDi 75)

An addition to the catalytic converter, this
filter makes an active contribution to the
preservation of air quality by the retaining
of the unburnt pollutant particles. Black
exhaust fumes are thus no longer emitted.
This filter, fitted to the exhaust system,
accumulates particles of soot. The engine
control unit manages the automatic
periodic elimination of the soot particles
(regeneration).
The regeneration procedure is invoked
according to the quantity of particles
accumulated and the driving conditions
of the vehicle. During this phase, you
may notice some unusual phenomena -
increased idling speed, cooling fan running,
increase in smoke and higher exhaust gas
temperature - which does not affect the
operation of the vehicle or the environment.
After prolonged idling or driving at very low
speeds, you may occasionally notice water
vapour being emitted from the exhaust when
accelerating. This is of no consequence
to the running of the vehicle or to the
environment.
Saturation/Regeneration
If there is risk of blockage of the
filter, this warning lamp comes on
in the instrument panel.
This alert tells you that the
particle filter is starting to fill up (in
conditions of urban driving of exceptionally
long duration: low speeds, traffic jams etc.)
To regenerate the filter, it is advised to
drive as soon as possible, when traffic
conditions and the law permit, at a speed
of at least 40 mph (around 60 km/h), with
an engine speed above 2 000 rpm for about
fifteen minutes (until the warning lamp and/
or the message disappears).
If possible, avoid switching off the engine
before the end of regeneration of the
filter; repeated interruptions could cause
premature deterioration of the engine oil. It
is not recommended to end regeneration of
the filter with the vehicle stationary.

Operating fault
If this alert persists, do not ignore the
warning; it indicates that a fault has occurred
in the exhaust/particle filter system.
Have it checked by a CITROËN dealer or a
qualified workshop.








Electronic gearbox

The gearbox does not require any
maintenance (no oil change).
Refer to the maintenance and warranty
guide for details of the checking interval for
this component.
Because of the higher exhaust
gas temperature resulting from the
normal operation of the particle filter, it is
recommended that you do not park the
vehicle over inflammable materials (grass,
dry leaves, pine needles, ...) so as to avoid
any risk of fire.

174



Exterior



EXTERIOR (LIGHT VAN)


Rear lamp, direction indicators,
3 rd brake lamp .......... 42-43, 153-154
Right-hand side:
fuel fi ller cap, fuel tank ................... 163
fuel cut-off ...............................163-164

Load space ............................. 109-110
Rear doors ......................32, 34, 37-41
Opening/Closing to180° ............ 38, 40

Number plate lamps ...................... 153

Rear parking sensors ...................... 73

Spare wheel, changing a wheel,
tools .....................................144-146

Towing, lifting ................................. 161
Towbar ....................................137-138
Dimensions .................................60-61

Accessories ............................139-140
Roof rack ....................................... 139

Key, remote control, battery ........32-34
Central locking ..................... 32, 39, 40
Opening/Closing front windows ....... 33
Confi dential card.............................. 35
Alarm ............................................... 36

Wiper blades.................................. 155
Door mirrors ..................................... 47
Side repeater ................................. 152

Front lamps, foglamps,
direction indicators ... 42-43, 150-151
Headlamp beam height adjustment .....43
Changing bulbs.......................150-154

Opening/Closing
doors ............................32, 34, 37-41
Opening the bonnet ....................... 166
Menu - autoclose ................. 38, 40, 71

Brakes, pads.......................... 169, 171
Hill start assist ................................. 55
Braking assistance ................. 115-116
Trajectory control .................... 116-118
Tyres, pressures ............................ 162
Snow chains .................................. 149

175
8
VISUAL SEARCH



Exterior



EXTERIOR (COMBI)


Brakes, pads.......................... 169, 171
Hill start assist ................................. 55
Braking assistance ................. 115-116
Trajectory control .................... 116-118
Tyres, pressures .................... 144, 162
Snow chains .................................. 149
Dimensions ..................... 62-63, 64-65

Accessories ............................139-140
Roof bars ....................................... 139

Key, remote control, battery ........32-34
Central locking ..................... 32, 39, 40
Opening/Closing front windows ....... 33
Confi dential card.............................. 35
Alarm ............................................... 36

Wiper blades.................................. 155
Door mirrors ..................................... 47
Side repeater ................................. 152

Front lamps, foglamps,
direction indicators ... 42-43, 150-151
Headlamp beam height adjustment ... 43
Changing bulbs.......................150-154

Opening/Closing
doors ............................32, 34, 37-41
Child lock ......................................... 41
Rear windows .................................. 48
Opening the bonnet ....................... 166
Menu - autoclose ................. 38, 40, 71
Right-hand side:
fuel fi ller cap, fuel tank ................... 163
fuel cut-off ...............................163-164

Rear fi ttings ............................ 111-112
Rear doors ......................32, 34, 37-41
Opening/Closing to 180° ........... 38, 40

Number plate lamps ...................... 153

Rear parking sensors ...................... 73

Spare wheel, changing a wheel,
tools, temporary puncture
repair kit ............... 144-146, 147-148

Towing, lifting ................................. 161
Towbar ....................................137-138


Rear lamps, direction indicators,
3
rd brake lamp .......... 42-43, 153-154

176



Interior


Seat belts................................ 119-120
Airbags ...................................121-124
Deactivating the passenger's
airbag .................................. 123, 127

Seats, adjustments .....................96-97
Tools, jack ...................................... 144
Folding seat ..................................... 98
Child seats ......................125-131, 133

12 V socket .................................... 107
Parking brake ................................ 114
Battery (+), charging,
starting .................................141-143

INTERIOR (LIGHT VAN)


Load space ............................. 109-110


●
stowing rings,

●
storage tray,

●
torch,

●
vertical partition.
Rear courtesy lamp ....................... 113
Accessories ............................139-140

Rear view mirror .............................. 47
Front courtesy lamp ....................... 113
Changing a courtesy lamp
bulb ............................................. 152

177
8
VISUAL SEARCH



Interior



INTERIOR (LIGHT VAN)

Rear view mirror .............................. 47
Front courtesy lamp ....................... 113
Changing a courtesy
lamp bulb .................................... 152
Folding seat ..................................... 98
Child seats ......................125-131, 133
12 V socket .................................... 107
Parking brake ................................ 114 Battery (+), charging,
starting .................................141-143
Seat belts................................ 119-120
Airbags ...................................121-124
Deactivating the passenger's
airbag .................................. 123, 127
Seats, adjustments .....................96-97
Tools, jack ...................................... 144
Load space .................................... 109


●
stowing rings,

●
storage box

●
torch,

●
vertical partition.
Rear courtesy lamp ....................... 113
Accessories ............................139-140

178



Interior


Front seat belts ....................... 119-120
Airbags ...................................121-124
Deactivating the passenger's
airbag .................................. 123, 127

Front seats, adjustments ............96-97

12 V socket .................................... 107
Parking brake ................................ 114
Battery (+), charging,
starting .................................141-143
Rear view mirror .............................. 47
Front courtesy lamp ....................... 113
Changing a courtesy lamp
bulb ............................................. 152

Bench rear seat ........................99-100
Rear seat
belts ..................................... 119-120
Child seats .............. 125-130, 132-133
ISOFIX mountings ..................134-136

Rear fi ttings ................................... 111


●
stowing rings,

●
luggage retaining net,

●
rear parcel shelf.
Rear courtesy lamp ....................... 113
Tools, jack, temporary
puncture repair kit ........144, 147-148
Accessories ............................139-140



INTERIOR (COMBI)


Folding seat ..................................... 98
