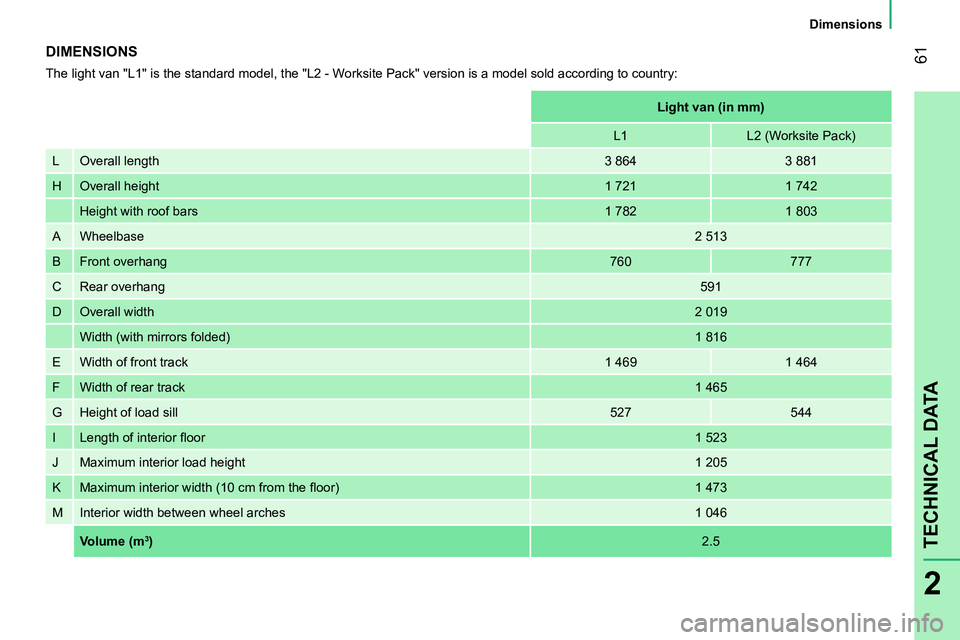

61
2
Dimensions
TECHNICAL DATA

DIMENSIONS

The light van "L1" is the standard model, the "L2 - Worksite Pack" version is a model sold according to country:




Light van (in mm)




L1
L2 (Worksite Pack)
L Overall length

3 864
3 881
H Overall height

1 721
1 742


Height with roof bars
1 782
1 803
A Wheelbase

2 513
B Front overhang

760
777
C Rear overhang

591
D Overall width

2 019
Width (with mirrors folded)

1 816
E Width of front track

1 469
1 464
F Width of rear track

1 465
G Height of load sill

527
544
I Length of interior fl oor

1 523
J Maximum interior load height

1 205
K Maximum interior width (10 cm from the fl oor)
1 473
M Interior width between wheel arches
1 046


Volume
(m
3 )

2.5

63
2
Dimensions
TECHNICAL DATA


Combi (in mm)


Standard
All-terrain
L Overall length

3 959
3 970
H Overall height

1 721
1 742
Height with roof bars
1 782
1 803
A Wheelbase

2 513
B Front overhang

855
866
C Rear overhang

591
D Overall width

2 019
Width (with mirrors folded)

1 816
E Width of front track

1 464
F Width of rear track

1 465
G Height of load sill

527
544
I Length of interior fl oor (rear bench seat in place)
743
Length of interior fl oor (rear bench seat fully folded)
1 130
J Maximum interior load height (under rear shelf)
592
K Maximum interior width (10 cm from the fl oor)
1 473
M Interior width between wheel arches
1 046

65
2
Dimensions
TECHNICAL DATA




Combi (in mm)


Standard
All-terrain
L Overall length

3 959
3 970
H Overall height

1 721
1 742
Height with roof bars
1 794
1 803
A Wheelbase

2 513
B Front overhang

855
866
C Rear overhang

591
D Overall width

2 019
Width (with mirrors folded)

1 816
E Width of front track

1 464
F Width of rear track

1 465
G Height of load sill

527
544
I Length of interior fl oor (rear bench seat in place)
743
Length of interior fl oor (rear bench seat fully folded)
1 130
J Maximum interior load height (under rear shelf)
592
K Maximum interior width (10 cm from the fl oor)
1 473
M Interior width between wheel arches
1 046

67
2
Engines
TECHNICAL DATA



PETROL ENGINE





1.4 litre 75 hp



Gearbox


Manual
Gears

5
EU standard maximum power (kW) *
54
Cubic capacity (cc)

1 360
Bore x stroke (mm)

75 x 77
Max power engine speed (rpm)

5 200
EU standard max torque (Nm)

118
Max torque engine speed (rpm)

2 600
Fuel

Unleaded petrol
Stop & Start

No
Engine oil capacity with fi lter replacement (litres)
3.0
*

The maximum power corresponds to the value type-approved on a test bed, under conditions defi ned in European legislation (Directive 1999/99/EC).

138
Towing a trailer

In certain cases of particularly arduous
use (towing the maximum load up a steep
slope in high temperatures), the engine
automatically limits its power. In this case,
automatic cutting off of the air conditioning
allows the engine power to be saved.
If the coolant temperature
warning lamp comes on, stop the
vehicle and switch off the engine
as soon as possible.
See the "Levels" section of chapter 7.

Tyres:
check the tyre pressures of the
towing vehicle (see the "Identification
markings" section of chapter 7) and of
the trailer, observing the recommended
pressures.

Brakes:
towing increases the braking
distance. Drive at a moderate speed,
change down early and brake gradually.
Side wind:
sensitivity to side wind is
increased. Drive smoothly and at a
moderate speed.

ABS:
the system only controls the vehicle,
not the trailer.

Rear parking sensors:
the sensors
will be deactivated automatically
when an genuine CITROËN towbar is used
(see the "Rear parking sensors" section of
chapter 3).

Towbar

We recommend the use of genuine
CITROËN towbars and their harnesses,
which have been tested and approved from
the design stage of your vehicle, and that
the fitting of this equipment is entrusted to a
CITROËN dealer or a qualified workshop.
If this equipment is not fitted by a CITROËN
dealer, it is essential that it is fitted using
the electrical pre-equipment located at
the rear of the vehicle and following the
manufacturer's instructions.
The operation of the rear parking sensors is
deactivated automatically when the trailer
cable connector is inserted in the towbar
socket.
When the trailer cable is removed, the rear
parking sensors are re-activated.
Distribution of loads
Distribute the load in the trailer so that the
heaviest objects are as close as possible
to the axle and the nose weight is close to
the maximum authorised without, however,
exceeding it. The air density decreases with
altitude, so reducing the performance of
the engine. The maximum towed load must
be reduced by 10 % for each 1 000 metres
of altitude. Refer to the "Technical data"
chapter for details of the weights and
towed loads applicable to your vehicle
and also to the administrative documents
(V5 registration document, ...).
