ESP Citroen NEMO DAG 2008.5 1.G Owner's Manual

26
Instruments and controls

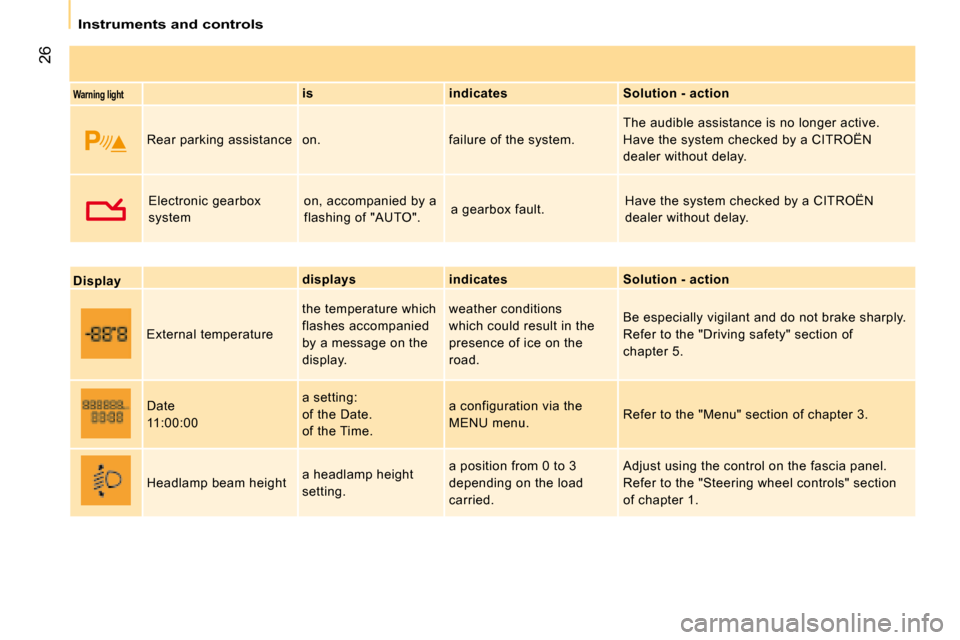

Warning light
is indicates Solution - action
Rear parking assistance on. failure of the syste m. The audible assistance is no longer active.
Have the system checked by a CITROËN
dealer without delay.
Electronic gearbox
system
on, accompanied by a
flashing of "AUTO". a gearbox fault. Have the system checked by a CITROËN
dealer without delay.

Display
displays indicates Solution - action

External temperature the temperature which
flashes accompanied
by a message on the
display. weather conditions
which could result in the
presence of ice on the
road.
Be especially vigilant and do not brake sharply.
Refer to the "Driving safety" section of
chapter 5.
Date
11:00:00 a setting:
of the Date.
of the Time. a configuration via the
MENU menu.
Refer to the "Menu" section of chapter 3.
Headlamp beam height a headlamp height
setting. a position from 0 to 3
depending on the load
carried. Adjust using the control on the fascia panel.
Refer to the "Steering wheel controls" section
of chapter 1.

26
Instruments and controls

Warning light
is indicates Solution - action
Rear parking assistance on. failure of the syste m. The audible assistance is no longer active.
Have the system checked by a CITROËN
dealer without delay.
Electronic gearbox
system
on, accompanied by a
flashing of "AUTO". a gearbox fault. Have the system checked by a CITROËN
dealer without delay.

Display
displays indicates Solution - action

External temperature the temperature which
flashes accompanied
by a message on the
display. weather conditions
which could result in the
presence of ice on the
road.
Be especially vigilant and do not brake sharply.
Refer to the "Driving safety" section of
chapter 5.
Date
11:00:00 a setting:
of the Date.
of the Time. a configuration via the
MENU menu.
Refer to the "Menu" section of chapter 3.
Headlamp beam height a headlamp height
setting. a position from 0 to 3
depending on the load
carried. Adjust using the control on the fascia panel.
Refer to the "Steering wheel controls" section
of chapter 1.

37
1
READY TO SET OFF
Steering wheel controls
LIGHTING CONTROL
Selection is by rotation of the white mark
on the ring, when the ignition key is in the
"RUNNING" position.
All lights off
Side lights on
This is indicated on the
instrument panel by lighting of the
warning light.
Dipped headlamps/main beam headlamps on
Dipped headlamps/main beam headlamps change
Pull the control fully towards you.
Headlamp flash
Direction indicators (green flashing)
"Motorway" function
System which indicates a change of lane on
a motorway.
Press up or down once, without passing
the point of resistance; the corresponding
direction indicators will flash three times. Pull the control towards you
gently, regardless of the position
of the ring.
Left: downwards. The direction
arrow warning light flashes on the
instrument panel.
Right: upwards. The direction arrow warning
light flashes on the instrument panel.
Turn the ring into position.

1
READY TO SET OFF
Gearbox and steering wheel
Modifying the programmed speed
To memorise a higher
speed than that already
memorised, there are
2 options:
Without using the accelerator:
- Move the control up (+).
A short press increases the speed by 1 mph.
Holding it down increases the speed in steps
of 5 mph.
Using the accelerator:
- Exceed the memorised speed until you reach the desired speed,
- Move the control up (+) or down (-).
To memorise a lower speed than that
already memorised:
- Move the control down (-).
A short press decreases the speed by
1 mph.
Holding it down decreases the speed in
steps of 5 mph
Stopping the function
- Turn the ring to OFF position or switch off
the ignition.
Cancelling the programmed speed
With the vehicle stationary, having switched
off the ignition, no speed is memorised by
the system.
Operational fault
The programmed speed disappears and is
replaced by dashes. Contact a CITROËN
dealer to have the system checked.
Good practice
When modifying the programmed speed by
holding down the control, remain vigilant as
the speed may increase or decrease rapidly.
Do not use cruise control on slippery roads
or in heavy traffic.
On a steep slope, cruise control may not be
able to prevent the vehicle exceeding the
programmed speed.
Cruise control can in no way replace
respect for speed limits, nor vigilance or
responsibility on the part of the driver.
You are advised to keep your feet near to
the pedals.
To avoid any obstruction of the pedals:
- ensure that the mat and its floor fixings are correctly positioned
- never stack up more than 1 mat.

50
Gearbox and steering wheel
Exceeding the programmed speed
Pressing the accelerator pedal to try and
exceed the programmed speed will only
work if you press down strongly on the
pedal and go past the point of resistance.
The speed limiter will be deactivated
temporarily and the programmed speed
flashes.
To return to speed limiter function,
decelerate to a speed lower than the
programmed speed.
Flashing speed
It flashes:
- when the point of resistance of the accelerator pedal has been passed,
- when the speed limiter cannot prevent the speed increasing due to the road
profile or a steep incline,
- when accelerating strongly.
Stopping the function
- Turn the ring to position OFF or switch off
the ignition to stop the function.
The last programmed speed remains
memorised.
Operational fault
The programmed speed disappears and is
replaced by dashes.
Contact a CITROËN dealer to have the
system checked.
Good practice
The speed limiter can in no way replace
respect for speed limits, nor vigilance or
responsibility on the part of the driver.
Be aware of road profiles, strong
acceleration and ensure that you remain in
full control of your vehicle.
To avoid any obstruction of the pedals:
- ensure that the mat and its floor fixings are correctly positioned
- never stack up more than 1 mat.

61
3
IN-CAR TECHNOLOGY
Trip computer
TRIP COMPUTER
The TRIP button, located at the end of
the wipers stalk, provides access to the
following information: - Range,
- Route A,
- Average consumption A,
- Current consumption A,
- Average speed A,
- Trip duration A. If TRIP B is activated on
MENU :
- Route B,
- Average consumption B,
- Average speed B,
- Trip duration B.
Press the MENU ESC button for over
2 seconds to return to the main screen.
Zero reset
Press the TRIP for over 2 seconds to reset
the displayed values to zero.
Level 1 display:
- Speed (Speed bleep).
- Hour (Setting of the time).
- Buzz (Volume of the announcements).
- Unit (Unit of measurement).
- Bag p (Passenger air bag).

Refer to the corresponding line in the configuration-personalisation table on the following pages.

62
Menu
MENU Eight languages are offered: Italian, English,
German, French, Spanish, Portuguese,
Dutch and Turkish.
As a safety precaution, the menus can
only be accessed when the ignition is off
(engine off).
Refer to the corresponding line in the
configuration-personalisation table on the
following pages.
This button enables you to:
- scroll up through a menu,
- increase a value.

This button enables you to:
- scroll down through a menu,
- decrease a value.

Menu... Press...
Sub-menu...
Press... Select...
Confirm
and exit
Enables you to...

1 Speed Bleep ON Increase
Activate/deactivate the audible
signal indicating exceeding of the
programmed speed and select the
speed value.
Decrease
OFF

2 Activate
Trip B ON Activate
Display a second route "Trip B".
OFF
Deactivate
Confi guration-Personalisation

Level 2 and 3 displays:
The control panel located to the left of
the steering wheel provides access to
the display menus, which allow you to
personalise some of your equipment.
This button enables
you to:
- access the menus and sub-menus,
- confirm your selections within a menu,
- exit from the menus.
A long press enables you to return to the
welcome screen.

91
5
SAFETY
Air bags
SIDE AIR BAGS
Activation
It is triggered unilaterally in the event of a
serious side impact, perpendicular to the
longitudinal centreline of the vehicle on
a horizontal plane and directed from the
outside towards the inside of the vehicle.
The side air bag inflates between the
front occupant of the vehicle and the
corresponding door trim pad. In the event of a minor impact or bump
on the side of the vehicle or if the
vehicle rolls over, the air bag may not be
triggered.
Operating fault
If this warning light comes on on
the instrument panel, consult a
CITROËN dealer without delay to
have the system checked. The air
bags may no longer be triggered
in the event of a serious impact.

117
7
TROUBLESHOOTING

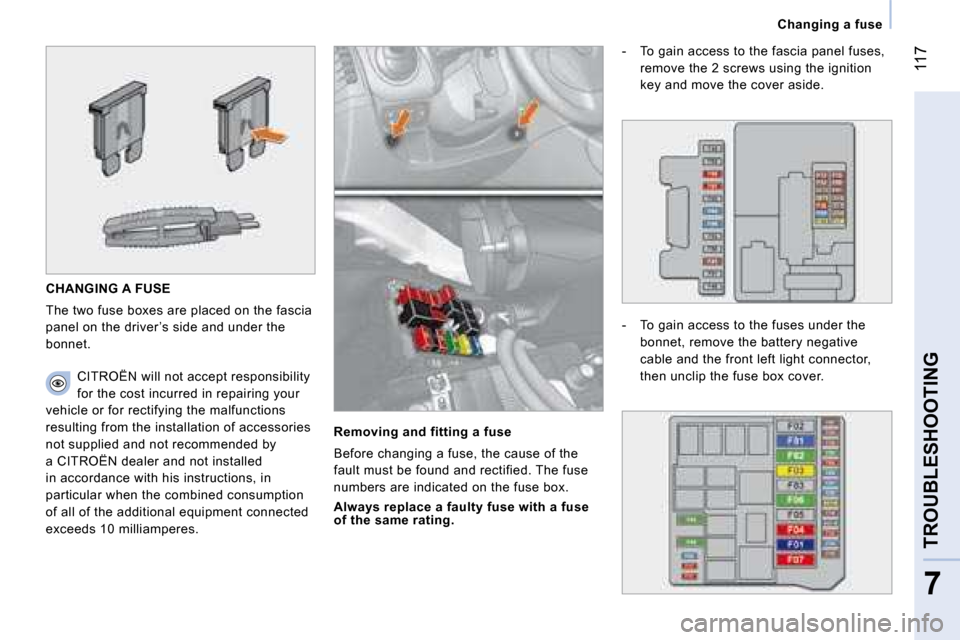

Changing a fuse
CHANGING A FUSE
The two fuse boxes are placed on the fascia
panel on the driver ’s side and under the
bonnet.
Removing and fitting a fuse
Before changing a fuse, the cause of the
fault must be found and rectified. The fuse
numbers are indicated on the fuse box.
Always replace a faulty fuse with a fuse of the same rating.
- To gain access to the fascia panel fuses, remove the 2 screws using the ignition
key and move the cover aside.
- To gain access to the fuses under the bonnet, remove the battery negative
cable and the front left light connector,
then unclip the fuse box cover.
CITROËN will not accept responsibility
for the cost incurred in repairing your
vehicle or for rectifying the malfunctions
resulting from the installation of accessories
not supplied and not recommended by
a CITROËN dealer and not installed
in accordance with his instructions, in
particular when the combined consumption
of all of the additional equipment connected
exceeds 10 milliamperes.

117
7
TROUBLESHOOTING
Changing a fuse
CHANGING A FUSE
The two fuse boxes are placed on the fascia
panel on the driver ’s side and under the
bonnet.
Removing and fitting a fuse
Before changing a fuse, the cause of the
fault must be found and rectified. The fuse
numbers are indicated on the fuse box.
Always replace a faulty fuse with a fuse of the same rating.
- To gain access to the fascia panel fuses, remove the 2 screws using the ignition
key and move the cover aside.
- To gain access to the fuses under the bonnet, remove the battery negative
cable and the front left light connector,
then unclip the fuse box cover.
CITROËN will not accept responsibility
for the cost incurred in repairing your
vehicle or for rectifying the malfunctions
resulting from the installation of accessories
not supplied and not recommended by
a CITROËN dealer and not installed
in accordance with his instructions, in
particular when the combined consumption
of all of the additional equipment connected
exceeds 10 milliamperes.
