READY TO SET OFF
Instruments and controls
WARNING LIGHTS
Each time the engine is started: a series of warning lights comes on applying a self-checking test. T hey switch off almost immediately.
When the engine is running: the warning light becom es a warning sign if it remains on continuously or flashes. This initial warning may be
accompanied by an audible signal and a message on t he display. "Do not ignore these warnings".

Warning light
is indicates Solution - action
Service on temporarily. minor faults. Consult a CITROËN
dealer .
continuously on,
accompanied by a
message on the display. major faults. Make a note of the warning message and contact
a CITROËN dealer .
Parking brake
fluid level on.

that the parking brake is applied or
has not been released correctly. Releasing the parking brake switches off the
warning ight.
on. that the fl uid level is too low. Top up with a fl uid recommended by a CITROËN
dealer .
continuously on, even
though the level is correct.
Stop immediately, park, switch off the ignition
and contact a CITROËN dealer .
Low engine oil level on.
that the level of oil in the
engine is too low. Check the engine oil level and contact a
CITROËN dealer .
continuously on, even
though the level is correct.
Stop immediately, park, switch off the ignition
and contact a CITROËN dealer .
Coolant temperature on with the needle in
the red zone.
an abnormal increase in
the coolant temperature. Park and switch off the ignition, allow the circui
t
to cool. Visually check the level.
on H in the red zone. an abnormal increase in
the coolant temperature. Refer to the "Levels" section of chapter 7.
Consult a CITROËN dealer .

22
Instruments and controls

Warning light
is indicates Solution - action
Engine oil pressure on while driving. that the pressure is too low.
Park and switch off the ignition, allow the
lubrication circuit to cool in order to check its
level. Refer to the "Levels" section of chapter 7.
continuously on, even
though the level is correct. a major fault. Contact a CITROËN dealer .
flashing, for a
few seconds, with
a message on the
display. that a service will soon be
due.
Refer to the list of checks in the servicing bookl
et
then carry out the CITROËN service.
Battery charge on.
a fault in the charging
circuit. Check the battery terminals…
Refer to the "Battery" section of chapter 7.
continuously on, in
spite of the checks. a circuit fault, an ignition or
injection malfunction.
Contact a CITROËN dealer .
Door open detection on.
that a door is not closed
correctly. Check that the cab doors and the rear and side
doors are closed.
accompanied by
a message on the
display.
Seat belt not fastened on then flashes.
that the driver has not
fastened his seat belt. Pull the strap then insert the tongue in the
buckle.
accompanied by an
audible signal then
remains on. that the vehicle is moving
with the driver ’s seat belt
unfastened. Check that the seat belt is fastened correctly by
pulling the strap. Refer to the "Seat belts" sectio
n
of chapter 5.

28
Instruments and controls
SERVICE INDICATOR
The display on the instrument panel
informs you when the next service is due,
in accordance with the "Manufacturer ’s"
servicing schedule indicated in the servicing
booklet. This information is determined in
relation to the distance travelled since the
previous service. You are warned by flashing of the
engine oil pressure warning light
and the displaying of a message
on the instrument panel each time
the vehicle is started.

In this case, your vehicle must be
serviced as soon as possible.
LIGHTING RHEOSTAT
The rheostat is active when the lights are on.
Refer to the list of checks in the
servicing booklet which was given to
you on delivery of the vehicle.
After a few seconds, the display returns to
its usual functions. Use the
+ and - controls to
change the brightness of the
instrument panel lighting.

56
Engines

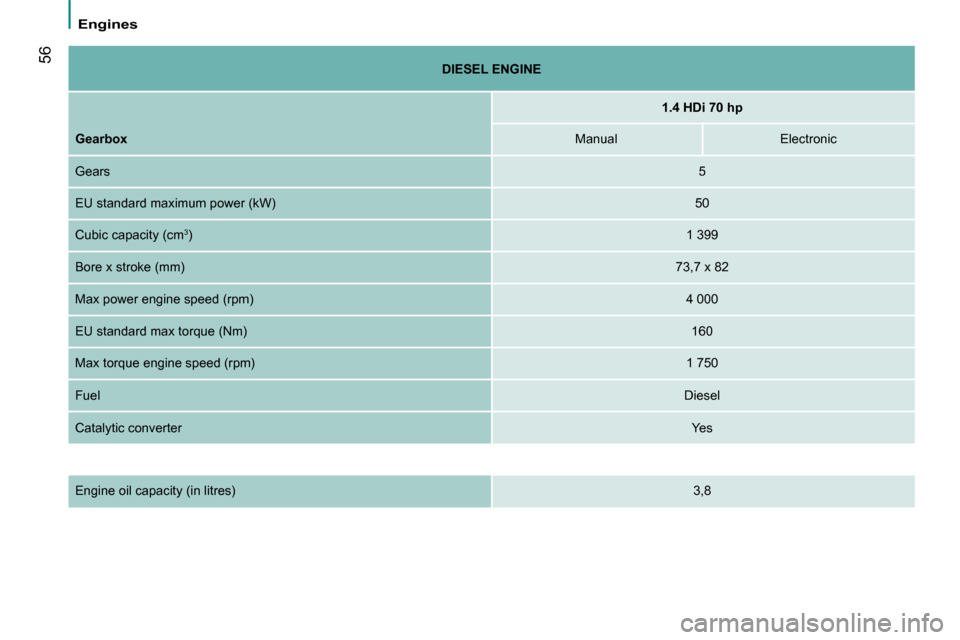

DIESEL
ENGINE

1.4 HDi 70 hp

Gearbox
ManualElectronic
Gears 5
EU standard maximum power (kW) 50
Cubic capacity (cm 3
) 1 399
Bore x stroke (mm) 73,7 x 82
Max power engine speed (rpm) 4 000
EU standard max torque (Nm) 160
Max torque engine speed (rpm) 1 750
Fuel Diesel
Catalytic converter Yes
Engine oil capacity (in litres) 3,8

57
2
Engines
TECHNICAL DATA

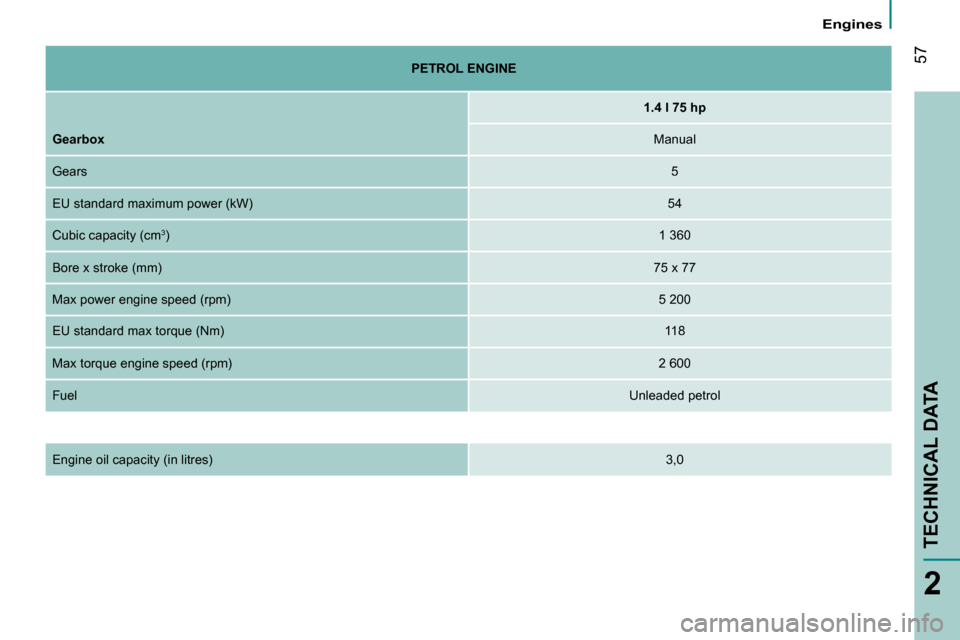

PETROL ENGINE

1.4 l 75 hp

Gearbox Manual
Gears
5
EU standard maximum power (kW) 54
Cubic capacity (cm 3
) 1 360
Bore x stroke (mm) 75 x 77
Max power engine speed (rpm) 5 200
EU standard max torque (Nm) 118
Max torque engine speed (rpm) 2 600
Fuel Unleaded petrol
Engine oil capacity (in litres) 3,0

64

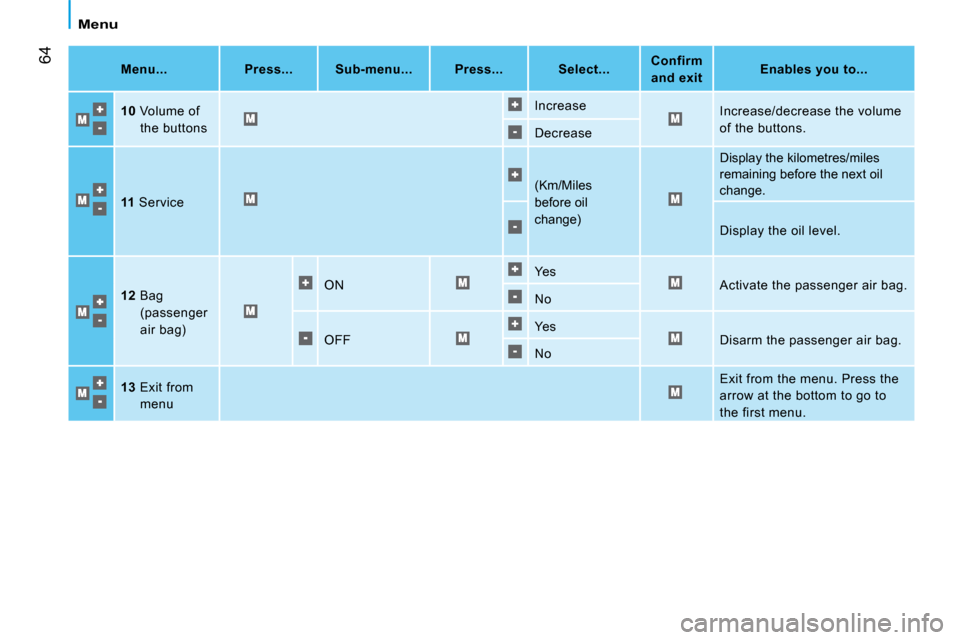

Menu
Menu...
Press... Sub-menu... Press... Select...
Confirm
and exit
Enables you to...

10 Volume of
the buttons Increase
Increase/decrease the volume
of the buttons.
Decrease

11 Service (Km/Miles
before oil
change) Display the kilometres/miles
remaining before the next oil
change.
Display the oil level.

12 Bag
(passenger
air bag) ON
Yes
Activate the passenger air bag.
No
OFF Yes
Disarm the passenger air bag.
No

13 Exit from
menu Exit from the menu. Press the
arrow at the bottom to go to
the first menu.

87
5
SAFETY
Driving safety

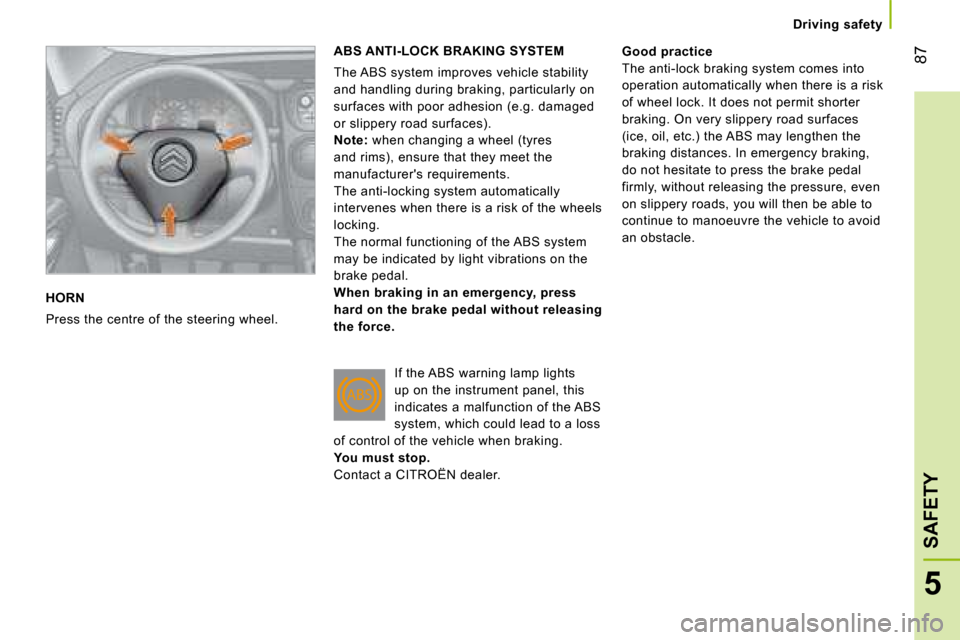

HORN
Press the centre of the steering wheel.
ABS ANTI-LOCK BRAKING SYSTEM
The ABS system improves vehicle stability
and handling during braking, particularly on
surfaces with poor adhesion (e.g. damaged
or slippery road surfaces).
Note: when changing a wheel (tyres
and rims), ensure that they meet the
manufacturer's requirements.
The anti-locking system automatically
intervenes when there is a risk of the wheels
locking.
The normal functioning of the ABS system
may be indicated by light vibrations on the
brake pedal.
When braking in an emergency, press
hard on the brake pedal without releasing
the force.
If the ABS warning lamp lights
up on the instrument panel, this
indicates a malfunction of the ABS
system, which could lead to a loss
of control of the vehicle when braking.
You must stop.
Contact a CITROËN dealer. Good practice
The anti-lock braking system comes into
operation automatically when there is a risk
of wheel lock. It does not permit shorter
braking. On very slippery road surfaces
(ice, oil, etc.) the ABS may lengthen the
braking distances. In emergency braking,
do not hesitate to press the brake pedal
firmly, without releasing the pressure, even
on slippery roads, you will then be able to
continue to manoeuvre the vehicle to avoid
an obstacle.

119
7
TROUBLESHOOTING
Changing a fuse
FUSES IN THE ENGINE
Identifi cation mark
Amperage
Functions
F01 60 A Control unit
F03 20 A Starter supply
F04 40 A ABS hydraulic block pump supply
F06 30 A Single speed fan assembly control
F07 40 A High speed fan assembly control
F08 30 A Air conditioning unit pump
F10 10 A Horn
F11 10 A Engine management secondary charge supply
F14 15 A Main beam headlamps
F16 7.5 A
Engine management control unit - electronic gearbox system control unit
F17 15 A Supply for ignition coil, injectors, engine manage ment central unit
F18 7.5 A Engine management control unit (1.4 HDi)
F19 7.5 A Air conditioning compressor
F20 30 A Supply for heated rear screen, electric exterior m irrors de-icing heaters
F21 15 A Engine management 1.4 petrol, relay coil T09 (HDi)
F22 20 A Engine management control unit (1.4 HDi), petrol p ump
F23 20 A ABS hydraulic block solenoid valves supply
F24 7.5 A ABS
F30 15 A Fog lamps
F81 60 A Pre-heat unit
F82 30 A
Electronic gearbox system pump - electronic gearbo x system supply
F84 10 A Electronic gearbox system control unit and valves
F85 30 A Lighter - 12 V accessories socket
F87 7.5 A Reversing lights - water in diesel sensor

125
7
TROUBLESHOOTING
Under the bonnet

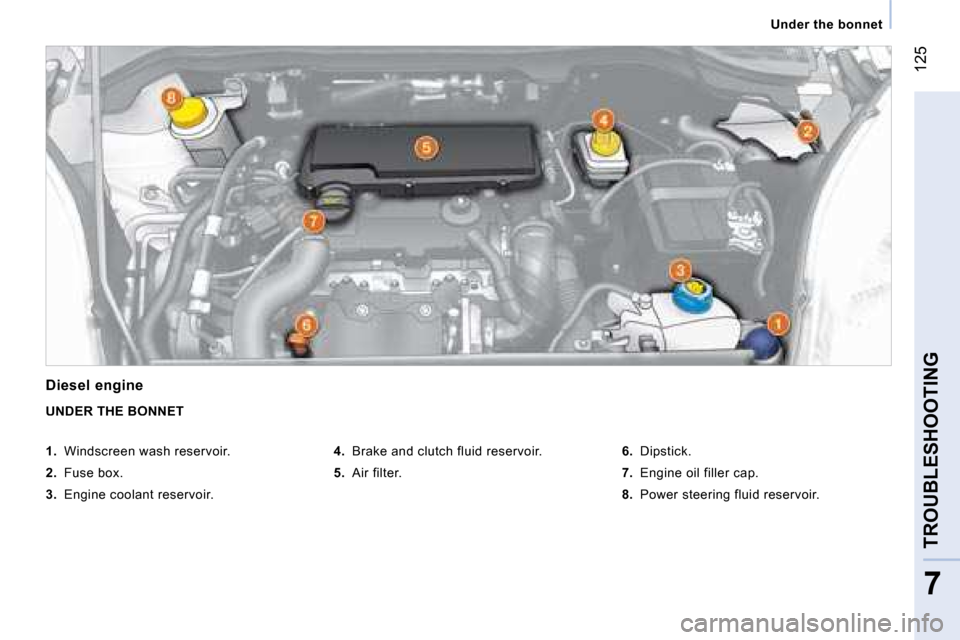

Diesel engine
UNDER THE BONNET

4. Brake and clutch fluid reservoir.

5. Air filter.
6. Dipstick.

7. Engine oil filler cap.

8. Power steering fluid reservoir.

1. Windscreen wash reservoir.

2. Fuse box.

3. Engine coolant reservoir.

126
Under the bonnet

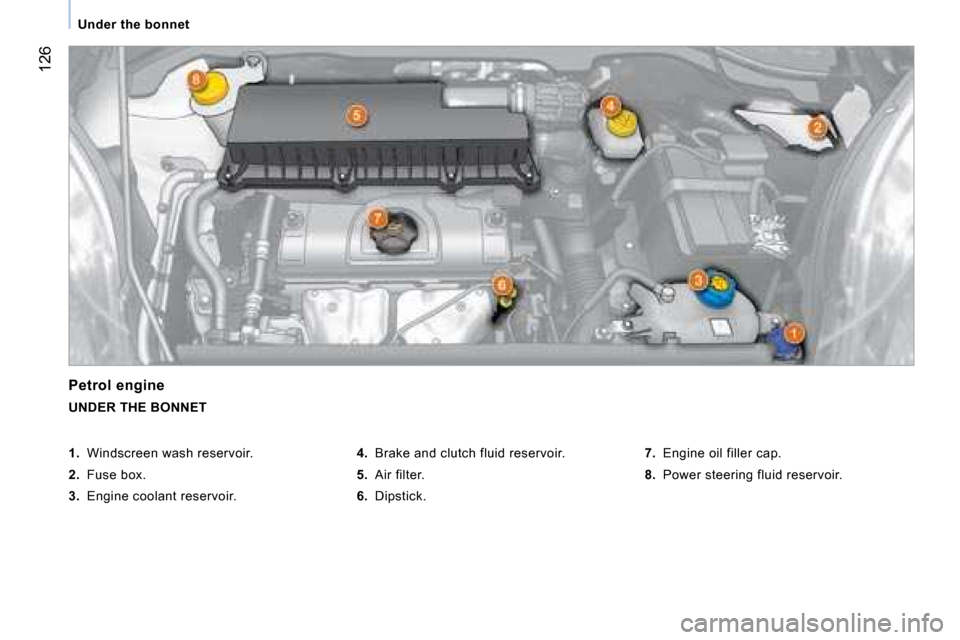

Petrol engine
UNDER THE BONNET

4. Brake and clutch fluid reservoir.

5. Air filter.

6. Dipstick.
7. Engine oil filler cap.

8. Power steering fluid reservoir.

1. Windscreen wash reservoir.

2. Fuse box.

3. Engine coolant reservoir.
