Page 10 of 140
13
Familiarisation
FAMILIARISATION
SEE CLEARLY
Ring
L i g h t s o f f .
S i d e l i g h t s .
D i p p e d / m a i n b e a m h e a d l a m p s .
Fog lamps
R e a r f o g l a m p .
or
F r o n t a n d r e a r f o g l a m p s .
37
Direction indicators
"Motorway" function
P r e s s u p o r d o w n o n c e , w i t h o u t p a s s i n g t h e
p o i n t o f r e s i s t a n c e ; t h e c o r r e s p o n d i n g d i r e c t i o n
i n d i c a t o r s w i l l fl a s h t h r e e t i m e s .
37
Wipers
Ring A: windscreen wipers
39
Ring B: rear wiper
39 S i n g l e w i p e .
I n t e r m i t t e n t w i p e .
W a s h - w i p e .
W a s h - w i p e .
P a r k .
Lighting
P a r k .
I n t e r m i t t e n t .
S l o w c o n t i n u o u s .
R a p i d c o n t i n u o u s .
Page 46 of 140
39
1
READY TO SET OFF
Steering wheel controls
WIPERS STALK
Windscreen wipers
Wiping is only active when the ignition key is
in the RUNNING position.
The stalk may have four different positions.
Three speeds can be selected by turning the
ring.
To change the blades, refer to the
"Changing a wiper blade" section of
chapter 7.
Good practice
Check that the windscreen wiper blades can
operate freely when using the wipers in icy
weather.
Slow intermittent.
Slow continuous.
Fast continuous.
Single wipe: by pushing up.
Windscreen wash
Push the stalk down, the windscreen wash
alone is activated.
Hold the stalk down, the windscreen wash
is accompanied by a timed sweep of the
wipers. To top up the levels, refer to the
"Levels" section of chapter 7.
Rear wiper
This is positioned on the window
of the large rear door.
Turn the ring.
Rear screen wash
The rear screen wash is incorporated next to
the third brake light.
Push the stalk up, the rear screen wash
alone is activated.
Hold the stalk up, the rear screen wash is
accompanied by a timed sweep of the wiper.
Page 67 of 140
61
3
IN-CAR TECHNOLOGY
Trip computer
TRIP COMPUTER
The TRIP button, located at the end of
the wipers stalk, provides access to the
following information: - Range,
- Route A,
- Average consumption A,
- Current consumption A,
- Average speed A,
- Trip duration A. If TRIP B is activated on
MENU :
- Route B,
- Average consumption B,
- Average speed B,
- Trip duration B.
Press the MENU ESC button for over
2 seconds to return to the main screen.
Zero reset
Press the TRIP for over 2 seconds to reset
the displayed values to zero.
Level 1 display:
- Speed (Speed bleep).
- Hour (Setting of the time).
- Buzz (Volume of the announcements).
- Unit (Unit of measurement).
- Bag p (Passenger air bag).
Refer to the corresponding line in the configuration-personalisation table on the following pages.
Page 131 of 140
118
Changing a fuse

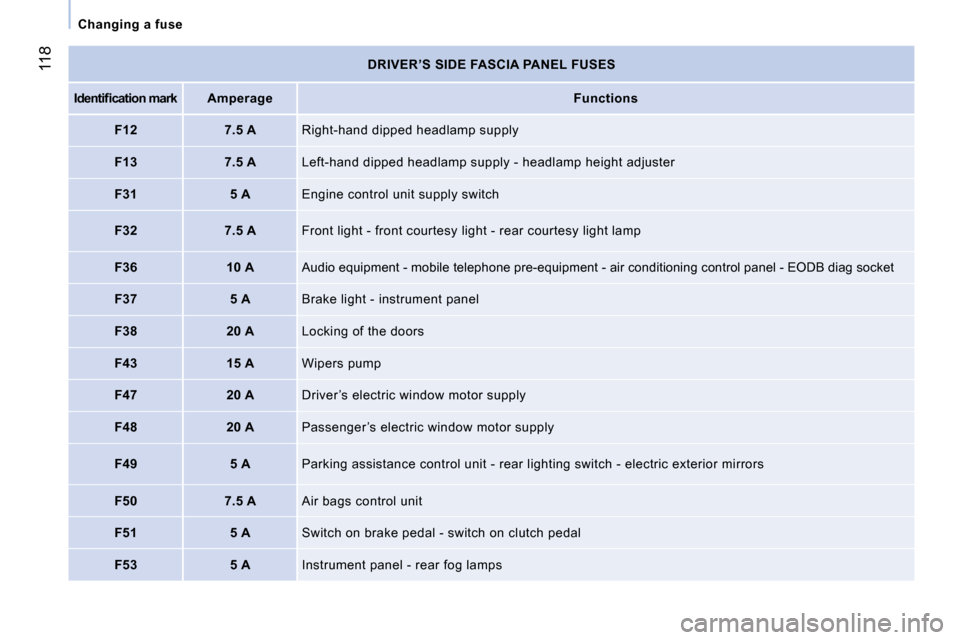

DRIVER’S SIDE FASCIA PANEL FUSES
I d e n t i fi c a t i o n m a r k Amperage
Functions
F12 7.5 A Right-hand dipped headlamp supply
F13 7.5 A Left-hand dipped headlamp supply - headlamp height adjuster
F31 5 A Engine control unit supply switch
F32 7.5 A Front light - front courtesy light - rear courtesy light lamp
F36 10 A Audio equipment - mobile telephone pre-equipment - air conditioning control panel - EODB diag socket
F37 5 A Brake light - instrument panel
F38 20 A Locking of the doors
F43 15 A Wipers pump
F47 20 A Driver ’s electric window motor supply
F48 20 A Passenger ’s electric window motor supply
F49 5 A Parking assistance control unit - rear lighting sw itch - electric exterior mirrors
F50 7.5 A Air bags control unit
F51 5 A Switch on brake pedal - switch on clutch pedal
F53 5 A Instrument panel - rear fog lamps
