15
FAMILIARISATION
Familiarisation
MONITOR THOROUGHLY
Instrument panel Controls bar

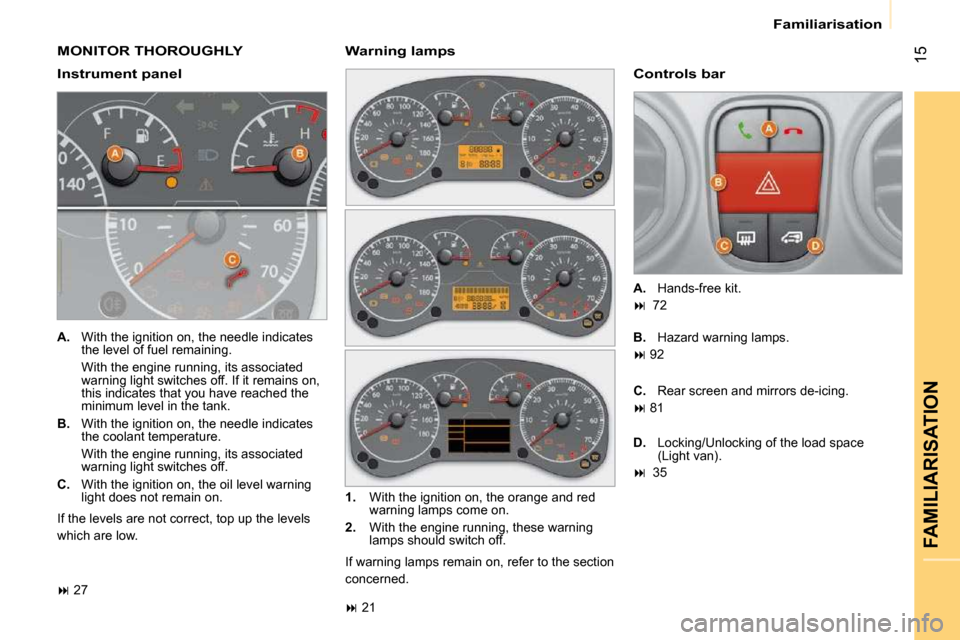

A. With the ignition on, the needle indicates
the level of fuel remaining.
With the engine running, its associated warning light switches off. If it remains on,
this indicates that you have reached the
minimum level in the tank.
B. With the ignition on, the needle indicates
the coolant temperature.
With the engine running, its associated warning light switches off.
C. With the ignition on, the oil level warning
light does not remain on.
If the levels are not correct, top up the levels
which are low.
A. Hands-free kit.
72
1. With the ignition on, the orange and red
warning lamps come on.
2. With the engine running, these warning
lamps should switch off.
If warning lamps remain on, refer to the section
concerned.
Warning lamps
21
27
B. Hazard warning lamps.
92
C. Rear screen and mirrors de-icing.
81
D. Locking/Unlocking of the load space
(Light van).
35
Page 12 of 153
16
Familiarisation
KEEP YOUR PASSENGERS SAFE

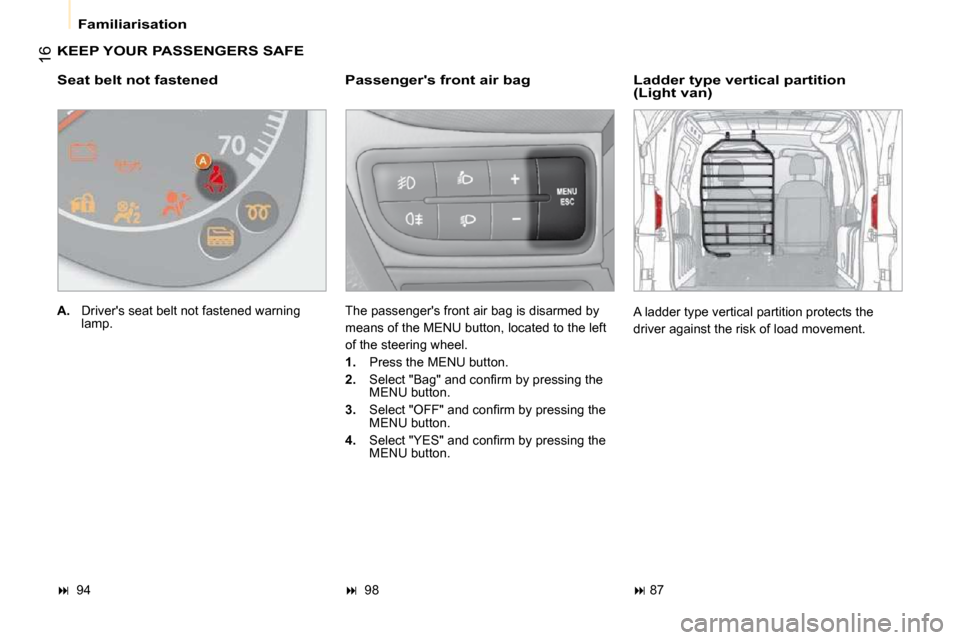

Passenger's front air bag
The passenger's front air bag is disarmed by
means of the MENU button, located to the left
of the steering wheel.
1. Press the MENU button.
2. S e l e c t " B a g " a n d c o n fi r m b y p r e s s i n g t h e
MENU button.
3. S e l e c t " O F F " a n d c o n fi r m b y p r e s s i n g t h e
MENU button.
4. S e l e c t " Y E S " a n d c o n fi r m b y p r e s s i n g t h e
MENU button.
Seat belt not fastened
A. Driver's seat belt not fastened warning
lamp.
94
98
Ladder type vertical partition
(Light van)
A ladder type vertical partition protects the
driver against the risk of load movement.
87
Page 13 of 153
17
FAMILIARISATION
Familiarisation
DRIVE SAFELY

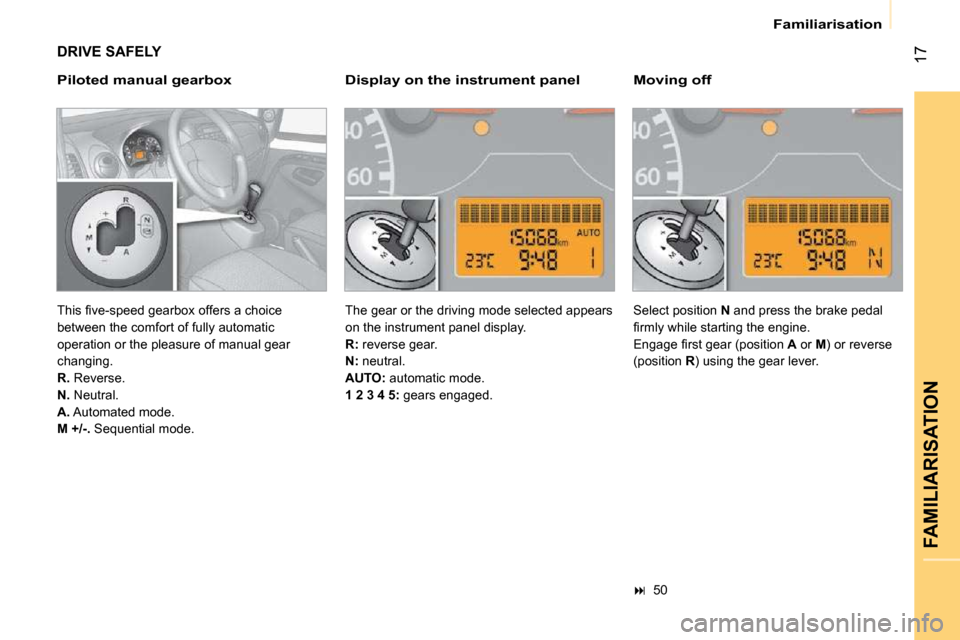

Piloted manual gearbox Display on the instrument panel Moving off
50
T h i s fi v e - s p e e d g e a r b o x o f f e r s a c h o i c e
between the comfort of fully automatic
operation or the pleasure of manual gear
changing.
R. Reverse.
N. Neutral.
A. Automated mode.
M +/-. Sequential mode. The gear or the driving mode selected appears
on the instrument panel display.
R: reverse gear.
N: neutral.
AUTO: automatic mode.
1 2 3 4 5: gears engaged. Select position
N and press the brake pedal
fi r m l y w h i l e s t a r t i n g t h e e n g i n e .
E n g a g e fi r s t g e a r ( p o s i t i o n A or M ) or reverse
(position R ) using the gear lever.
Page 14 of 153
18
Familiarisation
DRIVE SAFELY
Cruise control "CRUISE"

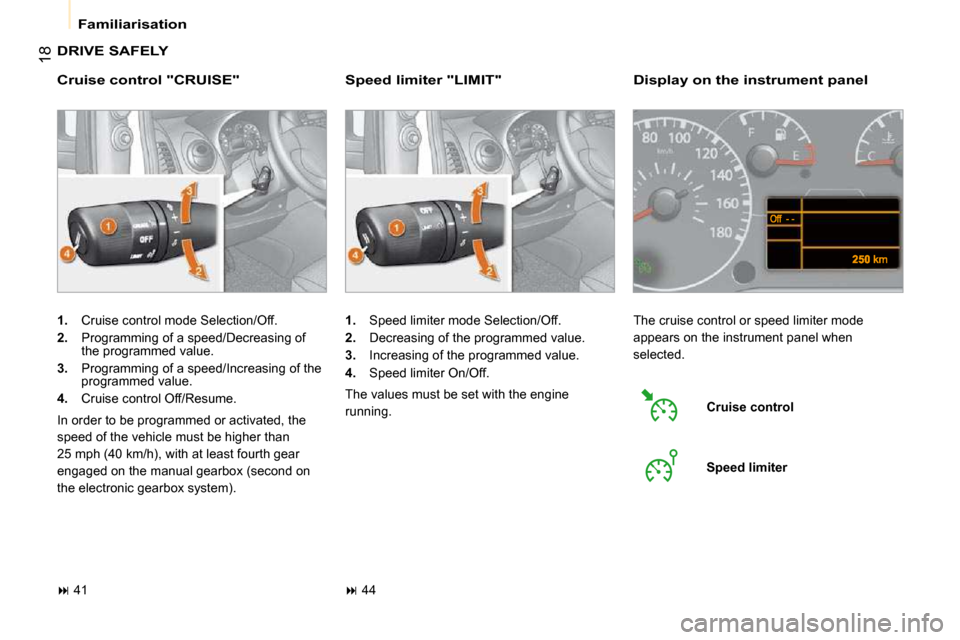

1. Cruise control mode Selection/Off.
2. Programming of a speed/Decreasing of
the programmed value.
3. Programming of a speed/Increasing of the
programmed value.
4. Cruise control Off/Resume.
In order to be programmed or activated, the
speed of the vehicle must be higher than
25 mph (40 km/h), with at least fourth gear
engaged on the manual gearbox (second on
the electronic gearbox system).
41
44
1. Speed limiter mode Selection/Off.
2. Decreasing of the programmed value.
3. Increasing of the programmed value.
4. Speed limiter On/Off.
The values must be set with the engine
running.
Speed limiter "LIMIT"
The cruise control or speed limiter mode
appears on the instrument panel when
selected.
Display on the instrument panel
Cruise control
Speed limiter
Page 15 of 153
19
1
READY TO SET OFF
Instruments and controls
INSTRUMENT PANELS

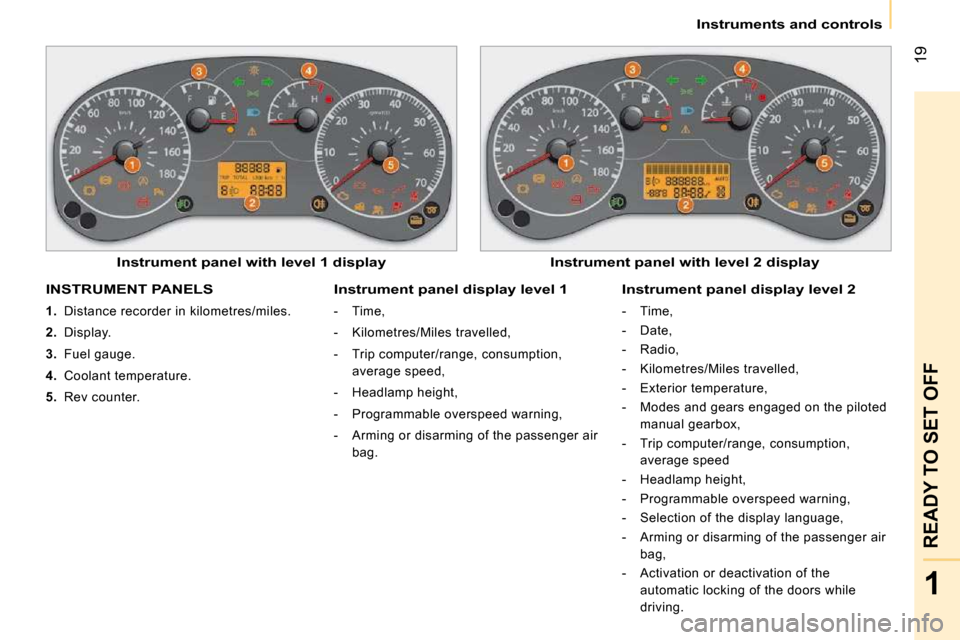

1. Distance recorder in kilometres/miles.
2. Display.
3. Fuel gauge.
4. Coolant temperature.
5. Rev counter.
Instrument panel with level 1 display Instrument panel with level 2 display
Instrument panel display level 1
- Time,
- Kilometres/Miles travelled,
- Trip computer/range, consumption,
average speed,
- Headlamp height,
- Programmable overspeed warning,
- Arming or disarming of the passenger air bag.
Instrument panel display level 2
- Time,
- Date,
- Radio,
- Kilometres/Miles travelled,
- Exterior temperature,
- Modes and gears engaged on the piloted manual gearbox,
- Trip computer/range, consumption, average speed
- Headlamp height,
- Programmable overspeed warning,
- Selection of the display language,
- Arming or disarming of the passenger air bag,
- Activation or deactivation of the automatic locking of the doors while
driving.
Page 16 of 153
20
Instruments and controls

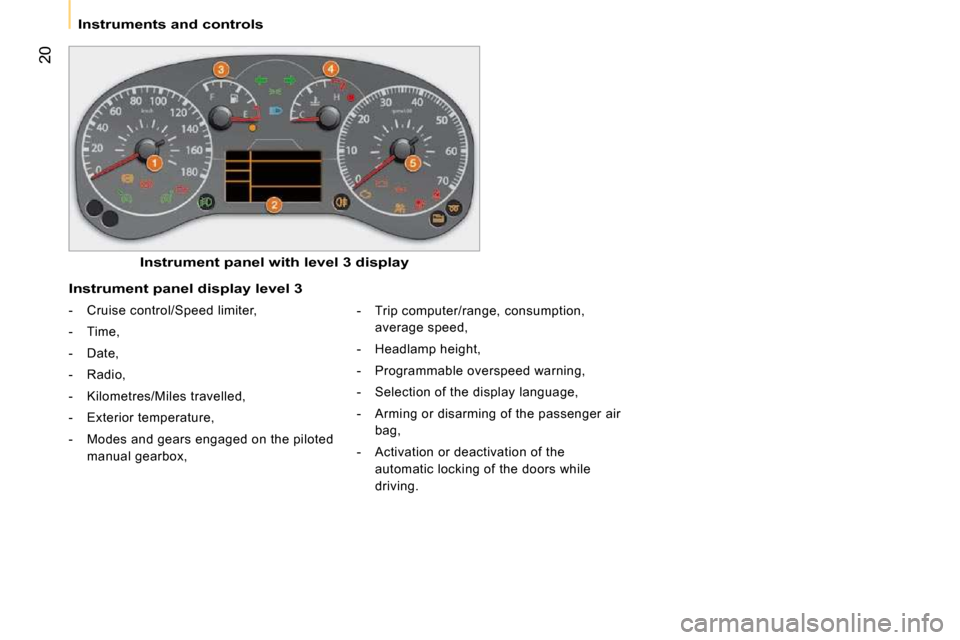

Instrument panel with level 3 display
Instrument panel display level 3
- Cruise control/Speed limiter,
- Time,
- Date,
- Radio,
- Kilometres/Miles travelled,
- Exterior temperature,
- Modes and gears engaged on the piloted manual gearbox, - Trip computer/range, consumption,
average speed,
- Headlamp height,
- Programmable overspeed warning,
- Selection of the display language,
- Arming or disarming of the passenger air bag,
- Activation or deactivation of the automatic locking of the doors while
driving.
Page 17 of 153
21
1
READY TO SET OFF
Instruments and controls
WARNING LAMPS
Each time the engine is started: a series of warning lamps comes on applying a self-checking test. Th ey switch off almost immediately.
When the engine is running: the warning lamp become s a warning sign if it remains on continuously or flashes. This initial warning may be
accompanied by an audible signal and a message on t he display. "Do not ignore these warnings."

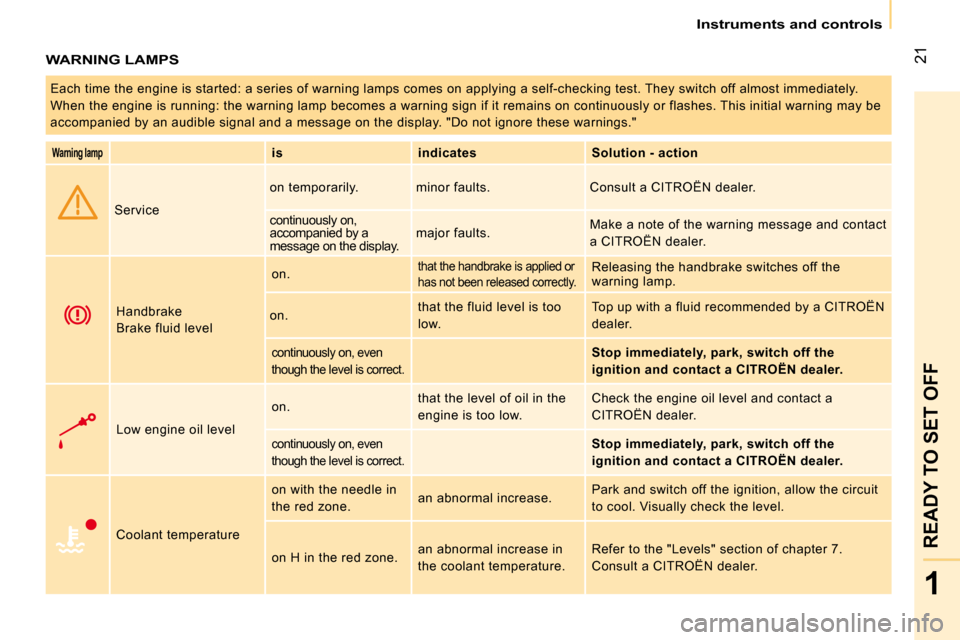

Warning lamp
is indicates Solution - action
Service on temporarily. minor faults. Consult a CITROËN
dealer.
continuously on,
accompanied by a
message on the display. major faults.
Make a note of the warning message and contact
a CITROËN dealer.
Handbrake
Brake fluid level on.
that the handbrake is applied or
has not been released correctly. Releasing the handbrake switches off the
warning lamp.
on. that the fluid level is too
low. Top up with a fluid recommended by a CITROËN
dealer.
continuously on, even
though the level is correct.
Stop immediately, park, switch off the
ignition and contact a CITROËN dealer.
Low engine oil level on.
that the level of oil in the
engine is too low. Check the engine oil level and contact a
CITROËN dealer.
continuously on, even
though the level is correct.
Stop immediately, park, switch off the
ignition and contact a CITROËN dealer.
Coolant temperature on with the needle in
the red zone.
an abnormal increase. Park and switch off the ignition, allow the circui
t
to cool. Visually check the level.
on H in the red zone. an abnormal increase in
the coolant temperature. Refer to the "Levels" section of chapter 7.
Consult a CITROËN dealer.
Page 18 of 153
22
Instruments and controls
Warning lamp
is indicates Solution - action

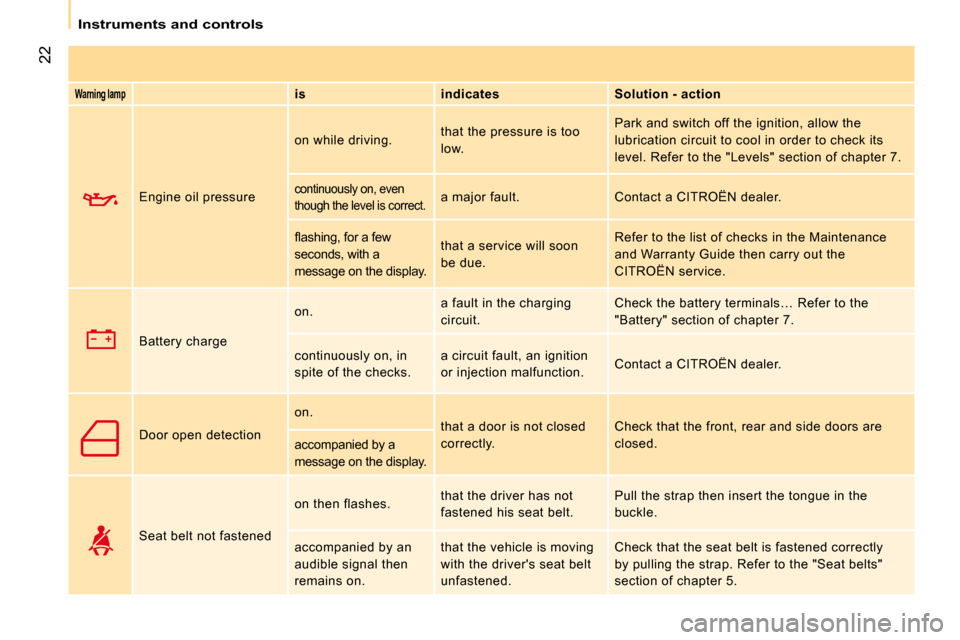

Engine oil pressure on while driving.
that the pressure is too
low. Park and switch off the ignition, allow the
lubrication circuit to cool in order to check its
level. Refer to the "Levels" section of chapter 7.
continuously on, even
though the level is correct. a major fault. Contact a CITROËN dealer.
fl a s h i n g , f o r a f e w
seconds, with a
message on the display. that a service will soon
be due. Refer to the list of checks in the Maintenance
and Warranty Guide then carry out the
CITROËN service.
Battery charge on.
a fault in the charging
circuit. Check the battery terminals… Refer to the
"Battery" section of chapter 7.
continuously on, in
spite of the checks. a circuit fault, an ignition
or injection malfunction.
Contact a CITROËN dealer.
Door open detection on.
that a door is not closed
correctly. Check that the front, rear and side doors are
closed.
accompanied by a
message on the display.
Seat belt not fastened on then flashes.
that the driver has not
fastened his seat belt. Pull the strap then insert the tongue in the
buckle.
accompanied by an
audible signal then
remains on. that the vehicle is moving
with the driver's seat belt
unfastened. Check that the seat belt is fastened correctly
by pulling the strap. Refer to the "Seat belts"
section of chapter 5.
Page 19 of 153
23
1
READY TO SET OFF
Instruments and controls
Warning lamp
is indicates Solution - action

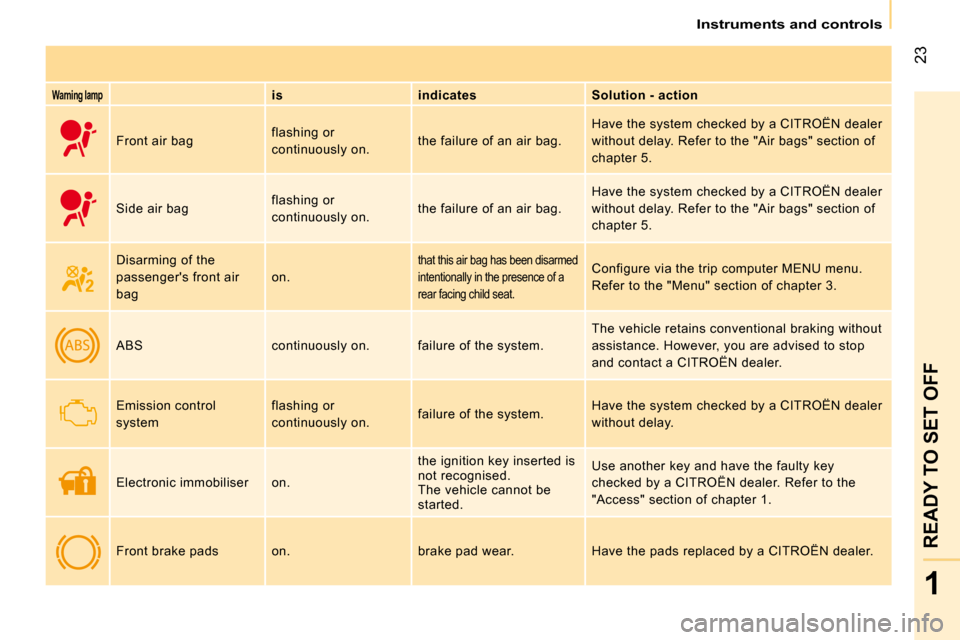

Front air bag flashing or
continuously on. the failure of an air bag. Have the system checked by a CITROËN dealer
without delay. Refer to the "Air bags" section of
chapter 5.
Side air bag flashing or
continuously on. the failure of an air bag. Have the system checked by a CITROËN dealer
without delay. Refer to the "Air bags" section of
chapter 5.
Disarming of the
passenger's front air
bag on.
that this air bag has been disarmed
intentionally in the presence of a
rear facing child seat. Configure via the trip computer MENU menu.
Refer to the "Menu" section of chapter 3.
ABS continuously on. failure of the system. The vehicle retains conventional braking without
assistance. However, you are advised to stop
and contact a CITROËN dealer.
Emission control
system flashing or
continuously on.
failure of the system. Have the system checked by a CITROËN dealer
without delay.
Electronic immobiliser on. the ignition key inserted is
not recognised.
The vehicle cannot be
started. Use another key and have the faulty key
checked by a CITROËN dealer. Refer to the
"Access" section of chapter 1.
Front brake pads on. brake pad wear. Have the pa ds replaced by a CITROËN dealer.
Page 20 of 153
24
Instruments and controls
Warning lamp
is indicates Solution - action
Water in diesel filter on, accompanied by
a message on the
display. that there is water in the
diesel fuel filter.
Have the filter bled by a CITROËN dealer. Refer
to the "Checks" section of chapter 7.
Low fuel level on with the gauge
needle in zone E. that the fuel reserve is
being used. Fill up with fuel without delay. The evaluation
of the fuel reserve is a parameter which is
sensitive to the style of driving, the profile of t
he
road, the time elapsed and the distance travelled
since the warning lamp first came on.
Diesel pre-heating on. that the weather
conditions impose
pre-heating. Wait for the warning lamp to switch off before
operating the starter.
Side lamps on. manual selection. Turn the ring on the lights stalk to the first
position.
Dipped headlamps on. manual selection.
Turn the ring on the lights stalk to the second
position.
Main beam headlamps pulling of the stalk towards
you. Pull the lights stalk to return to dipped
headlamps.
