sensor Citroen NEMO RHD 2014.5 1.G Owner's Manual

2
nemo_en_Chap00a_sommaire_ed02-2014
4. 64-82
EASE OF USE and
COMFORT 6.

111-136
SAFETY
Front seats 64
Folding front passenger
seat
66
Rear bench seat


67
Demisting and
defrosting


71
Air conditioning


73
Front fittings


76
Load space fittings


78
Rear fittings


80
Interior lighting - courtesy

lamps
82
Exterior

4
Interior

6
Instruments and controls

12
T

echnical data - Maintenance

16d

ashboard and centre

console

18
1. 4-21
OVERVIEW
Parking brake 1
11
Hazard warning
lamps

1
11
Horn

1
12
Braking assistance systems

1
12
Trajectory control systems

1
13
Tyre under-inflation detection

1
16
Seat belts

1
18
Airbags

120
Child seats


124
Deactivating the passenger's front


airbag

127
ISOFIX mountings


134
5. 83-1 10
TECHNOLOGY on
BOARD
Trip computer 83
V ehicle configuration 84
Rear parking sensors

88
Audio equipment


89
Steering mounted
controls


90
Bluetooth hands-free system


93
3. 25-63
READY TO GO
Instrument panels 25
W arning lamps 26
Fuel gauge

34
Coolant temperature


34
Indicator


35
Remote control


36
Key


38
Alarm


40
Opening


41
Closing


44
Lighting stalk


46
Wiper stalk


48
Cruise control


49
Fixed speed limiter


50
Mirrors


51
Electric windows


52
Steering wheel
adjustment


53
Manual gearbox


53
Electronic gearbox


54
Gear shift indicator


58
Starting and stopping


59
Hill start assist


60
Stop & Start


61
2. 22-24
ECO-DRIVING
Environment 22
Eco-driving 23
Contents

4EXTERIOR (LIGHT VAN)
Rear lamp, direction indicators, 3rd brake lamp ..........46-47, 164-165
Right-hand side:
fuel filler cap, fuel tank


...................
142
fuel cut-off ...............................
142-143
Load space

.................................
77-78
Rear doors

............................
36, 42-45
Opening/Closing to 180°

...........
42, 44
n

umber plate lamps

......................164
Rear parking sensors


......................88
Spare wheel, changing a wheel,
tools
..................................... 155-157
Towing, lifting
................................. 172
T

owbar
.................................... 137-13

8
d

imensions


.............................
174-175
a

ccessories


............................
139-140
Roof rack

.......................................
139
k

ey, remote control, battery

........
36-38
Central locking


.....................
36, 42, 44
Opening/Closing front windows
....... 37
Confidential card .............................. 39
a

larm

...............................................
40
Wiper blades.................................. 156
d

oor mirrors


..................................... 51
Side repeater
................................. 163
Front lamps, foglamps, direction indicators


................. 46-47, 161-162
Headlamp beam height adjustment

... 47
Changing bulbs .......................161-165
Opening/Closing
doors

........

.................... 36, 38, 41-45
Opening the bonnet
....................... 144
Configuration -
a

utoclose


.................... 42, 44, 83, 85 Brakes, pads
.......................... 147, 149
Hill start assist

................................. 60
Braking assistance


................. 112-113
Trajectory control


.................... 113-115
Tyres, pressures

.................... 159, 183
Snow chains


.................................. 160
Location

5EXTERIOR (COMBI)
Brakes, pads.......................... 147, 149
Hill start assist ................................. 60
Braking assistance


.................112-113
Trajectory control


....................113-115
Under-inflation detection .........116-117
Tyres, pressures

....................159, 183
Snow chains


.................................. 160
d

imensions

.............
176-177, 178-179
a

ccessories


............................
139-140
Roof bars

.......................................
139
k

ey, remote control, battery

........
36-38
Central locking


.....................
36, 42, 44
Opening/Closing front windows
....... 37
Confidential card .............................. 39
a

larm

...............................................
40
Wiper blades.................................. 166
d

oor mirrors


.....................................
51
Side repeater
................................. 163
Front lamps, foglamps, direction indicators


.................
46-47, 161-162
Headlamp beam height adjustment

....
47
Changing bulbs .......................161-165
Opening/Closing
doors
........
.................... 36, 38, 41-45
Child lock
......................................... 45
Rear windows


.................................. 52
Opening the bonnet
....................... 144
Configuration -
a

utoclose


.................... 42, 44, 83, 85 Right-hand side:
fuel filler cap, fuel tank


...................
142
fuel cut-off ...............................
142-143
Rear fittings ................................
80-81
Rear doors

............................
36, 42-45
Opening/Closing to 180°

...........
42, 44
n
umber plate lamps

......................
164
Rear parking sensors

......................
88
Spare wheel, changing a wheel,
tools, temporary puncture
repair kit ...............
155-157, 158-159
Towing, lifting
................................. 172
T

owbar
....................................137-13

8
Rear lamps, direction indicators,
3
rd brake lamp ..........46-47, 164-165
1
OVERVIEW
Location

13
Front fittings ................................76-77
●
glove box,
●


smoker's kit,
●


12 V socket,
●


writing table,
●


spectacles storage,
●


sun visor
.
Audio system, CD/MP3

..............
89-92
Audio steering mounted controls / Hands-free kit


..................
90, 93-110
Gear shift indicator


..........................
58
Gearboxes
............................ 53, 54-57
Rear parking sensors


......................
88
Heating, ventilation,
air conditioning


........................72-75 Demisting/defrosting


........................
71
Locking the load
space
.......
................................
43-44
Stop & Start ................................
61-63
Hazard warning lamps

...................
111
1
OVERVIEW
Location

15
Stop & Start ................................61-63
Hazard warning lamps

...................111
Demisting/defrosting


........................71
Locking the load
space

.......
................................ 43-44
Opening the bonnet
....................... 144
Front fittings

................................76-77
●

glove box,
●


smoker's kit,
●


12 V socket,
●


writing table,
●


spectacles storage,
●


sun visorl. Audio system, CD/MP3

..............
89-92
Gearboxes
............................ 53, 54-57
Rear parking sensors


......................88
Heating, ventilation,

air conditioning


........................72-75
1
OVERVIEW
Location

29
Warning lampisindicates Solution - action
Wheel anti-spin
regulation on.deactivation of anti-slip
regulation (ASR). Manual selection.
"Safety - Driving safety" section.
Stop & Start on.a fault with the Stop &
Start. Have the system checked by a CITROËN dealer
or a qualified workshop as soon as possible.
Brake pads on.front brake pads worn. Have the brake pads replaced by a CITROËN
dealer or a qualified workshop.
Under-inflation
detection on.
an under-inflated or
punctured tyre. Stop and switch off the ignition. Change the
wheel or repair the tyre.
flashes for a few
seconds, then
stays on. a fault with the system.
Have the system checked by a CITROËN dealer
or a qualified workshop.
Rear parking
sensors on, accompanied by
a message in the
screen.
a fault with the system. Audible assistance is no longer active.
Have the system checked by a CITROËN dealer
or a qualified workshop as soon as possible.
Electronic gearbox on, accompanied by
a message in the
screen.
an incorrect operation by
the driver.
Repeat the desired operation.
flashing, accompanied
by an audible signal
and a message in the
screen. a fault with the gearbox.
Have the system checked by a CITROËN dealer
or a qualified workshop as soon as possible.
3
READY TO GO
Instruments and controls

34
FUEL GAUGE
The fuel level is tested every time the
ignition is switched on.
If the gauge is positioned on:
-
f (full):
the capacity of the fuel tank is
approximately 45 litres.
-

e (empty):
the reserve is now being
used, the warning lamp comes on
continuously.
The low fuel warning first comes on when
approximately 6 litres of fuel is left.
COOLANT TEMPERATURE
- wait approximately 15 minutes to allow
the engine to cool down in order to check
the level and top it up if necessary. The
cooling system is pressurised. In order to
avoid any risk of scalding, unscrew the
cap by two turns to allow the pressure to
drop.
When the pressure has dropped, check the
level and remove the cap to top up.
If the needle remains in the red zone,
contact a CITROËN or a qualified workshop.
EMISSIONS CONTROL
EOBD (European On Board Diagnosis) is a
diagnostics system which meets the exhaust
emissions standards for:
-

CO (carbon monoxide),
-


HC (unburnt hydrocarbons),
-


NOx (nitrous oxides) or particles detected

by oxygen sensors placed upstream and
downstream of the catalytic converters.
Refer to the "Checks - Levels" section. Refer to the "Checks - Levels" section.
The driver is warned of any
fault with this emission control
system by flashing of this specific
warning lamp in the instrument
panel.
If the needle enters the red zone, or
if the warning lamp comes on:
The needle is positioned between c (cold)
and h (hot): normal operation.
In arduous conditions of use or hot climatic
conditions, the needle may move close to
the red graduations.
-

stop immediately

, switch off the ignition.
The cooling fan may continue to operate
for a certain time up to approximately
10 minutes.
Instruments and controls

53Good practice
To change gear smoothly, always press the
clutch pedal fully down.
To prevent the mat from becoming caught under
the pedal:
-
ensure that the mat is positioned correctly,
-

never fit one mat on top of another
.
Avoid leaving your hand on the gear knob as
the force exerted, even if slight, may cause
wear of the internal components of the
gearbox over time.
MANUAL GEARBOX
Reverse

gear
Never engage reverse gear until the vehicle
is completely stationary.
The lever should be moved slowly to reduce
the noise on engaging reverse gear.
If your vehicle is fitted with parking
sensors, the system comes into
operation when reverse gear is engaged,
confirmed by an audible signal.
Refer to the "Technology on board -
Parking sensors" section.
STEERING WHEEL ADJUSTMENT
When the vehicle is stationary, release the
steering wheel adjustment by pushing the
lever down.
Adjust the steering wheel for height and
reach, then lock by pulling the lever up fully. When traversing a flooded road or a
ford, drive at walking pace.
3
READY TO GO
Gearbox and steering wheel

82

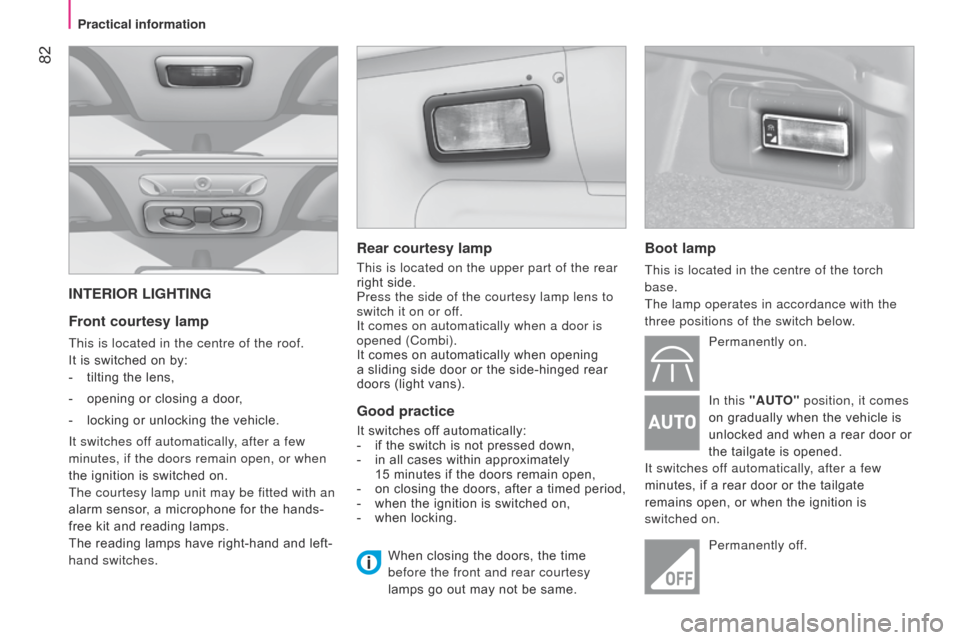

INTERIOR LIGHTING
Front courtesy lamp
This is located in the centre of the roof.
It is switched on by:
-
tilting the lens,
-


opening or closing a door
,
-

locking or unlocking the vehicle.
It switches of

f automatically, after a few
minutes, if the doors remain open, or when
the ignition is switched on.
The courtesy lamp unit may be fitted with an
alarm sensor, a microphone for the hands-
free kit and reading lamps.
The reading lamps have right-hand and left-
hand switches.
Rear courtesy lamp
This is located on the upper part of the rear
right side.
Press the side of the courtesy lamp lens to
switch it on or off.
It comes on automatically when a door is
opened (Combi).
It comes on automatically when opening
a sliding side door or the side-hinged rear
doors (light vans).
Good practice
It switches off automatically:
- if the switch is not pressed down,
-

in all cases within approximately

15 minutes if the doors remain open,
-

on closing the doors, after a timed period,
-


when the ignition is switched on,
-


when locking.
Boot lamp
This is located in the centre of the torch
base.
The lamp operates in accordance with the
three positions of the switch below. Permanently on.
In this "AUTO"
position, it comes
on gradually when the vehicle is
unlocked and when a rear door or
the tailgate is opened.
It switches off automatically, after a few
minutes, if a rear door or the tailgate
remains open, or when the ignition is
switched on.
Permanently off.
When closing the doors, the time


before the front and rear courtesy
lamps go out may not be same.
Practical information

88

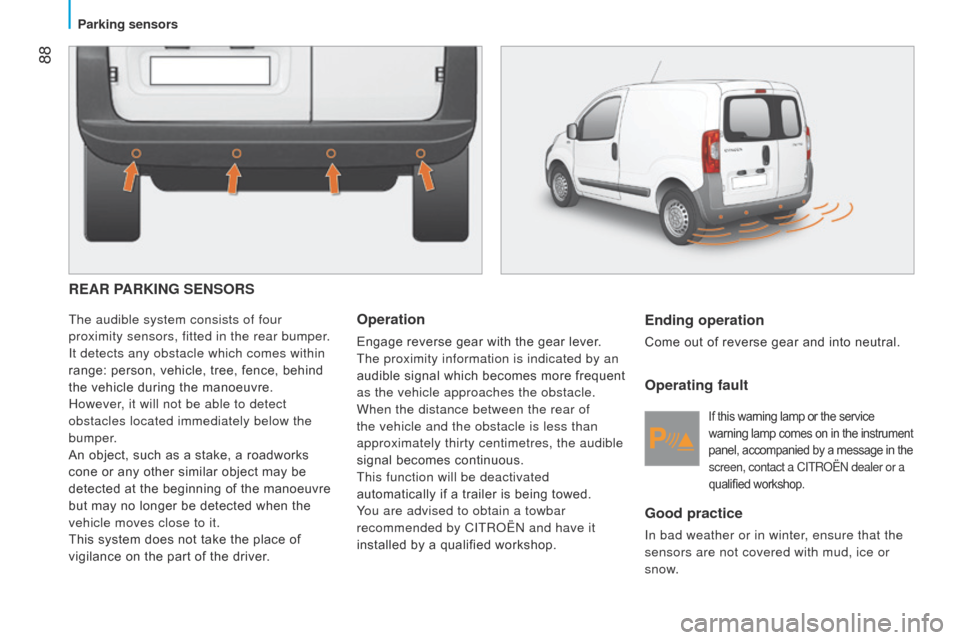

REAR PARKING SENSORS
The audible system consists of four
proximity sensors, fitted in the rear bumper.
It detects any obstacle which comes within
range: person, vehicle, tree, fence, behind
the vehicle during the manoeuvre.
However, it will not be able to detect
obstacles located immediately below the
bumper.
An object, such as a stake, a roadworks
cone or any other similar object may be
detected at the beginning of the manoeuvre
but may no longer be detected when the
vehicle moves close to it.
This system does not take the place of
vigilance on the part of the driver.Ending operation
Come out of reverse gear and into neutral.
Operating fault
If this warning lamp or the service
warning lamp comes on in the instrument
panel, accompanied by a message in the
screen, contact a CITRo Ë n dealer or a
qualified workshop.
Good practice
In bad weather or in winter, ensure that the
sensors are not covered with mud, ice or
snow.
Operation
Engage reverse gear with the gear lever.
The proximity information is indicated by an
audible signal which becomes more frequent
as the vehicle approaches the obstacle.
When the distance between the rear of
the vehicle and the obstacle is less than
approximately thirty centimetres, the audible
signal becomes continuous.
This function will be deactivated
automatically if a trailer is being towed.
You are advised to obtain a towbar
recommended by CITR
o Ë n and have it
installed by a qualified workshop.
88
Parking sensors
