warning light CITROEN RELAY 2012 Handbook (in English)

2

Contents
3. EASE OF USE andCOMFORT 41-73
Lighting control stalk 42Wipers 45Cruise control 46Demisting anddefrosting 49Manual heating / air conditioning 51Digital air conditioning 53Additional heatingsystems 55Rear Heating /Air Conditioning 55Programmableadditional heating 57Front seats 60Front bench seat 62Rear seats 63Crew cab 65Front fi ttings 66Rear fi ttings 70Mirrors 72Electric windows 73
Presentation4Exterior 5Access6Interior 8Sitting comfortably 10Seeing clearly 12Ventilation 14Monitoring 15Passenger safety 16Driving safely 17Eco-driving 18
1. FAMILIARISATION4-194. TECHNOLOGY onBOARD 74-92
Trip computer 74Mode 75Parking sensors 78Reversing camera 79Pneumatic suspension 81Tachograph 83Audio system 84
2. READY TO GO 20-40
Remote control 20Key 22Confi dential card 23Alarm 24Front - rear doors 25Load space 27Instrument panels 28Warning lamps 29Fuel gauge 36Temperature indicator 36Service indicator 37Lighting rheostat 37Gearbox and steeringwheel 38Starting and stopping 39Hill start assist 40


This symbol informs you of
equipment which is specific
to the combi model. Sliding side windows.
Rear heating / air
conditioning. Rear seats /
bench seats.

1
FAMILIARISATION
9
Familiarisation

Centre console


1.
Storage compartment between
2 adjustable vents.

2.
Audio equipment.

3.
Manual air conditioning.

4.
Portable ashtray.

5.
Cigarette lighter.
6.
12 volt accessory socket (180 W max).

7.
Dynamic stability control (ASR) /
Intelligent Traction Control.

8.
Central unlocking of the doors and load
space.
9.
Central locking / alarm indicator lamp.

10.
Hazard warning lamps.

11 .
Rear foglamps.

12.
Front foglamps.

13.
Demisting / defrosting.

14.
Gear lever.

221
FAMILIARISATION
15
Familiarisation

Reversing camera
The camera comes on when you engage
reverse gear and remains active up to
approximately 9 mph (15 km/h). It is
deactivated above 11 mph (18 km/h).

Screen
Press the button and place the screen in the
required position.

79



Instrument panel


A.
Speedometer.

B.
Instrument panel screen.

C.
Rev counter.

28

Warning lamps
With the ignition on, the orange and red
warning lamps come on.
With the engine running, these warning
lamps should switch off.
If warning lamps remain on, refer to the
chapter concerned.

29


MONITORING


Buttons
Brightness adjustment.
Back-lighting adjustment.
ON/OFF provides views of the
rear without engaging reverse
gear.

33
2
READY TO G
O

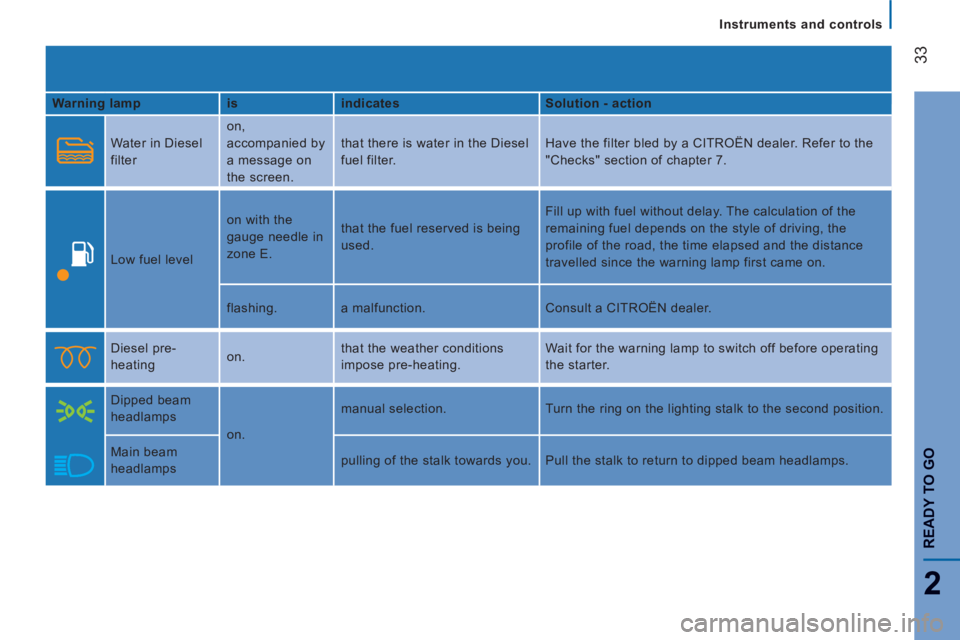

Instruments and controls

Warning lamp
is
indicates
Solution - action
Water in Diesel
filter on,
accompanied by
a message on
the screen. that there is water in the Diesel
fuel filter. Have the filter bled by a CITROËN dealer. Refer to the
"Checks" section of chapter 7.
Low fuel level on with the
gauge needle in
zone E. that the fuel reserved is being
used. Fill up with fuel without delay. The calculation of the
remaining fuel depends on the style of driving, the
profile of the road, the time elapsed and the distance
travelled since the warning lamp first came on.
flashing. a malfunction. Consult a CITROËN dealer.
Diesel pre-
heating on. that the weather conditions
impose pre-heating. Wait for the warning lamp to switch off before operating
the starter.
Dipped beam
headlamps
on. manual selection. Turn the ring on the lighting stalk to the second position.
Main beam
headlamps pulling of the stalk towards you. Pull the stalk to return to dipped beam headlamps.

34


Instruments and controls


Warning lamp
is
indicates
Solution - action
Direction
indicators flashing with
buzzer. a change of direction using the
lighting stalk, to the left of the
steering wheel. To the Right: press the stalk upwards.
To the Left: press the stalk downwards.
Front foglamps on. that the button on the centre
console has been pressed. Manual selection.
The foglamps only operate if the dipped beam
headlamps are on.
Rear foglamps on. that the button on the centre
console has been pressed. Manual selection. The foglamps only operate if the
dipped beam headlamps are on. When visibility is
normal, please switch the foglamps off.
Cruise control on. that the cruise control has been
selected. Manual selection.
Refer to the "Steering mounted controls" section of
chapter 3.
Faulty bulb on accompanied
by a message
on the screen. that one or more bulbs have
blown. Have the bulb changed.
Refer to the "Changing a bulb" section of chapter 8 or
contact a CITROËN dealer.
Rear parking
sensors on. failure of the system. The audible assistance is no longer active.
Have the system checked by a CITROËN dealer without
delay.

36


Instruments and controls


FUEL GAUGE

The fuel level is tested each time the key is
turned to the "running" position.
The gauge is positioned on:


- F (Full):
the fuel tank is full,
approximately 90 litres.

- E (Empty):
the reserve is now being
used, the warning lamp comes on
continuously.
The reserve when the warning first comes
on is approximately 11 litres.
Fuel tanks of different capacities (60 and
125 litres) are available as an option.
COOLANT TEMPERATURE

The needle is positioned between
C (Cold) and H (Hot):
normal operation.
In arduous conditions of use or hot climatic
conditions, the needle may move close to
the red graduations.
- wait for the engine to cool down in
order to check the level and top it up if
necessary. Follow this advice:

the cooling system is pressurised. In
order to avoid any risk of scalding,
unscrew the cap by two turns to allow
the pressure to drop.
When the pressure has dropped, check the
level and remove the cap to top up.
If the needle remains in the red zone,
contact a CITROËN dealer.
Refer to the "Levels" section of
chapter 7.
Refer to the "Fuel" section of chapter 7.
What you should do if the needle enters
the red zone, or if the warning lamp
comes on:


- stop immediately, switch off the ignition. The
fan may continue to operate for a certain
time up to approximately 10 minutes.
EMISSION CONTROL

EOBD (European On Board Diagnosis) is
a diagnostics system which complies with,
among others, the standards concerning
authorised emissions of:


- CO (carbon monoxide),

- HC (unburnt hydrocarbons),

- NOx (nitrogen oxides) or particles,
detected by oxygen sensors placed
upstream and downstream of the
catalytic converters.

Therefore, the driver is warned of any
malfunction of this emission control
system by the lighting of this specifi c
warning lamp on the instrument panel.
There is a risk of damage to the catalytic converter.
Have it checked by a CITROËN dealer.

37
2
READY TO G
O
Instruments and controls
SERVICE INDICATOR
For a few seconds after the ignition is switched
on, the spanner symbolising the service
indicator comes on: the screen informs you
when the next service is due, in accordance
with the manufacturer's servicing schedule
indicated in the servicing booklet. This
information is determined in relation to the
distance travelled since the previous service.
LIGHTING RHEOSTAT
The rheostat is active when the lighting is on. After a few seconds, the display returns to
its usual functions.
Use these controls to adjust the
brightness of the instrument panel.
There are 8 levels. A long press returns you to the main
menu.
Refer to "Mode" section of chapter 4.


Deterioration of the engine oil

The warning lamp fl ashing and,
if your vehicle has the function, a
message displayed at every engine
start: the system has detected
deterioration of the engine oil. Have
the oil changed as soon as possible.
Reminder of servicing information
At any time, to access the service indicator,
press briefly on the MODE button.
Use the up/down arrows to see the
scheduling and engine oil wear information.
Pressing the MODE button again allows you
to return to the various display menus.
Menu...
Choose...

Allows you
to...

12
Service Service
(miles/km
before oil
change) Display the
distance
remaining
before the
next oil
change.
Oil Display the
oil level.
Resetting to zero
The stopping of the permanent flashing of
the indicator is carried out by an repairer
equipped with a diagnostic tool.

Refer to the list of checks in the
servicing booklet which was given to
you on handover of the vehicle. For 3.0 litre HDi engines, the engine speed
is restricted to 3 000 rpm, then 1 500 rpm
until the oil change is done. Have the engine
oil changed to avoid any risk of damage.

This 2 nd warning lamp, coupled with
the 1 st , comes on in the instrument
panel when the oil has not been
changed and the deterioration of the
oil has reached another threshold. To
avoid the risk of damage, have the oil
changed without waiting for this level.

38


Gearbox and steering wheel


MANUAL

To change gear easily, always depress the
clutch pedal fully.
To prevent the mat from becoming caught
under the pedal:


- ensure that the mat is positioned
correctly,

- never fit one mat on top of another.

Avoid leaving your hand on the gear knob as
the force exerted, even if slight, may wear
the internal components of the gearbox over
time.
GEARBOX AND STEERING WHEELSTEERING WHEEL REACH ADJUSTMENT

With the vehicle stationary, first adjust your
seat to the most suitable position.
Unlock the steering wheel adjustment by
pulling the lever towards you.
Adjust the reach of the steering wheel, then
lock by lowering the lever fully.
As a safety precaution, these operations
must not be carried out while driving.
Reverse gear

Raise the collar under the gear knob to
engage reverse gear. Never engage reverse gear before the
vehicle is completely stationary.
The lever should be moved slowly to reduce
the noise on engaging reverse gear.
Your reversing manoeuvre is indicated by an
audible exterior warning.
If your vehicle is fitted with parking
sensors, the system comes into
operation when reverse gear is engaged and
an audible signal is heard.
Refer to the "Rear parking sensors"
section of chapter 4.

44
Steering mounted controls
HEADLAMP BEAM
You are advised to adjust the height of the
headlamp beams in accordance with the
load in your vehicle.
This function works in the dipped and main
beam headlamps position.
Press these controls, located
on the dashboard, several times
in succession to adjust the
headlamps.
An indicator lamp on the screen
indicates the adjustment position
selected (0, 1, 2, 3).
PARKING LAMPS

This system enables you to leave the lamps
on when parked; with the ignition off, key in
the STOP position or key removed.
Move the ring on the lighting stalk to
position O then to dipped or main beam
headlamps.

The warning lamp on the
instrument panel comes on.
The lamps will remain on while
you are parked.
Leaving the lighting on for long
periods may significantly reduce the state of
charge of your vehicle's battery.

94

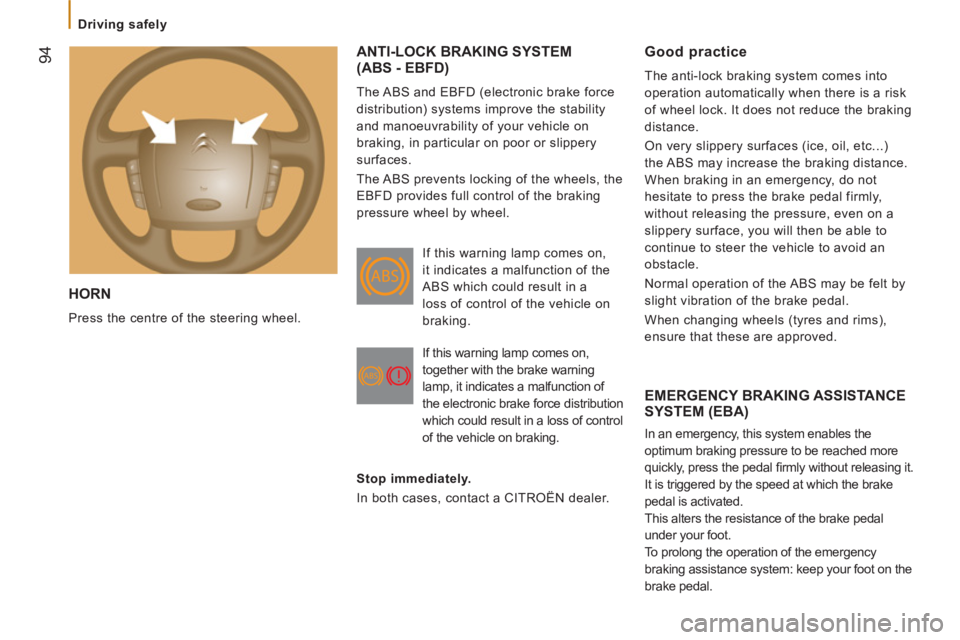

Driving safely


HORN

Press the centre of the steering wheel.
ANTI-LOCK BRAKING SYSTEM (ABS - EBFD)

The ABS and EBFD (electronic brake force
distribution) systems improve the stability
and manoeuvrability of your vehicle on
braking, in particular on poor or slippery
surfaces.
The ABS prevents locking of the wheels, the
EBFD provides full control of the braking
pressure wheel by wheel.
EMERGENCY BRAKING ASSISTANCE
SYSTEM (EBA)
In an emergency, this system enables the
optimum braking pressure to be reached more
quickly, press the pedal fi rmly without releasing it.
It is triggered by the speed at which the brake
pedal is activated.
This alters the resistance of the brake pedal
under your foot.
To prolong the operation of the emergency
braking assistance system: keep your foot on the
brake pedal.

Good practice

The anti-lock braking system comes into
operation automatically when there is a risk
of wheel lock. It does not reduce the braking
distance.
On very slippery surfaces (ice, oil, etc...)
the ABS may increase the braking distance.
When braking in an emergency, do not
hesitate to press the brake pedal firmly,
without releasing the pressure, even on a
slippery surface, you will then be able to
continue to steer the vehicle to avoid an
obstacle.
Normal operation of the ABS may be felt by
slight vibration of the brake pedal.
When changing wheels (tyres and rims),
ensure that these are approved. If this warning lamp comes on,
it indicates a malfunction of the
ABS which could result in a
loss of control of the vehicle on
braking.
If this warning lamp comes on,
together with the brake warning
lamp, it indicates a malfunction of
the electronic brake force distribution
which could result in a loss of control
of the vehicle on braking.

Stop immediately.
In both cases, contact a CITROËN dealer.
