CITROEN RELAY 2013 Handbook (in English)

99

Bluetooth hands-free system

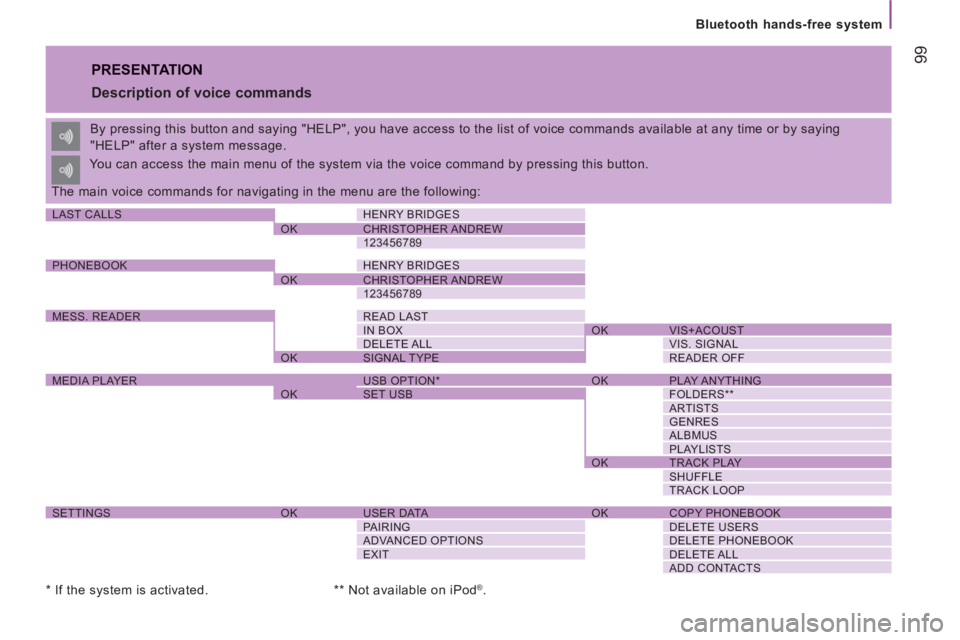

PRESENTATION

Description of voice commands

By pressing this button and saying "HELP", you have access to the list of voice commands available at any time or by saying
"HELP" after a system message.
The main voice commands for navigating in the menu are the following: You can access the main menu of the system via the voice command by pressing this button.

* If the system is activated.
** Not available on iPod
®.

LAST CALLS

HENRY BRIDGES
OK CHRISTOPHER ANDREW
123456789
PHONEBOOK HENRY BRIDGES
OK


CHRISTOPHER ANDREW
123456789
MESS. READER READ LAST
IN BOX OK VIS+ACOUST
DELETE ALL VIS. SIGNAL
OK SIGNAL TYPE READER OFF
MEDIA PLAYER USB OPTION * OK PLAY ANYTHING
OK SET USB FOLDERS **
ARTISTS
GENRES
ALBMUS
PLAYLISTS
OK TRACK PLAY
SHUFFLE
TRACK LOOP
SETTINGS OK USER DATA OK COPY PHONEBOOK
PAIRING DELETE USERS
ADVANCED OPTIONS DELETE PHONEBOOK
EXIT DELETE ALL
ADD CONTACTS

100

Bluetooth hands-free system
When prompted by the telephone, enter the
PIN displayed in the instrument panel.
If the pairing has been successful, the
system announces "Connecting".
The name of the telephone identified
appears in the instrument panel screen,
pairing is confirmed. "Settings"\wait for a response\
"Pairing".

PIN
Pairing a mobile telephone
Pairing consists of setting your vehicle's
Bluetooth
® system to recognise your mobile
telephone.
For this you must activate the Bluetooth
®
function of your telephone and set its
visibility.
MOBILE TELEPHONE WITH HANDS-FREE FUNCTION

With the ignition on, activate the
main menu.
Select SETTINGS.
Confirm.
Select PAIRING.
Confirm. This number, which permits
recognition of your mobile
telephone, is generated
randomly by the system.
It is communicated by the instrument panel
screen and is repeated verbally by the
system.
This PIN is independent of your SIM card
and your mobile's access code.
Once your handset has been paired, there is
no need to keep a record of this number.
If you change your mobile telephone, you
must repeat the pairing procedure as you
will be given a new PIN.
Look for the option which displays
the Bluetooth
® system detected
by your telephone.
When the system has been
identified, a message appears in
your telephone (My car, ...).
Pressing MAIN or ESC during
the pairing phase may cancel the
procedure.
If the pairing fails, an error message will
appear; in this case, repeat the procedure.

101

Bluetooth hands-free system

Downloading your phonebook

There are 2 options:

1
- Following the pairing procedure, the
system suggests downloading your
telephone's phonebook.
Calling a contact recorded in the
phonebook
Your telephone's phonebook must first be
downloaded into the system. "Call [Name of the person]"\
wait until the information relating
to the person (name, tel. n°, ...)
appears\
"Yes" to make the call or "No" to
cancel.
Pressing confi rms your agreement.
"Yes" starts the download.
Pressing declines this download.
"No" declines.

2
- You can download the phonebook later
via the menu:
Activate the main menu.
Select SETTINGS then USER
DATA then PHONEBOOK.
"Settings"\"User data"\
"Download phonebook". Activate the main menu.
Select PHONEBOOK.
Confirm.
Select the group with which
the person to be contacted is
associated.
Confirm.
Select the name.
Confirm to make the call, if the
person has only one number. If the person has more than one number:
Select the number.
Confirm to make the call.
Specify "Home" or "Work", or "Next"
or "Previous".
Press OK to make the call.

102

Bluetooth hands-free system

Making a call by dialling a number
Ending a call
Incoming call
"Dial / Dial a number"\
Say the number character by
character (+, #, *), digit by
digit (0 to 9).
The system displays and
verbally repeats the number
recognised.
"Call" if the number is correct.
or
"Cancel" to cancel dialling of the
number.
"Start over" to delete and start
dialling another number.
"Repeat" to hear the number again. If the person is recorded in
the phonebook, his name is
displayed.
Press to accept the call.
Press and hold to decline
the call.
Press to ignore the call, however,
the call is stored in the log of
incoming calls.
During a call, if a second incoming call
is received.
By means of the voice commands only Press and hold.
Press to switch the conversation
and place the other person
on hold.

103

Bluetooth hands-free system

Transferring an active call

There are 2 options:

1
- From the mobile telephone to the hands-
free system
With the ignition on, the recognition
connection between the mobile telephone
and the vehicle's audio equipment is done
automatically.
Confirm this recognition using the keypad on
the mobile telephone.
The call can then be transferred.

Placing a call on hold
Call list
This enables you to call the number of one
of the last 10 calls received, of one of the
last 10 people called or of one of the last
5 missed calls.

2
- From the hands-free system to the
mobile telephone
Press to deactivate the
microphone and place your
contact on hold.
Press again to resume the
conversation. Activate the main menu.
Select CALL LIST.
Confirm.
Select the number to be called.
Confirm. "Callback" for the last person who
called you, or
"Redial" for the last person you
called.
"Yes" or "No" to confirm/cancel.
The "Redial" button can also be
used.
The system will again ask "Redial
or callback?".
"Callback" to call back the last
person who called you.
"Redial" to redial the last person
you called.

Press, the system's controls are
still active.

104

Bluetooth hands-free system
VOICE COMMANDS

The key words which can be recognised by the system are organised into three levels (levels 1, 2 and 3).
When you say a level 1 command, the system makes the level 2 commands available; when you say a level 2 command,
the system makes the level 3 commands available.

Settings/pairing



Level 1


Level 2


Level 3


Actions

Settings
Adjust
Configure User data Activation of the hands-free system SETTINGS menu.
Activation of the USER DATA menu.
Delete users Deletion of the data recorded for all of the users.
Delete contacts /
Delete directory /
Delete numbers Deletion of the phone book data.
Copy phone book /
Copy phonebook /
Copy numbers Transfer of the phone books from your mobile telephone to the hands-
free system (available according to the type of mobile telephone).
Add Contacts Transfer of the names from your mobile telephone to the hands-free
system (available according to the type of mobile).
Delete all Deletion of the pairing data and of the phone books / contacts of all
of the telephones paired, with restoration of the default settings of
the hands-free system.
Pairing / Pair / Pair the user Activation of the pairing procedure for a new mobile telephone.
Advanced options Activation of the ADVANCED OPTIONS menu.

105

Bluetooth hands-free system
The key words which can be recognised by the system are organised into three levels (levels 1, 2 and 3).
When you say a level 1 command, the system makes the level 2 commands available; when you say a level 2 command,
the system makes the level 3 commands available.
VOICE COMMANDS

Mobile telephone with hands-free function



Level 1


Level 2


Level 3


Actions

Dial / Dial a number One, Two, ... , Plus,
Star, Hash
Call / Dial Entering the digits or symbols to dial the telephone number.
Delete / Correct Deletion of the last group of digits entered.
Start over Deletion of all of the groups of digits entered with the option of
entering a new number.
Repeat Repeating the telephone number entered and recognised by the
hands-free system.
Cancel Cancellation of dialling of the number.
Sending the call to the number entered verbally.
Call [ Name ] Yes / No Call to the name of the person, stored in the system's phone book.
Mobile
Call to the name of the person with personalisation if there are
several numbers stored in the system. Home
Work / Office
Redial Call to the last person called.
Callback Call to the last person who called.

106

Bluetooth hands-free system
If your mobile telephone includes this
function, every time a text message is
received, the system produces an audible
signal and offers to read the text message
vocally.
To read the text received.
"Yes" starts the playback of the text
received.
Only on mobile telephones with this
function
To save a message and read it
later.
"No" to save the message and read
it later.
TEXT READER


Read an incoming text message
Read the last text received
Activate the main menu.
Select MESS. READER.
Confirm.
Select READ LAST.
Confirm.
"Read last" starts playback of
the last text message received.
List of text messages
The system can hold around 20 text
messages. If the list is full, reception of a
new text message causes the deletion of the
oldest text message.
To go to a specific text message:
Activate the main menu.
Select MESS. READER.
Confirm.
Select IN BOX.
Confirm.

107

Bluetooth hands-free system
Select the desired text message.
"Message reader" then after the
audible signal "message received".
"Previous" or "Next" moves through
the list of text messages.
"Read" starts reading of the text
message selected. Confi rm to read the text message.

Managing text messages
"Read" starts reading of the message.
"Erase" deletes the message.
"Call" allows you to contact the
sender of the message.
Deleting all text messages
Activate the main menu.
Select DELETE ALL.
Confirm.
The system asks you to confirm your choice:
Confirm to delete.
To cancel.
"Message reader" then after the
audible signal "Delete all".
The system requests confirmation,
reply with: "Yes" to confirm or "No"
to cancel. "Message reader" then after the
audible signal "Signal type".
The system lists the options, select
between: "Reader deactivated", "Audio
and visual info" or "Visual info only".

Information settings
Activate the main menu.
Choose the desired option. During reading of the message: Activate the main menu.
Select MESS. READER.
Confirm.
Select SIGNAL TYPE.
Confirm to select from the
3 choices available:


- Audio + visual: the system signals the
receipt of a message audibly and visibly
and offers to read it.

- Visual only: reception of a message is
signalled visibly in the instrument panel.

- Off: the text message reader is
deactivated.

108

Bluetooth hands-free system
VOICE COMMANDS


Message reader

The key words which can be recognised by the system are organised into three levels (levels 1, 2 and 3).
When you say a level 1 command, the system makes the level 2 commands available; when you say a level 2 command,
the system makes the level 3 commands available.


Level 1


Level 2


Level 3


Actions

Message reader
Messages Messages received /
Received Activation of the MESS. READER menu.
Activation of the list of text messages received.
Read/ read again Reads the text message selected in the list.
Call Deletion of the phone book data.
Delete Transfer of the phone books from your mobile telephone to the
hands-free system (available according to the type of mobile).
Back / Next / Next Go to the next text message in the list .
Back / Previous Go to the previous test message in the list.
Read last / read last message / read message Read the last text message received.
Delete all / Delete messages / Delete Delete all text messages in the list after confirmation.
