Citroen SPACETOURER 2016 1.G Owner's Manual

119
Spacetourer-VP_en_Chap03_ergonomie-et-confort_ed01-2016
If the torch is not engaged correctly, it
may not charge and may not come on
when the boot is opened.
Use
F Extract the torch from its location by pulling it from the front.
F

P
ress the switch, located on the back, to
switch the torch on or off.
F

U
nfold the leg, located on the back, to set
down and raise the torch; for example,
when changing a wheel.
Storing
F Put the torch back in place in its location starting with the rear.
I

f you have forgotten to switch off the torch,
this switches it off automatically.
Observe the polarities when fitting the
batteries.
Never replace the rechargeable
batteries with single-use batteries.
To r c h
Portable lighting, located at the rear, which can
be used to illuminate the rear and as a torch.
This torch operates with NiMH type
rechargeable batteries.
It has a battery life of approximately 45 minutes
and charges while you are driving.
3
Ease of use and comfort

120
Spacetourer-VP_en_Chap03_ergonomie-et-confort_ed01-2016

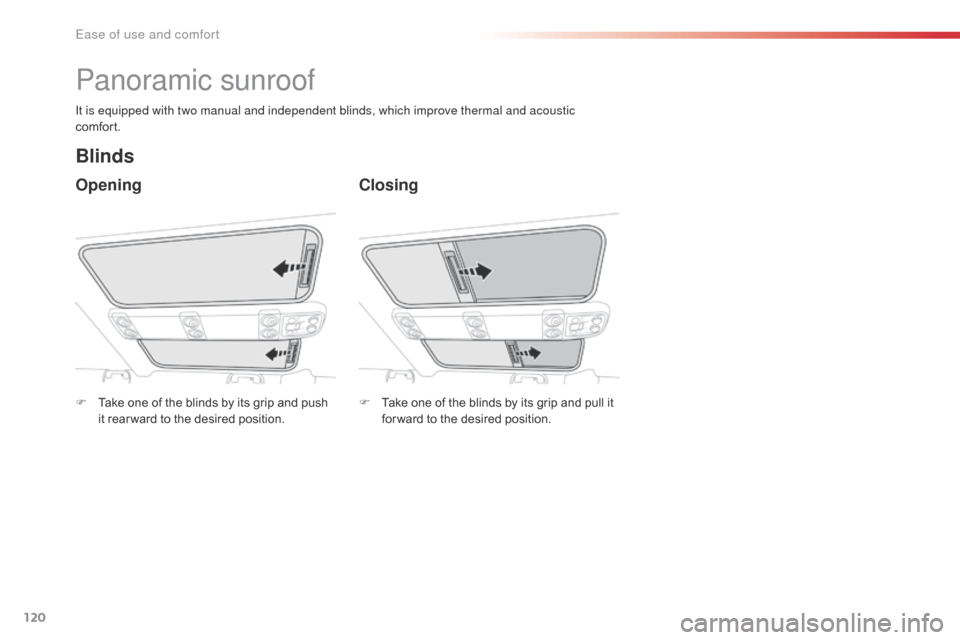

Panoramic sunroof
Opening
Blinds
Closing
It is equipped with two manual and independent blinds, which improve thermal and acoustic
comfort.
F
T
ake one of the blinds by its grip and push
it rear ward to the desired position. F

T
ake one of the blinds by its grip and pull it
for ward to the desired position.
Ease of use and comfort

121
Spacetourer-VP_en_Chap03_ergonomie-et-confort_ed01-2016
Folding and sliding table
Storage
For correct sliding of the table, ensure
that there is no object in the space used
by the runner on the floor.
Before manoeuvring the table, check
that there is nothing on the table.
The storage space can accept a
maximum weight of 3 kg; do not exceed
this maximum load in use. You can move the table folded or
unfolded. However, for greater safety, it
is recommended that the assembly be
moved in the folded position.
It comprises a central storage space closed
with a lid. Unfolded, it offers a table with two
tops on which objects can be placed. The
central area includes two cup holders and can
also be used to place small objects (credit card,
pen,
...

).
The assembly is mounted on a runner allowing it
to be positioned equally well in row 2 or row 3.
F Slide back the cover for access to 11 litres
of storage space.
Moving forward or backward
F Raise this control (without going beyond the point of resistance) and slide the
assembly for ward or backward.
F

R
elease the control when it is in the
desired position.
F

C
heck that the table is correctly latched on
the runner. If this is not the case, move the
assembly slightly to the next notch on the
r u n n e r.
3
Ease of use and comfort

122
Spacetourer-VP_en_Chap03_ergonomie-et-confort_ed01-2016
Unfolding
F Pull each table top fully up then pivot them on each side into the horizontal position. F

R
aise each table top, going beyond the
point of resistance, to the vertical position.
F
P
ush each table top down into its housing
until it clicks into place.
F
P
ush the control then tip the table
assembly downward until it clicks into
place.
Folding
Before stowing the table tops, check
that there is no object underneath.
Before tipping the assembly down,
check that the two table tops have
clicked home in the low position and
that there is nothing in the cup holder
area (such as a can or pen).
F

O

perate the control on the top and pull the
table assembly up until it clicks into place.
Cup holders
Liquids carried in an open vessel (a cup
or mug) could be spilt, presenting a risk.
Take care.
Never use the table in this position
while the vehicle is being driven.
Two cups or cans and small objects (such as
a credit card, portable ashtray or pen) can be
carried in the middle of the unfolded table.
Ease of use and comfort

123
Spacetourer-VP_en_Chap03_ergonomie-et-confort_ed01-2016
F Raise the control fully to release the anchorages and tip the table assembly
forward.
F

R
emove the table assembly through the
sliding door in row 2.
Removing Changing the direction
With the table removed, you can turn it 180°. F
C
heck that there is no object obstructing
the runner, which could prevent correct
latching.
Refitting
Remove a seat to make this easier.
Check that there is nothing in the space
around the runner on the floor, so that
the table disengages cleanly. F

C
heck that the control is in the up position
(latching mechanism armed). If not, raise
this control fully to arm the mechanism.
F
P
lace the front of the table on the runner.
F
T
aking care not to inter fere with the control,
tip the assembly down at the rear until it
clicks into place.
F

C
heck that the assembly is correctly
latched on the runner. if this is not the
case, slide the assembly along the runner
to the next notch.
F

R
elease the control until the guide latches
in the runner.
3
Ease of use and comfort

124
Spacetourer-VP_en_Chap03_ergonomie-et-confort_ed01-2016
Take care of passengers' feet when
manoeuvring the assembly.Incorrect use of the table could cause
serious injury.
Never use the table open or unfolded
while the vehicle is being driven. An
object on the table is turned into a
projectile under heavy braking.
Ensure that the table is correctly stowed
in the low position before moving off.
Never use the table tops as seats or
lean on them.
A label on the table is a reminder of this.Never place hot objects such as
casseroles or cooking pans on the
table, you risk damaging its sur face
(risk of fire).
With the table deployed, each top can
support a maximum of 10 kg. Failure to
observe this maximum load introduces
the risk of damaging all or part of the
table module.
Never raise the table when it is between
individual seats; this risks damaging the
table tops.
Storage off the runner
If removing and storing the table
out of the vehicle, ensure that it is
placed in a clean area, so as to avoid
introducing any foreign bodies into the
mechanisms.
The table assembly must be placed on
a flat and level sur face when out of the
vehicle, resting on the guide so as to
avoid damaging the visible parts.
Caution, when out of the vehicle, the
table leans to the right or left when put
down.
Ease of use and comfort

125
Spacetourer-VP_en_Chap03_ergonomie-et-confort_ed01-2016

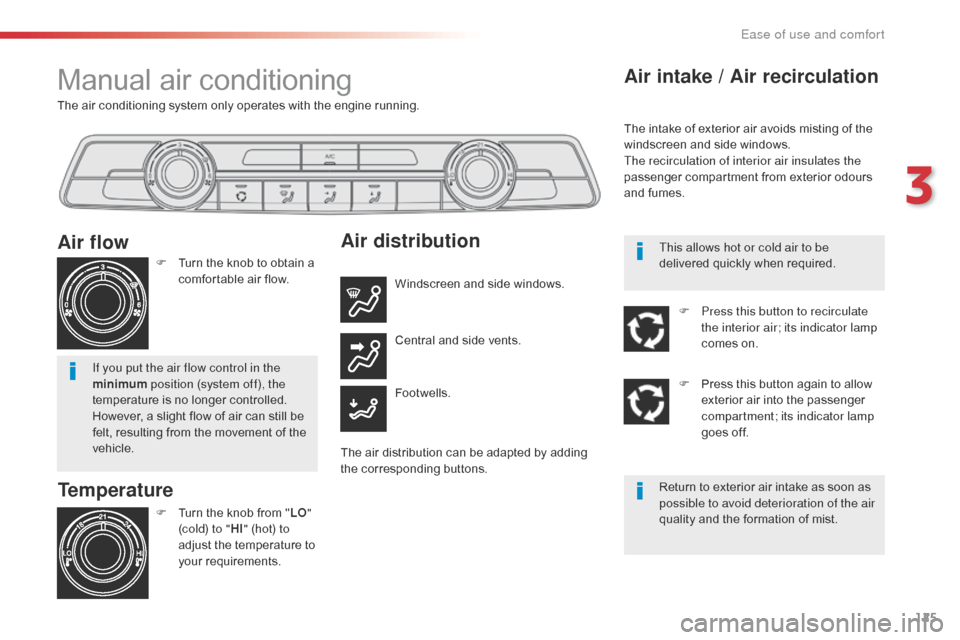

The air conditioning system only operates with the engine running.
Manual air conditioning
Temperature
F Turn the knob from "LO"
(cold) to " HI" (hot) to
adjust the temperature to
your requirements.
Air flow
F Turn the knob to obtain a comfortable air flow.
If you put the air flow control in the
minimum position
(system off), the
temperature is no longer controlled.
However, a slight flow of air can still be
felt, resulting from the movement of the
vehicle.
Air distribution
Windscreen and side windows.
Footwells. Central and side vents.
The air distribution can be adapted by adding
the corresponding buttons.
Air intake / Air recirculation
The intake of exterior air avoids misting of the
windscreen and side windows.
The recirculation of interior air insulates the
passenger compartment from exterior odours
and fumes.
Return to exterior air intake as soon as
possible to avoid deterioration of the air
quality and the formation of mist. This allows hot or cold air to be
delivered quickly when required.F

P
ress this button to recirculate
the interior air; its indicator lamp
comes on.
F

P
ress this button again to allow
exterior air into the passenger
compartment; its indicator lamp
goes off.
3
Ease of use and comfort

126
Spacetourer-VP_en_Chap03_ergonomie-et-confort_ed01-2016
Air conditioning
Switching on
With the engine running, the air conditioning is
designed to operate effectively in all seasons,
with the windows closed.
It enables you to:
-
l
ower the temperature, in summer,
-

i
ncrease the effectiveness of the demisting
in winter, above 3°C.
To obtain cool air more quickly, you
can use interior air recirculation for
a few moments. Then return to the
intake of exterior air. F
P
ress this button; its indicator
lamp comes on. F

P
ress this button again; its
indicator lamp goes off.
Switching off
The air conditioning does not operate
when the air flow adjustment is set to
of f. Switching off may result in some
discomfort (humidity, misting).
Ease of use and comfort

127
Spacetourer-VP_en_Chap03_ergonomie-et-confort_ed01-2016
A setting around 21 enables you to
obtain an optimum level of comfort.
Depending on your requirements, a
setting between 18 and 24 is usual.
In addition, it is recommended that you
avoid a left /right setting difference of
more than 3.
Dual-zone automatic air conditioning
Offers the best compromise between
a comfortable temperature and quiet
operation.
Provides soft and quiet operation by
limiting air flow. Provides strong and effective air flow.
F
P
ress the "
AUTO" button
repeatedly.
Automatic comfort mode TemperatureF Push the button down to
reduce the value or up to
increase it.
When the engine is cold, the air flow will
only reach its optimum level gradually
to prevent too great a distribution of
cold air.
In cold weather, it favours the
distribution of warm air to the
windscreen, the side windows and the
footwells only.
The active mode appears in the display screen,
as described below:
If desired, you can choose settings different
to those offered by the system, by adjusting a
setting manually. The other functions are still
managed automatically.
The "AUTO " symbol disappears if you modify
a setting.
Manual mode
The driver and front passenger can each set
the temperature to suit their requirements.
The value indicated in the screen corresponds
to a level of comfort and not to a temperature in
degrees Celsius or Fahrenheit.
3
Ease of use and comfort

128
Spacetourer-VP_en_Chap03_ergonomie-et-confort_ed01-2016
Visibility programme
F Press the "visibility" button for
faster demisting or defrosting
of the windscreen and side
windows.
F

P
ress the " visibility" button
again to stop the programme.
The system automatically manages the
air conditioning, air flow and air intake and
distributes the flow of air to the windscreen and
side windows to the best effect.
For maximum cooling or heating of
the passenger compartment, you can
exceed the minimum value of 14 or the
maximum value of 28. F

P

ush the button down
until "LO" is displayed
or up until "HI" is
displayed.
On entering the vehicle, if the interior
temperature is much colder or warmer
than the comfort value, there is no need
to alter the value displayed in order to
obtain the required level of comfort.
The system corrects the temperature
difference automatically and as quickly
as possible.
"Mono" function
The comfort setting for the passenger side
can be indexed to the driver's comfort setting
(mono-zone).
The function is deactivated automatically if a
passenger uses the temperature control.
Or
F

P
ress the "AUTO" button to
return to the automatic comfort
programme.
F

P
ress this button to activate /
deactivate the "Mono" function.
The indicator lamp in the button is on
when the function is activated.
Ease of use and comfort
