DACIA DUSTER 2010 1.G 13 Pin Towbar Fitting Guide Workshop Manual  241 577 257 R / --A  15 / 03 / 2010  1 / 16


DUSTER
04/10 I–>




241 577 257 R



FRA  Instructions de montage  KOR 조립설명서
CZA  Pokyny pro montáž  LTH  Montavimo instruk

Page 2 of 10

DACIA DUSTER 2010 1.G 13 Pin Towbar Fitting Guide Workshop Manual  241 577 257 R / --A  15 / 03 / 2010  2 / 16

 KIT


 TOOLS

Page 3 of 10

DACIA DUSTER 2010 1.G 13 Pin Towbar Fitting Guide Workshop Manual  241 577 257 R / --A  15 / 03 / 2010  3 / 16

1


2


3

Page 4 of 10

DACIA DUSTER 2010 1.G 13 Pin Towbar Fitting Guide Workshop Manual  241 577 257 R / --A  15 / 03 / 2010  4 / 16

4


5


6

Page 5 of 10

DACIA DUSTER 2010 1.G 13 Pin Towbar Fitting Guide Workshop Manual  241 577 257 R / --A  15 / 03 / 2010  5 / 16

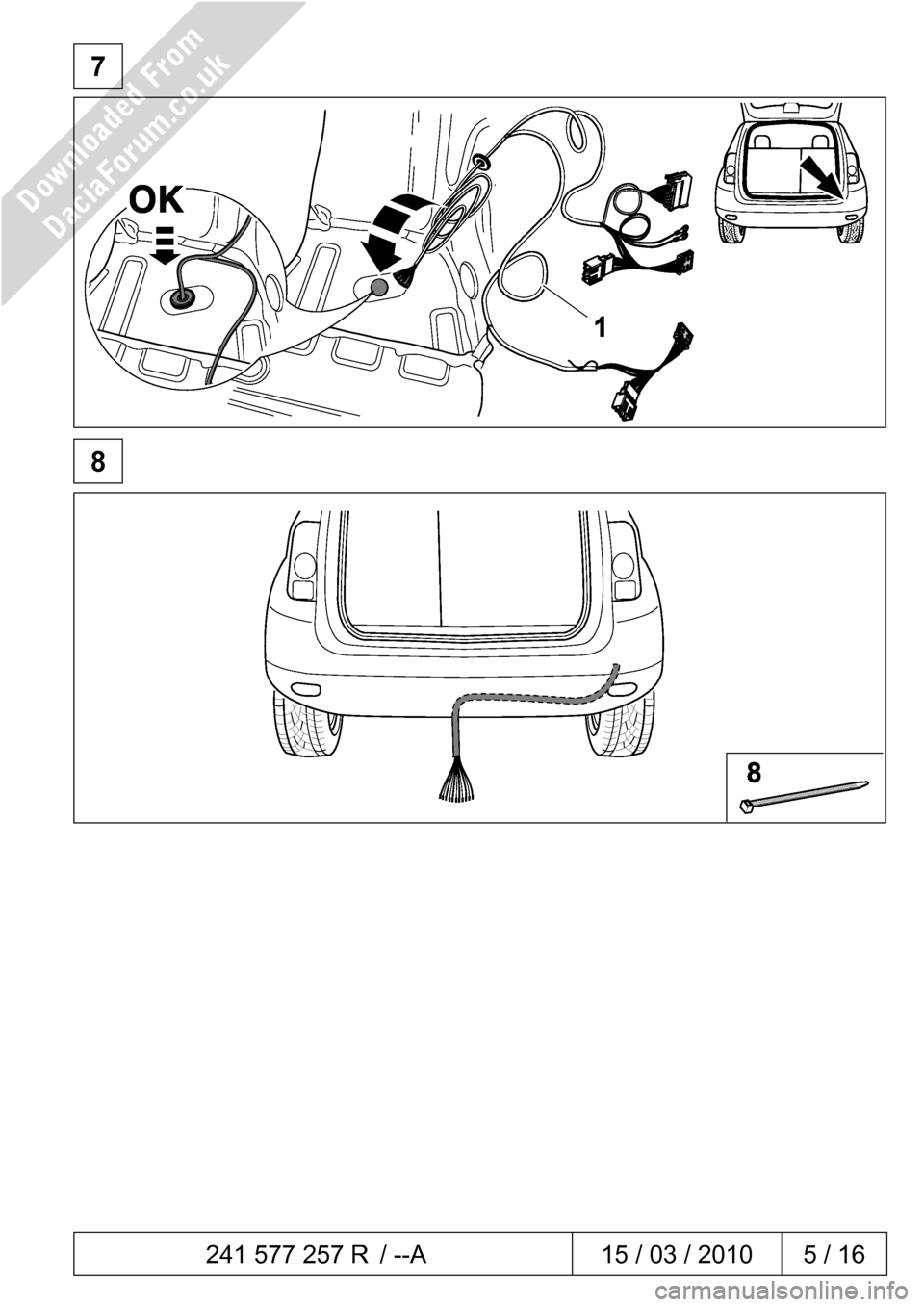

7


8

Page 6 of 10

DACIA DUSTER 2010 1.G 13 Pin Towbar Fitting Guide Workshop Manual  241 577 257 R / --A  15 / 03 / 2010  6 / 16

9


10  �Ö
11

Page 7 of 10

DACIA DUSTER 2010 1.G 13 Pin Towbar Fitting Guide Workshop Manual  241 577 257 R / --A  15 / 03 / 2010  7 / 16

11  �Ö
12

1 bk/wh  8 bu/rd
2 gy  9 rd
3 bk  10 ye
4 bk/gn  11 bk
5 gy/rd  12 no  -/-
6 bk/rd  13 bk
7 gy/bk
12 bk  wh  gy  gn  rd

Page 8 of 10

DACIA DUSTER 2010 1.G 13 Pin Towbar Fitting Guide Workshop Manual  241 577 257 R / --A  15 / 03 / 2010  8 / 16

13


14

Page 9 of 10

DACIA DUSTER 2010 1.G 13 Pin Towbar Fitting Guide Workshop Manual  241 577 257 R / --A  15 / 03 / 2010  9 / 16

15


16  �Ö
12

Page 10 of 10

DACIA DUSTER 2010 1.G 13 Pin Towbar Fitting Guide Workshop Manual  241 577 257 R / --A  15 / 03 / 2010  10 / 16

17


18

FRA Contrôler les fonctions!
KOR
기능 확인하기
CZA Zkontrolujte funkce!
LTH Patikrinti funkcijas!
DAN Kontro
