Section 1: Getting to know your vehicle
Keys/Radio frequency remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.2
Locking and unlocking the doors
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.5
Opening and closing the doors
.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.7
Engine immobiliser system
.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.8
Headrests
.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.9
Front seats. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.1
1
Seat belts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.12
Methods of restraint in addition to the front seat belts
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.16
Side protection devices
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.19
Additional methods of restraint
.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.20
Child safety: general information
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.21
mounting a child seat
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.24
fitting a child seat
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.26
deactivating/activating the front passenger airbag
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.32
Rear-view mirrors
.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.35
Driving position
.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.36
Instrument panel: warning lights
.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.40
Display and indicators
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.44
On-board computer
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.46
Steering wheel, Power-assisted steering
.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.50
Clock
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.51
Audible and visual signals
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.52
Exterior lighting and signals. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . .
1.54
Adjusting the headlight beam height
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.56
Windscreen washer/wiper
, De-icing
.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.57
Fuel tank (filling with fuel)
.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.60
Page 17 of 200
front seat adjustment ............................ (up to the end of the DU)
front seats adjustment ...................................... (up to the end of the DU)
1.11
ENG_UD20680_3
Sièges avant (H79 - Dacia)
ENG_NU_898-5_H79_Dacia_1

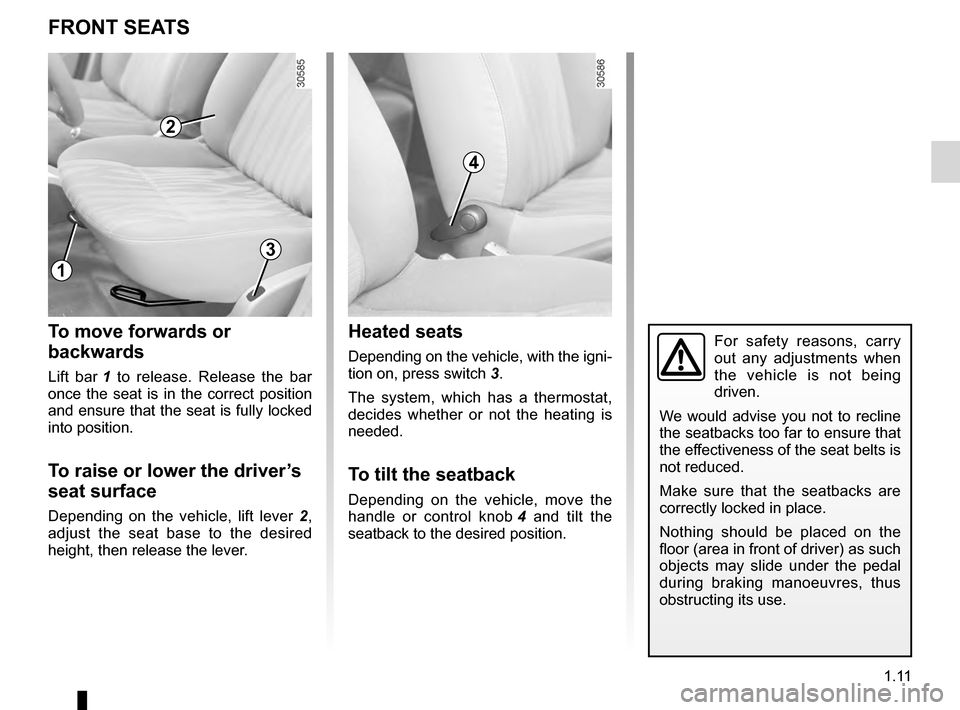

Front seats
FRONT SEATS
To move forwards or
backwards
Lift bar 1 to release. Release the bar
once the seat is in the correct position
and ensure that the seat is fully locked
into position.
To raise or lower the driver’s
seat surface
Depending on the vehicle, lift lever 2,
a djust the seat base to the desired
height, then release the lever.
For safety reasons, carry
out any adjustments when
the vehicle is not being
driven.
We would advise you not to recline
the seatbacks too far to ensure that
the effectiveness of the seat belts is
not reduced.
Make sure that the seatbacks are
correctly locked in place.
Nothing should be placed on the
floor (area in front of driver) as such
objects may slide under the pedal
during braking manoeuvres, thus
obstructing its use.
4
1
2
3
Heated seats
Depending on the vehicle, with the igni-
tion on, press switch 3.
The system, which has a thermostat,
decides whether or not the heating is
needed.
To tilt the seatback
Depending on the vehicle, move the
handle or control knob 4
and tilt the
seatback to the desired position.
Page 18 of 200
adjusting your driving position .............. (up to the end of the DU)
seat belts .............................................. (up to the end of the DU)
1.12
ENG_UD22430_3
Ceintures de sécurité (H79 - Dacia)
ENG_NU_898-5_H79_Dacia_1
Jaune NoirNoir texte
Seat belts
SEAT BELTS (1/4)
Always wear your seat belt when trav-
elling in your vehicle. You must also
comply with the legislation of the par-
ticular country you are in.
I n c o r r e c t l y a d j u s t e d o r
twisted seat belts may
cause injuries in the event
of an accident.
The seatbelt is for the use of one
person only, whether adult or child.
Even pregnant women should wear
a seat belt. In this case, ensure that
the lap belt is not exerting too much
pressure on the abdomen, but do
not allow any slack.
Before starting, adjust your driving
position and then have each occu-
pant adjust their seat belt to ensure
optimum protection.
Adjusting your driving position
(depending on the vehicle)
–
S
it well back in your seat (having
removed your coat or jacket etc.).
This is essential to ensure your back
is positioned correctly;
–
a
djust the distance between the
seat and the pedals. Your seat
should be as far back as possible
while still allowing you to depress
the clutch pedal fully. The seatback
should be adjusted so that your arms
are slightly bent when you hold the
steering wheel;
–
a
djust the position of your head-
rest. For the maximum safety, your
head must be as close as possible to
the headrest;
–
adjust
the height of the seat. This
adjustment allows you to select the
seat position which offers you the
best possible view;
–
adjust
the position of the steering
wheel.
Adjusting the seat belts
Sit with your back firmly against the
seatback.
Shoulder strap
1 should be as close as
possible to the base of the neck but not
on it.
Lap belt
2
must be worn flat over the
thighs and against the pelvis. The seat
belt must be worn as close to the body
as possible. i.e.: avoid wearing heavy
clothing or keeping bulky objects under
the belts, etc.
1
2
Make sure that the rear bench seat
is locked in position correctly so that
the rear seat belts will operate effi-
ciently. Refer to the information on
the “Rear bench seat: functions” in
Section 3.
Page 19 of 200
JauneNoirNoir texte
1.13
ENG_UD22430_3
Ceintures de sécurité (H79 - Dacia)
ENG_NU_898-5_H79_Dacia_1
SEAT BELTS (2/4)
To fasten
Unwind the belt slowly and smoothly
and ensure that buckle 4
locks into
catch
6
(check that it is locked by pulling
on buckle
4
). If it jams, allow it to return
before attempting to unwind it again. If
your seat belt is completely jammed,
pull slowly, but firmly so that just over
3 cm unwinds. Allow it to return slightly
before attempting to unwind it again.
If there is still a problem, contact an ap-
proved dealer.
Adjusting the front seat belt
height
(depending on the vehicle)
Move button
7
to select the position you
require so that chest strap
3
is worn as
described above.
Make sure that the seat belt is locked
in position correctly after you have ad-
justed it.
ßSeat belt reminder light
Depending on the vehicle, it
comes on when the engine is started
if the driver’s seat belt is not fastened.
When the vehicle is being driven, it
comes on and a beep sounds for ap-
proximately 2 minutes until the driver’s
seat belt is fastened.
Unlocking
Press button 5 on catch 6; the seat belt
i s wound up by the inertia reel. Guide
the buckle to facilitate this manoeuvre.
3
45
6
6
7
Page 20 of 200
1.14
ENG_UD22430_3
Ceintures de sécurité (H79 - Dacia)
ENG_NU_898-5_H79_Dacia_1
Jaune NoirNoir texte

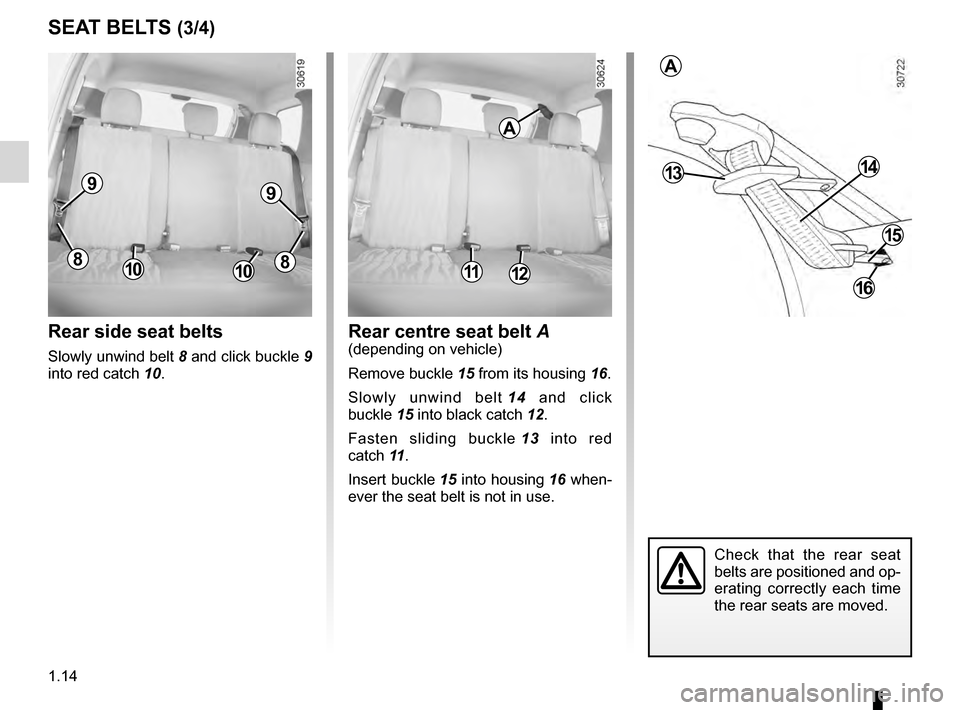

SEAT BELTS (3/4)
Rear side seat belts
Slowly unwind belt 8 and click buckle 9
into red catch 10.
Rear centre seat belt A(depending on vehicle)
Remove buckle
15
from its housing 16.
Slowly unwind belt
1
4 and click
buckle
15 into black catch 12.
Fasten sliding buckle
1
3 into red
catch
11.
Insert buckle
15 into housing
16 when-
ever the seat belt is not in use.
Check that the rear seat
belts are positioned and op-
erating correctly each time
the rear seats are moved.
88
99
10101112
A
A
13
15
16
14
Page 21 of 200
JauneNoirNoir texte
1.15
ENG_UD22430_3
Ceintures de sécurité (H79 - Dacia)
ENG_NU_898-5_H79_Dacia_1

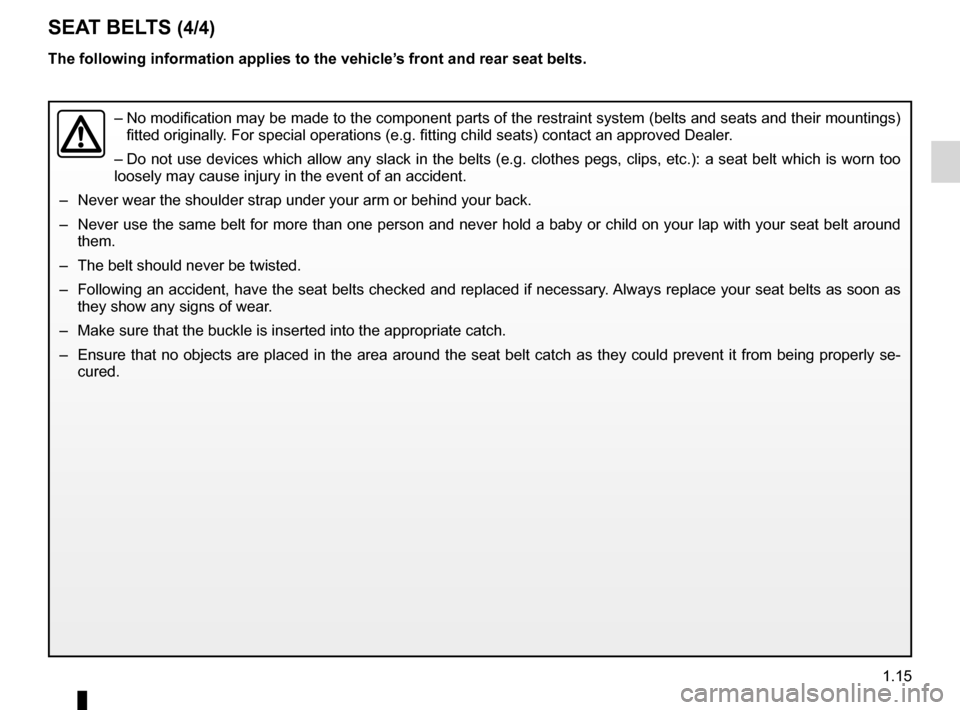

SEAT BELTS (4/4)
The following information applies to the vehicle’s front and rear seat belts.
– No modification may be made to the component parts of the restraint system (belts and seats and their mountings)
fitted originally. For special operations (e.g. fitting child seats) contact an approve\
d Dealer.
–
Do
not use devices which allow any slack in the belts (e.g. clothes pegs, clips, etc.): a seat belt which is worn too
loosely may cause injury in the event of an accident.
–
Never wear the shoulder strap under your arm or behind your
back.
–
Never
use the same belt for more than one person and never hold a baby or child on your lap with your seat belt around
them.
–
The belt should never be twisted.
–
Follow
ing an accident, have the seat belts checked and replaced if necessary. Always replace your seat belts as soon as
they show any signs of wear.
–
Make sure that the buckle is inserted into the appropriate catc
h.
–
Ensure
that no objects are placed in the area around the seat belt catch as they could prevent it from being properly se-
cured.
Page 22 of 200
air bag................................................... (up to the end of the DU)
seat belts .............................................. (up to the end of the DU)
methods of restraint in addition to the front seat belts (up to the end of the DU)
1.16
ENG_UD20682_3
Dispositifs complémentaires aux ceintures avant (H79 - Dacia)
ENG_NU_898-5_H79_Dacia_1
Jaune NoirNoir texte

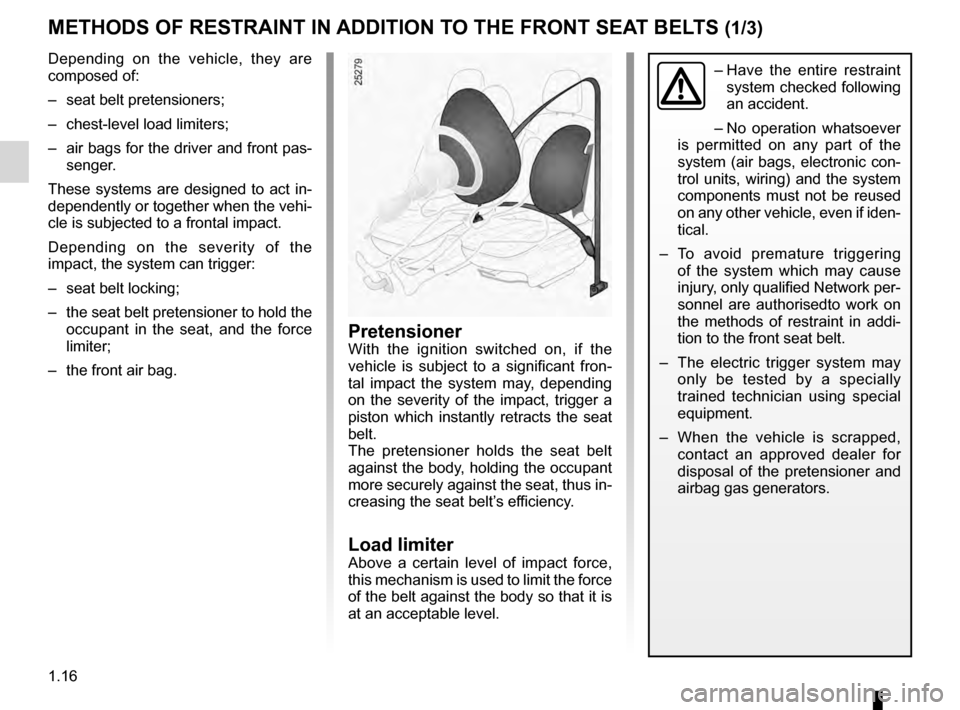

Methods of restraint in addition to the front seat belts
METHODS OF RESTRAINT IN ADDITION TO THE FRONT SEAT BELTS (1/3)
– Have the entire restraint
system checked following
an accident.
–
N
o operation whatsoever
is permitted on any part of the
system (air bags, electronic con-
trol units, wiring) and the system
components must not be reused
on any other vehicle, even if iden-
tical.
–
T
o avoid premature triggering
of the system which may cause
injury, only qualified Network per-
sonnel are authorisedto work on
the methods of restraint in addi-
tion to the front seat belt.
–
T
he electric trigger system may
only be tested by a specially
trained technician using special
equipment.
–
W
hen the vehicle is scrapped,
contact an approved dealer for
disposal of the pretensioner and
airbag gas generators.
PretensionerWith the ignition switched on, if the
vehicle is subject to a significant fron-
tal impact the system may, depending
on the severity of the impact, trigger a
piston which instantly retracts the seat
belt.
The pretensioner holds the seat belt
against the body, holding the occupant
more securely against the seat, thus in-
creasing the seat belt’s efficiency.
Load limiterAbove a certain level of impact force,
this mechanism is used to limit the force
of the belt against the body so that it is
at an acceptable level.
Depending on the vehicle, they are
composed of:
–
seat belt pretensioners;
–
chest-level load limiters;
–
air
bags for the driver and front pas-
senger.
These systems are designed to act in-
dependently or together when the vehi-
cle is subjected to a frontal impact.
Depending on the severity of the
impact, the system can trigger:
–
seat belt locking;
–
the
seat belt pretensioner to hold the
occupant in the seat, and the force
limiter;
–
the front air bag.
Page 23 of 200
JauneNoirNoir texte
1.17
ENG_UD20682_3
Dispositifs complémentaires aux ceintures avant (H79 - Dacia)
ENG_NU_898-5_H79_Dacia_1
METHODS OF RESTRAINT IN ADDITION TO THE FRONT SEAT BELTS (2/3)
Driver’s and passenger air
bags
These may be fitted to the front seats
on the driver and passenger side (loca-
tion
A).
Each air bag system consists of:
–
a
n air bag and gas generator fitted
on the steering wheel for the driver
and in the dashboard for the front
passenger;
–
an
electronic unit for system monitor-
ing which controls the gas generator
electrical trigger system;
–
a special warning light å;
–
remote sensors.
The air bag system uses
pyrotechnic principles. This
explains why, when the air
bag inflates, it will gener-
ate heat, produce smoke (this does
not mean that a fire is about to start)
and make a noise upon detonation.
An air bag may inflate immediately,
causing some minor, superficial
grazing to the skin or other discom-
fort.
Operation
This system is only operational when
the ignition is switched on.
If a severe frontal impact occurs, the
air bag(s) inflate(s) rapidly, cushion-
ing the impact of the driver’s head and
chest against the steering wheel and
the front passenger’s head against the
dashboard. The air bag then deflates
immediately so that the passengers are
not impeded in any way when they get
out of the vehicle.
A
Page 24 of 200
1.18
ENG_UD20682_3
Dispositifs complémentaires aux ceintures avant (H79 - Dacia)
ENG_NU_898-5_H79_Dacia_1
METHODS OF RESTRAINT IN ADDITION TO THE FRONT SEAT BELTS (3/3)
Warnings concerning the driver’s air bag
–
Do not modify the steering wheel or the steering wheel boss.
–
Do not cover the steering wheel boss under any circumstances
.
–
Do not attach any objects (badge, logo, clock, telephone holder
, etc.) to the steering wheel boss.
–
Y
ou must not remove the steering wheel (such work must only be performed by trained personnel from our Network).
–
When
driving, do not sit too close to the steering wheel. Sit with your arms slightly bent (see the information on “Adjusting
your driving position” in Section
1). This will allow sufficient space for the air bag to inflate properly and be fully effective.
Warnings concerning the passenger air bag
–
Do
not attach or glue any objects (badge, logo, clock, telephone holder, etc.) to the dashboard in the proximity of the air bag
housing.
–
Do not place anything between the dashboard and the passen
ger (pet, umbrella, walking stick, parcels, etc.).
–
The
passenger must not put his or her feet on the dashboard or seat as there is a risk that serious injuries may occur. In
general, all parts of the body should be kept away from the dashboard (\
knees, hands, head etc.).
–
Y
ou should reactivate the passenger air bag as soon as you remove the child seat to ensure the protection of the front pas-
senger in the event of an impact.
A REAR-FACING CHILD SEAT MUST NOT BE FITTED TO THE FRONT PASSENGER SEAT UNLESS THE RESTRAINT SYSTEMS IN ADDITION TO THE SEAT BELT, I.E. AIR BAG, ARE DEACTIVATED.
(refer to the information on “Child safety: deactivating/activating \
the front passenger air bag” in Section 1)
All of the warnings below are given so that the air bag is not obstructed in any way when it is deployed and also to pre-
vent the risk of serious injuries caused by items which may be dislodged\
when the air bag deploys.
Page 25 of 200
seat belts .............................................. (up to the end of the DU)
air bag................................................... (up to the end of the DU)
1.19
ENG_UD18027_3
Dispositifs de protection latérale (B90 - L90 Ph2 - H79 - Dacia)
ENG_NU_898-5_H79_Dacia_1

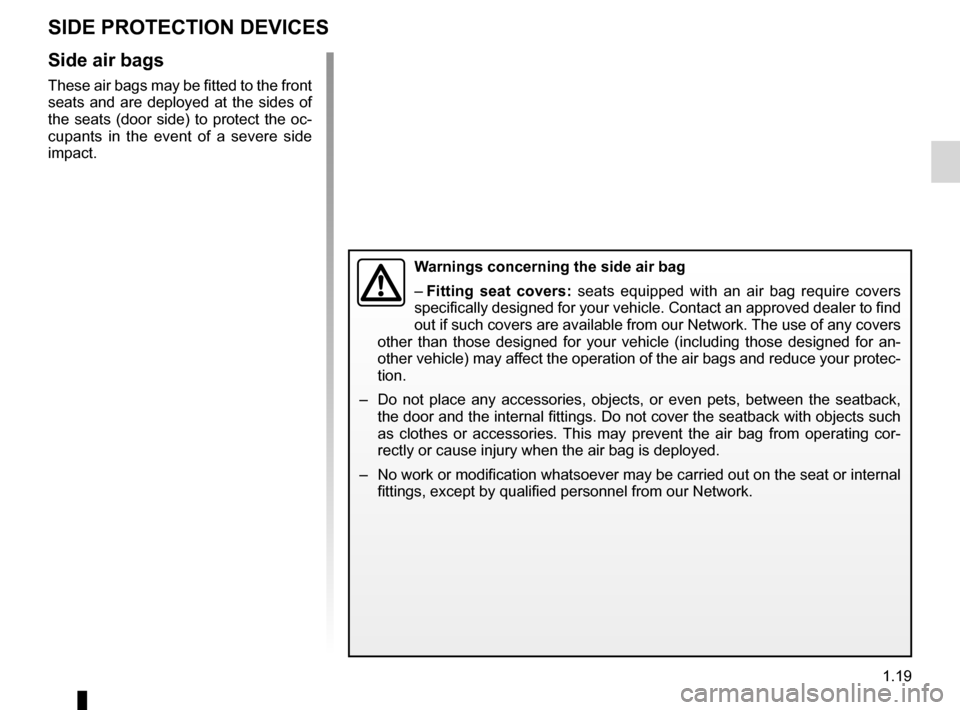

Side protection devices
SIDE PROTECTION DEVICES
Side air bags
These air bags may be fitted to the front
seats and are deployed at the sides of
the seats (door side) to protect the oc-
cupants in the event of a severe side
impact.
Warnings concerning the side air bag
–
F
itting seat covers: seats equipped with an air bag require covers
specifically designed for your vehicle. Contact an approved dealer to find
out if such covers are available from our Network. The use of any covers
other than those designed for your vehicle (including those designed for an-
other vehicle) may affect the operation of the air bags and reduce your protec-
tion.
–
Do
not place any accessories, objects, or even pets, between the seatback,
the door and the internal fittings. Do not cover the seatback with objects such
as clothes or accessories. This may prevent the air bag from operating cor-
rectly or cause injury when the air bag is deployed.
–
No
work or modification whatsoever may be carried out on the seat or internal
fittings, except by qualified personnel from our Network.
