KEYS, RADIO FREQUENCY REMOTE CONTROL: general information (1/2)
Radio frequency remote
control

B
2 Locking the doors and tailgate. 3
Unlocking th e doors and tailgate.
4


Coded
key for ignition switch, driv-
er’s door and fuel filler cap.
Key A
1 Coded key for ignition switch,
doors and fuel filler cap.
The key must not be used for any
function other than those described
in the handbook (removing the cap
from a bottle, etc.).Advice
Avoid leaving the remote control in
hot, cold or humid areas.
Driver’s responsibility
Never leave your vehicle
with the key or remote con-
trol inside and never leave a
child (or a pet) unsupervised, even
for a short while.
The reason for this is that the child
may endanger himself or others by
starting the engine, activating equip-
ment such as the window winders
for example, or locking the doors.
Risk of serious injury.
1
2
3
4
AB

1.4
ENG_UD18223_4
Télécommande à radiofréquence : utilisation (B90 - L90 - F9\
0 - U90 - R90 - L90 Ph2 - F90 Ph2 - R90 Ph2 - H79 - Dacia)
ENG_NU_898-5_H79_Dacia_1
RADIO FREQUENCY REMOTE CONTROL: use
Doors are locked and unlocked using
remote control unit
B .
It is powered by a battery which must
be replaced (refer to the information on
the “Radio frequency remote control:
batteries” in Section 5).
Locking the doors
Press locking button 1 .
The hazard warning lights and side in-
dicator lights flash twice to indicate
that the doors have locked.
If a door or the tailgate is open or not
properly shut, the doors and tailgate
lock then quickly unlock and the hazard
warning lights and side indicator lights
do not flash.
Unlocking the doors
Press unlocking button 2 .
The hazard warning lights and side in-
dicator lights flash once to indicate that
the doors have unlocked.
1
2
BB

rear screendemisting ......................................................... (current page)
1.42
ENG_UD24501_4
Témoins lumineux (H79 - Dacia)
ENG_NU_898-5_H79_Dacia_1
Jaune NoirNoir texte
WARNING LIGHTS (3/4)
The presence and operation of the warning lights DEPEND ON THE EQUIPMENT\
AND COUNTRY.
ÄToxic Fume Filter System
Warning Light
It comes on when the ignition is
switched on and then goes out.
–

I

f it comes on continuously, consult
an approved dealer as soon as pos-
sible.
–

If

it flashes, reduce the engine speed
until the light stops flashing. Contact
an approved dealer as soon as pos-
sible.
Refer to the information “Advice on
antipollution, fuel economy and driving”
in Section 2.
DHandbrake on and brake cir-
cuit incident warning light
If it lights up, check that the hand brake
is fully released. If not, it indicates that
the fluid level is low in one of the cir-
cuits. It may be dangerous to continue
driving, contact an approved dealer.
fRear fog light tell-tale
ÆSTOP light
This lights up when the ignition
is switched on and goes out as soon as
the engine is started. It lights up at the
same time as other warning lights, and
is accompanied by a beep.
It requires you to stop immediately, for
your own safety, as soon as traffic con-
ditions allow.
Switch off the engine and do not restart
it.
Consult an approved dealer.
gFront fog light tell-tale
^Water in the diesel filter
warning light
If it remains lit or comes on while driv-
ing, it indicates that water is present in
the diesel filter. Contact an approved
dealer as soon as possible.
ÅDoor status warning light
T

his indicates the status of the doors
(or tailgate).
ÜNot used
îNot used

tailgate ................................................................... (current page)
3.20
ENG_UD20574_2
Coffre à bagages (H79 - Dacia)
ENG_NU_898-5_H79_Dacia_3
Luggage compartment
TAILGATE
Manual control
To open, insert the key in the lock and
turn it (movement
A).
Remove the key and press button
1 .
Lift the tailgate.
T

o close, lower the tailgate using inte-
rior handle

2
to help at first.
Once you have lowered the tailgate
to shoulder height, release the interior
handle and finish closing the tailgate by
pressing down on the tailgate from the
outside.
Insert the key in the lock and turn it
(movement
B).
Electric central locking
The tailgate is locked and unlocked at
the same time as the doors.
To open, press the button 1 and lift the
tailgate.
To close, lower the tailgate using inte-
rior handle

2
to help at first.
Once you have lowered the tailgate
to shoulder height, release the interior
handle and finish closing the tailgate by
pressing down on the tailgate from the
outside.
1
2A
B

practical advice ..................................... (up to the end of the DU)
puncture................................................ (up to the end of the DU)
emergency spare wheel ....................... (up to the end of the DU)
lifting the vehicle changing a wheel ............................ (up to the end of the DU)
5.3
ENG_UD24368_4
Crevaison (H79 - Dacia)
ENG_NU_898-5_H79_Dacia_5
Puncture

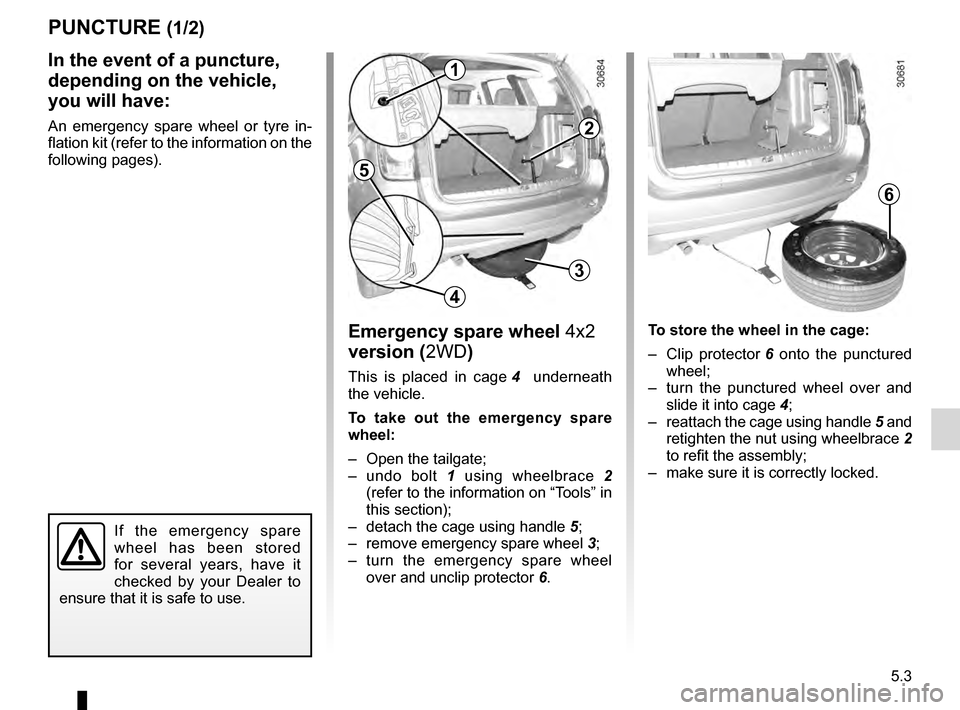

PUNCTURE (1/2)
Emergency spare wheel 4x2
version (2WD)
This is placed in cage 4 underneath
the vehicle.
To take out the emergency spare
wheel:
–

Open the tailgate;
–


u
ndo bolt
1

using wheelbrace
2

(refer to the information on “Tools” in
this section);
–

detach the cage using handle

5
;
–

remove emergency spare wheel

3
;
–

t
urn the emergency spare wheel
over and unclip protector

6
.
In the event of a puncture,
depending on the vehicle,
you will have:
An emergency spare wheel or tyre in-
flation kit (refer to the information on the
following pages).
If the emergency spare
wheel has been stored
for several years, have it
checked by your Dealer to
ensure that it is safe to use.
To store the wheel in the cage:
–

C
lip protector
6

onto the punctured
wheel;
–

t
urn the punctured wheel over and
slide it into cage

4
;
–

reattach
the cage using handle
5
and
retighten the nut using wheelbrace

2

to refit the assembly;
–

make sure it is correctly locked.
1
2
3
4
6
5

5.4
ENG_UD24368_4
Crevaison (H79 - Dacia)
ENG_NU_898-5_H79_Dacia_5

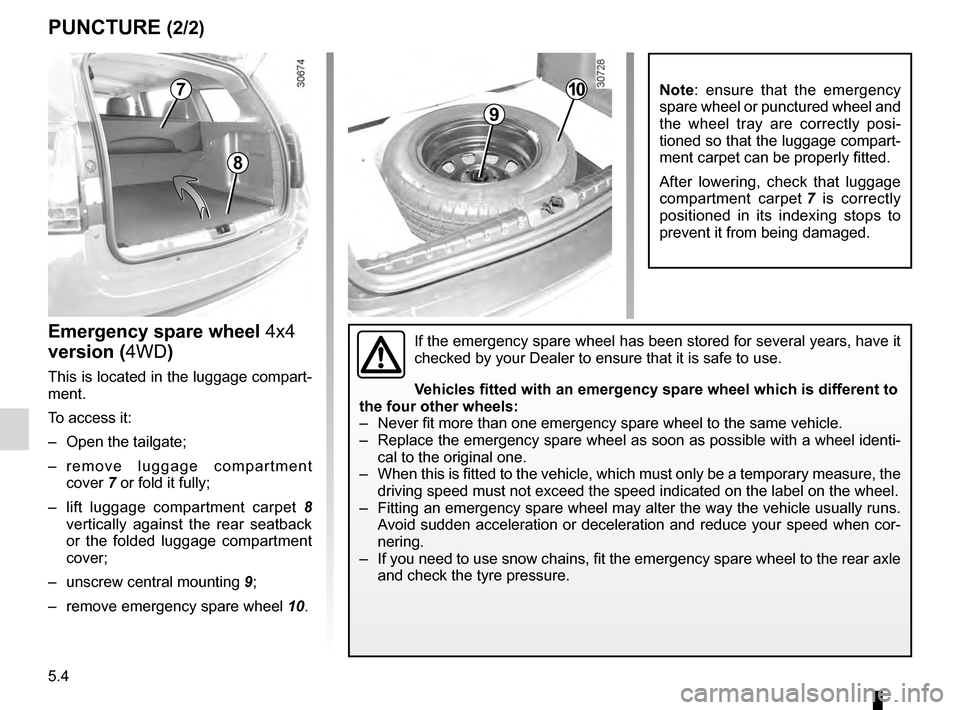

PUNCTURE (2/2)
Emergency spare wheel 4x4
version (4WD)
This is located in the luggage compart-
ment.
To access it:
–
Open the tailgate;
–


r
e m o v e l u g g a g e c o m p a r t m e n t
cover
7 or fold it fully;
–

l
ift luggage compartment carpet
8
v

ertically against the rear seatback
or the folded luggage compartment
cover;
–

unscrew central mounting

9
;
–

remove emergency spare wheel

10
.
Note: ensure that the emergency
spare wheel or punctured wheel and
the wheel tray are correctly posi-
tioned so that the luggage compart-
ment carpet can be properly fitted.
After lowering, check that luggage
compartment carpet
7

is correctly
positioned in its indexing stops to
prevent it from being damaged.7
8
9
10
If the emergency spare wheel has been stored for several years, have it
checked by your Dealer to ensure that it is safe to use.
Vehicles fitted with an emergency spare wheel which is different to
the four other wheels:
–

Never fit more than one emergency spare wheel to the same v
ehicle.
–

Repla
ce the emergency spare wheel as soon as possible with a wheel identi-
cal to the original one.
–

When
this is fitted to the vehicle, which must only be a temporary measure, the
driving speed must not exceed the speed indicated on the label on the wh\
eel.
–

Fitting
an emergency spare wheel may alter the way the vehicle usually runs.
Avoid sudden acceleration or deceleration and reduce your speed when cor-
nering.
–

If

you need to use snow chains, fit the emergency spare wheel to the rear axle
and check the tyre pressure.
