Transmission : 4 roues motrices (4WD) (H79 Ph2 - Dacia) ENG_NU_1079-6_H79Ph2_Dacia_2
TRANSMISSION: 4-wheel drive (4WD) (2/4)
This problem may be resolved by chan-
ging the tyres. Always use four identi-
cal tyres (same brand, profile, etc.) and
with similar wear.
In the event of excessive wheelspin,
the mechanical components may be
overheating.
If this happens:
– at first, the
’ warning light
flashes. “4WD Lock” mode is still
active, however we recommend that
you stop as soon as possible to allow
the system to cool down (until the
warning light stops flashing);
– if the wheels still spin, the system au-
tomatically switches to “2WD” mode
to protect the mechanical compo-
nents.
The
‘ warning light flashes. The
mode cannot be changed while the
light is flashing. After one minute, the system switches
to “2WD” or “AUTO” mode depending
on the position of the selector.
Note: if the vehicle is travelling at a
speed of more than approximately
49.6 mph (80 km/h) or if it is travel-
ling at a speed of between 37.2 and
49.6 mph (60 and 80 km/h) for more
than one minute in «4WD Lock" mode,
the system automatically switches back
to "AUTO" mode. The warning light
’ goes out.
Special features of the
4-wheel drive transmission
The vehicle may make more noise when
the “AUTO" or "4WD Lock" modes are
activated. This is normal. If the system
detects a difference in the dimensions
of the front and rear wheels (eg. un-
derinflation, severe wear on an axle),
the system automatically switches to
"2WD" mode.
The
‘ and Ò warning lights on
the instrument panel come on. Drive as
soon as possible at a moderate speed
to an approved dealer. To deactivate this mode, turn selector 1
to the “AUTO” position. The
‘ indi-
cator light on the instrument panel goes
out.
“4WD Lock" mode
To activate this mode, turn selector 1 to
the “4WD Lock” position. The selector
the returns to the “AUTO” position. The
’ indicator light will light up on the
instrument panel.
Operating principle
“4WD Lock” mode distributes the
engine torque between the front and
rear axles in order to optimise the per-
formance capacity of the vehicle in off-
road situations. This mode should only
be used in extreme driving conditions
(mud, steep slopes, sand).
To deactivate this mode, turn selector 1
to the “4WD Lock” position again. The
indicator light on the instrument panel
goes out. When the engine is switched
off, the system stays in “4WD Lock”
mode for one minute.

JauneNoir Noir texte
6.1
ENG_UD39332_8
Sommaire 6 (H79 Ph2 - Dacia) ENG_NU_1079-6_H79Ph2_Dacia_6
Section 6: Technical specifications
Vehicle identification plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.2
Engine identification plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.3
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.5
Engine specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.6
Weights/Towing weights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.7
Replacement parts and repairs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.8
Service sheets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.9
Anticorrosion check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.15

JauneNoir Noir texte
6.5
ENG_UD39256_2
Dimensions (H79 - Dacia) ENG_NU_1079-6_H79Ph2_Dacia_6

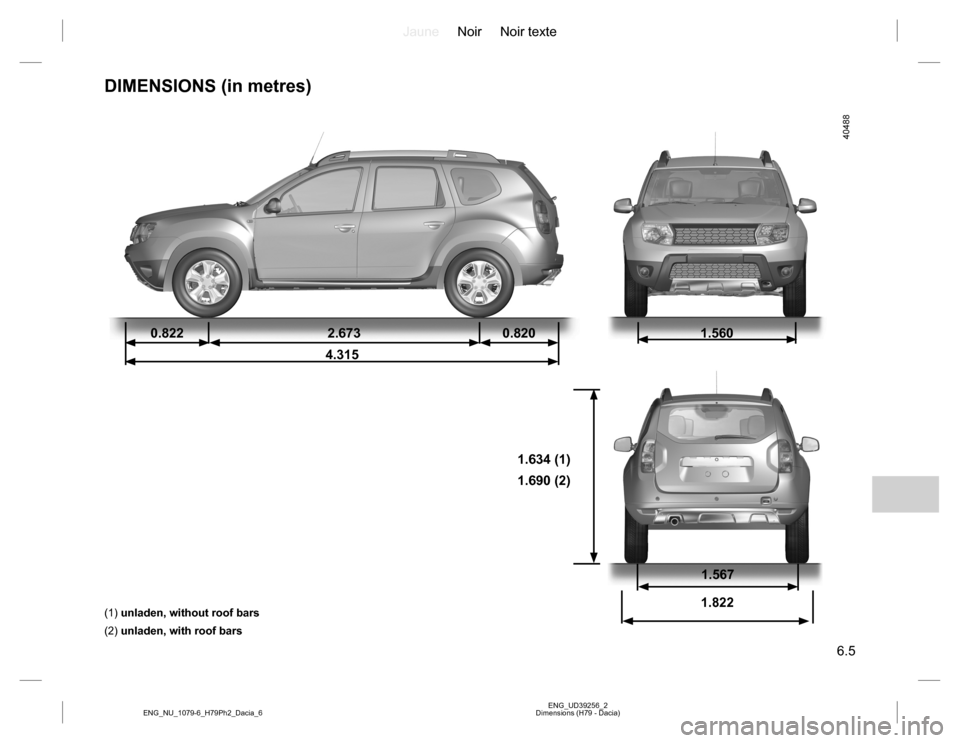

DIMENSIONS (in metres)
0.822 2.673 0.820
4.3151.560
1.634 (1)
1.690 (2)
(1) unladen, without roof bars
(2) unladen, with roof bars
1.567
1.822

JauneNoir Noir texte
7.1
FRA_UD39333_8
Index (H79 Ph2 - Dacia) ENG_NU_1079-6_H79Ph2_Dacia_7
ALPHABETICAL INDEX (1/5)
A
ABS .......................................................................2.34 → 2.37
accessories........................................................................ 5.44
accessories socket ............................................................ 3.14
adjusting your driving position ...............................1.14 → 1.17
advice on antipollution ....................................................... 2.20
air bag....................................................................1.18 → 1.22
deactivating the front passenger air bags .................... 1.34
air conditioning ..........................................................3.2 → 3.7
air vents ...................................................................... 3.2 – 3.3
anti-corrosion check ..............................................6.15 → 6.19
anti-corrosion protection .................................................... 4.16
anti-lock braking system: ABS ...............................2.34 → 2.37
antipollution
advice .......................................................................... 2.20
armrest .............................................................................. 3.19
ashtrays ............................................................................. 3.14
automatic gearbox (use) ...............................2.45 → 2.48, 5.42
automatic gearbox selector lever...........................2.45 → 2.48
B
battery..................................................................... 4.14 – 4.15
troubleshooting ................................................. 5.36 – 5.37
battery (remote control) ..................................................... 5.38
bonnet......................................................................... 4.2 – 4.3
brake fluid ............................................................................ 4.8
bulbs
changing ..........................................................5.16 → 5.27
C
capacity of mechanical components........................... 4.4, 4.14
catalytic converter.............................................................. 2.10
central door locking ...................................................1.5 → 1.7
changing a bulb .....................................................5.16 → 5.27
changing a wheel.................................................... 5.10 – 5.11
changing fuel while driving ....................................2.12 → 2.14changing gear ...............................................2.29, 2.45 → 2.48
child booster seat ..................................................1.23 → 1.25
child restraint/seat .................................................1.23 → 1.33
child safety................ 1.2, 1.9 – 1.10, 1.23 → 1.33, 3.8 → 3.10
child seats..............................................................1.23 → 1.33
children ....................................................1.5 → 1.7, 1.9 – 1.10
children (safety) .......................................................3.8 → 3.10
cigar lighter ........................................................................ 3.14
cleaning:
inside the vehicle .............................................. 4.18 – 4.19
clock .................................................................................. 1.58
closing the doors ...................................................... 1.9 – 1.10
control instruments ............................1.42 → 1.56, 1.61 – 1.62
controls ..................................................................1.38 → 1.41
courtesy light .......................................................... 3.11 – 3.12
cruise control .........................................................2.41 → 2.44
cruise control-speed limiter....................................2.38 → 2.44
D
dashboard..............................................................1.38 → 1.41
dimensions .......................................................................... 6.5
dipstick................................................................................. 4.4
doors........................................................................1.5 → 1.10
driver’s position .....................................................1.38 → 1.41
driving .........2.2 → 2.6, 2.10 – 2.11, 2.15 → 2.19, 2.29 → 2.50
E
ECO driving ..................................... 1.42 → 1.48, 2.15 → 2.19
electric beam height adjustment ............................. 1.63 – 1.64
electric door locking ...................................................1.5 → 1.7
electric windows ......................................................3.8 → 3.10
electronic stability control: ESC .............................2.34 → 2.37
emergency brake assist.........................................2.34 → 2.37
emergency braking ................................................2.34 → 2.37
emergency spare wheel ........................5.3 – 5.4, 5.12 → 5.15
