3.19
ENG_UD34147_2
Rangements / aménagements habitacle (H79 - Dacia)
ENG_NU_1079-3_H79Ph2_Dacia_3
This glove box can be used to store A4
format documents.
Inside the cover, a section 8 has been
provided for pens, maps, etc.
PASSENGER COMPARTMENT STORAGE SPACE AND FITTINGS (3/4)
Passenger side glove box
Pull handle 7 to open it.
Precautions during use
Cover A in the bottom of the glove
box protects a socket reserved ex-
clusively for operations by the ap-
proved dealer network
You should therefore avoid keeping
liquids in this compartment (there is
a risk of liquid leaking and getting
into this socket).
Nothing should be placed on the floor area in front of the driver as suc\
h
objects may slide under the pedal during braking manoeuvres, thus obs-
tructing its use.
A
7
8

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
3.20
ENG_UD34147_2
Rangements / aménagements habitacle (H79 - Dacia)
ENG_NU_1079-3_H79Ph2_Dacia_3
10
9
1112
PASSENGER COMPARTMENT STORAGE SPACE AND FITTINGS (4/4)
Front seat storage pockets 9
Ensure that no hard, heavy
or pointed objects are
placed in the “open” sto-
rage compartments in such
a way that they may fall onto pas-
sengers during sudden turning, bra-
king or in the event of an accident.
Bottle holders 10
It can hold a 1.5 litre bottle.
Rear armrest storage 11
Depending on the vehicle, a storage
compartment may be fitted in the rear
armrest.
Pull down the armrest 11.
Cup holder 12

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
3.21
ENG_UD35970_2
Banquette arrière (H79 - Dacia)
ENG_NU_1079-3_H79Ph2_Dacia_3
Lower the rear headrests completely
(refer to the information on the “Rear
headrests” in Section 3).
Lower handle(s) 3 or and press
button 4.
Lower the seatback B or C.Depending on the vehicle, the seat A
and the seatback B or C may be folded
away to allow bulky objects to be car-
ried.
To fold the back B or C
Ensure that the front seats are far
enough forward.
Insert buckles 1 into housings 2 before
moving the seatback(s).
For safety reasons, carry
out any adjustments when
the vehicle is not being
driven.
REAR BENCH SEAT (1/3)
When moving the rear
bench seat, ensure that
nothing obstructs the an-
chorage points (part of the
body, a pet, gravel, cloth, toys, etc.).
B
C3
1
2
1
2
4
A
Check that the rear seat
belts are positioned and
operating correctly each
time the rear bench seat is
moved.

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
3.22
ENG_UD35970_2
Banquette arrière (H79 - Dacia)
ENG_NU_1079-3_H79Ph2_Dacia_3
REAR BENCH SEAT (2/3)
When refitting the seat-
back, make sure it is cor-
rectly locked in place.
If seat covers are fitted ,
make sure these do not prevent the
seatback latch from locking in.
Make sure that the seat belts are
positioned correctly.
Reposition the headrests.
Check that the rear seat
belts are positioned and
operating correctly each
time the rear bench seat is
moved.For safety reasons, carry
out any adjustments when
the vehicle is not being
driven.
To reposition the seat back B or C
Lift the seatback(s).
Check the seatbacks are correctly
locked in position.
Refit the rear headrests (refer to the
information on the “Rear headrests” in
Section 3).
To fold away the seat base
Tilt the seat base A against the front
seats.
To fold the back B or C
Proceed as described above.
A
B
C

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
3.23
ENG_UD35970_2
Banquette arrière (H79 - Dacia)
ENG_NU_1079-3_H79Ph2_Dacia_3
REAR BENCH SEAT (3/3)
To reposition the seat A in place
Fasten all of the rear seat belts before
refitting the seat base (refer to the in-
formation on the “Rear seat belts” in
Section 1).
Push down the seat base until it comes
into contact with the seatback(s).
Ensure that the belt stalks 6 are cor-
rectly positioned when refitting the seat
base: to do so, pull the ends of the seat
belts 5 so that all the belt stalks 6 are on
top of the folded-down seat base. Unbuckle all of the rear seat belts and
position them correctly (refer to the in-
formation on the “Rear seat belts” in
Section 1).
Check that the four Isofix mounting
rings are on top of the seat base after it
is folded down; refer to the information
on “Child safety: Mounting a child seat”
in section 1.
When moving the rear
bench seat, ensure that
nothing obstructs the an-
chorage points (part of the
body, a pet, gravel, cloth, toys, etc.).
Check that the rear seat
belts are positioned and
operating correctly each
time the rear bench seat is
moved.
6
6
5
5
5
A

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
3.24
ENG_UD32160_1
Coffre à bagages (H79 - Dacia)
ENG_NU_1079-3_H79Ph2_Dacia_3
TAILGATE
Manual control
To open , insert the key in the lock and
turn it (movement A).
Remove the key and press button 1.
Lift the tailgate.
To close, lower the tailgate using inte-
rior handle 2 to help at first.
Once you have lowered the tailgate
to shoulder height, release the interior
handle and finish closing the tailgate by
pressing down on the tailgate from the
outside.
Insert the key in the lock and turn it
(movement B).
Electric central locking
The tailgate is locked and unlocked at
the same time as the doors.
To open , press the button 1 and lift the
tailgate.
To close, lower the tailgate using inte-
rior handle 2 to help at first.
Once you have lowered the tailgate
to shoulder height, release the interior
handle and finish closing the tailgate by
pressing down on the tailgate from the
outside.
1
2A
B

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
3.25
ENG_UD35971_2
Transport d’objets dans le coffre (H79 - Dacia)
ENG_NU_1079-3_H79Ph2_Dacia_3
TRANSPORTING OBJECTS IN THE BOOT (1/2)
Always position the objects trans-
ported so that the largest surface is
against:
– the rear bench seatbacks, for
normal loads (eg: A);
– the front seats when the rear seats
are folded down. Refer to the infor-
mation on the “Rear bench seat:
functions” in this section (eg: B).
Always position the heaviest items di-
rectly on the floor.
Always place objects being trans-
ported so that the heaviest items are
resting against the back of the rear
bench seat.
Fasten the rear seat belts,
even if the seats are not oc-
cupied.
A
B

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
3.26
ENG_UD35971_2
Transport d’objets dans le coffre (H79 - Dacia)
ENG_NU_1079-3_H79Ph2_Dacia_3

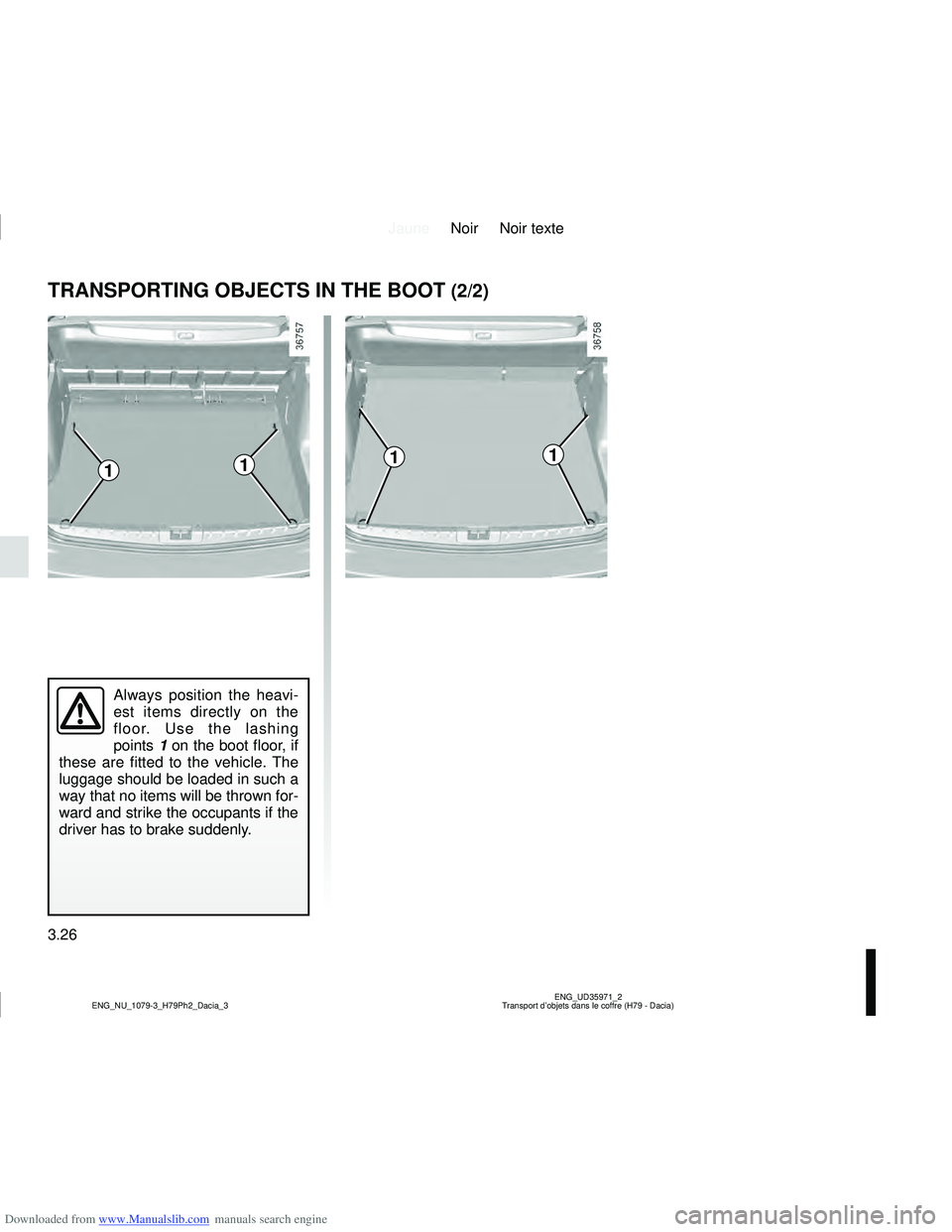

TRANSPORTING OBJECTS IN THE BOOT (2/2)
Always position the heavi-
est items directly on the
floor. Use the lashing
points 1 on the boot floor, if
these are fitted to the vehicle. The
luggage should be loaded in such a
way that no items will be thrown for-
ward and strike the occupants if the
driver has to brake suddenly.
1111

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
3.27
ENG_UD33685_2
Transport d’objets: remorquage, attelage (H79 - Dacia)
ENG_NU_1079-3_H79Ph2_Dacia_3
TRANSPORTING OBJECTS towing, attachments
Permissible nose weight, maxi-
mum permissible towing weight
braked and unbraked:
Refer to the information on “Weights”
in Section 6.
Refer to the manufacturer’s instruc-
tions for information on how to fit
and operate the towing equipment.
Please keep these instructions with
the rest of the vehicle documenta-
tion.
Depending on the vehicle,
A= 901 mm or 950 mm
If the towbar ball obscures the reg-
istration plate or the rear lights, it
should be removed when not in use.
In all cases, comply with local leg-
islation.
A
LPG versions
Certain LPG versions are
not compatible with tow-
bars. Please contact an au-
thorised dealer before attempting
any installation.
Also, to ensure the correct opera-
tion of your vehicle, and to avoid
any risk to your safety, we recom-
mend that you use only accessories
specifically designed for your vehi-
cle, which are the only accessories
for which the manufacturer will pro-
vide a warranty.

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
3.28
ENG_UD32163_1
Cache-bagages (H79 - Dacia)
ENG_NU_1079-3_H79Ph2_Dacia_3
Lift the parcel shelf 2 to half height and
unclip the mountings 3 located on each
side of the parcel shelf.
REAR PARCEL SHELF
Do not place any objects,
especially heavy or hard
objects, on the parcel shelf.
These may pose a risk to
the vehicle occupants if the driver
has to brake suddenly or if the vehi-
cle is involved in an accident.
Maximum weight on rear parcel
shelf: 25 kg, evenly distributed.
1
2
The parcel shelf 2 is made up of two
rigid sections.
Removal
Unhook the two cords 1 from the boot
door.
2
3
Gently lift the parcel shelf 2 and pull it
towards you, holding it at each end.
To refit, proceed in the reverse order to
removal.
2
