DACIA LODGY 2012 1.G User Guide

Downloaded from www.Manualslib.com manuals search engine 1.6
ENG_UD26875_2
Verrouillage et déverrouillage des portes (X92 - Renault)
ENG_NU_975-3_X92_Dacia_1
LOCKING AND UNLOCKING THE DOORS (2/2)
Electric central locking
It simultaneously locks or unlocks the
doors and the tailgate.
Lock or unlock the doors by pressing
switch 4.
The front door mechanism cannot be
locked if the door is open.
4
Never leave your vehicle
with the key or remote con-
trol inside.
Door and tailgate status
indicator
With the ignition on, the warning light
integrated in switch 4 informs you of the
locking status of the opening elements:
– indicator light on, the doors and tail-
gate are locked;
– indicator light off, the doors and tail-
gate are unlocked.
When you lock the doors, the indicator
light remains lit and then goes out.
Locking the opening
elements without the radio
frequency remote control
For example, in the event of a dis -
charged battery or the radio frequency
remote control temporarily not working.
With the engine switched off and
an opening element (door or boot)
open, press and hold switch 4 for more
than five seconds.
When the door is closed, all the doors
and the tailgate will be locked.
The vehicle can only be locked from
the outside using the radio frequency
remote control.

Downloaded from www.Manualslib.com manuals search engine RENAULT ANTI-INTRUDER DEVICE (RAID) (up to the end of the DU)
doors ..................................................... (up to the end of the DU)
1.7
ENG_UD25616_1
Condamnation automatique des ouvrants en roulage (X92 - Renault)
ENG_NU_975-3_X92_Dacia_1
Automatic locking when driving
AUTOMATIC LOCKING WHEN DRIVING
You must first decide if you want to
activate this function.
To activate
With the engine running , press
switch 1 for approximately 5 seconds,
until you hear a beep. The indica -
tor light built into the switch comes on
when the doors are locked.
To deactivate
With the engine running , press
switch 1 for approximately 5 seconds,
until you hear a beep.
Operating principle
When the engine is started, the system
automatically locks the doors when the
vehicle reaches a speed of approxi -
mately 4 mph (7 km/h).
Operating faults
If you notice an operating fault (auto -
matic locking impossible), first check
that all doors are correctly locked. If
they are correctly locked and the fault
is still present, contact an approved
Dealer.
Also make sure that locking has not
been inadvertently deactivated.
If necessary, refer to the activation pro-
cedure.
If you decide to keep the
doors locked when you
are driving, remember that
it may be more difficult for
those assisting you to gain access
to the passenger compartment in
the event of an emergency.
1

Downloaded from www.Manualslib.com manuals search engine locking the doors ................................................... (current page)
central door locking ............................................... (current page)
warning buzzer ..................................... (up to the end of the DU)
doors ..................................................... (up to the end of the DU)
closing the doors .................................. (up to the end of the DU)
opening the doors ................................. (up to the end of the DU)
1.8
ENG_UD24401_1
Ouverture et fermeture des portes (X92 - Renault)
ENG_NU_975-3_X92_Dacia_1
Jaune NoirNoir texte

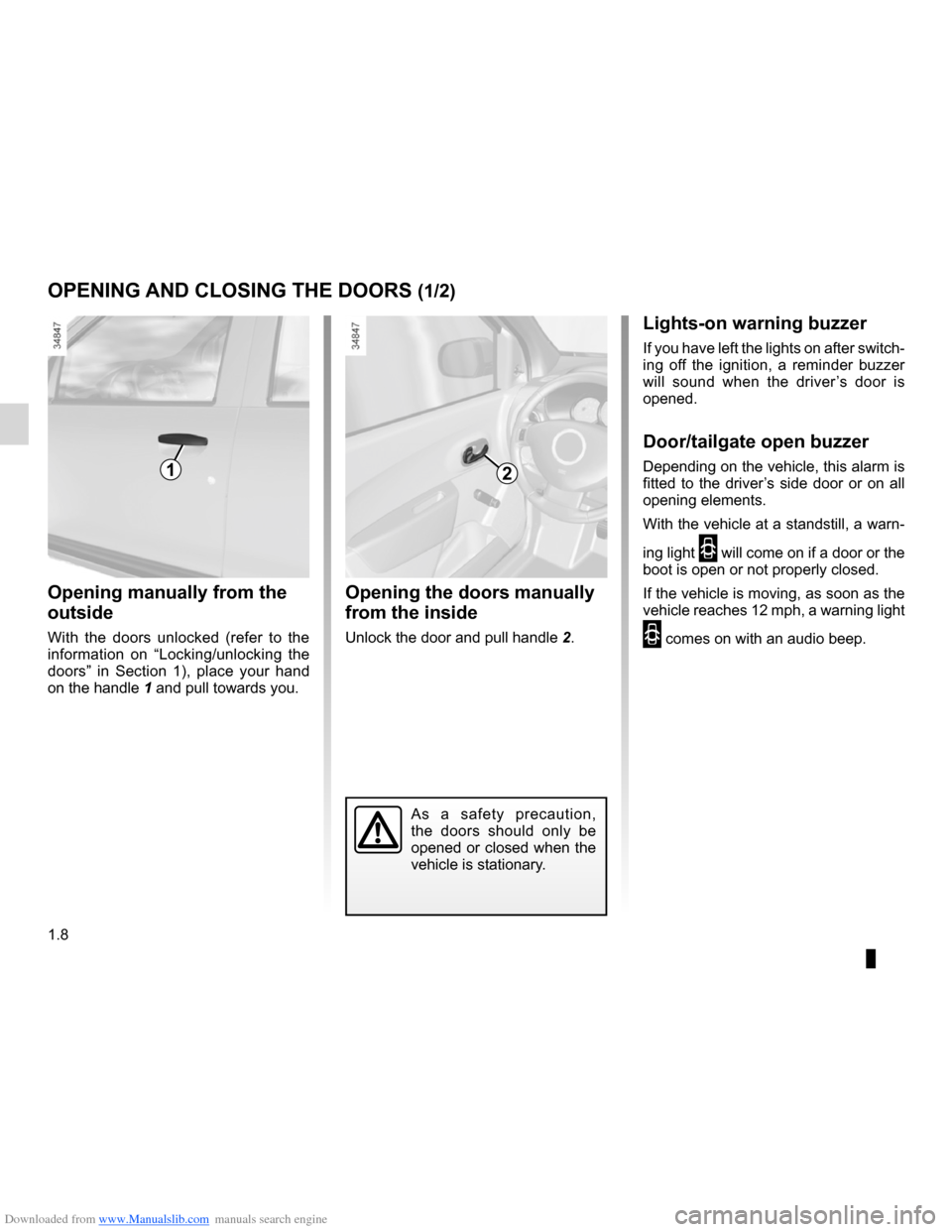

Opening and closing the doors
OPENING AND CLOSING THE DOORS (1/2)
Opening manually from the
outside
With the doors unlocked (refer to the
information on “Locking/unlocking the
doors” in Section 1), place your hand
on the handle 1 and pull towards you.
Opening the doors manually
from the inside
Unlock the door and pull handle 2.
12
Lights-on warning buzzer
If you have left the lights on after switch-
ing off the ignition, a reminder buzzer
will sound when the driver ’s door is
opened.
Door/tailgate open buzzer
Depending on the vehicle, this alarm is
fitted to the driver’s side door or on all
opening elements.
With the vehicle at a standstill, a warn-
ing light
2 will come on if a door or the
boot is open or not properly closed.
If the vehicle is moving, as soon as the
vehicle reaches 12 mph, a warning light
2 comes on with an audio beep.
As a safety precaution,
the doors should only be
opened or closed when the
vehicle is stationary.

Downloaded from www.Manualslib.com manuals search engine child safety............................................................. (current page)
JauneNoirNoir texte
1.9
ENG_UD24401_1
Ouverture et fermeture des portes (X92 - Renault)
ENG_NU_975-3_X92_Dacia_1
OPENING AND CLOSING THE DOORS (2/2)
Child safety
To make it impossible for the rear doors
to be opened from the inside, move
lever 3 on each door and check from
the inside that the doors are securely
locked.
3
Driver’s responsibility
when parking or stopping
the vehicle
Never leave an animal,
child or adult who is not self-suffi -
cient alone on your vehicle, even for
a short time.
They may pose a risk to themselves
or to others by starting the engine,
activating equipment such as the
electric windows or by locking the
doors.
Also, in hot and/or sunny weather,
please remember that the tempera-
ture inside the passenger compart-
ment increases very quickly.
RISK OF DEATH OR SERIOUS
INJURY.

Downloaded from www.Manualslib.com manuals search engine headrest................................................ (up to the end of the DU)
1.10
ENG_UD26879_2
Appuis-tête avant (X92 - Renault)
ENG_NU_975-3_X92_Dacia_1
Headrests
FRONT HEADRESTS
To raise the headrest
Pull the headrest upwards to the de -
sired height.
To lower the headrest
Press button 1 and guide the headrest
down to the desired height.
The headrest is a safety
component. Ensure that it is
fitted and in the correct po-
sition: the top of your head
should be in line with the top of the
headrest.
To remove the headrest
Press tab 1 and lift the headrest to re-
lease it (tilt the seatback backwards if
necessary).
To refit the headrest
Insert the rods into the sleeves, with the
notches facing forwards, and lower the
headrest to the desired height.
1

Downloaded from www.Manualslib.com manuals search engine front seat adjustment ............................(up to the end of the DU)
front seats ............................................. (up to the end of the DU)
heated seats ......................................... (up to the end of the DU)
front seats adjustment ...................................... (up to the end of the DU)
1.11
ENG_UD24404_1
Sièges avant (X92 - Renault)
ENG_NU_975-3_X92_Dacia_1

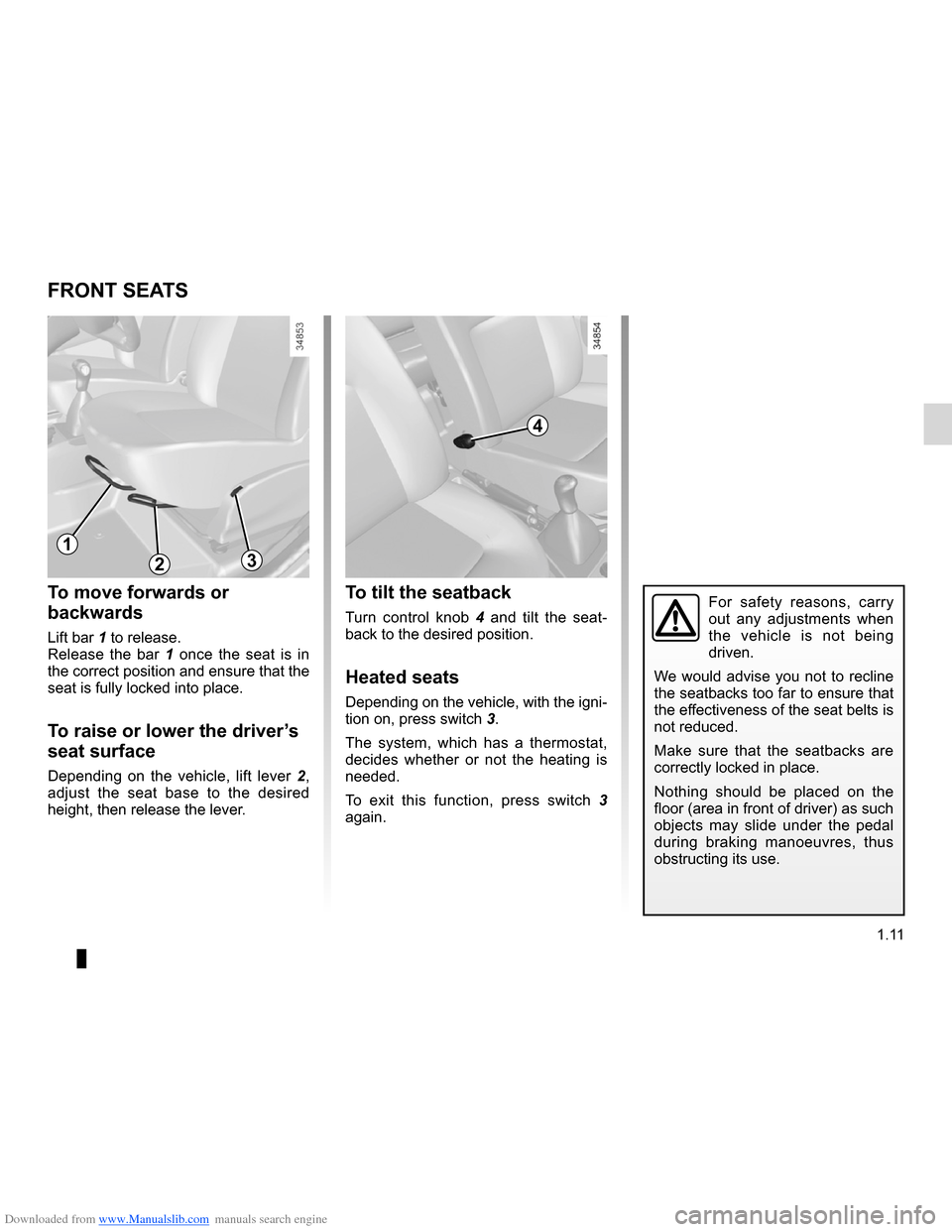

Front seats
FRONT SEATS
To move forwards or
backwards
Lift bar 1 to release.
Release the bar 1 once the seat is in
the correct position and ensure that the
seat is fully locked into place.
To raise or lower the driver’s
seat surface
Depending on the vehicle, lift lever 2 ,
adjust the seat base to the desired
height, then release the lever.
To tilt the seatback
Turn control knob 4 and tilt the seat -
back to the desired position.
Heated seats
Depending on the vehicle, with the igni -
tion on, press switch 3.
The system, which has a thermostat,
decides whether or not the heating is
needed.
To exit this function, press switch 3
again.
For safety reasons, carry
out any adjustments when
the vehicle is not being
driven.
We would advise you not to recline
the seatbacks too far to ensure that
the effectiveness of the seat belts is
not reduced.
Make sure that the seatbacks are
correctly locked in place.
Nothing should be placed on the
floor (area in front of driver) as such
objects may slide under the pedal
during braking manoeuvres, thus
obstructing its use.
13
4
2

Downloaded from www.Manualslib.com manuals search engine adjusting your driving position .............. (up to the end of the DU)
seat belts .............................................. (up to the end of the DU)
1.12
ENG_UD24405_1
Ceintures de sécurité (X92 - Renault)
ENG_NU_975-3_X92_Dacia_1
Jaune NoirNoir texte
Seat belts
SEAT BELTS (1/5)
Always wear your seat belt when trav-
elling in your vehicle. You must also
comply with the legislation of the par -
ticular country you are in.
I n c o r r e c t l y a d j u s t e d o r
twisted seat belts may
cause injuries in the event
of an accident.
Use one seat belt per person,
whether child or adult.
Even pregnant women should wear
a seat belt. In this case, ensure that
the lap belt is not exerting too much
pressure on the abdomen, but do
not allow any slack.
Before starting, first adjust your driv-
ing position, then ask all occupants
to adjust their seat belts to ensure
optimum protection.
Adjusting your driving position
(depending on the vehicle)
– Sit well back in your seat (having
removed your coat or jacket etc.).
This is essential to ensure your back
is positioned correctly;
– adjust the distance between the
seat and the pedals. Your seat
should be as far back as possible
while still allowing you to depress
the clutch pedal fully. The seatback
should be adjusted so that your arms
are slightly bent when you hold the
steering wheel;
– adjust the position of your head -
rest. For the maximum safety, your
head must be as close as possible to
the headrest;
– adjust the height of the seat. This
adjustment allows you to select the
seat position which offers you the
best possible view;
– adjust the position of the steering
wheel.
Adjusting the seat belts
Sit with your back firmly against the
seatback.
The shoulder strap 1 should be as close
as possible to the base of the neck but
not on it.
Lap belt 2 must be worn flat over the
thighs and against the pelvis. The seat
belt must be worn as close to the body
as possible. i.e.: avoid wearing heavy
clothing or keeping bulky objects under
the belts, etc.
1
2
Make sure that the rear bench seat
is securely locked in position so that
the rear seat belts will operate effi -
ciently. Refer to information in the
paragraph on “Second row rear
seats: functions” and “Third row rear
seats: functions” in Section 3.

Downloaded from www.Manualslib.com manuals search engine JauneNoirNoir texte
1.13
ENG_UD24405_1
Ceintures de sécurité (X92 - Renault)
ENG_NU_975-3_X92_Dacia_1
SEAT BELTS (2/5)
To fasten
Unwind the belt slowly and smoothly
and ensure that buckle 3 locks into
catch 5 (check that it is locked by pull -
ing on buckle 3).
If the belt jams, allow it to return slightly
before attempting to unwind it again.
If your seat belt is completely jammed,
pull slowly, but firmly, so that just over
3 cm unwinds. Allow it to return slightly
before attempting to unwind it again.
If there is still a problem, contact an ap-
proved dealer.
Adjusting the front seat belt
height
Move button 6 to select the position you
require so that the chest strap 1 is worn
as described above.
Make sure that the seat belt is locked
in position correctly after you have ad-
justed it.
Unlocking
Press the button 4 on catch 5 and the
seat belt will be rewound by the iner -
tia reel. Hold by the buckle to make this
easier.
™Front seat belt reminder
warning light
Depending on the vehicle, it comes on
when the engine is started and if the
driver’s and/or passenger’s seat belt is
not fastened. When the vehicle is being
driven, it comes on and a beep sounds
for approximately 2 minutes until the
driver’s seat belt is fastened.
Note: You are not recommended to rest
any object on the passenger seat. This
may trigger the front seatbelt reminder
warning light.1
34
5
5
6

Downloaded from www.Manualslib.com manuals search engine 1.14
ENG_UD24405_1
Ceintures de sécurité (X92 - Renault)
ENG_NU_975-3_X92_Dacia_1
Jaune NoirNoir texte
SEAT BELTS (3/5)
Second row rear seats
Rear side seat belts
Slowly unwind belt 7 and click buckle 8
into red catch 9. Centre seat belt
Unwind belt
15 slowly from its hous -
ing 10.
Pass the two buckles and the belt 15 in
the belt guide 11.
Click the smallest buckle into the catch
with the black locking button 12.
Fasten the largest buckle and slide 14
in the catch with the red unlocking
button 13.
Check that the rear seat
belts are positioned and op-
erating correctly each time
the rear seats are moved.Operating the rear seats. Please
see the information in the para -
graphs on “Second row rear seats:
functions” and “Third row rear seats:
functions” in Section 3.
7
8
9
15
1011
1213
14

Downloaded from www.Manualslib.com manuals search engine JauneNoirNoir texte
1.15
ENG_UD24405_1
Ceintures de sécurité (X92 - Renault)
ENG_NU_975-3_X92_Dacia_1
SEAT BELTS (4/5)
When handling, the third row rear
seat belt strap 16 must always
be fastened to hook A to prevent
damage to the strap or luggage
compartment cover (if fitted to the
vehicle).
Check that the rear seat
belts are positioned and op-
erating correctly each time
the rear seats are moved.
Operating the rear seats. Please
see the information in the para -
graphs on “Second row rear seats:
functions” and “Third row rear seats:
functions” in Section 3.
A
16
17
18
Third row rear seats
Remove strap 16 from hook A. Slowly
unwind the strap 16.
Fasten the buckle 17 into the corre -
sponding catch with the red unlocking
button 18.
