mounting a child seat

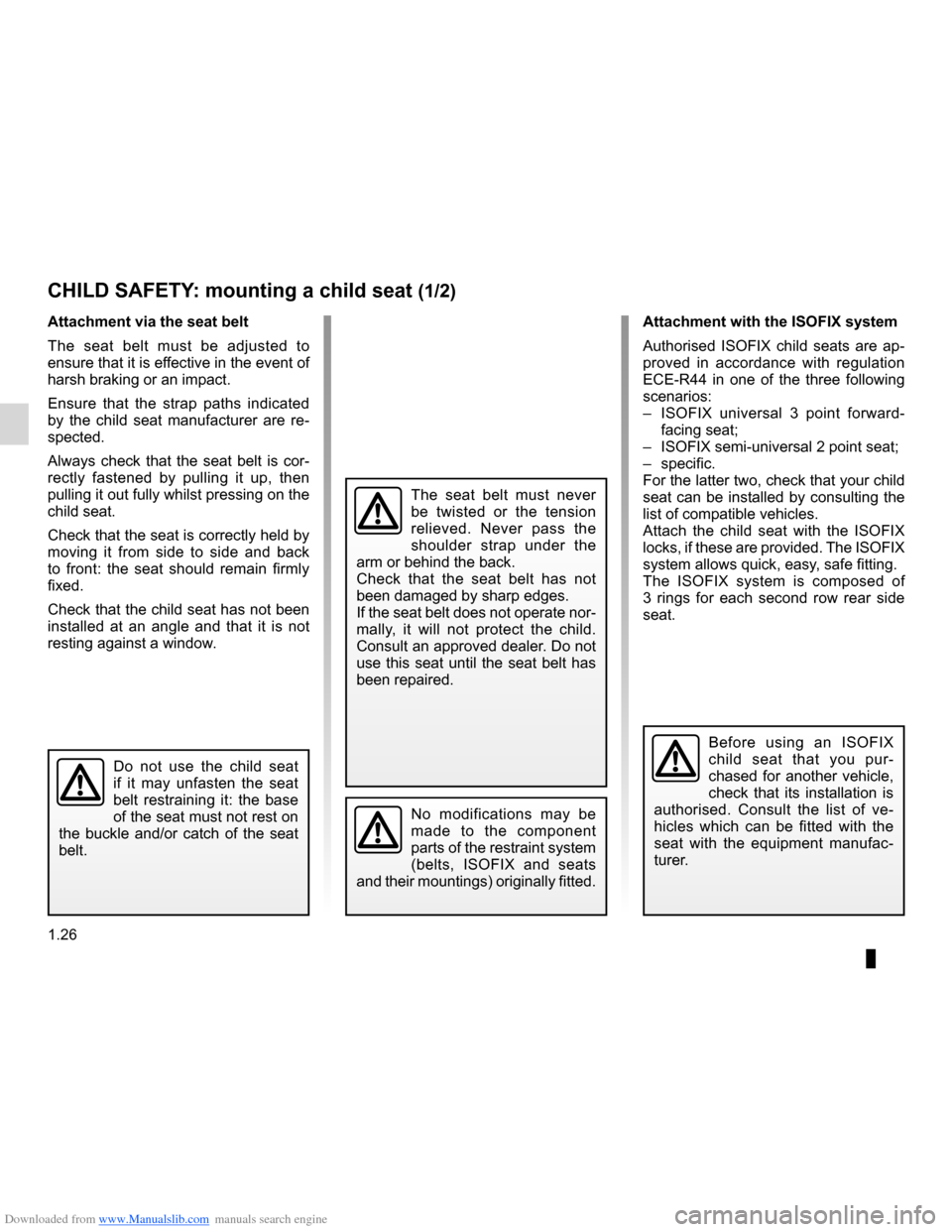

CHILD SAFETY : mounting a child seat (1/2)
Attachment via the seat belt
The seat belt must be adjusted to
ensure that it is effective in the event of
harsh braking or an impact.
Ensure that the strap paths indicated
by the child seat manufacturer are re -
spected.
Always check that the seat belt is cor-
rectly fastened by pulling it up, then
pulling it out fully whilst pressing on the
child seat.
Check that the seat is correctly held by
moving it from side to side and back
to front: the seat should remain firmly
fixed.
Check that the child seat has not been
installed at an angle and that it is not
resting against a window.
The seat belt must never
be twisted or the tension
relieved. Never pass the
shoulder strap under the
arm or behind the back.
Check that the seat belt has not
been damaged by sharp edges.
If the seat belt does not operate nor-
mally, it will not protect the child.
Consult an approved dealer. Do not
use this seat until the seat belt has
been repaired.
Do not use the child seat
if it may unfasten the seat
belt restraining it: the base
of the seat must not rest on
the buckle and/or catch of the seat
belt.
No modifications may be
made to the component
parts of the restraint system
(belts, ISOFIX and seats
and their mountings) originally fitted.
Before using an ISOFIX
child seat that you pur -
chased for another vehicle,
check that its installation is
authorised. Consult the list of ve -
hicles which can be fitted with the
seat with the equipment manufac -
turer.
Attachment with the ISOFIX system
Authorised ISOFIX child seats are ap -
proved in accordance with regulation
ECE-R44 in one of the three following
scenarios:
– ISOFIX universal 3 point forward -
facing seat;
– ISOFIX semi-universal 2 point seat;
– specific.
For the latter two, check that your child
seat can be installed by consulting the
list of compatible vehicles.
Attach the child seat with the ISOFIX
locks, if these are provided. The ISOFIX
system allows quick, easy, safe fitting.
The ISOFIX system is composed of
3 rings for each second row rear side
seat.

Downloaded from www.Manualslib.com manuals search engine JauneNoirNoir texte
1.27
ENG_UD24410_1
Sécurité enfants : fixation du siège enfant (X92 - Renault)
ENG_NU_975-3_X92_Dacia_1

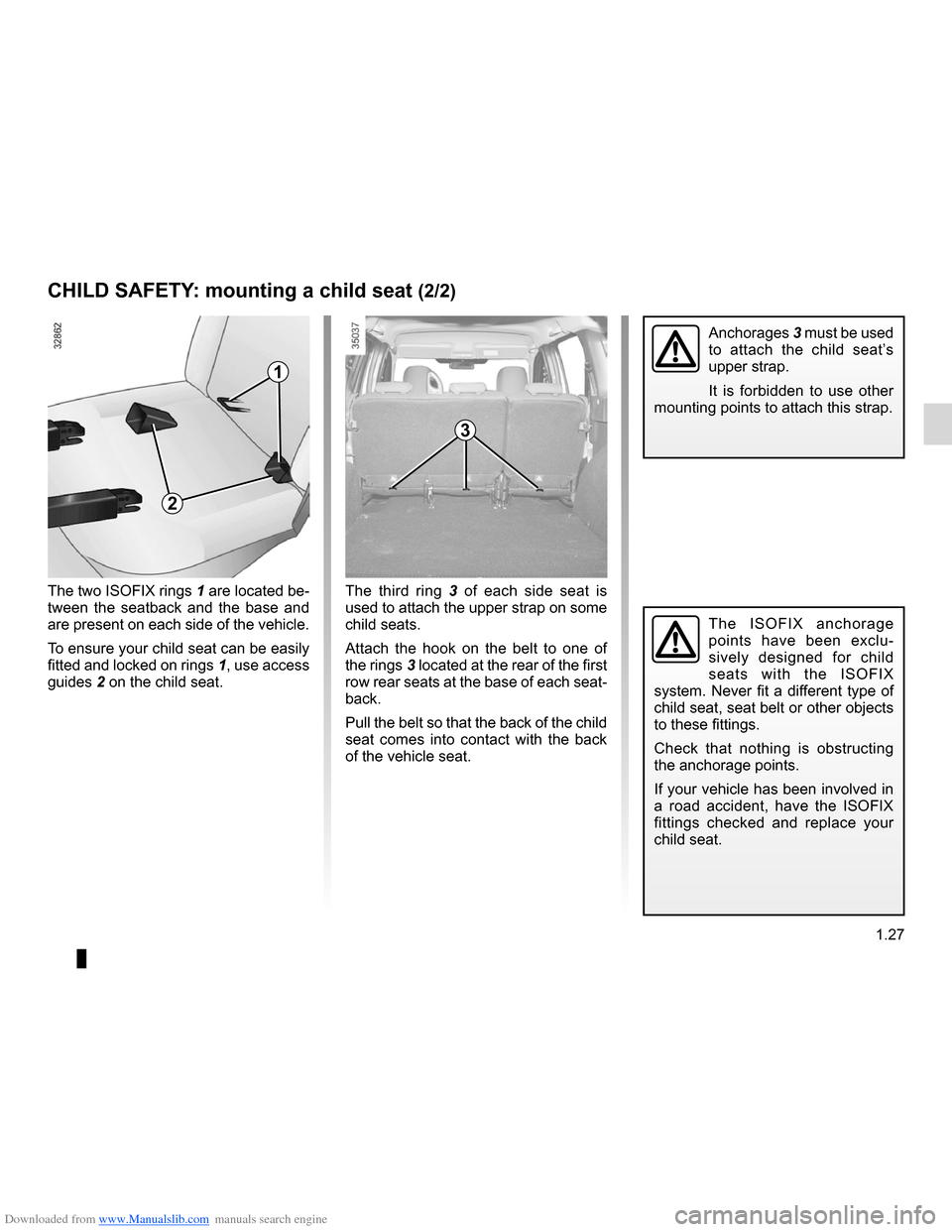

CHILD SAFETY : mounting a child seat (2/2)
The two ISOFIX rings 1 are located be-
tween the seatback and the base and
are present on each side of the vehicle.
To ensure your child seat can be easily
fitted and locked on rings 1, use access
guides 2 on the child seat. The third ring
3 of each side seat is
used to attach the upper strap on some
child seats.
Attach the hook on the belt to one of
the rings 3 located at the rear of the first
row rear seats at the base of each seat-
back.
Pull the belt so that the back of the child
seat comes into contact with the back
of the vehicle seat.
The ISOFIX anchorage
points have been exclu -
sively designed for child
seats with the ISOFIX
system. Never fit a different type of
child seat, seat belt or other objects
to these fittings.
Check that nothing is obstructing
the anchorage points.
If your vehicle has been involved in
a road accident, have the ISOFIX
fittings checked and replace your
child seat.
Anchorages 3 must be used
to attach the child seat’s
upper strap.
It is forbidden to use other
mounting points to attach this strap.
1
2
3

Downloaded from www.Manualslib.com manuals search engine child restraint/seat ................................ (up to the end of the DU)
child restraint/seat ................................ (up to the end of the DU)
child restraint/seat ................................ (up to the end of the DU)
child safety ............................................ (up to the end of the DU)
child seats ............................................. (up to the end of the DU)
transporting children ............................. (up to the end of the DU)
Isofix ..................................................... (up to the end of the DU)
1.28
ENG_UD24411_1
Sécurité enfants : installation du siège enfant (X92 - Renault\
)
ENG_NU_975-3_X92_Dacia_1
Jaune NoirNoir texte
fitting a child seat
CHILD SAFETY : fitting a child seat (1/8)
In the front seat
The laws concerning children travel -
ling in the front passenger seat differ in
every country. Consult the legislation in
force and follow the indications on the
diagram on the following page.
Before fitting a child seat in this seat (if
authorised):
– deactivate the front passenger air
bag;
– lower the seat belt as far as possible;
– move the seat as far back as possi-
ble;
– gently tilt the seatback away from
vertical (approximately 25°);
– on equipped vehicles, raise the seat
base as far as possible.
Do not change these settings after the
child seat is installed.
R I S K O F D E AT H O R
SERIOUS INJURY: before
fitting a rear-facing child
seat in this seat, check
that the air bag has been deacti -
vated (refer to the information on
“Deactivating the front passenger
air bags” in Section 1).
Some seats are not suitable for fitting
child seats. The diagram on the follow -
ing page shows you how to attach a
child seat.
The types of child seats indicated may
not be available. Before using a differ-
ent child seat, check with the manufac-
turer that it can be fitted.
Fit the child seat in a rear
seat wherever possible.
Check that when installing
the child seat in the vehicle
it is not at risk of coming loose from
its base.
If you have to remove the headrest,
check that it is correctly stored so
that it does not come loose under
harsh braking or impact.
Always attach the child seat to the
vehicle even if it is not in use so that
it does not come loose under harsh
braking or impact.

Downloaded from www.Manualslib.com manuals search engine JauneNoirNoir texte
1.29
ENG_UD24411_1
Sécurité enfants : installation du siège enfant (X92 - Renault\
)
ENG_NU_975-3_X92_Dacia_1
CHILD SAFETY : fitting a child seat (2/8)
In the rear side seat
A carrycot can be installed across the
vehicle and will take up at least two
seats. Position the child with his or her
feet nearest the door.
Before fitting a child seat to the ISOFIX
anchorages on the rear side seat,
ensure that the seat belt buckles are
not positioned between the two ISOFIX
anchorages on this seat. If necessary,
move the buckle from the seat in ques-
tion towards the centre of the vehicle.
Move the front seat as far forward as
possible to install a rear-facing child
seat, then move back the seat in front
as far as it will go, although without al-
lowing it to come into contact with the
child seat.
For the safety of the child in the for -
ward-facing seat, do not move the seat
in front back past the middle of the
runner, do not tilt the seatback too far
(maximum of 25° ) and raise the seat as
much as possible.
Check that the forward-facing child seat
is resting against the back of the vehi-
cle seat and that the headrest of the ve-
hicle is not obstructing its use. Rear centre seat
A child seat may only be fitted in this
seat if it is equipped with an inertia-reel
seat belt. For any additional informa
-
tion, contact an approved dealer.
Ensure that the child seat
or the child’s feet do not
prevent the front seat from
locking correctly.
Refer to the information on the
“Front seats” in Section 1.

Downloaded from www.Manualslib.com manuals search engine 1.30
ENG_UD24411_1
Sécurité enfants : installation du siège enfant (X92 - Renault\
)
ENG_NU_975-3_X92_Dacia_1
Jaune NoirNoir texte

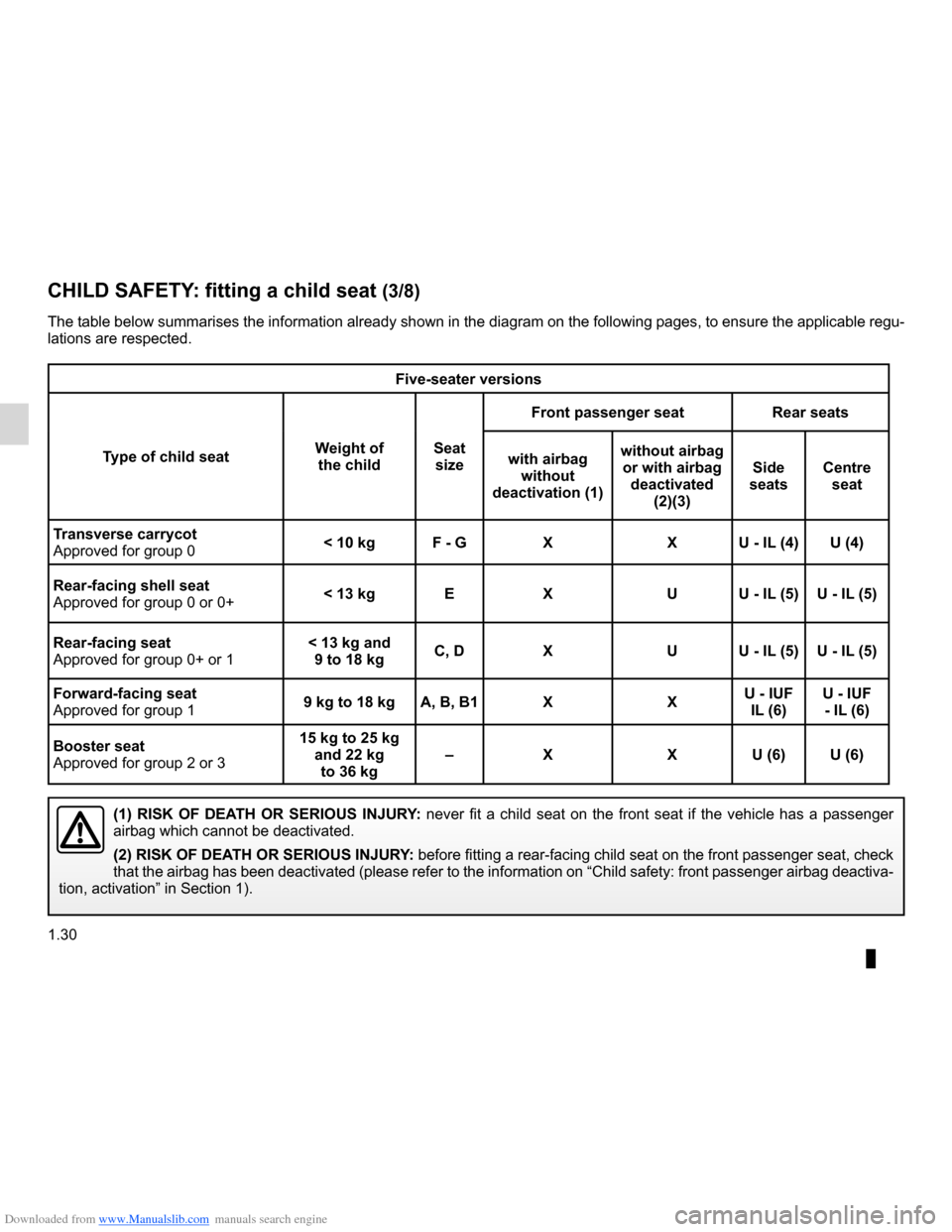

CHILD SAFETY : fitting a child seat (3/8)
Five-seater versions
Type of child seat Weight of
the child Seat
size Front passenger seat
Rear seats
with airbag without
deactivation (1) without airbag
or with airbag deactivated (2)(3) Side
seats Centre
seat
Transverse carrycot
Approved for group 0 < 10 kg
F - G X XU - IL (4) U (4)
Rear-facing shell seat
Approved for group 0 or 0+ < 13 kg
EX UU - IL (5) U - IL (5)
Rear-facing seat
Approved for group 0+ or 1 < 13 kg and
9 to 18 kg C, D
X UU - IL (5) U - IL (5)
Forward-facing seat
Approved for group 1 9 kg to 18 kg
A, B, B1 X XU - IUF
IL (6) U - IUF
- IL (6)
Booster seat
Approved for group 2 or 3 15 kg to 25 kg
and 22 kg to 36 kg –
X XU (6)U (6)
The table below summarises the information already shown in the diagram on the following pages, to ensure the applicable regu-
lations are respected.
(1) RISK OF DEATH OR SERIOUS INJURY: never fit a child seat on the front seat if the vehicle has a passenger
airbag which cannot be deactivated.
(2) RISK OF DEATH OR SERIOUS INJURY: before fitting a rear-facing child seat on the front passenger seat, check
that the airbag has been deactivated (please refer to the information on “Child safety: front passenger airbag deactiva
-
tion, activation” in Section 1).

Downloaded from www.Manualslib.com manuals search engine JauneNoirNoir texte
1.31
ENG_UD24411_1
Sécurité enfants : installation du siège enfant (X92 - Renault\
)
ENG_NU_975-3_X92_Dacia_1
CHILD SAFETY : fitting a child seat (4/8)
X = Seat not suitable for fitting child seats.
U = Seat which allows a child seat with “Universal” approval to be installed using a seat belt; check that it can be fitted.
IUF = Seat which allows forward facing child seats with “Universal” approval to be attached by the ISOFIX device; check that it
can be fitted correctly.
IL = Seat which allows child seats with “Semi-universal” or “vehicle specific” approval to be attached by the ISOFIX device; check
that it can be fitted correctly.
(3) Only a rear-facing child seat can be fitted in this seat: raise the seat to the maximum and position it as far back as possible,
tilting the seatback slightly (approximately 25°).
(4) A carrycot can be installed across the vehicle and will take up at least two seats. Position the child with his or her feet nearest
the door.
(5) Move the front seat as far forward as possible to install a rear-facing child seat, then move back the seat in front as far as it will
go, although without allowing it to come into contact with the child sea\
t. Raise the headrest or remove it.
(6) Forward-facing child seat; position the seatback of the child seat in contact with the seatback of the vehicle seat. Adjust the
height of the headrest or remove it if necessary; do not push the seat in front of the child more than halfway back on its runners
and do not recline the seatback more than 25°.
Refer to the “Child safety equipment” booklet available from the network to choose the seat suited to your child and rec-
ommended for your vehicle.

Downloaded from www.Manualslib.com manuals search engine 1.32
ENG_UD24411_1
Sécurité enfants : installation du siège enfant (X92 - Renault\
)
ENG_NU_975-3_X92_Dacia_1
Jaune NoirNoir texte

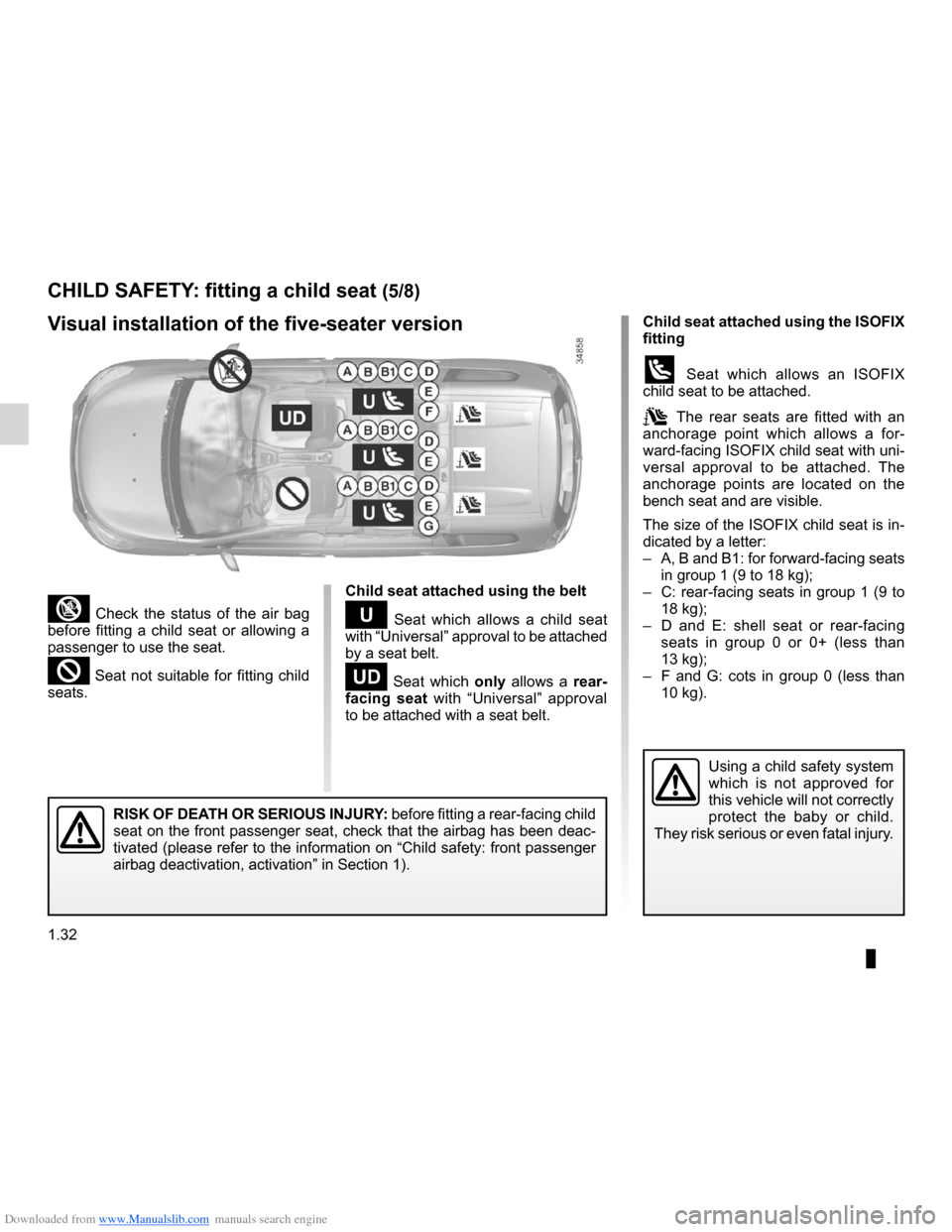

CHILD SAFETY : fitting a child seat (5/8)
³ Check the status of the air bag
before fitting a child seat or allowing a
passenger to use the seat.
² Seat not suitable for fitting child
seats.
Child seat attached using the belt
¬ Seat which allows a child seat
with “Universal” approval to be attached
by a seat belt.
− Seat which only allows a rear-
facing seat with “Universal” approval
to be attached with a seat belt.
RISK OF DEATH OR SERIOUS INJURY: before fitting a rear-facing child
seat on the front passenger seat, check that the airbag has been deac-
tivated (please refer to the information on “Child safety: front passenger
airbag deactivation, activation” in Section 1).
Using a child safety system
which is not approved for
this vehicle will not correctly
protect the baby or child.
They risk serious or even fatal injury.
Child seat attached using the ISOFIX
fitting
ü Seat which allows an ISOFIX
child seat to be attached.
 The rear seats are fitted with an
anchorage point which allows a for -
ward-facing ISOFIX child seat with uni-
versal approval to be attached. The
anchorage points are located on the
bench seat and are visible.
The size of the ISOFIX child seat is in-
dicated by a letter:
– A, B and B1: for forward-facing seats
in group 1 (9 to 18 kg);
– C: rear-facing seats in group 1 (9 to
18 kg);
– D and E: shell seat or rear-facing
seats in group 0 or 0+ (less than
13 kg);
– F and G: cots in group 0 (less than
10 kg).

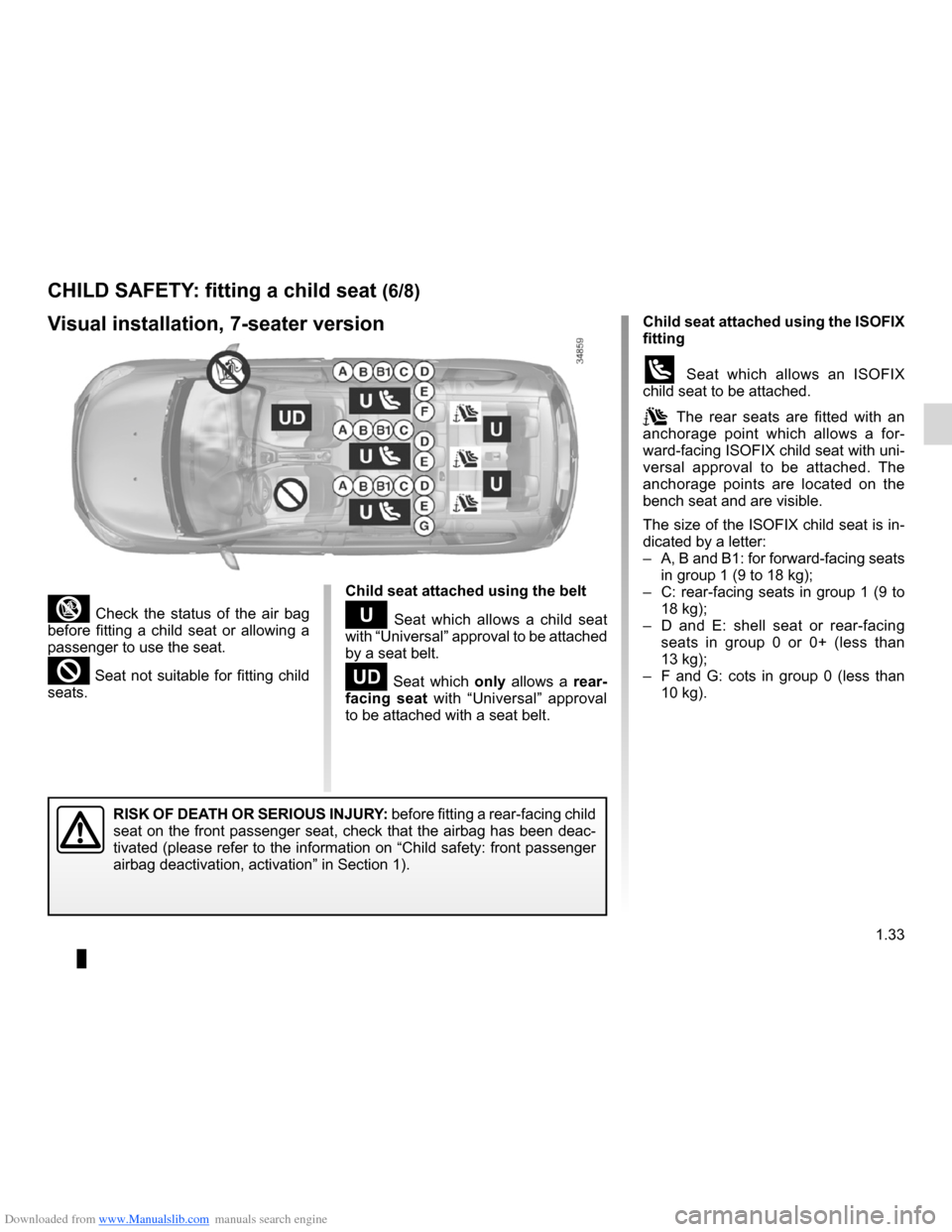

Visual installation of the five-seater version

Downloaded from www.Manualslib.com manuals search engine JauneNoirNoir texte
1.33
ENG_UD24411_1
Sécurité enfants : installation du siège enfant (X92 - Renault\
)
ENG_NU_975-3_X92_Dacia_1
CHILD SAFETY : fitting a child seat (6/8)
RISK OF DEATH OR SERIOUS INJURY: before fitting a rear-facing child
seat on the front passenger seat, check that the airbag has been deac-
tivated (please refer to the information on “Child safety: front passenger
airbag deactivation, activation” in Section 1).
Child seat attached using the belt
¬ Seat which allows a child seat
with “Universal” approval to be attached
by a seat belt.
− Seat which only allows a rear-
facing seat with “Universal” approval
to be attached with a seat belt. Child seat attached using the ISOFIX
fitting
ü Seat which allows an ISOFIX
child seat to be attached.
 The rear seats are fitted with an
anchorage point which allows a for -
ward-facing ISOFIX child seat with uni-
versal approval to be attached. The
anchorage points are located on the
bench seat and are visible.
The size of the ISOFIX child seat is in-
dicated by a letter:
– A, B and B1: for forward-facing seats
in group 1 (9 to 18 kg);
– C: rear-facing seats in group 1 (9 to
18 kg);
– D and E: shell seat or rear-facing
seats in group 0 or 0+ (less than
13 kg);
– F and G: cots in group 0 (less than
10 kg).
³ Check the status of the air bag
before fitting a child seat or allowing a
passenger to use the seat.
² Seat not suitable for fitting child
seats.
Visual installation, 7-seater version

Downloaded from www.Manualslib.com manuals search engine 1.34
ENG_UD24411_1
Sécurité enfants : installation du siège enfant (X92 - Renault\
)
ENG_NU_975-3_X92_Dacia_1
Jaune NoirNoir texte

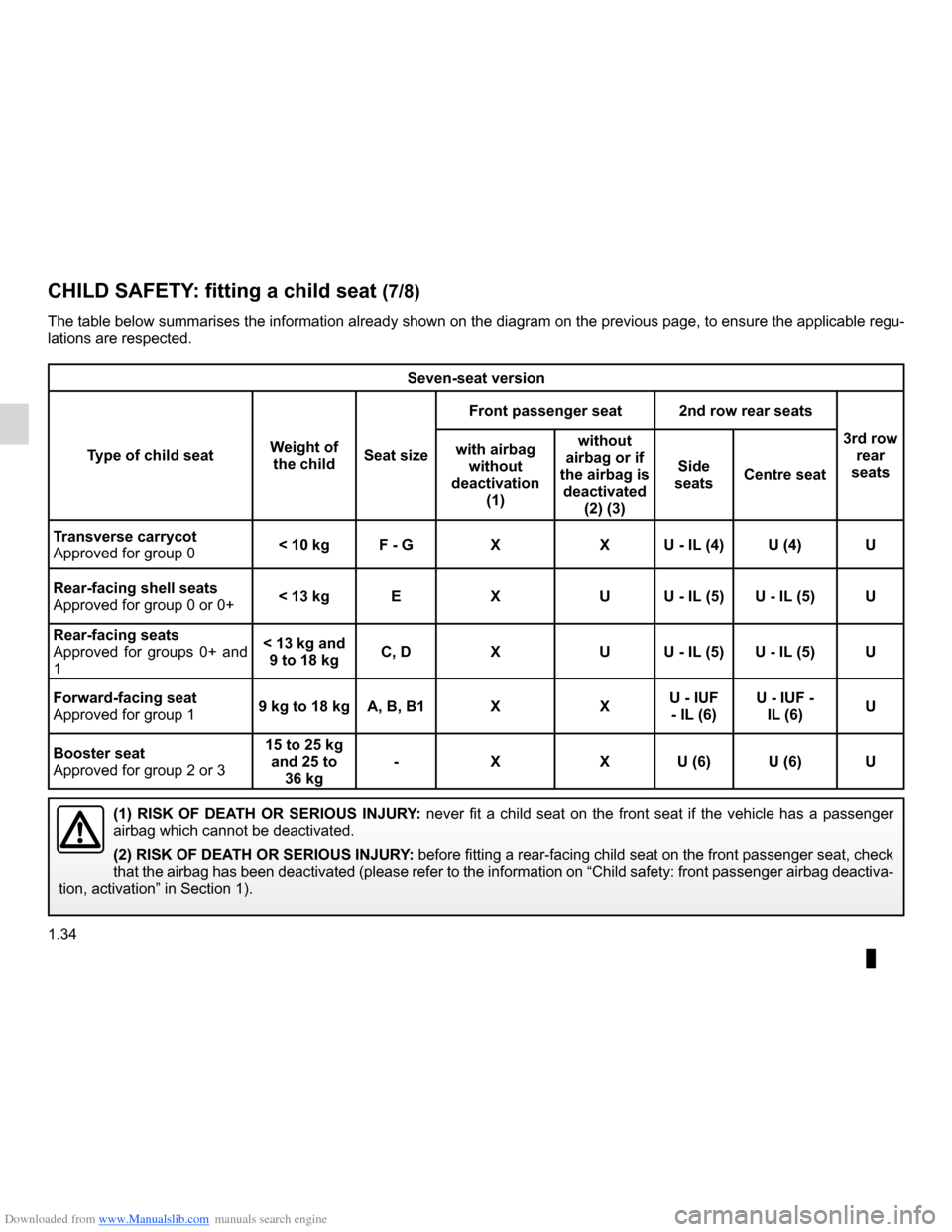

CHILD SAFETY : fitting a child seat (7/8)
Seven-seat version
Type of child seat Weight of
the child Seat size Front passenger seat
2nd row rear seats
3rd row rear
seats
with airbag
without
deactivation (1) without
airbag or if
the airbag is deactivated (2) (3) Side
seats Centre seat
Transverse carrycot
Approved for group 0 < 10 kg
F - G XXU - IL (4) U (4)U
Rear-facing shell seats
Approved for group 0 or 0+ < 13 kg
EX UU - IL (5) U - IL (5) U
Rear-facing seats
Approved for groups 0+ and
1 < 13 kg and
9 to 18 kg C, D
XUU - IL (5) U - IL (5) U
Forward-facing seat
Approved for group 1 9 kg to 18 kg
A, B, B1 XXU - IUF
- IL (6) U - IUF -
IL (6) U
Booster seat
Approved for group 2 or 3 15 to 25 kg
and 25 to 36 kg -
X XU (6) U (6) U
(1) RISK OF DEATH OR SERIOUS INJURY: never fit a child seat on the front seat if the vehicle has a passenger
airbag which cannot be deactivated.
(2) RISK OF DEATH OR SERIOUS INJURY: before fitting a rear-facing child seat on the front passenger seat, check
that the airbag has been deactivated (please refer to the information on “Child safety: front passenger airbag deactiva -
tion, activation” in Section 1).
The table below summarises the information already shown on the diagram on the previous page, to ensure the applicable regu-
lations are respected.

Downloaded from www.Manualslib.com manuals search engine JauneNoirNoir texte
1.35
ENG_UD24411_1
Sécurité enfants : installation du siège enfant (X92 - Renault\
)
ENG_NU_975-3_X92_Dacia_1
CHILD SAFETY : fitting a child seat (8/8)
X = Seat not suitable for fitting child seats.
U = Seat allowing a child seat with “Universal” approval to be attached by seat belt; check that it can be fitted correctly.
IUF = Seat which allows a forward-facing child seat with “Universal” approval to be attached by the ISOFIX device; check that
it can be fitted.
IL = Seat which allows child seats with “Semi-universal” or “Vehicle specific” approval to be attached by the ISOFIX device; check
that it can be fitted.
(3) Only a rear-facing child seat can be fitted in this seat: raise the seat to the maximum and position it as far back as possible,
tilting the seatback slightly (approximately 25°).
(4) A carrycot can be installed across the vehicle and will take up at least two seats. Position the child with his or her feet nearest
the door.
(5) Move the front seat as far forward as possible to install a rear-facing child seat, then move back the seat in front as far as it will
go, although without allowing it to come into contact with the child sea\
t. Raise the headrest or remove it.
(6) Forward-facing child seat; position the seatback of the child seat in contact with the seatback of the vehicle seat. Adjust the
height of the headrest or remove it if necessary; do not push the seat in front of the child more than halfway back on its runners
and do not recline the seatback more than 25°.
Refer to the “Child safety equipment” booklet available from the network to choose the seat suited to your child and rec-
ommended for your vehicle.
