fault lights DACIA LODGY 2012 1.G Owners Manual

Downloaded from www.Manualslib.com manuals search engine control instruments ............................... (up to the end of the DU)
instrument panel ................................... (up to the end of the DU)
warning lights ........................................ (up to the end of the DU)
1.42
ENG_UD24415_1
Tableau de bord : témoins lumineux (X92 - Renault)
ENG_NU_975-3_X92_Dacia_1
Jaune NoirNoir texte
áMain beam headlight tell-tale
light
kDipped beam headlight tell -
tale
gFront fog light tell-tale light
fRear fog light tell-tale
–˜Direction indicator tell -
tale light
UVariable power assisted
steering warning light
This lights up when the ignition is
switched on and goes out after a few
seconds.
If it comes on when driving accompa -
nied by a beep, this indicates a fault in
the system.
Contact an approved Dealer as soon as
possible.
ä æNot used
Warning lights
WARNING LIGHTS (1/4)
The presence and operation of the warning lights DEPEND ON THE EQUIPMENT\
AND COUNTRY.
A
If no lights or sounds are ap-
parent, this indicates a fault
in the instrument panel. This
indicates that it is essential
to stop immediately (as soon as traf-
fic conditions allow). Ensure that the
vehicle is correctly immobilised and
contact an approved Dealer.
Instrument panel A
The red warning light Ò
requires you to stop imme -
diately, for your own safety,
as soon as traffic conditions allow.
Switch off the engine and do not
restart it. Contact an Authorised
Dealer.
If the orange warning light Ò
comes on while you are driving,
drive carefully to an authorised
dealer as soon as possible. Failure
to follow this recommendation risks
damaging your vehicle.

Downloaded from www.Manualslib.com manuals search engine rear screendemisting ......................................................... (current page)
1.44
ENG_UD24415_1
Tableau de bord : témoins lumineux (X92 - Renault)
ENG_NU_975-3_X92_Dacia_1
Jaune NoirNoir texte
WARNING LIGHTS (3/4)
The presence and operation of the warning lights DEPEND ON THE EQUIPMENT\
AND COUNTRY.
ÉPreheating warning light (on
diesel version)
This should come on when the igni -
tion is switched on. It indicates that the
heater plugs are in operation. It goes
out after preheating is sufficient and the
engine can be started.
åAirbag warning light
This comes on when the igni -
tion is switched on and goes out after
a few seconds. If it does not come on
when the ignition is switched on or if it
flashes, there is a fault in the system.
Contact an approved Dealer as soon as
possible.
xAnti-lock braking warning
light
This lights up when the ignition is
switched on and goes out after a few
seconds.
If it does not go out after the ignition is
switched on, or lights up when driving,
there is a fault with the ABS. Braking
will then be as normal, without the ABS
system.
Contact an approved Dealer as soon as
possible.
LLow fuel level warning light
This comes on when the igni -
tion is switched on and goes out after a
few seconds. If it comes on when driv-
ing accompanied by a beep, fill up with
fuel as soon as possible. There is only
approximately 30 miles (50 km) worth
of fuel left after the warning light first
comes on.
A
ÀOil pressure warning light
Goes off, once the engine is
running and is accompanied by a beep.
If it comes on while you are driving,
stop at once and switch off the ignition.
Check the oil level (refer to “Engine oil
level: general information” in Section
4). If the level is normal, the light has
come on for another reason: Consult an
authorised dealer straight away.

Downloaded from www.Manualslib.com manuals search engine JauneNoirNoir texte
2.7
ENG_UD19988_2
Conseils antipollution, économies de carburant, conduite (X65 - X65 \
PH5 - Renault)
ENG_NU_975-3_X92_Dacia_2
– Brake as little as possible by suitably
anticipating an obstacle or bend and
then simply releasing the accelerator
pedal.
– Avoid sudden acceleration.
– Do not overrev the engine in the in-
termediate gears.
Always use the highest gear possi -
ble without labouring the engine.
– Do not try to maintain the same
speed up a hill, accelerate no more
than you would on level roads. Keep
your foot in the same position on the
accelerator pedal.
– Double declutching and accelerating
before switching off the engine are
unnecessary in modern vehicles.
– Bad weather, flooded roads.
Do not drive through water
if it is higher than the lower
edge of the wheel rim.
Exhaust gas monitoring
system
The exhaust gas monitoring system will
detect any operating faults in the vehi-
cle’s antipollution system.
If this system malfunctions, toxic sub -
stances may be released into the at -
mosphere or damage may occur.
ÄThis warning light on the in -
strument panel will indicate if
there are any faults in the system:
This lights up when the ignition is
switched on and goes out when the
engine is started.
– If it lights up continuously, consult
your approved dealer as soon as
possible;
– if it flashes, reduce the engine speed
until the light stops flashing. Contact
your approved dealer as soon as
possible.
Driving
– Drive carefully for the first few miles
until the engine reaches its normal
operating temperature, rather than
let it warm up while the vehicle is sta-
tionary.
– Speed is expensive.
– Sporty driving uses a lot of fuel: drive
with a light right foot.
ADvICE: antipollution, fuel economy and driving (2/3)
Driver obstruction
On the driver’s side, only use mats suitable for the vehicle, attached with
the pre-fitted components, and check the fitting regularly. Do not lay sev-
eral mats on top of each other.
There is a risk of wedging the pedals.

Downloaded from www.Manualslib.com manuals search engine driving ................................................... (up to the end of the DU)
ABS ...................................................... (up to the end of the DU)
anti-lock braking system: ABS ..............(up to the end of the DU)
ASR (traction control) ........................... (up to the end of the DU)
traction control: ASR .............................(up to the end of the DU)
ESP: Electronic Stability Program ........ (up to the end of the DU)
traction control: ASR .............................(up to the end of the DU)
emergency braking ............................... (up to the end of the DU)
Electronic Stability Program: ESP ........ (up to the end of the DU)
2.12
ENG_UD24436_1
Dispositifs de correction et d’assistance à la conduite (X92 - Re\
nault)
ENG_NU_975-3_X92_Dacia_2
Jaune NoirNoir texte
Driver correction devices and aids
DRIvER CORRECTION DEvICES/AIDS (1/3)
ABS (Anti-lock Braking
System)
Under heavy braking, the ABS prevents
the wheels from locking, allowing the
stopping distance to be managed and
keeping control of the vehicle.
Under these circumstances, the vehi -
cle can be steered to avoid an obstacle
whilst braking. In addition, this system
can increase stopping distances, par -
ticularly on roads with low surface grip
(wet ground etc.).
You will feel a pulsation through the
brake pedal each time the system is
activated. The ABS does not in any way
improve the vehicle’s physical perform-
ance relating to the road surface and
roadholding. It is still essential to follow
the rules of good driving practice (such
as driving at a safe distance from the
vehicle in front, etc.). Operating faults:
–
If the
x warning light on the in-
strument panel comes on while driv-
ing, braking is still operational ;
– If the
x and D warning
lights on the instrument panel come
on when driving, this indicates a
fault with the braking system.
ABS, ESP and emergency brake assist
are deactivated.
Consult an approved dealer.
Depending on the vehicle, this is com-
posed of:
– ABS (anti-lock braking system);
– electronic stability program (ESP)
with understeer control and trac -
tion control (ASR);
– emergency brake assist with, de -
pending on the vehicle, braking
anticipation;
In an emergency, apply firm and
continuous pressure to the brake
pedal. There is no need to pump
it repeatedly. The ABS will modu -
late the force applied in the braking
system.
These functions are an ad-
ditional aid in the event of
critical driving conditions,
enabling the vehicle behav -
iour to be adapted to suit the driving
conditions.
However, the functions do not take
the place of the driver. They do
not increase the vehicle’s limits
and should not encourage you
to drive more quickly. Therefore,
they can under no circumstances
replace the vigilance or responsibil -
ity of the driver when manoeuvring
the vehicle (the driver must always
be ready for sudden incidents which
may occur when driving).
Yo u r b r a k i n g s y s t e m s
are partially operational.
However, it is dangerous
to brake suddenly and
it is essential to stop immediately,
as soon as traffic conditions allow.
Contact an approved dealer.

Downloaded from www.Manualslib.com manuals search engine JauneNoirNoir texte
2.13
ENG_UD24436_1
Dispositifs de correction et d’assistance à la conduite (X92 - Re\
nault)
ENG_NU_975-3_X92_Dacia_2
DRIvER CORRECTION DEvICES/AIDS (2/3)
Electronic stability program
(ESP) with understeer control
and traction control (ASR)
Electronic stability control ESC
This system helps you to keep control
of the vehicle in critical driving condi -
tions (avoiding an obstacle, loss of grip
on a bend, etc.).
Operating principle
A sensor in the steering wheel detects
the direction selected by the driver.
Other sensors throughout the vehicle
measure the actual direction.
The system compares driver input to
the actual trajectory of the vehicle and
corrects the trajectory if necessary by
controlling the braking of certain wheels
and/or engine power. In the event that
the system is engaged, indicator light
 flashes on the instrument panel. Operating faults
When the system detects an operating
fault, the
 and/or  warning
lights on the instrument panel come on.
In this case, the ESP and traction con-
trol are deactivated.
Consult an approved dealer.
Understeer control
This system optimises the action of the
ESP in the case of pronounced unders-
teering (loss of front axle grip).
Traction control ASR
This system helps to limit wheelspin of
the drive wheels and to control the ve-
hicle when pulling away accelerating or
decelerating.
Operating principle
Using the wheel sensors, the system
measures and compares the speed of
the drive wheels at all times and slows
down their over-rotation. If a wheel is
starting to slip, the system brakes au
-
tomatically until the drive supplied be -
comes compatible with the level of grip
under the wheel again.
The system also adjusts the engine
speed to the grip available under the
wheels, independently of the pressure
exerted on the accelerator pedal.

Downloaded from www.Manualslib.com manuals search engine emergency brake assist........................(up to the end of the DU)
2.14
ENG_UD24436_1
Dispositifs de correction et d’assistance à la conduite (X92 - Re\
nault)
ENG_NU_975-3_X92_Dacia_2

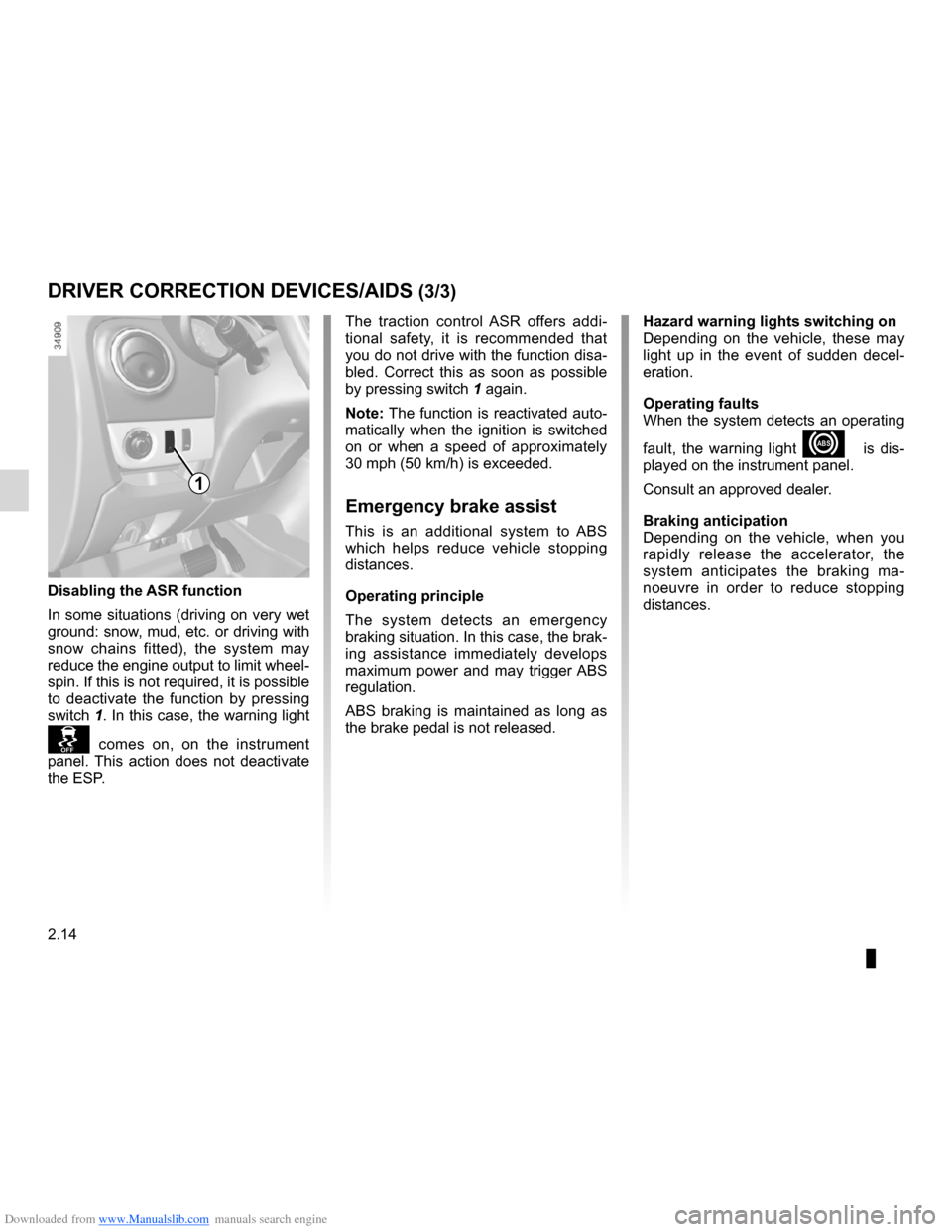

DRIvER CORRECTION DEvICES/AIDS (3/3)
The traction control ASR offers addi -
tional safety, it is recommended that
you do not drive with the function disa-
bled. Correct this as soon as possible
by pressing switch 1 again.
Note: The function is reactivated auto-
matically when the ignition is switched
on or when a speed of approximately
30 mph (50 km/h) is exceeded.
Emergency brake assist
This is an additional system to ABS
which helps reduce vehicle stopping
distances.
Operating principle
The system detects an emergency
braking situation. In this case, the brak-
ing assistance immediately develops
maximum power and may trigger ABS
regulation.
ABS braking is maintained as long as
the brake pedal is not released.
Hazard warning lights switching on
Depending on the vehicle, these may
light up in the event of sudden decel -
eration.
Operating faults
When the system detects an operating
fault, the warning light
x is dis -
played on the instrument panel.
Consult an approved dealer.
Braking anticipation
Depending on the vehicle, when you
rapidly release the accelerator, the
system anticipates the braking ma -
noeuvre in order to reduce stopping
distances.
Disabling the ASR function
In some situations (driving on very wet
ground: snow, mud, etc. or driving with
snow chains fitted), the system may
reduce the engine output to limit wheel
-
spin. If this is not required, it is possible
to deactivate the function by pressing
switch 1. In this case, the warning light
 comes on, on the instrument
panel. This action does not deactivate
the ESP.
1

Downloaded from www.Manualslib.com manuals search engine 5.1
ENG_UD28067_3
Sommaire 5 (X92 - Renault)
ENG_NU_975-3_X92_Dacia_5

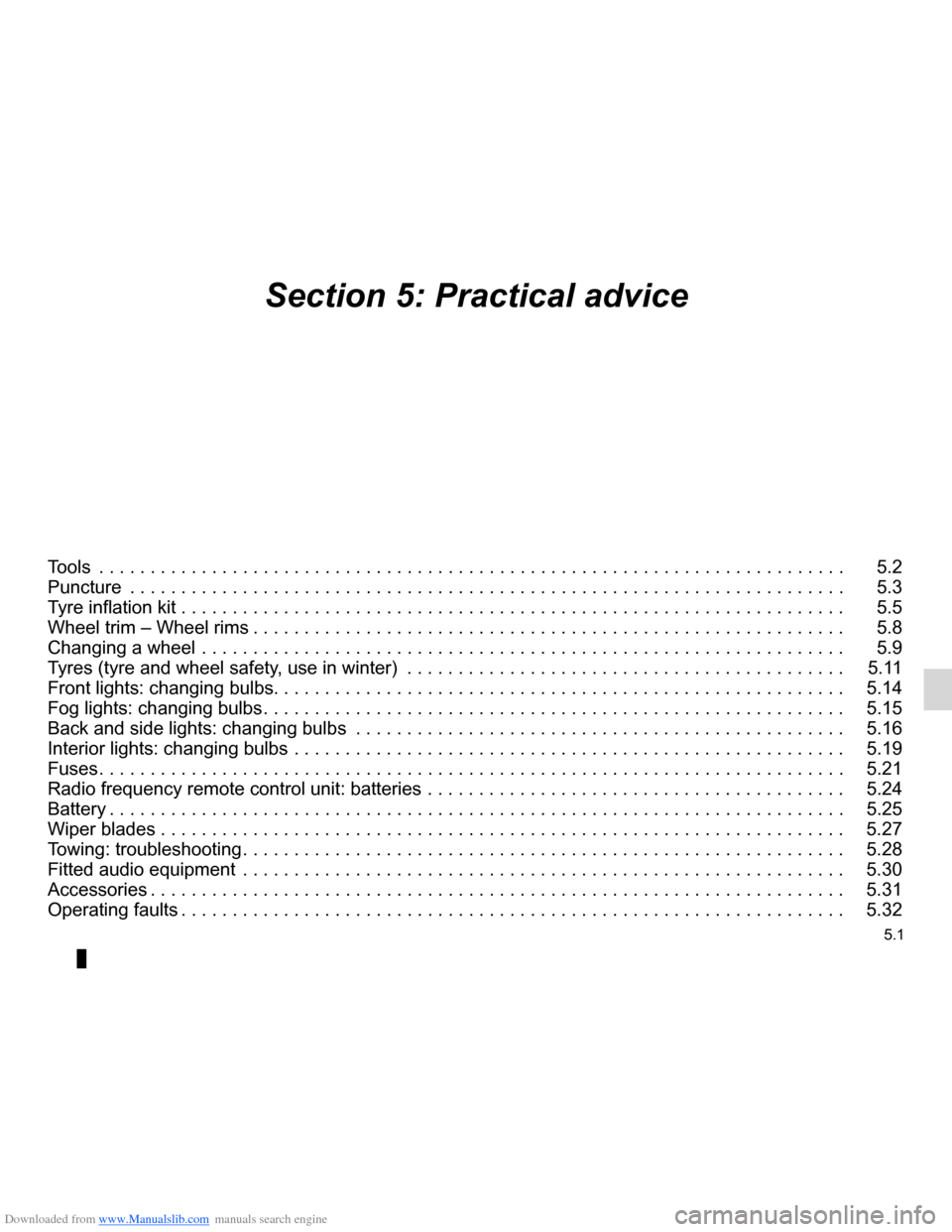

Section 5: Practical advice
Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.2
Puncture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.3
Tyre inflation kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.5
Wheel trim – Wheel rims . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.8
Changing a wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.9
Tyres (tyre and wheel safety, use in winter) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.11
Front lights: changing bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . 5.14
Fog lights: changing bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.15
Back and side lights: changing bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.16
Interior lights: changing bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.19
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.21
Radio frequency remote control unit: batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.24
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.25
Wiper blades . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.27
Towing: troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.28
Fitted audio equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.30
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.31
Operating faults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.32

Downloaded from www.Manualslib.com manuals search engine operating faults ..................................... (up to the end of the DU)
practical advice ..................................... (up to the end of the DU)
faults operating faults ............................... (up to the end of the DU)
5.32
ENG_UD28684_2
Anomalies de fonctionnement (X92 - Renault)
ENG_NU_975-3_X92_Dacia_5
Jaune NoirNoir texte
Operating faults
oPERATING FAUl Ts (1/5)
The following advice will enable you to carry out quick, temporary repairs. For safety reasons you should always contact
an approved dealer as soon as possible.
The starter is activated PossIBlE CAUsEsWHAT To Do
Warning lights dim or fail to come on;
the starter does not run. Battery terminals disconnected,
oxidised or incorrectly secured.Retighten them, reconnect them or clean
them if they are oxidised.
Battery discharged or worn. Connect another battery to the faulty bat -
tery. Refer to the information on “Battery:
troubleshooting” in Section 5 or replace the
battery if necessary.
Do not push the vehicle if the steering
column is locked.
The engine will not start. Starting conditions are not fulfilled.Please refer to the information on “Starting,
stopping the engine” in Section 2.
The steering column remains locked. Steering wheel locked.To unlock, gently move the key and the
steering wheel (refer to the information on
the “Ignition switch” in Section 2).

Downloaded from www.Manualslib.com manuals search engine 5.36
ENG_UD28684_2
Anomalies de fonctionnement (X92 - Renault)
ENG_NU_975-3_X92_Dacia_5

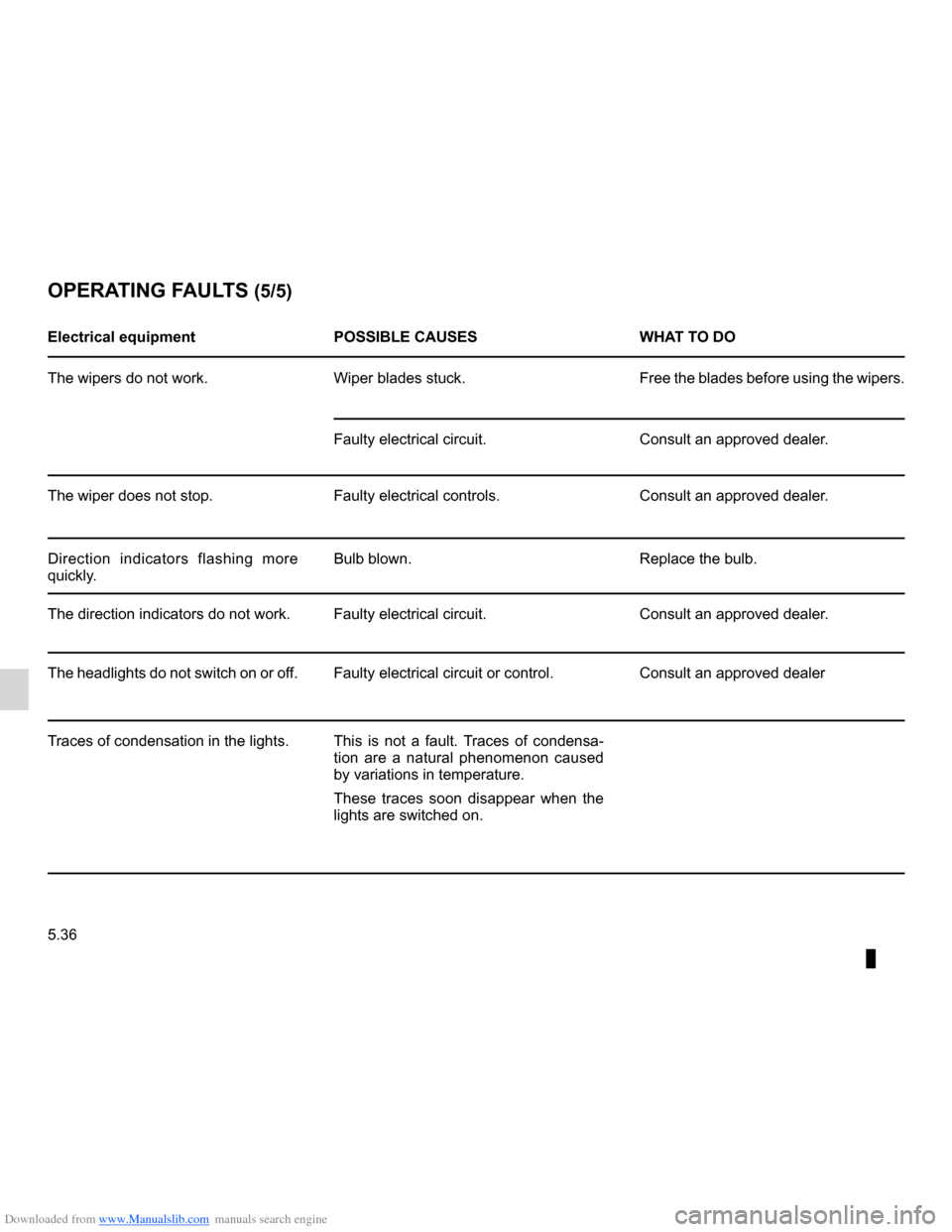

oPERATING FAUl Ts (5/5)
Electrical equipment PossIBlE CAUsEs WHAT To Do
The wipers do not work. Wiper blades stuck. Free the blades before using the wipers.
Faulty electrical circuit. Consult an approved dealer.
The wiper does not stop. Faulty electrical controls. Consult an approved dealer.
Direction indicators flashing more
quickly. Bulb blown.
Replace the bulb.
The direction indicators do not work. Faulty electrical circuit. Consult an approved dealer.
The headlights do not switch on or off. Faulty electrical circuit or control. Consult an approved dealer
Traces of condensation in the lights. This is not a fault. Traces of condensa-
tion are a natural phenomenon caused
by variations in temperature.
These traces soon disappear when the
lights are switched on.

Downloaded from www.Manualslib.com manuals search engine 7.2
FRA_UD28069_3
Index (X92 - Renault)
ENG_NU_975-3_X92_Dacia_7
Jaune NoirNoir texte
AlphAbeticAl index (2/4)
engine immobiliser (switch) ................................................. 2.2
engine oil ................................................................... 4.3 → 4.5
engine oil level ............................................................ 4.4 – 4.5
engine specifications ........................................................... 6.4
environment ........................................................................\
. 2.9
ESP: Electronic Stability Program .........................2.12 → 2.14
F
faults operating faults ................................................ 5.32 → 5.36
filter diesel filter .................................................................... 1.62
particle filter ................................................................... 2.5
fitting a radio ...................................................................... 5.30
fittings .................................................................... 3.12 → 3.15
fog lights ........................................................................\
.... 1.55
front passenger air bag deactivation ................................. 1.36
front seat adjustment ......................................................... 1.11
front seats ........................................................................\
.. 1.11
adjustment ................................................................... 1.11
fuel advice on fuel economy ....................................... 2.6 → 2.8
filling ............................................................................. 1.61
grade ..................................................................... 1.60, 6.4
fuel economy ............................................................. 2.6 → 2.8
fuel filler cap ...................................................................... 1.60
fuel grade ........................................................................\
... 1.60
fuel level ........................................................................\
.... 1.47
fuel priming bulb ................................................................ 1.62
fuel tank ................................................................. 1.60 → 1.62
fuel tank capacity ............................................................... 1.60
fuses ...................................................................... 5.21 → 5.23
G
gear lever ........................................................................\
... 2.10
glove box ........................................................................\
... 3.12grab handle
........................................................................\
3.11
h
handbrake ........................................................................\
.. 2.11
hands-free telephone integrated control ............................ 3.34
hazard warning lights signal .............................................. 1.57
headlight beam adjustment ............................................... 1.56
headlight flashers .............................................................. 1.57
headrest ......................................................... 1.10, 3.17 – 3.18
heated seats ...................................................................... 1.11
heating and air conditioning system .......................... 3.2 → 3.7
heating system .......................................................... 3.2 → 3.7
horn ........................................................................\
........... 1.57
hubcap tool ........................................................................\
.. 5.2
i
ignition switch ...................................................................... 2.2
indicators .................................................................. 1.57, 5.14
indicators: direction indicators ....................................................... 1.57
instrument panel ............................................... 1.46 – 1.47
instrument panel .................................................... 1.42 → 1.52
instrument panel messages ...................................1.48 → 1.52
interior trim maintenance ..................................................... 4.14 – 4.15
Isofix ...................................................................... 1.26 → 1.35
J
jack .................................................................... 5.2, 5.9 – 5.10
K
keys ........................................................................\
... 1.2 → 1.4
l
levels .................................................................. 4.3, 4.6 → 4.8
