2.38
ENG_UD24437_1
Boîte de vitesses automatique (X92 - Renault) ENG_NU_975-8_X92_Dacia_2
Selector lever 1
P: park
R: reverse
N: Neutral
D: automatic mode
M: manual mode
+: upper gear
–: lower gear
4: displays the gear engaged in manual
mode.
Note: Press the 2 button to go from po-
sition D or N to R or P.
Operation
With the selection lever 1 in position P,
switch on the ignition.
To move out of position P, you must de-
press the brake pedal before pressing
the unlocking button 2.
With your foot on the brake pedal
(warning light 3 on the display goes
out), move the lever out of position P.
The display 4 notifies the driver about
the current mode and gear.
Only engage D or R when the vehi-
cle is stopped, with your foot on the
brake and the accelerator pedal re-
leased.
AUTOMATIC TRANSMISSION (1/3)
Driving in automatic mode
Put lever 1 into position D.
In most road conditions you will en-
counter, you will not need to touch your
lever again: the gears will change au-
tomatically at the right time and at the
most suitable engine speed because
the automatic system takes into ac-
count the vehicle load and road contour
and adjusts itself to the particular driv-
ing style you have chosen.
Economical driving
When driving, always leave the lever
in position D, keeping the accelerator
pedal lightly depressed to ensure auto-
matic gear changes at a lower engine
speed.
Accelerating and overtaking
Depress the accelerator pedal firmly
and fully (so that it goes beyond the
kickdown point).
This will enable you to change down
to the optimum gear within the
engine range.
1
2
34

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
2.39
ENG_UD24437_1
Boîte de vitesses automatique (X92 - Renault) ENG_NU_975-8_X92_Dacia_2
AUTOMATIC TRANSMISSION (2/3)
Driving in manual modeWith the selector lever in position D,
move the lever to the left into the M
position. Shifting the lever repeatedly
allows you to change gears manually:
– to move down through the gears,
push the lever forwards;
– to move up through the gears, push
the lever backwards.
The gear selected is displayed on the
instrument panel.
Special circumstances
– If the bends and road surface do
not allow you to stay in automatic
mode (e.g. in the mountains), we
recommend that you change to
manual mode. This will prevent the
automatic gearbox from changing
gear repeatedly when climbing, and
permit engine braking on long de-
scents.
– On a slippery surface or surface
with little grip, change to manual
mode M and select second gear
before accelerating to avoid wheel-
spin.
Special cases
In certain driving conditions (e.g. re-
quiring engine protection, operation of
the Electronic Stability Program: ESC)
the automatic system may change the
gear automatically. Likewise, to prevent
incorrect manoeuvres, a gear change
may be refused by the automatic
system: in this case the gear display
flashes for a few seconds as a warning.
An impact to the under-
side of the vehicle while
manoeuvring (e.g.: strik-
ing a post, raised kerb or
other street furniture) may result in
damage to the vehicle (e.g.: defor-
mation of an axle).
To avoid any risk of accident, have
your vehicle checked by an ap-
proved Dealer.
When facing uphill, to remain
stopped, do not keep your foot on
the accelerator.
Risk of overheating the automatic
gearbox.

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
2.40
ENG_UD24437_1
Boîte de vitesses automatique (X92 - Renault) ENG_NU_975-8_X92_Dacia_2
– In cold weather (temperatures
under -20°C), wait a few seconds
before moving the selector lever
from position P and engaging it in D
or R, then avoid strong acceleration
for the first few minutes to prevent
the engine stalling.
Parking the vehicle
When the vehicle is stopped, move the
lever to position P while keeping your
foot on the brake pedal: the gearbox is
in neutral and the drive wheels are me-
chanically locked by the driveshaft.
Apply the handbrake.
AUTOMATIC TRANSMISSION (3/3)
Operating faults
If a vehicle with an automatic gear-
box breaks down, please refer to
the information on “Towing” in Section
5. When setting off, if the lever is
locked in position P even though you
are pressing the brake pedal, the lever
can be released manually. To do this,
release the base of the lever, then use
a tool (rigid rod) in the slot 5 and simul-
taneously press button 6 to unlock the
lever.
Contact an authorised dealer as soon
as possible.
In very cold weather, the system
may prevent the gears from being
shifted in manual mode until the
gearbox reaches the right tempera-
ture.
Towing a vehicle with an
automatic gearbox
With the engine switched off, the trans-
mission is no longer lubricated. It is
preferable to tow this type of vehicle on
a trailer or tow it with the front wheels
off the ground.
Under exceptional circumstances, you
may tow the vehicle with all four wheels
on the ground, only going forward, with
the gear lever in the neutral N position,
and for a distance not exceeding
30 miles (50 km).
For safety reasons, do not
switch off the ignition before
the vehicle has come to a
complete standstill.
5
6

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
5.35
ENG_UD33475_2
Accessoires VT (X35 - X44 - X45 - X77 - X81 - X85 - X90 - X91 - X70 - X76 - X83 - X61 - TEST - X95 - X33 - X47 - X43 - X38 - H79 - X62 - X32 - X67 - X92 - X98 - X52 - ENG_NU_975-8_X92_Dacia_5

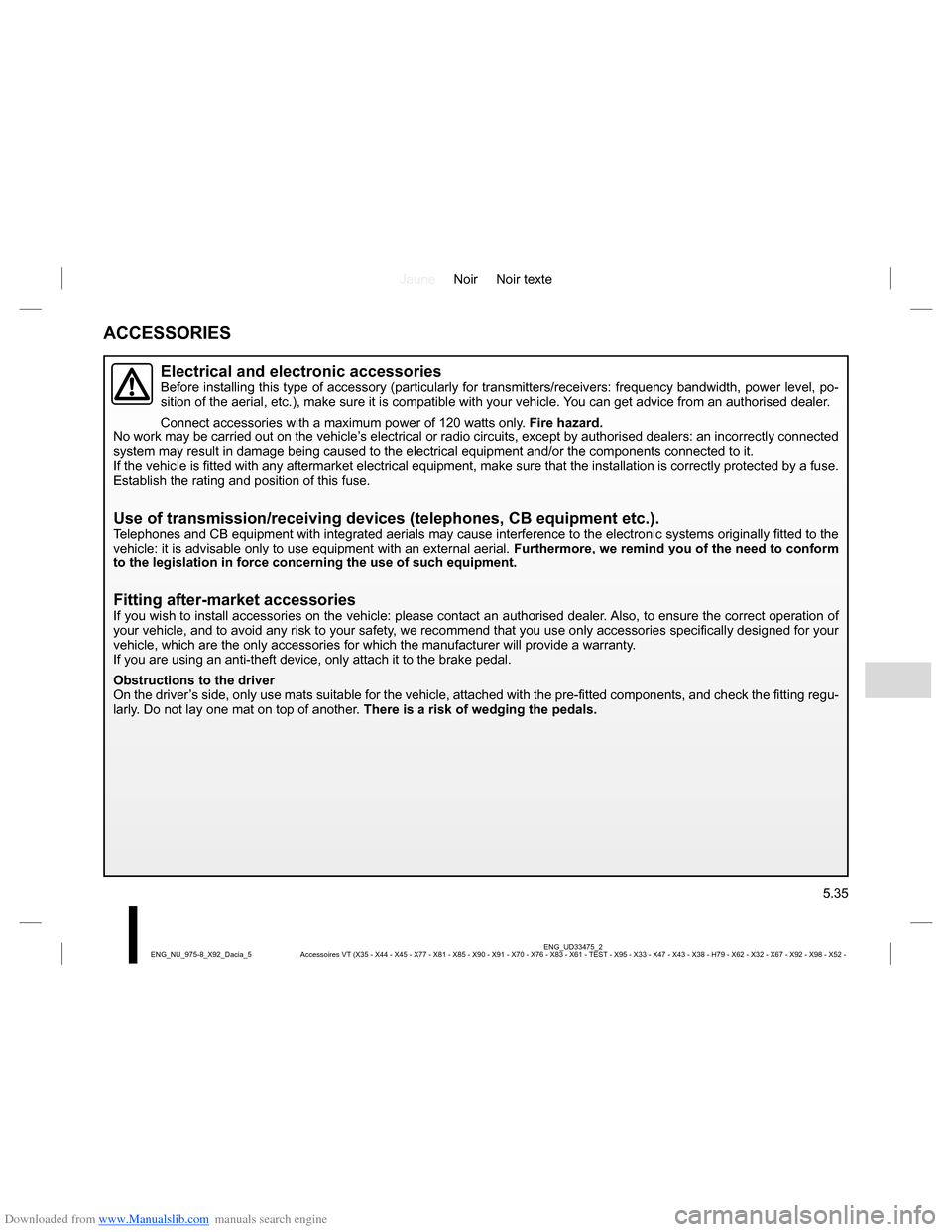

ACCESSORIES
Electrical and electronic accessoriesBefore installing this type of accessory (particularly for transmitters/receivers: frequency bandwidth, power level, po-
sition of the aerial, etc.), make sure it is compatible with your vehicle. You can get advice from an authorised dealer.
Connect accessories with a maximum power of 120 watts only. Fire hazard.
No work may be carried out on the vehicle’s electrical or radio circuits, except by authorised dealers: an incorrectly connected
system may result in damage being caused to the electrical equipment and/or the components connected to it.
If the vehicle is fitted with any aftermarket electrical equipment, make sure that the installation is correctly protected by a fuse.
Establish the rating and position of this fuse.
Use of transmission/receiving devices (telephones, CB equipment etc.).Telephones and CB equipment with integrated aerials may cause interference to the electronic systems originally fitted to the
vehicle: it is advisable only to use equipment with an external aerial. Furthermore, we remind you of the need to conform
to the legislation in force concerning the use of such equipment.
Fitting after-market accessoriesIf you wish to install accessories on the vehicle: please contact an authorised dealer. Also, to ensure the correct operation of
your vehicle, and to avoid any risk to your safety, we recommend that you use only accessories specifically designed for your
vehicle, which are the only accessories for which the manufacturer will provide a warranty.
If you are using an anti-theft device, only attach it to the brake pedal.
Obstructions to the driver
On the driver’s side, only use mats suitable for the vehicle, attached with the pre-fitted components, and check the fitting regu-
larly. Do not lay one mat on top of another. There is a risk of wedging the pedals.
