Sécurité enfants : installation du siège enfant (X92 - Renault\
)
ENG_NU_975-6_X92_Dacia_1
CHILD SAFETY: fitting a child seat (8/8)
X = Seat not suitable for fitting child seats.
U = Seat allowing a child seat with “Universal” approval to be attache\
d by seat belt; check that it can be fitted correctly.
IUF = Seat which allows a forward-facing child seat with “Universal” approval to be attached by the ISOFIX device; check that it can be fitted.
IL = Seat which allows child seats with “Semi-universal” or “Vehicle specific” approval to be attached by the ISOFIX device; chec k
that it can be fitted.
(3) Only a rear-facing child seat can be fitted in this seat: raise the seat\
to the maximum and position it as far back as possible ,
tilting the seatback slightly (approximately 25°).
(4) A carrycot can be installed across the vehicle and will take up at least \
two seats. Position the child with his or her feet nea rest
the door.
(5) Move the front seat as far forward as possible to install a rear-facing \
child seat, then move back the seat in front as far as it will
go, although without allowing it to come into contact with the child sea\
t. Raise the headrest or remove it.
(6) Forward-facing child seat; position the seatback of the child seat in co\
ntact with the seatback of the vehicle seat. Adjust the
height of the headrest or remove it if necessary; do not push the seat in front of the child more than halfway back on its runn ers
and do not recline the seatback more than 25°.
Refer to the “Child safety equipment” booklet available from the network to choose \
the seat suited to your child and rec-
ommended for your vehicle.

1.36
ENG_UD28687_2
Sécurité enfants : désactivation/activation airbag passager ava\
nt (X92 - Renault)
ENG_NU_975-6_X92_Dacia_1
CHILD SAFETY: deactivating/activating the front passenger air bag (1/3)
The passenger air bag must
be activated or deactivated
with the ignition off .
If handled when the igni-
tion is on, the warning light
å
comes on.
Switch the ignition off then on again
to reset the air bag in accordance
with the lock.
With the ignition on, it is essential to
check that the 2
] warning light is
lit up.
This warning light remains continu-
ously lit to let you know that you can
fit a child seat .
Deactivating the front
passenger air bags
(depending on vehicle)
In order to be able to install a rear-
facing child seat on the front passen-
ger seat, you must deactivate the front
passenger seat belt additional restraint
systems.
To deactivate the passenger airbag,
with the ignition off , press and turn
button 1 to the OFF position.
2
1

1.37
ENG_UD28687_2
Sécurité enfants : désactivation/activation airbag passager ava\
nt (X92 - Renault)
ENG_NU_975-6_X92_Dacia_1
CHILD SAFETY: deactivating/activating the front passenger air bag (2/3)
DANGER
Since front passenger
airbag triggering and the
position of a rear-facing
child seat are incompatible, NEVER
use a restraining device for rear-
facing children on a seat with an
ACTIVATED AIRBAG in front of it.
This provides a risk of DEATH or
SERIOUS INJURY to the CHILD.
The markings on the dashboard and
labels A on each side of the passen-
ger sun visor 3 (example: label shown
above) remind you of these instruc-
tions.
3
A
AA

1.38
ENG_UD28687_2
Sécurité enfants : désactivation/activation airbag passager ava\
nt (X92 - Renault)
ENG_NU_975-6_X92_Dacia_1
CHILD SAFETY: deactivating/activating the front passenger air bag (3/3)
Operating faults
It is forbidden to fit a rear-facing child
seat to the front passenger seat if the
air bag activation/deactivation system
is faulty.
Allowing any other passenger to sit in
that seat is not recommended.
Contact your approved dealer as soon
as possible.
Activation of the front
passenger air bag
(depending on vehicle)
You should reactivate the air bag as
soon as you remove the child seat from
the front passenger seat to ensure the
protection of your front passenger in
the event of an impact.
To reactivate the airbag: with the ve-
hicle at a standstill and with the ig-
nition switched off , press and turn
button 1 to the ON position.
With the ignition on, you must check
that the warning light 2
] is off.
2
The passenger air bag must
be activated or deactivated
with the ignition off.
If handled when the igni-
tion is on, the warning light
å
comes on.
Switch the ignition off then on again
to reset the air bag in accordance
with the lock.
DANGER
Since front passenger
airbag triggering and the
position of a rear-facing
child seat are incompatible, NEVER
use a restraining device for rear-
facing children on a seat with an
ACTIVATED AIRBAG in front of it.
This provides a risk of DEATH or
SERIOUS INJURY to the CHILD.
1

JauneNoir Noir texte
1.39
ENG_UD24419_1
Rétroviseurs (X92 - Renault)
ENG_NU_975-6_X92_Dacia_1

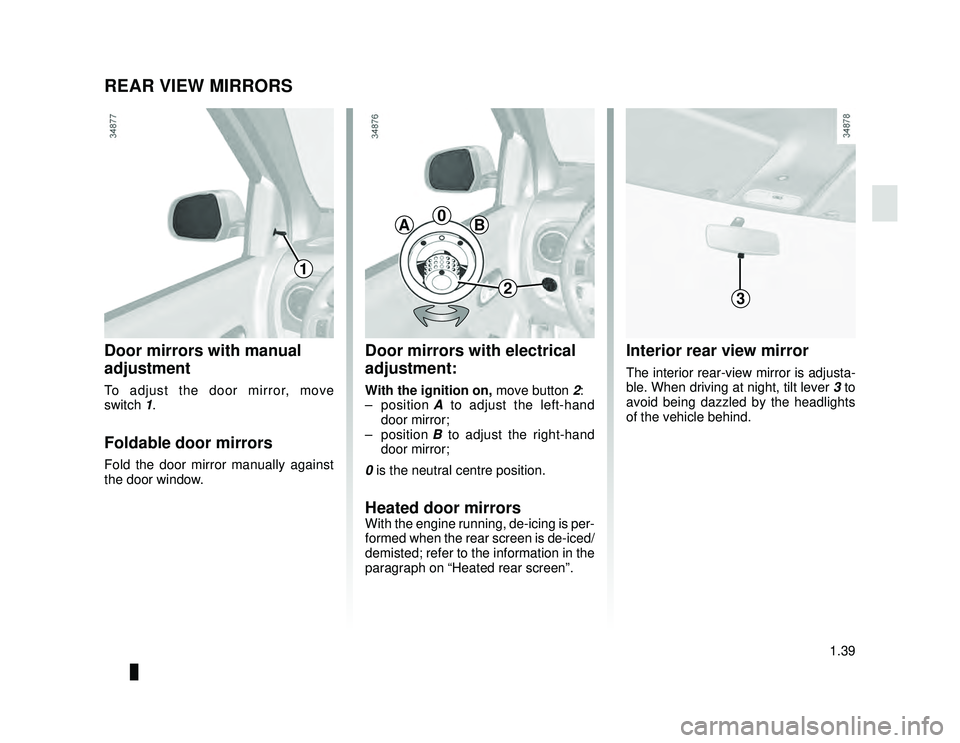

REAR VIEW MIRRORS
Door mirrors with manual
adjustment
To adjust the door mirror, move
switch 1.
Foldable door mirrors
Fold the door mirror manually against
the door window.
Door mirrors with electrical
adjustment:
With the ignition on, move button 2:
– position A to adjust the left-hand
door mirror;
– position B to adjust the right-hand
door mirror;
0 is the neutral centre position.
Heated door mirrors
With the engine running, de-icing is per-
formed when the rear screen is de-iced/
demisted; refer to the information in the
paragraph on “Heated rear screen”.
Interior rear view mirror
The interior rear-view mirror is adjusta-
ble. When driving at night, tilt lever 3 to
avoid being dazzled by the headlights
of the vehicle behind.
0A0B
3
1
2

JauneNoir Noir texte
1.40
ENG_UD33069_3
Poste de conduite direction à gauche (X92 - Renault)
ENG_NU_975-6_X92_Dacia_1
DRIVER’S POSITION, LEFT-HAND DRIVE (1/2)
12356789101112
131415161718
19
20
212223
24252627282930313233
4

JauneNoir Noir texte
1.41
ENG_UD33069_3
Poste de conduite direction à gauche (X92 - Renault)
ENG_NU_975-6_X92_Dacia_1
DRIVER’S POSITION, LEFT-HAND DRIVE (2/2)
The presence of the equipment DEPENDS ON THE VEHICLE VERSION AND COUNTRY.
1 Side air vent.
2 Side demister outlet.
3 Stalk for:
– direction indicator lights,
– exterior lights,
– front fog lights,
– rear fog lights,
– horn.
4 Instrument panel.
5 Location for driver’s airbag.
6 Steering column stalk for winds-
creen and rear screen wash/wipe.
On-board computer information
readout control.
7 Centre air vents.
8 Central demister outlet.
9 Location for passenger airbag or
storage compartment.
10 Side demister outlet. 11 Side air vent.
12 Passenger airbag activation/deac-
tivation switch.
13 Glovebox.
14 Hazard warning lights switch.
15 Electric central locking switch.
16 Location for radio or storage com-
partment.
17 Heating and ventilation controls.
18 Rear screen and door mirror de-
icing control
19 Cigarette lighter.
Accessories socket.
20 Handbrake.
21 LPG control
22 Location for ashtray or cup holder.
23 Gear lever.
24 ECO mode switch.
25 Cruise control/speed limiter main
control.
26 Ignition switch.
27 Radio remote control.
28 Cruise control/speed limiter
controls.
29 Beam height adjustment control.
30 Fuse box.
Storage box.
31 Bonnet release control.
32 Controls for:
– activating/deactivating the trac-tion control system,
– activating/deactivating the par- king distance control.
33 Door mirror adjustment control.

JauneNoir Noir texte
1.42
ENG_UD34835_3
Tableau de bord : témoins lumineux (X92 - Renault)
ENG_NU_975-6_X92_Dacia_1
áMain beam headlight tell-tale
light
kDipped beam headlight tell-
tale
gFront fog light tell-tale light
fRear fog light tell-tale
cLeft-hand direction indicator
tell-tale
bRight-hand direction indica-
tor tell-tale
ä æGear change indicator
This lights up to advise
you to change to a higher gear (up
arrow) or lower gear (down arrow).
WARNING LIGHTS (1/4)
The presence and operation of the warning lights DEPEND ON THE EQUIPMENT\
AND COUNTRY.
If no lights or sounds are ap-
parent, this indicates a fault
in the instrument panel. This
indicates that it is essential
to stop immediately (as soon as traf-
fic conditions allow). Ensure that the
vehicle is correctly immobilised and
contact an approved Dealer.
Instrument panel A
The red warning light Ò
requires you to stop imme-
diately, for your own safety,
as soon as traffic conditions allow.
Switch off the engine and do not
restart it. Contact an Authorised
Dealer.
If the orange warning light Ò
comes on while you are driving,
drive carefully to an authorised
dealer as soon as possible. Failure
to follow this recommendation risks
damaging your vehicle.
A

JauneNoir Noir texte
1.43
ENG_UD34835_3
Tableau de bord : témoins lumineux (X92 - Renault)
ENG_NU_975-6_X92_Dacia_1
WARNING LIGHTS (2/4)
The presence and operation of the warning lights DEPEND ON THE EQUIPMENT\
AND COUNTRY.
ÔCoolant temperature warn-
ing light
If this remains lit while driving, ac-
companied by a beep, this means the
engine is overheating. Stop and allow
the engine to run at idle speed for a
minute or two. The temperature should
drop. If not, stop the engine. Let it cool
down before checking the coolant level.
Contact an authorised dealer if neces-
sary.
ÄWarning light for monitoring
exhaust gas
It comes on when the ignition is
switched on and then goes out.
– If it lights up continuously, consult an authorised dealer as soon as possi-
ble;
– If it flashes, reduce the engine speed until the light stops flashing. Contact
your approved Dealer as soon as
possible.
Please refer to the information on
“Maintenance and antipollution advice”
in Section 2.
ÒWarning light malfunction
(red or orange)
Urgent stop warning light (red)
This lights up when the ignition is
switched on and goes out as soon as
the engine is started. It lights up at the
same time as other warning lights, and
is accompanied by a beep.
It requires you to stop immediately, for
your own safety, as soon as traffic con-
ditions allow. Switch off the engine and
do not restart it.
Contact an approved Dealer.
Warning light (orange)
This lights up when the ignition is
switched on and goes out as soon as
the engine is started. It may comes on
in conjunction with other warning lights
on the instrument panel.
It means you should drive very care-
fully to an authorised dealer as soon
as possible. If you fail to follow this rec-
ommendation, you risk damaging your
vehicle.
DHandbrake “on” warning
light and brake circuit inci-
dent warning light
This comes on when the ignition is
switched on. If it comes on during brak-
ing and is accompanied by a beep, it in-
dicates that the fluid level in the circuit
is low; it may be dangerous to continue
driving - please contact an authorised
dealer.
A

JauneNoir Noir texte
1.44
ENG_UD34835_3
Tableau de bord : témoins lumineux (X92 - Renault)
ENG_NU_975-6_X92_Dacia_1
WARNING LIGHTS (3/4)
The presence and operation of the warning lights DEPEND ON THE EQUIPMENT\
AND COUNTRY.
ÉPreheating warning light (on
diesel version)
This should come on when the igni-
tion is switched on. It indicates that the
heater plugs are in operation. It goes
out after preheating is sufficient and the
engine can be started.
åAirbag warning light
This comes on when the igni-
tion is switched on and goes out after
a few seconds. If it does not come on
when the ignition is switched on or if it
flashes, there is a fault in the system.
Contact an approved Dealer as soon as
possible.
ÚBattery charge warning light
If it comes on when you are
driving, it indicates that the circuit has
discharged. Stop and consult an ap-
proved Dealer as soon as possible.
xAnti-lock braking warning
light
This lights up when the ignition is
switched on and goes out after a few
seconds.
If it does not go out after the ignition is
switched on, or lights up when driving,
there is a fault with the ABS. Braking
will then be as normal, without the ABS
system.
Contact an approved Dealer as soon as
possible.
LLow fuel level warning light
This comes on when the igni-
tion is switched on and goes out after a
few seconds. If it comes on when driv-
ing accompanied by a beep, fill up with
fuel as soon as possible. There is only
approximately 30 miles (50 km) worth
of fuel left after the warning light first
comes on.
Tyre pressure loss warning
Please refer to the information
on the “Tyre pressure loss warning” in
Section 2.
ÀOil pressure warning light
This lights up when the ignition
is switched on and goes out after a few
seconds.
If it comes on on the road, accompa-
nied by a beep, stop immediately and
cut the ignition.
Check the oil level (refer to “Engine oil
level: general information” in Section
4). If the level is normal, the light has
come on for another reason: Consult an
authorised dealer straight away.
A
